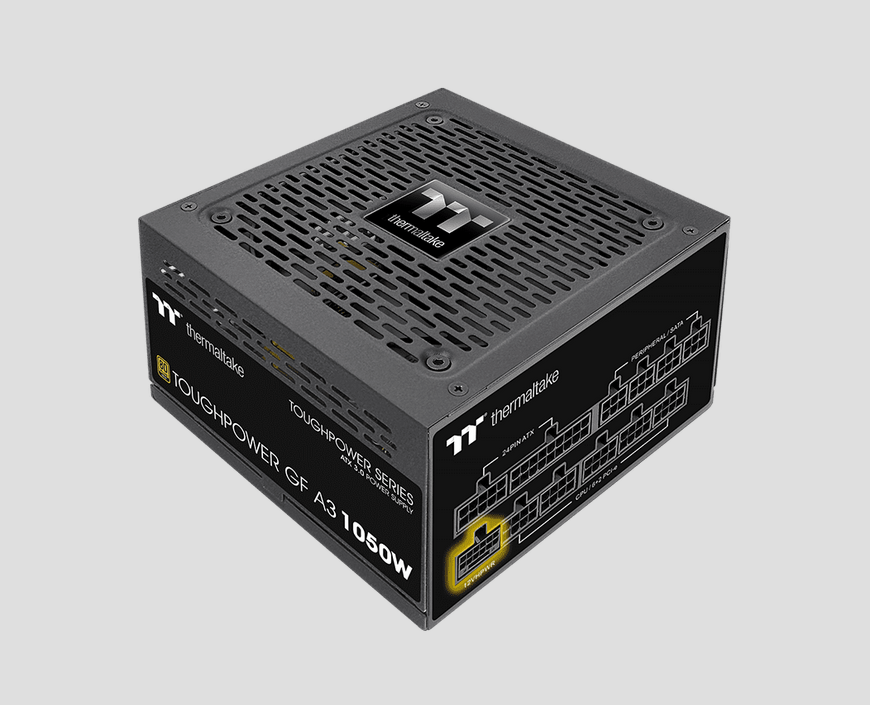

Thermaltake Toughpower GF A3 1050W
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-00-52%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)
Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-01-16%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)
Power Up the Next Generation Hardware
To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-01-29%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)

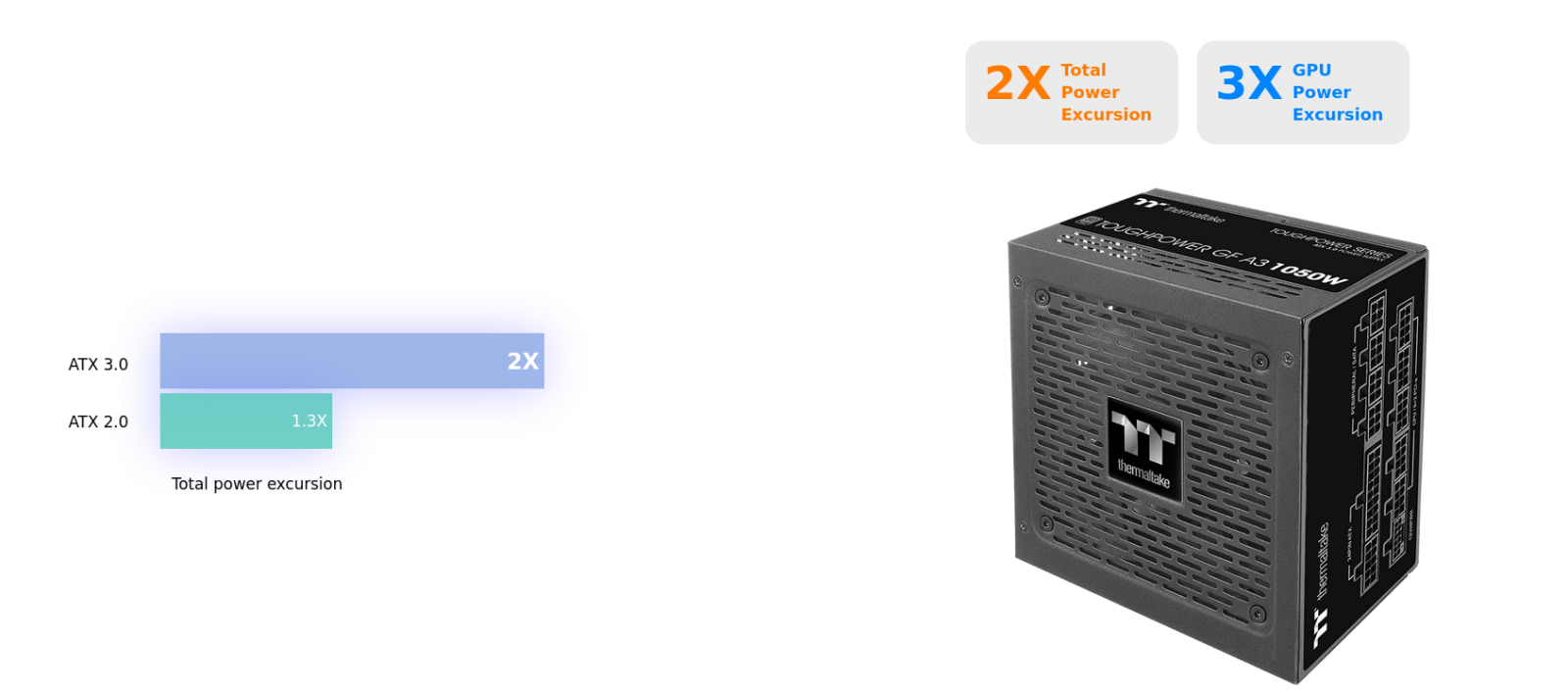

Fully Compatible with Intel ATX 3.0 Standards
Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-02-17%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)

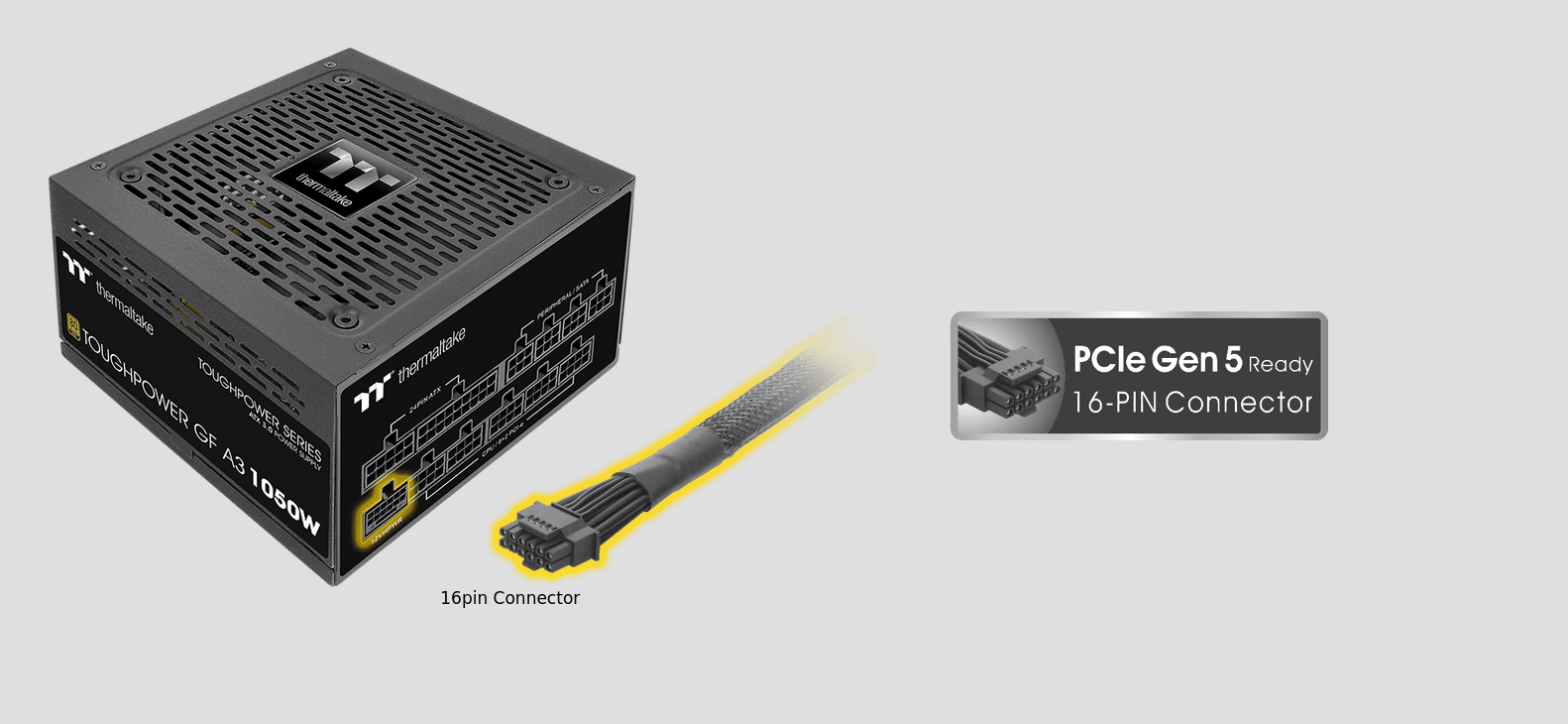

PCIe Gen 5.0 Ready
Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-02-33%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.
![](/images/custom/site/Screenshot%202024-04-10%20at%2016-02-49%20TOUGHPOWER%20GF%20A3%20Gold%201050W%20-%20TT%20Premium%20Edition.png)

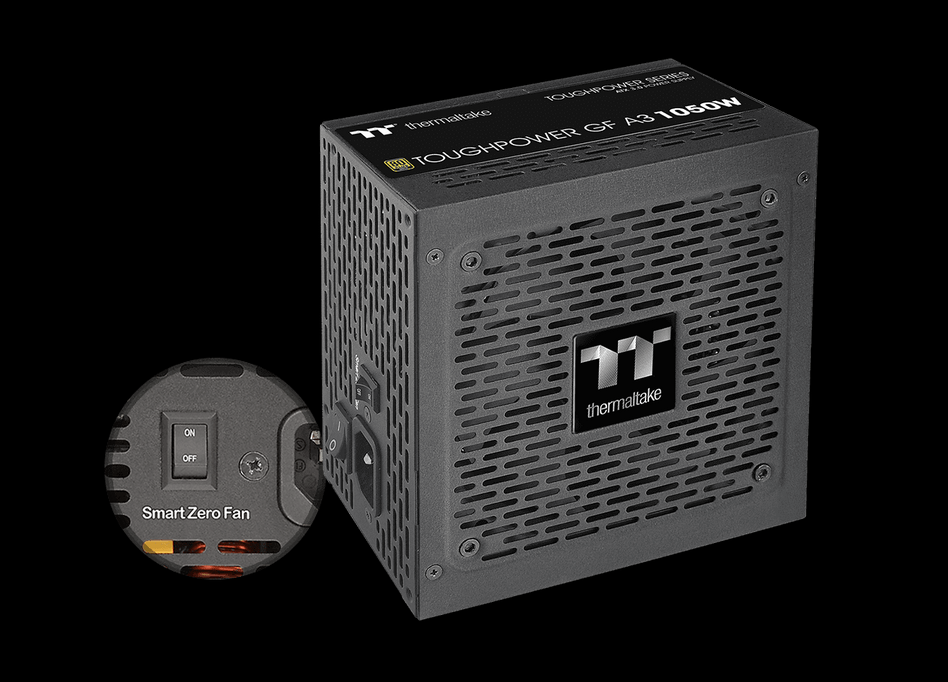

Be Smart, Stay Quiet
Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.
Specs:
Max. Output Capacity | 1050W |
Color | Black |
Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-250 msec |
Hold Up Time | > 17msec |
Input Current | 15A Max. |
Input Frequency Range | 50Hz - 60Hz |
Input Voltage | 100 - 240Vac |
Operating Temperature | 0°C to + 45°C |
Operating Humidity | 5% to 85%,non-condensing |
Storage Temperature | -40°C to + 70°C |
Storage Humidity | 5% to 95%, non-condensing |
Cooling System | 12cm FDB Fan |
Efficiency | 80 PLUS Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
PCI-E 6+2pin | 5 |
PCIe 12+4pin | 1(600W) |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Thermaltake
Виж всички Захранвания Настолни компютри в категорията
Документация
Технически характеристики
Изходна мощност: | 1050 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
