Name: Кутия Thermaltake CTE C700 Air, E-ATX/ATX/mATX/Mini-ITX, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0, 3x 140mm вентилатора, с прозорец, черна, без захранване
Brand: Thermaltake
SKU: CASEPTHERMALTAKECA1X700F1WN00
Price: 307.86 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

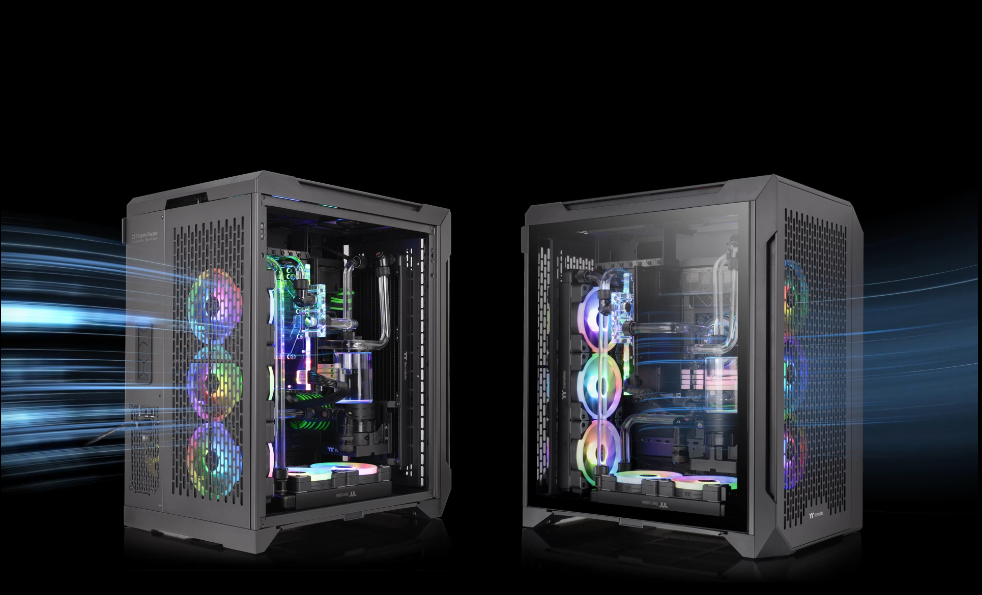

Thermaltake CTE C700 Air

CTE Form Factor

Designed by Thermaltake

The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.

Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.

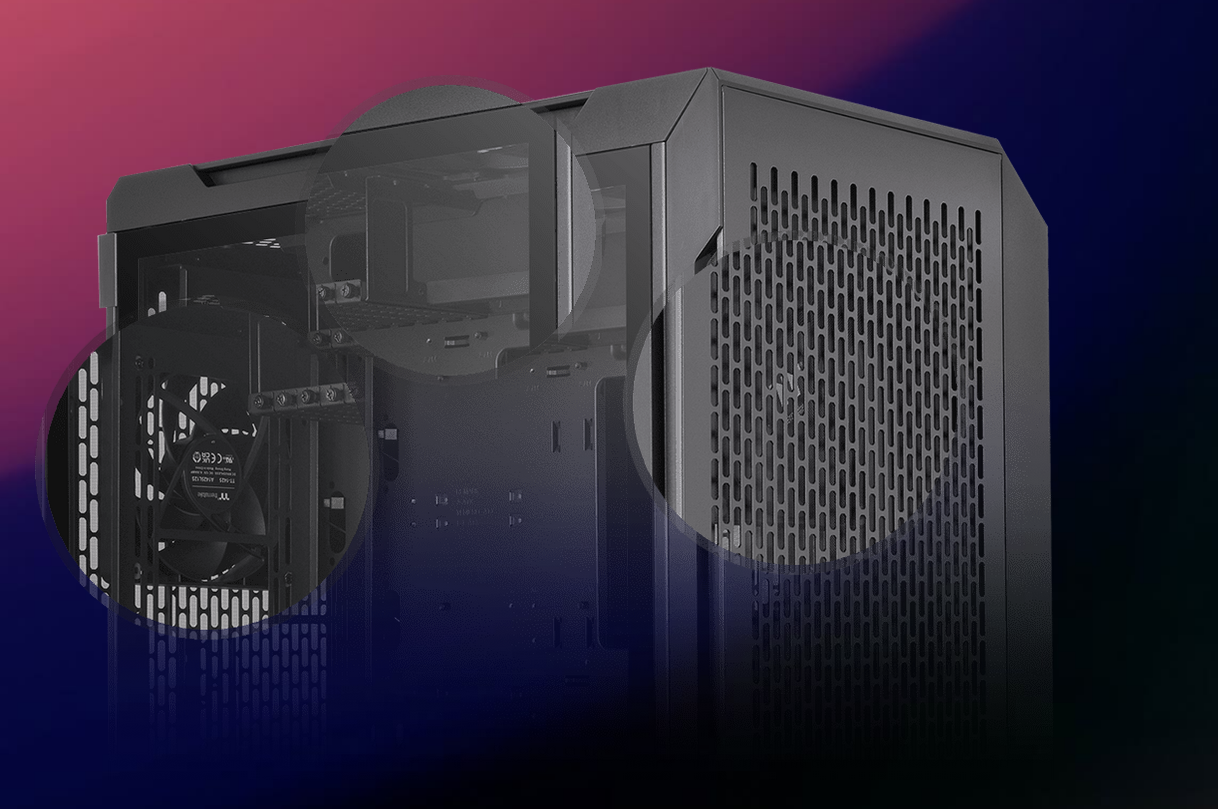

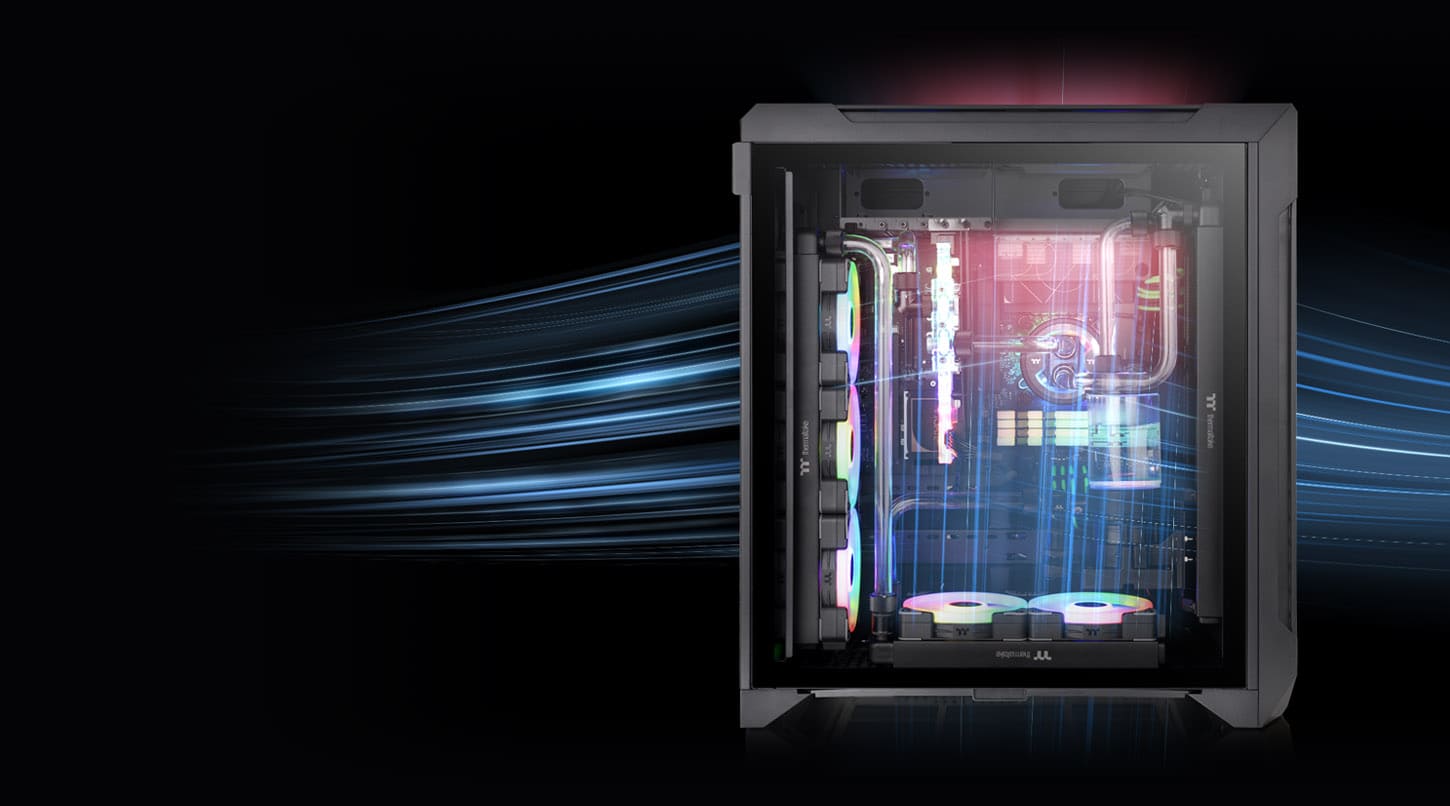

Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air

Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.

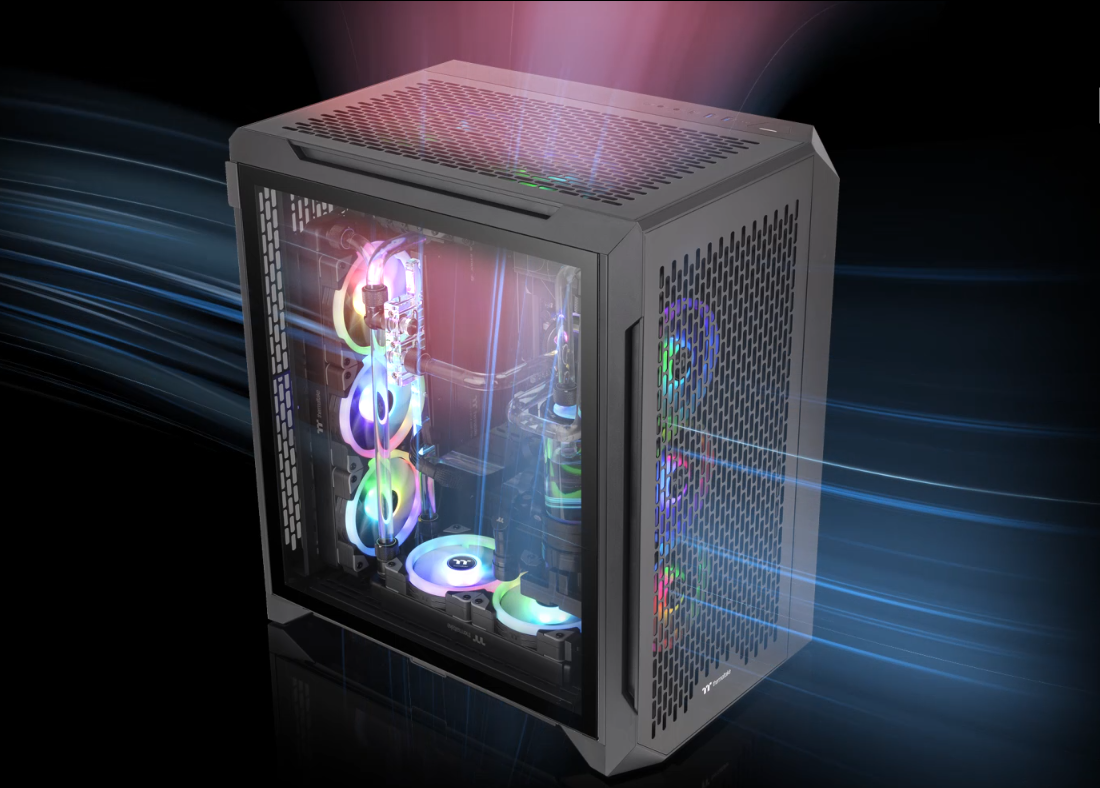

Active Cooling for More Efficient Intake Airflow

This overall approach has allowed CTE C700 to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.

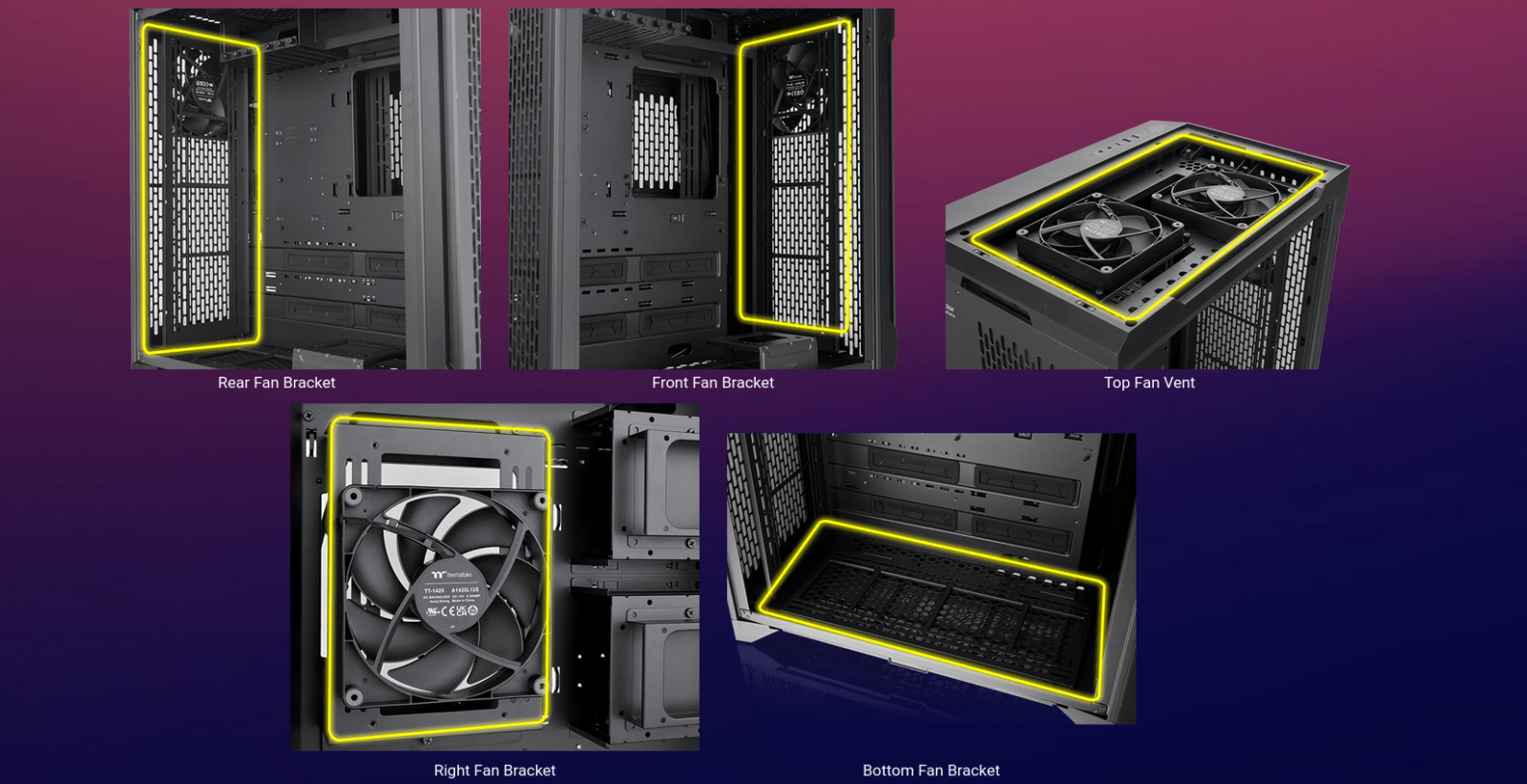

All Your Dream Cooling Components Can Fit!

The CTE C700 has enormous fan and cooler installation capacity: up to twelve 120mm fans (eleven140mm fans) and 360mm/420mm AIO coolers at the front and the rear. Moreover, equipped fan brackets at the front, rear, bottom and right side, and the installation spot at the top ensure easy installation of all your desired cooling components.

Blow Your World Away with Three Pre-installed 140mm CT140 Fans

CTE C700 Air mid tower Chassis features three 140mm PWM Fans at the front, top and rear. The CT140 fan are the best-performing case fans among all the case fans in Thermaltake's collection so far.

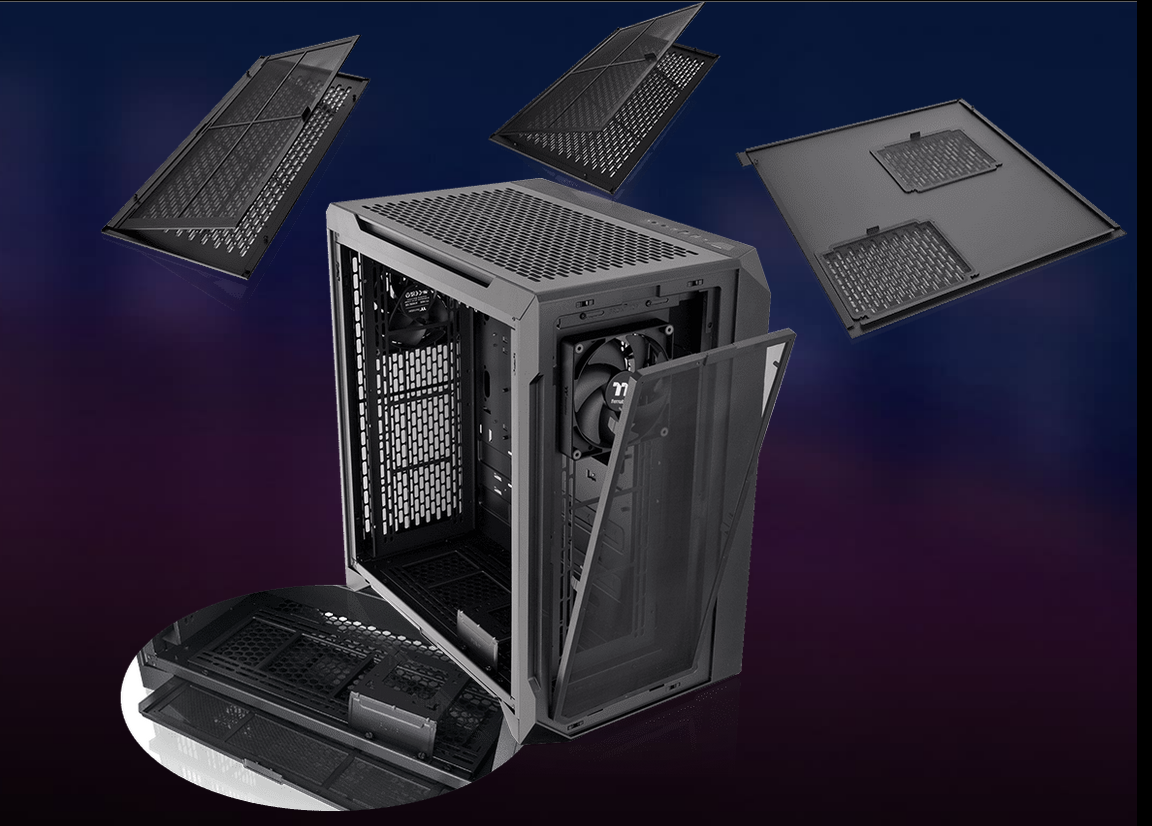

Perfect Dust Protection

There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.

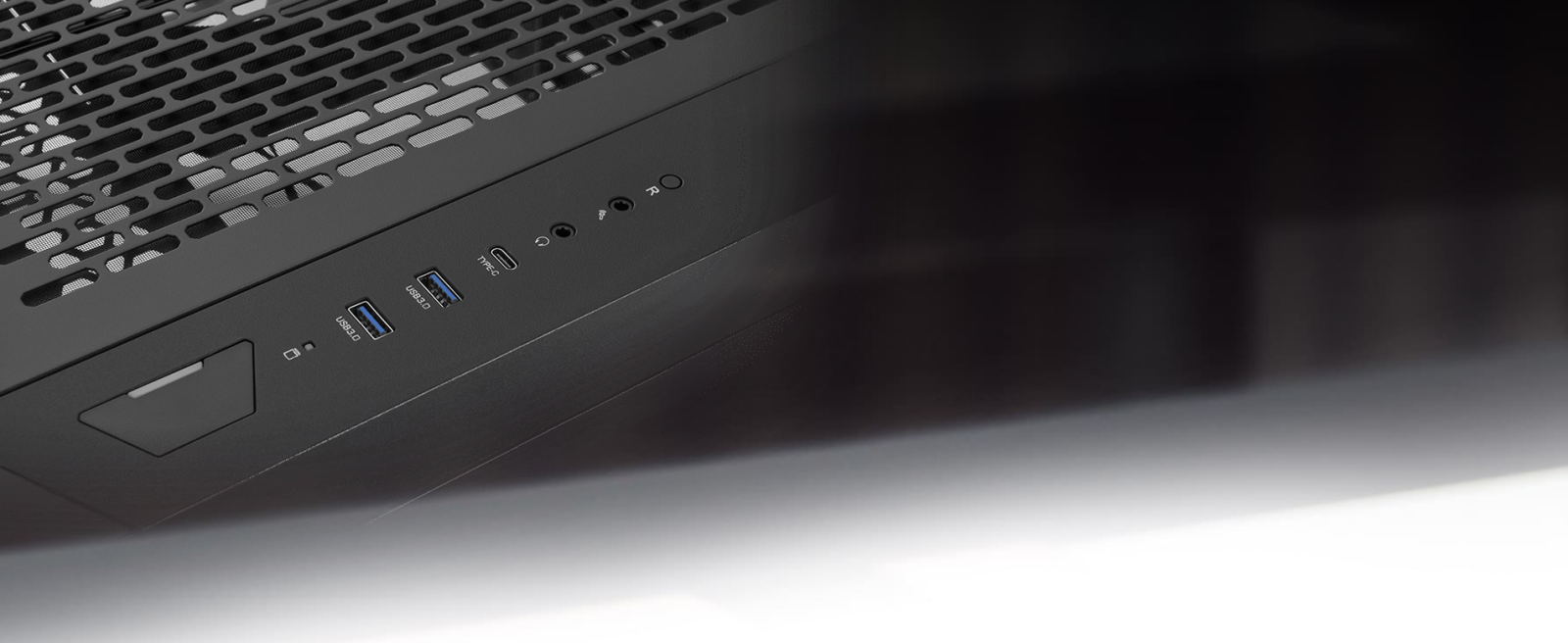

Everything You Need Is Located In One Place

Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.

Specs:

Series	CTE
CASE TYPE	Mid Tower
Dimension (H x W x D)	566.5 x 327.6 x 505.5 mm
NET WEIGHT	15.6 kg
PANEL	4mm Tempered Glass x 1
Color	Black
MATERIAL	SPCC / ABS
COOLING SYSTEM	Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Drive Bays	7 x 3.5” or 6 x 2.5”
EXPANSION SLOTS	7
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT	Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm
CLEARANCE	CPU cooler max height: 190mm VGA max length: 327mm (With radiator) 410mm (Without radiator) PSU max length: 220mm
