Точка за достъп Tenda O6, 5GHz(867Mbps), 1x 10/100/1000Mbps LAN, 1x вътрешна антена

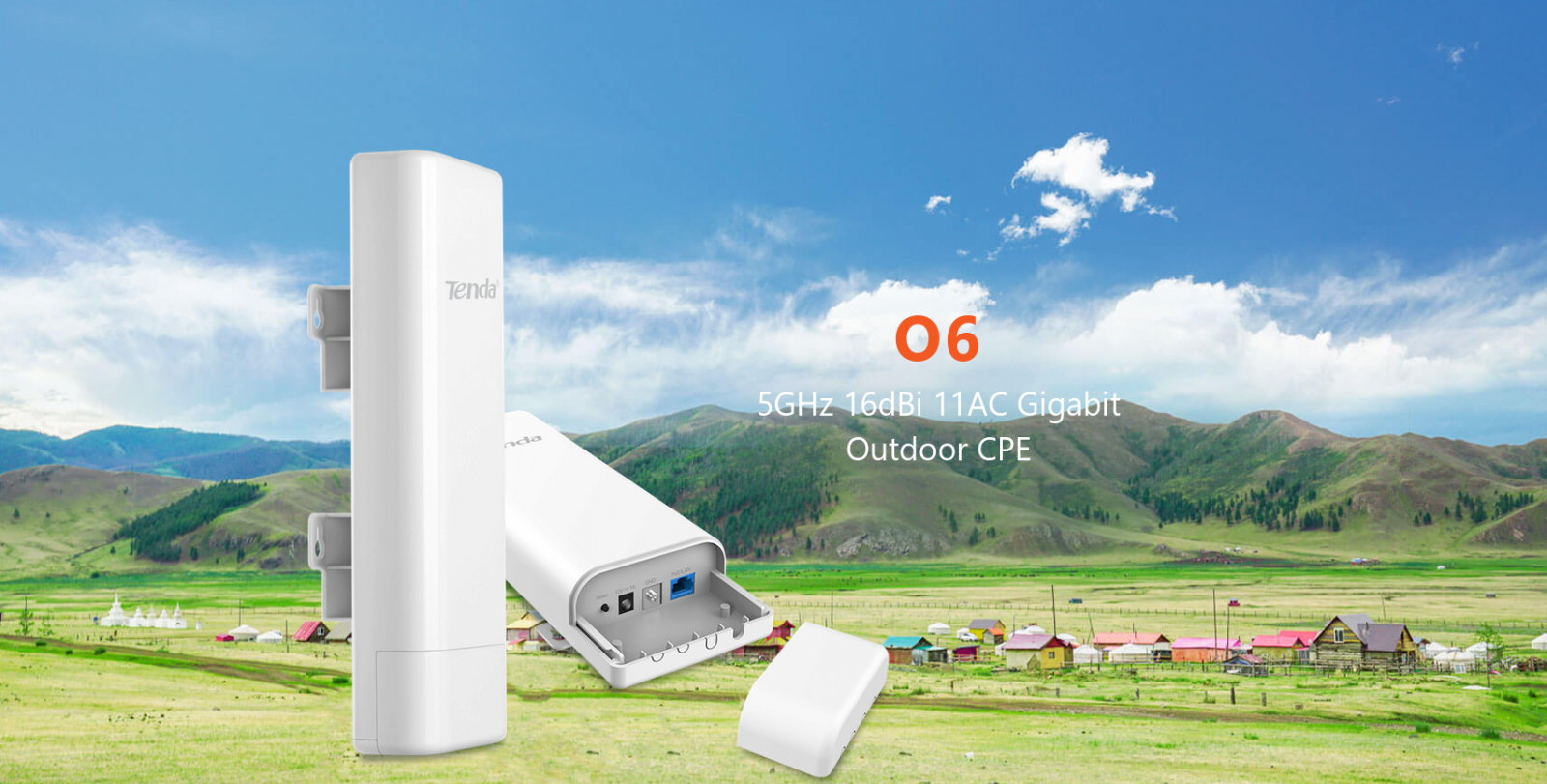

Tenda O6

O6V2.0 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.

Main Features:

•  5GHz 11AC 867Mbps

•  16dbi directional antenna

•  One Gigabit Ethernet Port

•  IP65 waterproof enclosure

•  6000V Lightning Protection

•  AP,Station,WISP operating mode supported

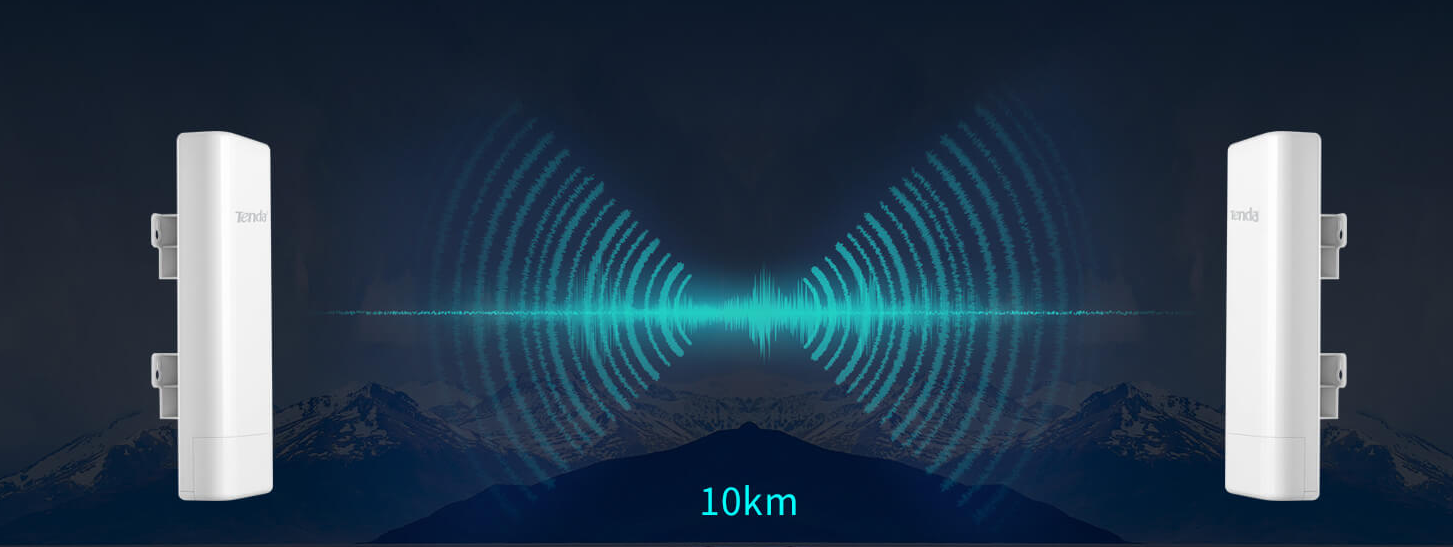

10+km transmission Range

O6 adopts of independent external power amplifier and 16dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 10km.

P2P connection throughput up to 450+Mbps

O6 adopt of 11AC wave2 technology, it delivers 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port design , the maximum throughput test for PtP connection can be up to 450Mbps.

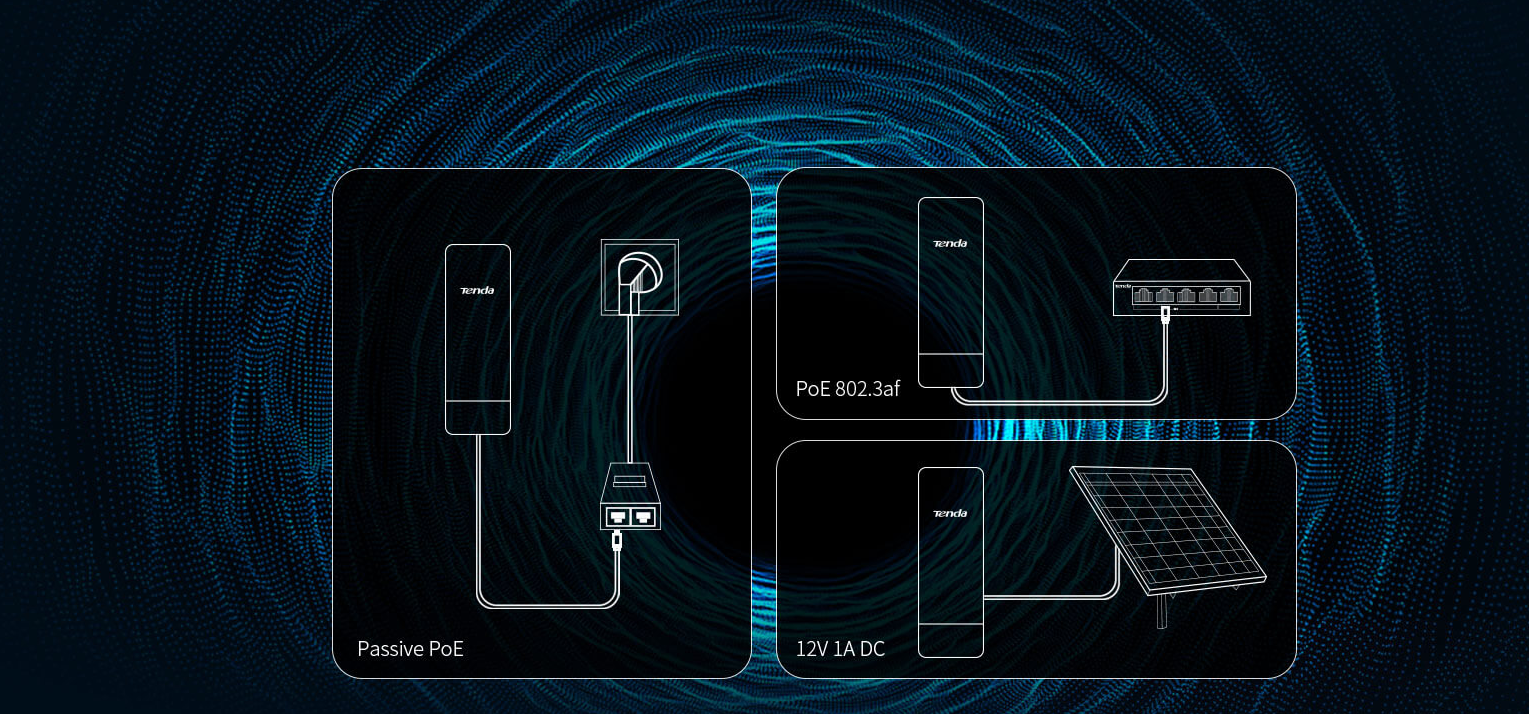

Flexible power supply method enable it easy to deployment

O6 support PoE 802.3af/at, 24V 0.5A Passive PoE and 12V 1A DC power supply optional. It helps the engineer to deployment the device flexiblely.

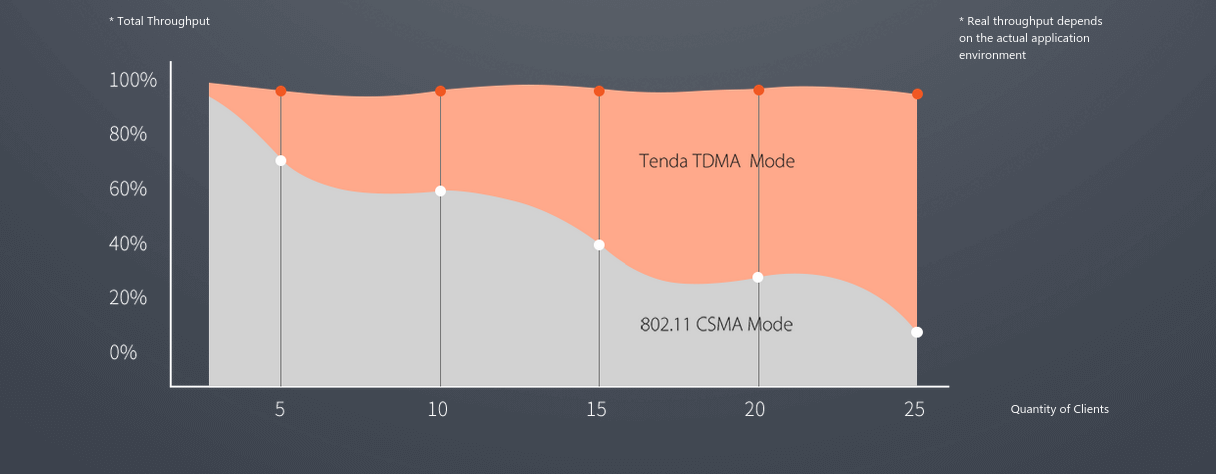

TD-MAX-Tenda TDMA proprietary protocol

TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become“hidden nodes” and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously.
As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

Professional Outdoor Design

Equipped with IP65 waterproof enclouse and high quality hardware design, O6 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment .

Specifications:

Информация за продукта

Измерение

270*94.86*67.5mm

Разгръщане

Pole Mount

Сценарии за приложение

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Хардуер

Честотен диапазон

5GHz

Съответстващи стандарти

IEEE 802.11a/n/ac

Максимална безжична скорост

867Mbps

Интерфейси

1*10/100/1000Mbps Ethernet Port

Поляризация на антената

Dual Polarization Directional Antenna

Усилване на антените

16dBi

Ширина на лъча на антената

Horizontal: 30° Vertical: 30°

GND

1*GND

Бутон за рестартиране

1*Reset Button

Консумация на енергия

6.5W

Водоустойчиво ниво

IP65

Лед индикатор

PoE/LAN,LED1,LED2,LED3

Метод на захранване

PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC

Мълниезащита

6000V

Пасивно PoE

Passive power over ethernet via PoE/LAN (✚4,5pins
-7,8pins ) up to 60 meters
Voltage range: 21-25V DC

Чувствителност на приемане

11a 6Mbps -95dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm

софтуер

TDMA

Support

Работен режим

AP/Station/WISP/P2MP/WDS Repeater/Router

Активиране/деактивиране на безжичното радио

Support

SSID е скрит

Support

Безжична изолация на клиента

Support

SSID изолация

Support

Пропускателна способност на канала

20/40/80MHz

Преместване на канала

Support

Безжичен контрол на достъпа

Support

Ограничение на клиента със слаб сигнал

Support

Мощност на предаване

Adjustable power by 1dBm

Възможност за WMM

Support

Възможност за APSD

Support

Безжична сигурност

64/128 WEP,WPA-PSK,WPA2-PSK,WPA

Прозрачен мост

Support

VLAN маркиране за SSID

Support

DHCP сървър

Support

VPN Pass-through

PPTP,L2TP

Отдалечен уеб достъп

Support

Планирайте рестартиране

Support

Време за изчакване на страницата

Support

Пинг пазач

Support

Dynndns

noip, dyndns.org

Мрежови диагнози

Ping, Traceroute, Signal Scan

Time and Date Setting

Support

Надстройка на фърмуера

Support

Конфигурация за архивиране/възстановяване

Support

Управление на потребителско име

Support

Системни регистрационни файлове

Support

Управлява се от контролер

PC Software CPE Assistant

други

Работна температура

-30℃ ~ 60℃

Температура на съхранение

-40℃ ~ 70℃

Работна влажност

10%~90% non-condensing

Влажност на съхранение

10%~90% non-condensing

IP за вход по подразбиране

192.168.2.1

Потребителско име за вход по подразбиране

admin

Парола за вход по подразбиране

admin

Сертифициране

FCC/CE/RoHS
