Точка за достъп Tenda O2, 5GHz(300Mbps), 1x 10/100Mbps LAN, 1x вътрешна антена

Tenda O2

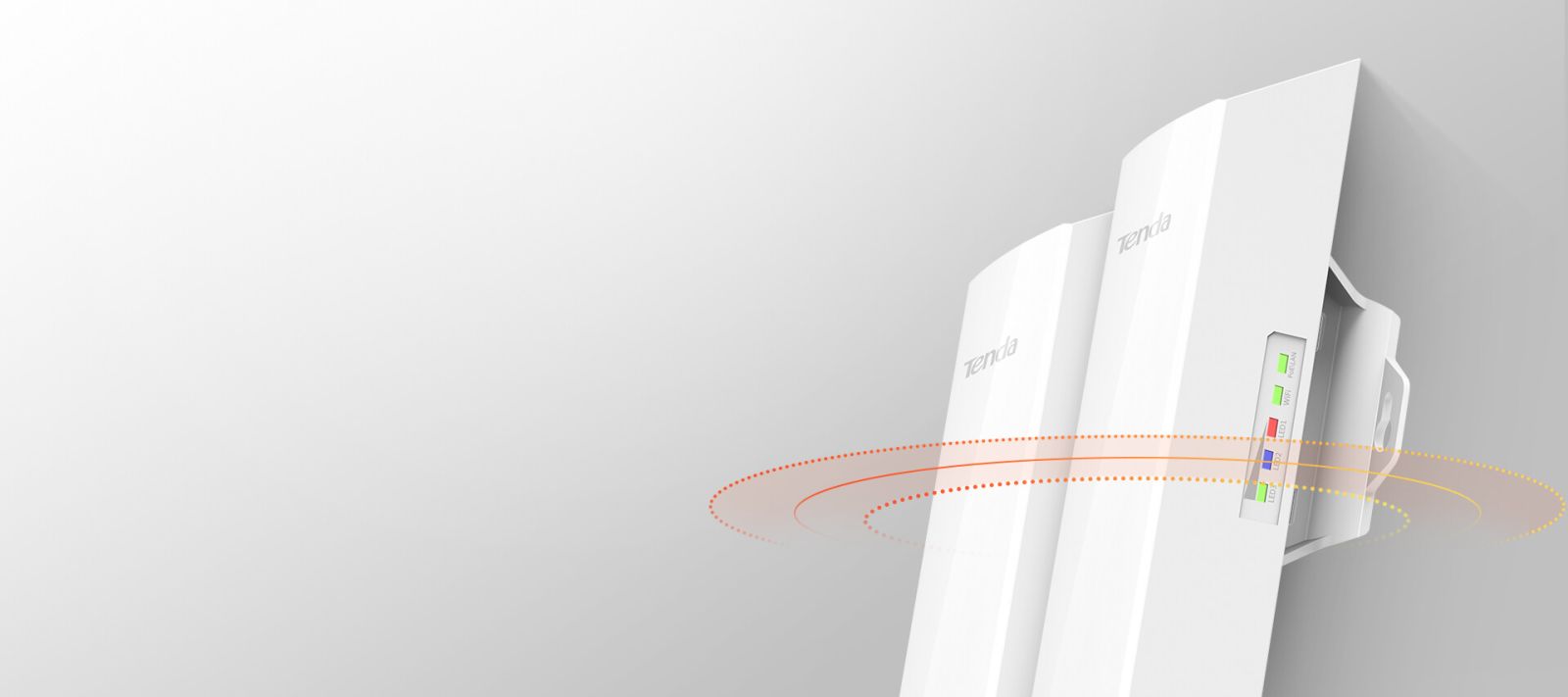

O2 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.

2km Point to Point Outdoor CPE

O2 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

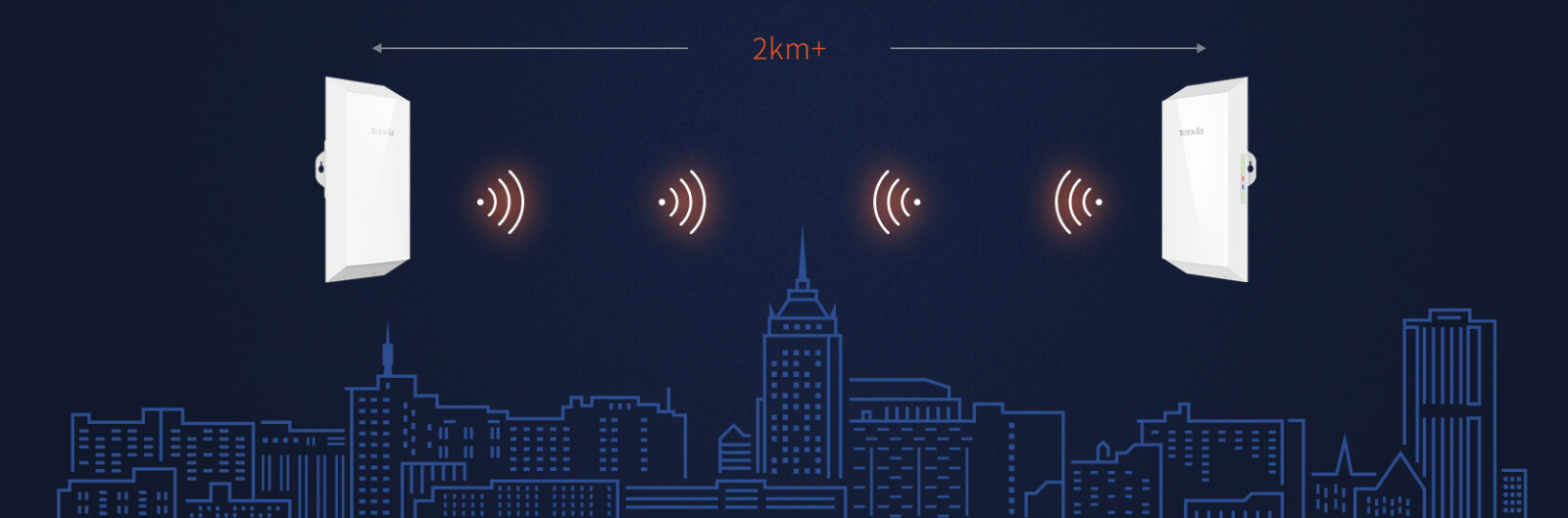

2km+ Transmission Range

O2 adopts of independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 2km.

Super Channel-Extended Frequency

O2 adopt of Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into clean spectrum.

TD-MAX-TendaTDMA Proprietary Protocol

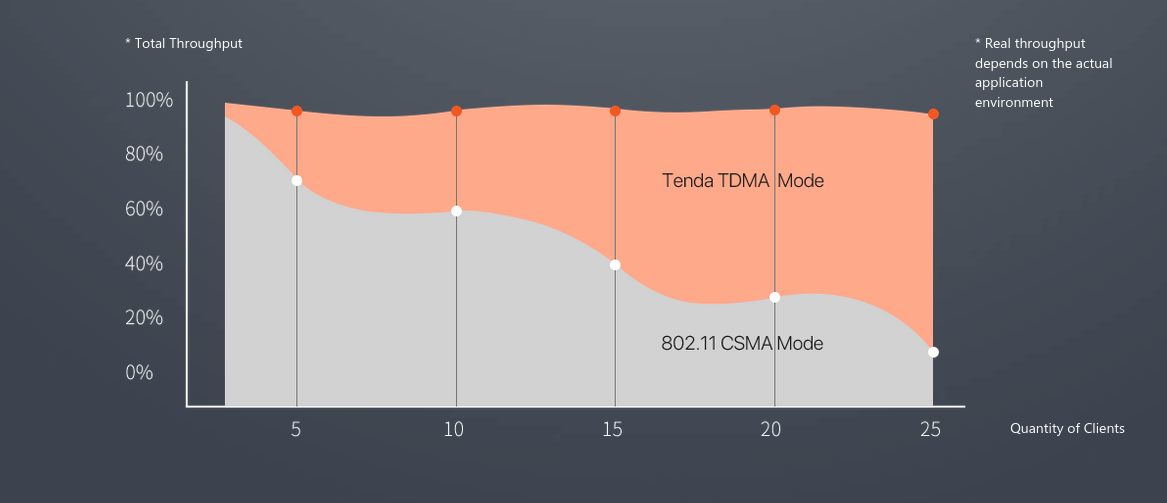

TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

10/20/30/40MHz Channel Bandwidth for Better Throughput

O2 apply special optimization in software for register parameter to deliver 10/20/30/40MHz channel bandwidth option. It provides extra 10MHz and 30MHz channel bandwidth option to consumed according applycation scenarios. When you choose 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better.

Specifications:

Информация за продукта

Измерение

193.5*80*67.5mm

Разгръщане

Pole Mount/Wall Mount

Сценарии за приложение

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Хардуер

Честотен диапазон

5GHz

Съответстващи стандарти

IEEE 802.11a/n

Максимална безжична скорост

300Mbps

Интерфейси

1*10/100Mbps Ethernet Port

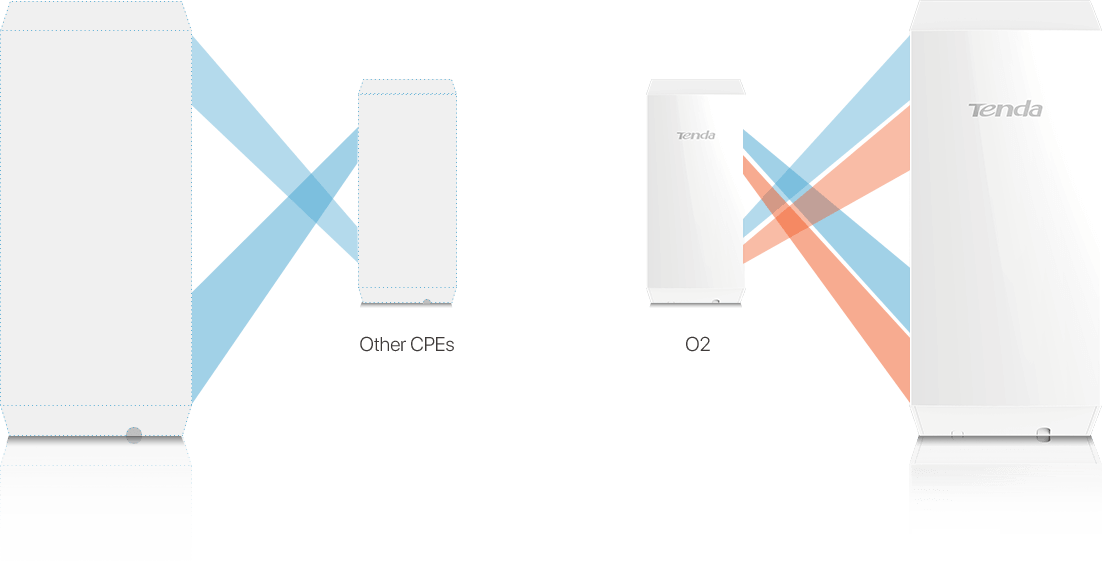

Поляризация на антената

Dual Polarization

Усилване на антените

12dbi

Ширина на лъча на антената

Horizontal: 30° Vertical: 30°

GND

/

Бутон за рестартиране

1*Reset Button

Консумация на енергия

4.3W

Водоустойчиво ниво

IP65

Лед индикатор

PoE/LAN,WiFi, LED1,LED2,LED3

Метод на захранване

12V1A Passive PoE
12V1A DC

Мълниезащита

6000V

Пасивно PoE

Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins)
Voltage range: 9-13.8V DC

Чувствителност на приемане

11a 6Mbps -96dBm±1.5dBm
11n MCS0: -96±1.5dBm
11n MCS7: -72±1.5dBm

софтуер

TDMA

Support

Работен режим

AP/Station/WISP/P2MP/WDS Repeater/Router

Активиране/деактивиране на безжичното радио

Support

SSID е скрит

Support

Безжична изолация на клиента

Support

SSID изолация

Support

Пропускателна способност на канала

10/20/30/40MHz

Преместване на канала

Support

Безжичен контрол на достъпа

Support

Ограничение на клиента със слаб сигнал

Support

Мощност на предаване

Adjustable power by 1dBm

Възможност за WMM

Support

Възможност за APSD

Support

Безжична сигурност

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Прозрачен мост

Support

VLAN маркиране за SSID

Support

DHCP сървър

Support

VPN Pass-through

PPTP,L2TP

Отдалечен уеб достъп

Support

Планирайте рестартиране

Support

Време за изчакване на страницата

Support

Пинг пазач

Support

Dynndns

noip, dyndns.org

Мрежови диагнози

Ping, Traceroute, Signal Scan

Time and Date Setting

Support

Надстройка на фърмуера

Support

Конфигурация за архивиране/възстановяване

Support

Управление на потребителско име

Support

Системни регистрационни файлове

Support

Управлява се от контролер

PC Software CPE Assistant

други

Работна температура

-30℃ ~ 60℃

Температура на съхранение

-40℃ ~ 70℃

Работна влажност

10%~90% non-condensing

Влажност на съхранение

10%~90% non-condensing

IP за вход по подразбиране

192.168.2.1

Потребителско име за вход по подразбиране

admin

Парола за вход по подразбиране

admin

Сертифициране

FCC/CE/RoHS
