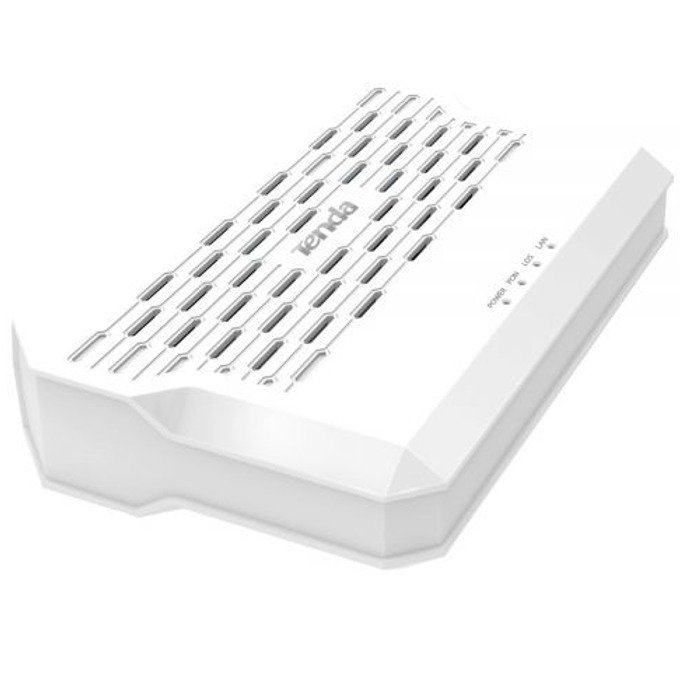

PoE сплитер Tenda Epon E101, 10/100/1000Mbps, IEEE 802.3ah

Tenda E101 Compliant with IEEE802.3ah standard, E101 is widely compatible with global ISP and OLT . 1 gigabit wired RJ45 port is provided by E101 to bring ultra-fast data transfer. Plug and play, E101 supports OAM remote management without onsite configuration as well . E101 is a terrific EPON device for FTTH with easy and simple design. With upstream and downstream rate up to 1.25Gbps and transmission distance up to 20Km, E101 can bring freewheeling internet access

With comprehensive Network Compatibility, E101 Is An Perfect Choice For FTTH.


Compliant with IEEE802.3ah standard, E101 is widely compatible with global ISP and OLT . 1 gigabit wired RJ45 port is provided by E101 to bring ultra-fast data transfer. Plug and play, E101 supports OAM remote management without onsite configuration as well . E101 is a terrific EPON device for FTTH with easy and simple design. With upstream and downstream rate up to 1.25Gbps and transmission distance up to 20Km, E101 can bring freewheeling internet access .



>> Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ah standard.
>> Downstream and upstream rate is up to 1.25Gbps and transmission distance is up to 20Km.
>> Supports OAM remote management without onsite configuration.
>> Gigabit LAN port supports ultra-fast data transfer.
>> WEB management and optical power monitor.
>> Low power consumption ensures greenlumi.
>> Brand-new interface ensures simple and easy installation.
>> Compatible with most ISP.



With comprehensive network compatibility , E101 is a perfect choice for FTTH.
Compliant with EPON standard, downstream and upstream rate up to 1.25Gbps, E101 is widely compatible with global ISP and OLT.

Blazing-fast internet accessup to 1.25Gbps
Downstream and upstream rate up to 1.25Gbps which is 50 times faster than conventional 24Mbps ADSL brings freewheeling internet access

Gigabit LAN port supports ultra-fast data transfer.
1 Gigabit wired LAN port supports ultra-fast data transfer. E101 can bring freewheeling internet access, making it a great choice to build multimedia entertainment network easily

Remote management for easy useand simple maintenance.
OAM remote management without onsite configuration ensures easy use and simple maintenance

Standard&Protocol

IEEE 802.3ah

Port

1 10/100/1000M auto-negotiation RJ45 port （Auto MDI/MDIX）

Antenna

Not Support

Button

1*Power, 1*Reset, 1*LED，1*WPS

Power

9V 600mA

Dimension

142mm*92mm*31mm （L*W*H）

Indicator

POWER PON LOS LAN

Wireless Speed

Not Support

Frequency

Not Support

Basic Function

Not Support

Wrieless Security

Not Support

WAN Connection Type

EPON ONT

Operating Mode

Bridge Mode

DHCP Configuration

Not Support

Virtual Server

Not Support

Security

Support

PN pass-through

Not Support

Other

Optical Power Monitor

Temperature

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃

Humidity

Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~90% RH non-condensing

Default Settings

IP address : 192.168.1.1

Certification

CCC Certification

Associated Products

E302,G103

Package Content

1 *ethernet cable, 1* phone cable, 1* quick installation guide,1 *power adpter
