Точка за достъп Tenda B6, 300Mbps, 5 GHz (300Mpbs), 1x LAN 10/100

Tenda B6

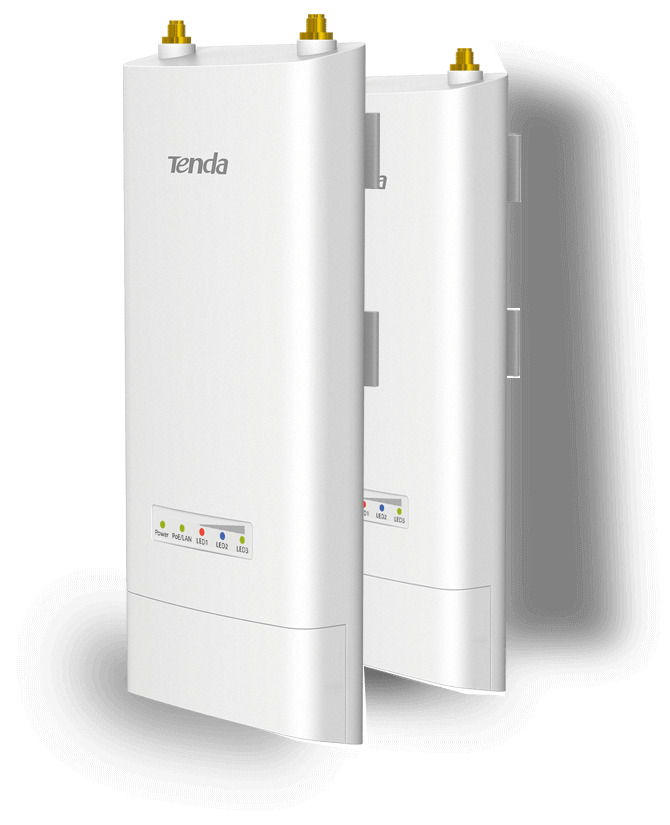

B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol-TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users.

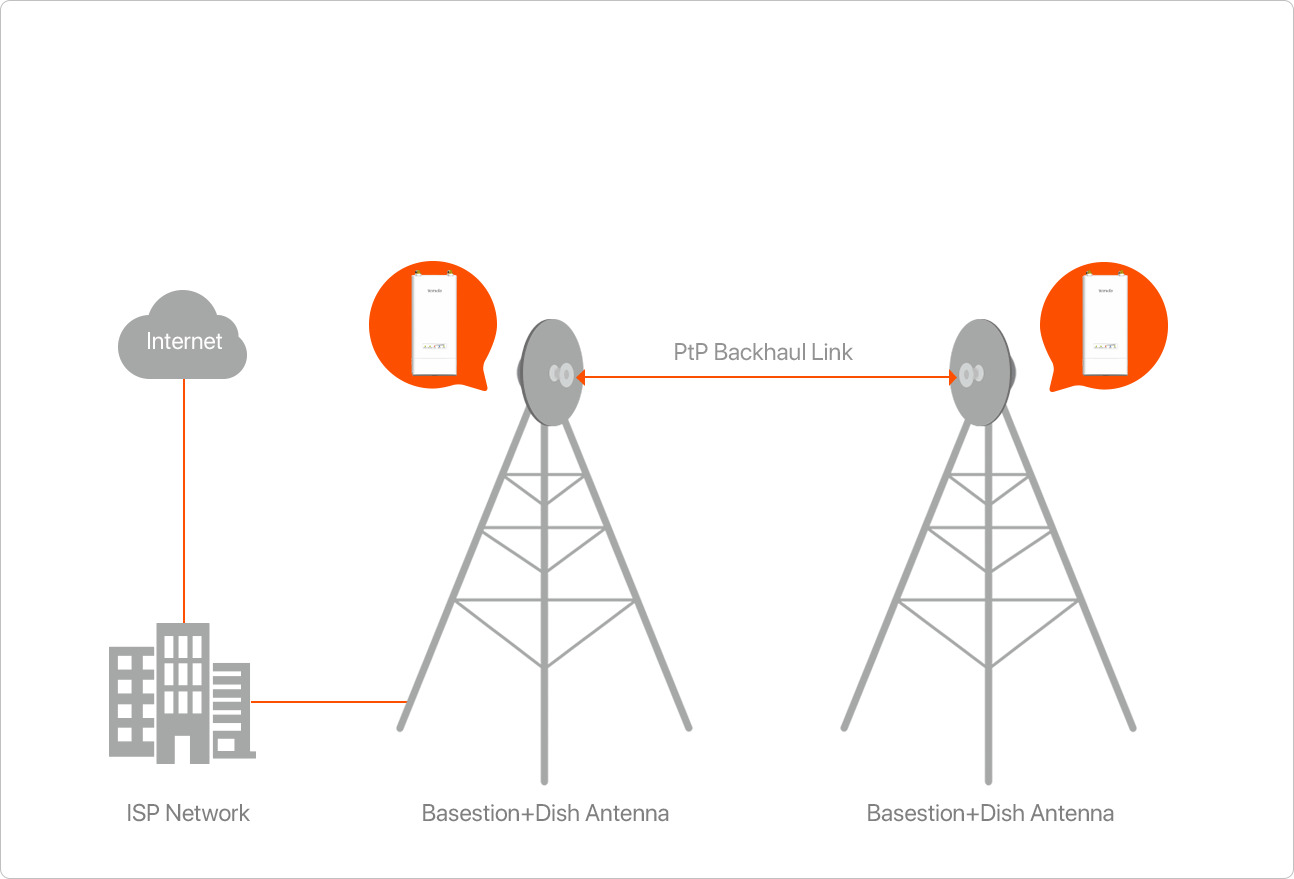

PtP Backhaul Connection

Pair with Dish antenna, one work as AP mode and another work as Station mode to create a long distance backhaul connection.

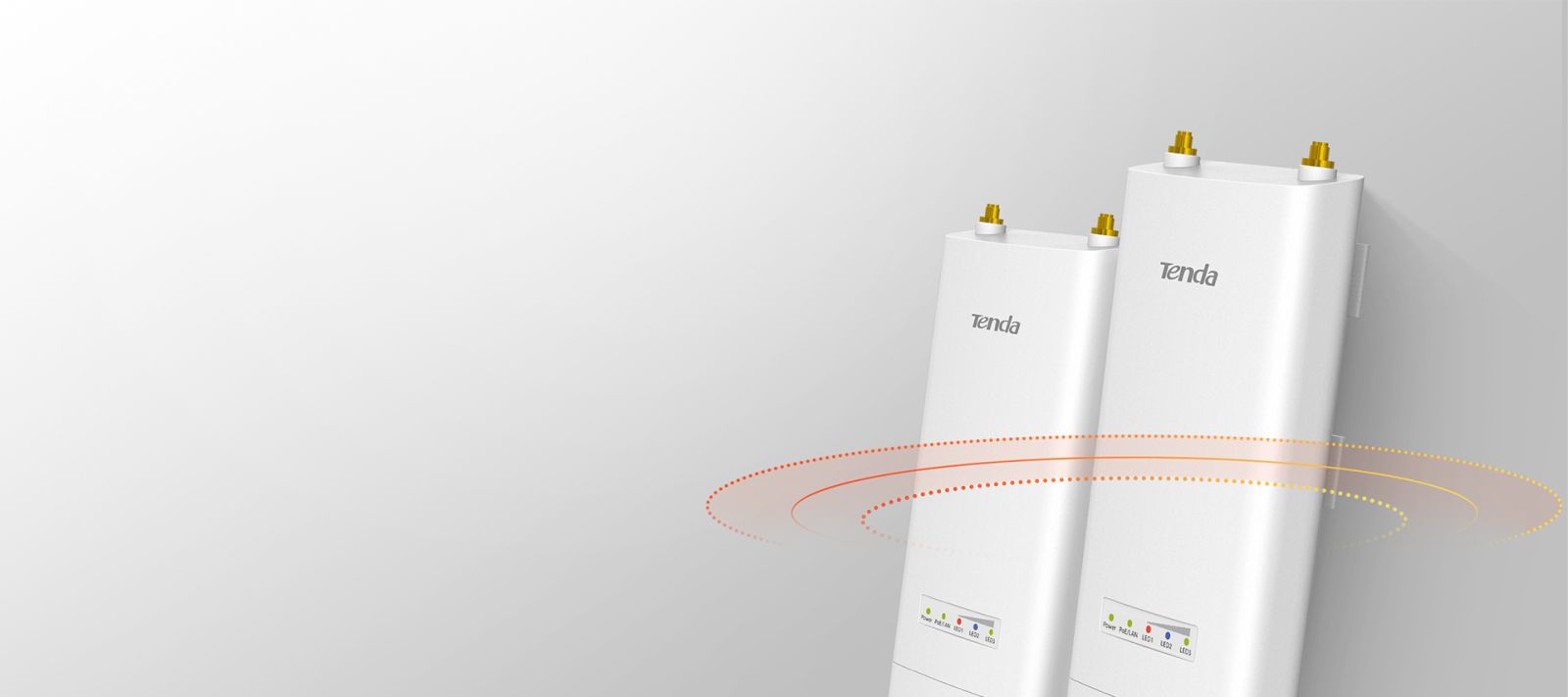

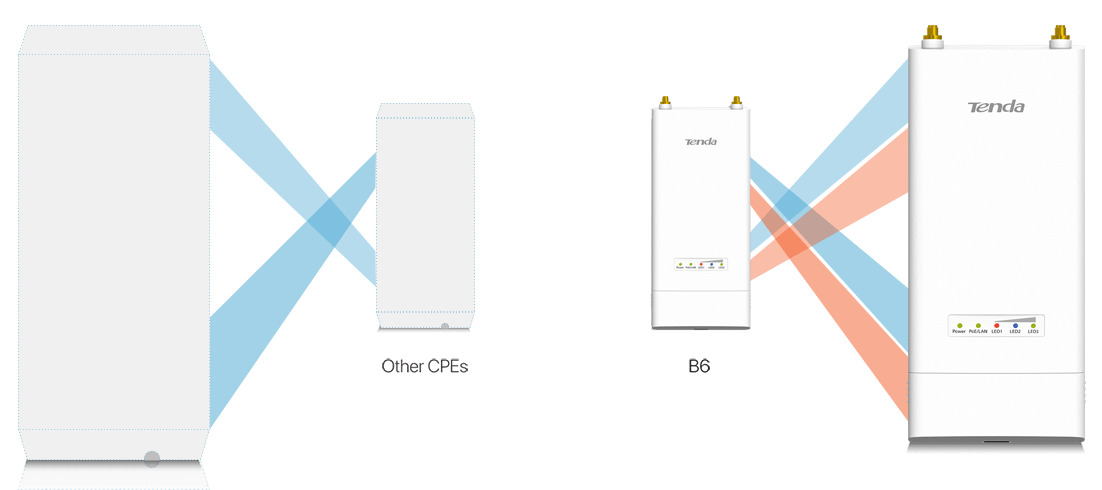

Super Channel-Extended Frequency

B6 adopts of Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into clean spectrum.

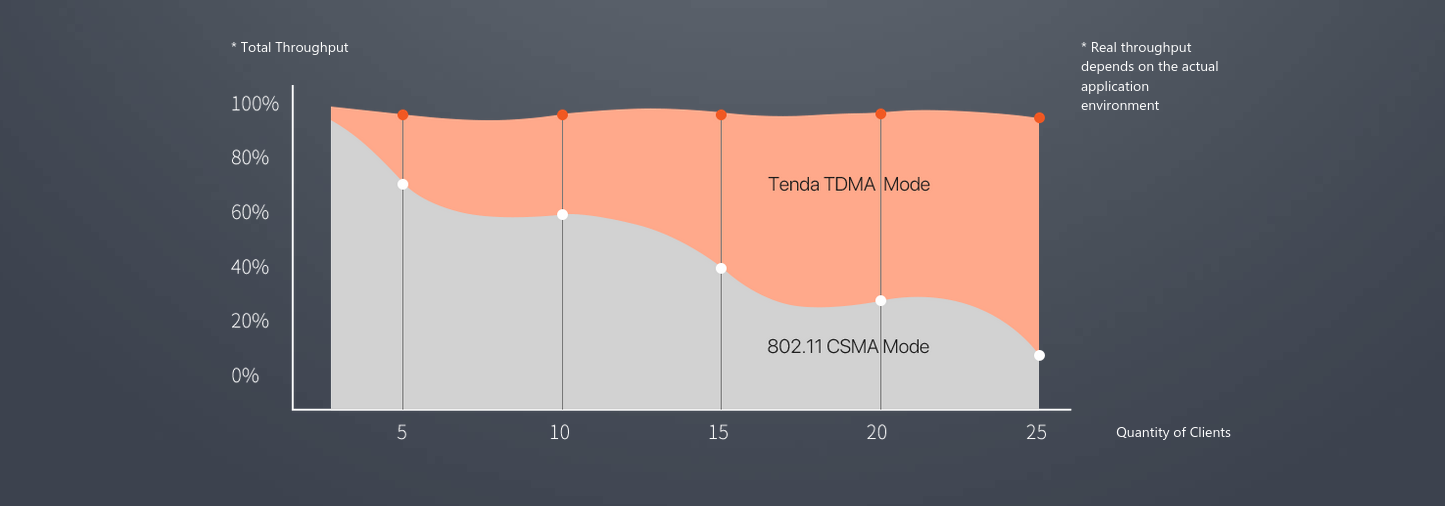

TD-MAX-TendaTDMA proprietary protocol

TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios. In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become“hidden nodes” and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput.With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

10/20/30/40MHz Channel Bandwidth for better throughput

B6 applys special optimization in software for register parameter to deliver 10/20/30/40MHz channel bandwidth option. It provides extra 10MHz and 30MHz channel bandwidth option to consumed according applycation scenarios. When you choose 30MHz channel bandwidth option, it can increase throughput for noisy environments. When you choose 10MHz channel bandwidth option, it can increase the number of available, non-overlapping channels, so networks can scale better.

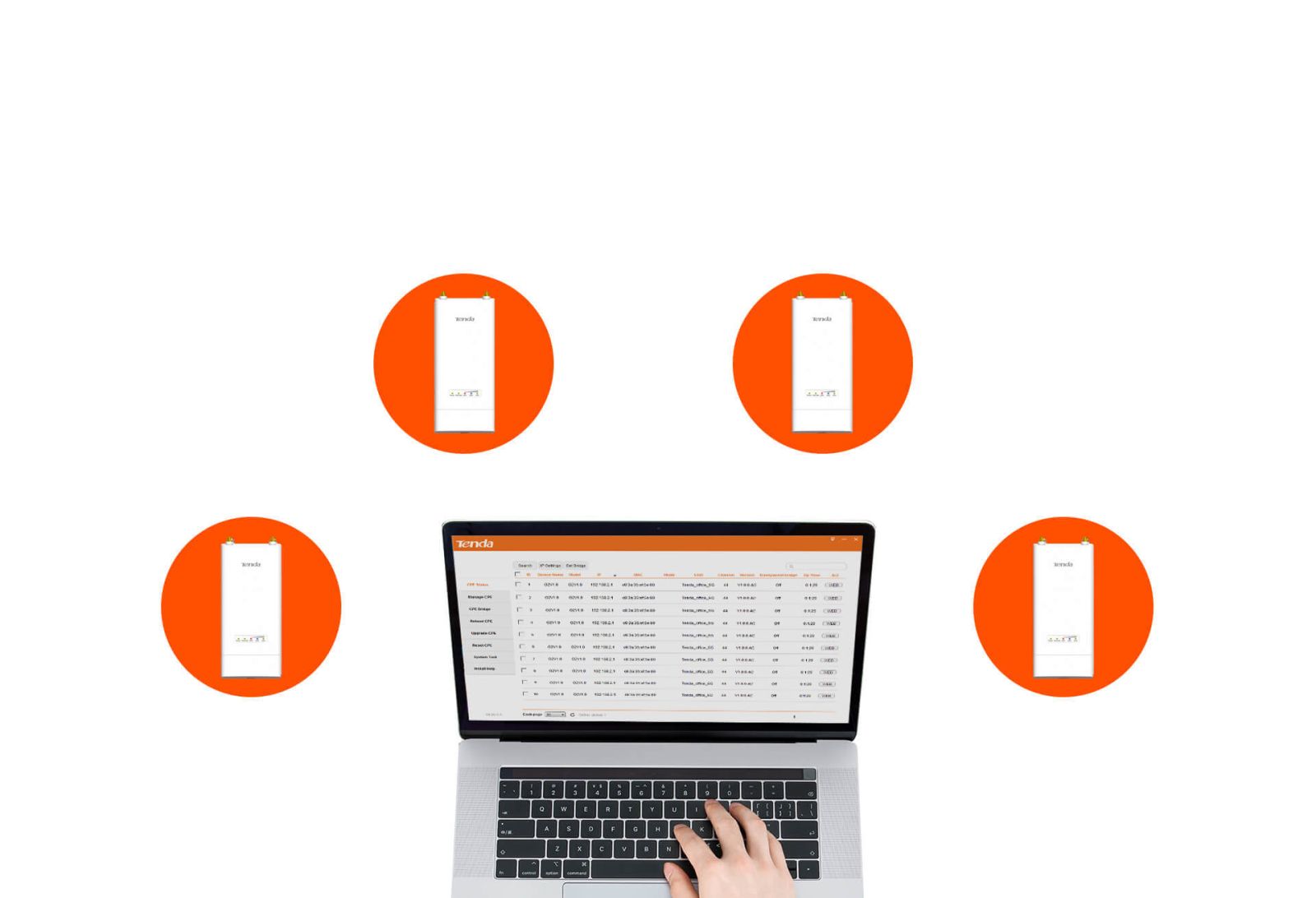

CPE Assistant-Centralized Management Platform

B6 equips with centralized management software that helps users easily manage all the devices in their network from a single PC - CPE Assistant. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant.

Specifications:

Hardware

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n

Maximum Wireless Rate

300Mbps

Interfaces

1*10/100Mbps Ethernet Port

Antenna

2*RP-SMA Connector

Antennas Gain

/

Antenna Beamwidth

/

GND

1*GND

Reset Button

1*Reset Button

Power Consumption

8.5W

Waterproof Level

IP65

LED Indicator

Power, PoE/LAN,LED1,LED2,LED3

Power Method

24V0.5A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN ( ✚4,5pins -7,8pins) Voltage range: 21-25V DC

Reception Sensitivity

11a 6Mbps -96dBm±1.5dBm
11n MCS0: -96±1.5dBm
11n MCS7: -72±1.5dBm

Software

TDMA

Support

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

10/20/30/40MHz

Channel Shift

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software CPE Assistant

Others

Operation Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
