Range Extender/Репитер Tenda A9, 2.4GHz (300Mbps), 2x външни антени

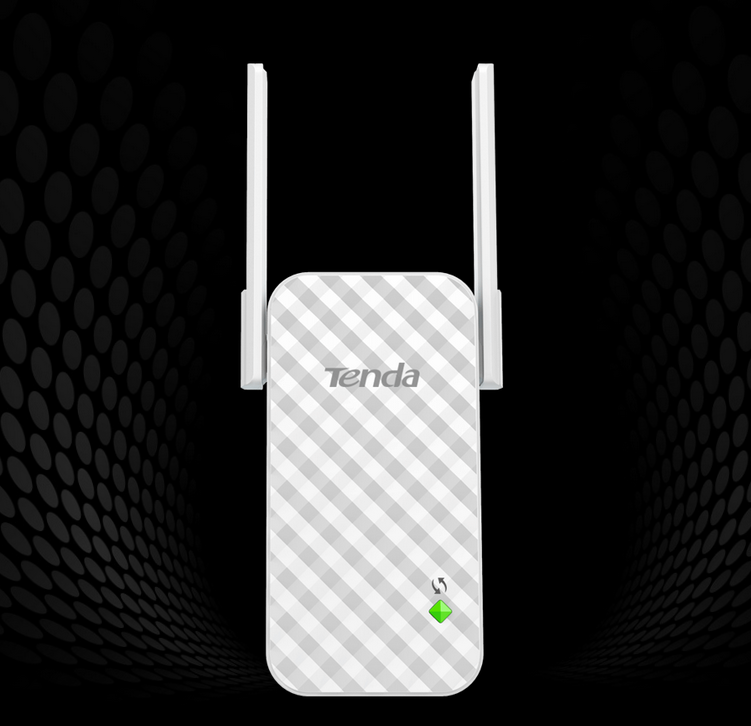

Tenda A9

Wireless N300 Universal Range Extender

A9 is a wireless N300 universal range extender, specially designed to extend the exisiting WiFi coverage and improve the signal strength. With one button extension, smart signal LED, wall-mount design and universal compatibility, it is easy for users to boost wireless networking. A9 is an ideal choice for you to eliminate WiFi dead zones and optimize your networking.

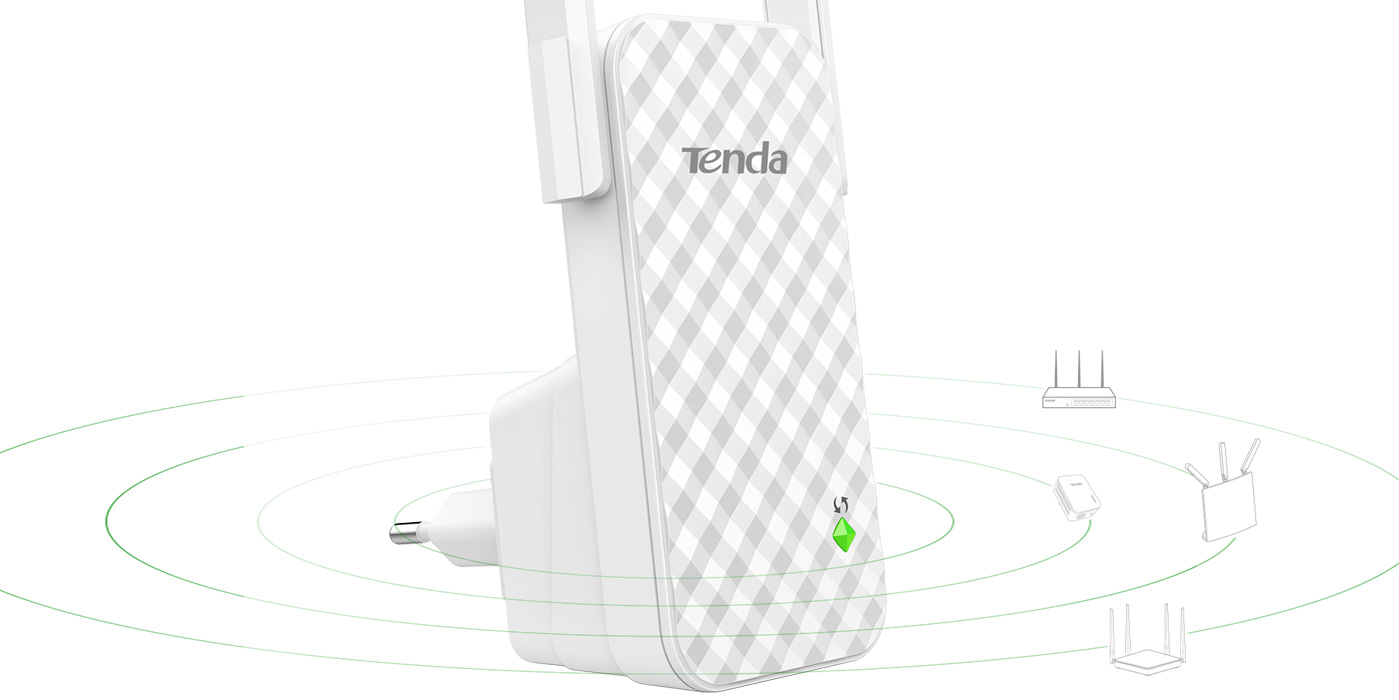

Strong Signal and Wide Coverage

With 2*3dBi external antennas , A9 can provide strong singal and extend the existing WiFi coverage to 200㎡. Also, by optimizing the software and hardware, the anti-interference ability is improved much, so that A9 can provide stable signal and guarantee the large WiFi coverage.

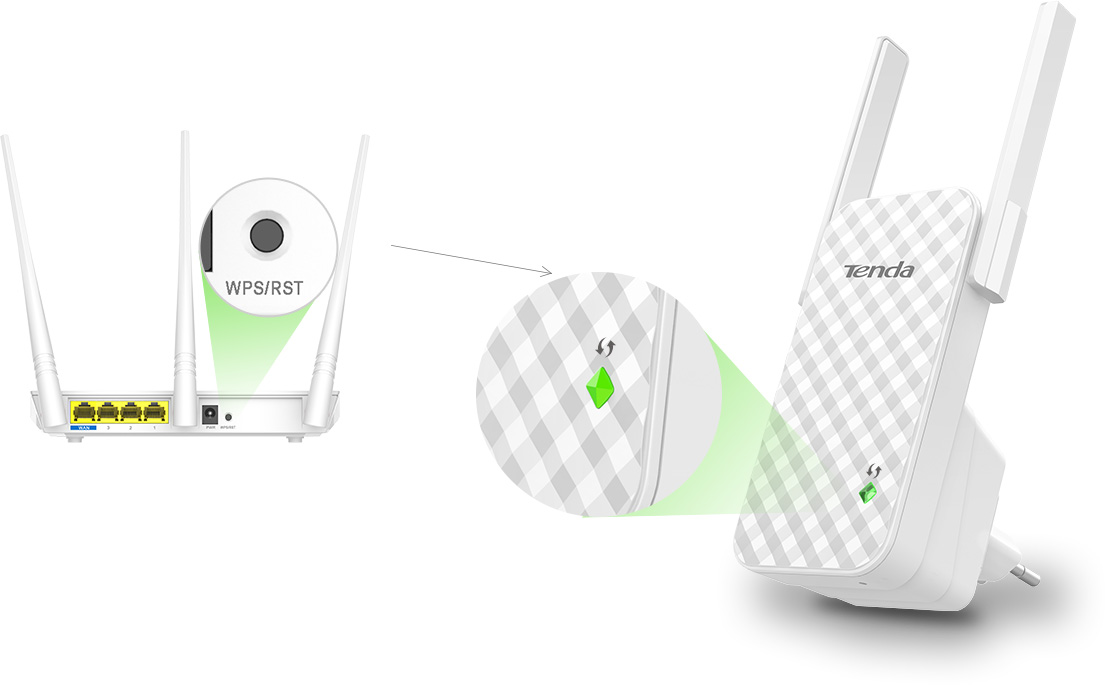

One Button Extension

Designed with an extending button, A9 can extend the wireless router's WiFi immediately by pressing the wireless router's WPS button once, and within 2 minutes, pressing the Range Extender button. Just plug and play and it is easy to set up.

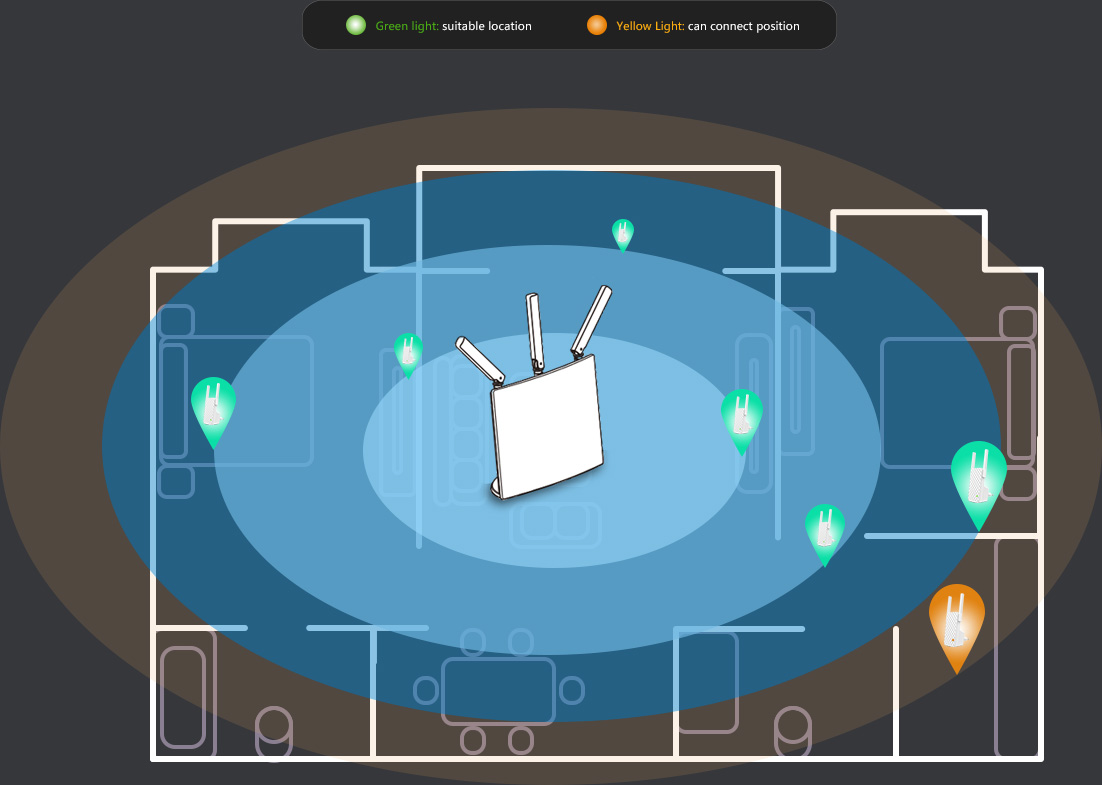

Smart Signal LED Indicator

Once connected with the existing WiFi,  it is easy to find the best location for the extender according to the smart WiFi signal LED indicator, so that A9 can achieve the best coverage and works better.

Universal Compatible with All Brands Wireless Devices

Based on 802.11 n/g/n standard, A9 can work with almost all the  b/g/n wireless routers and WiFi DSL

Specifications:

Hardware

Antenna Type

2 * External 3dBi omni-directional antenna

Button

1 * WPS Button
1 * Reset Button

LED Indicator

1 * Signal/Power/WPS LED

Power Supply

5V1A, built-in

Power Consumption

3.8W (max power consumption)

Dimension

111mm*56mm*47.7mm(L x W x H)

Wireless

Wireless Standard

IEEE802.11b,IEEE 802.11g, IEEE 802.11n

Frequency

2.4 GHz

Data Rate

2.4GHz: Up to 300Mbps

RSSI

2.4 GHz
11b-1M:-96dBm
11g-54M:-77dBm
11n-20M-MCS7:-75dBm
11n-40M-MCS7:-73dBm

Transmission Power

<20dBm

Wireless Modes

Repeater Mode

Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP

Others

Certification

CE, FCC、RoHS

Plug Type

US、EU、UK

System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH, non-condensing
