Range Extender/Репитер Tenda A18 AC1200, 2.4GHz (300Mbps)/ 5GHz (867Mbps), 1x RJ-45 10/100 Mbps, 2x външни антени

Gigabit WiFi Repeater Works Well with Optical Routers

AC1200 Dual Band WiFi Repeater Tenda A18

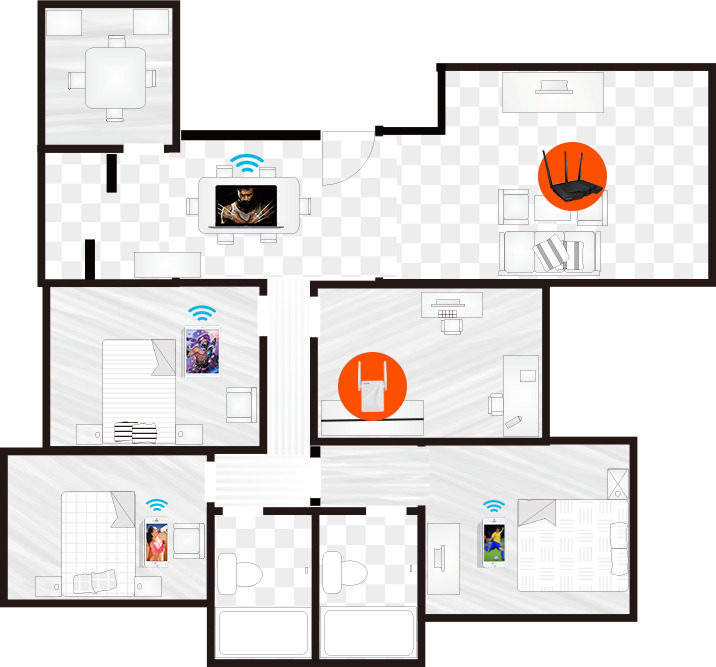

Works Well with Optical Routers for Strong Wall Penetration Capacity on 5 GHz Band

Ordinary 11AC routers performs poorly on wall penetration on 5 GHz band. With A18 to repeat 5 GHz WiFi network, data transmission rate on 5 GHz band can be up to 867 Mbps, giving a full play to your 100 Mbps optical broadband. By resolving the weakness of WiFi coverage on 5 GHz band, A18 brings you with fast internet experience at home.

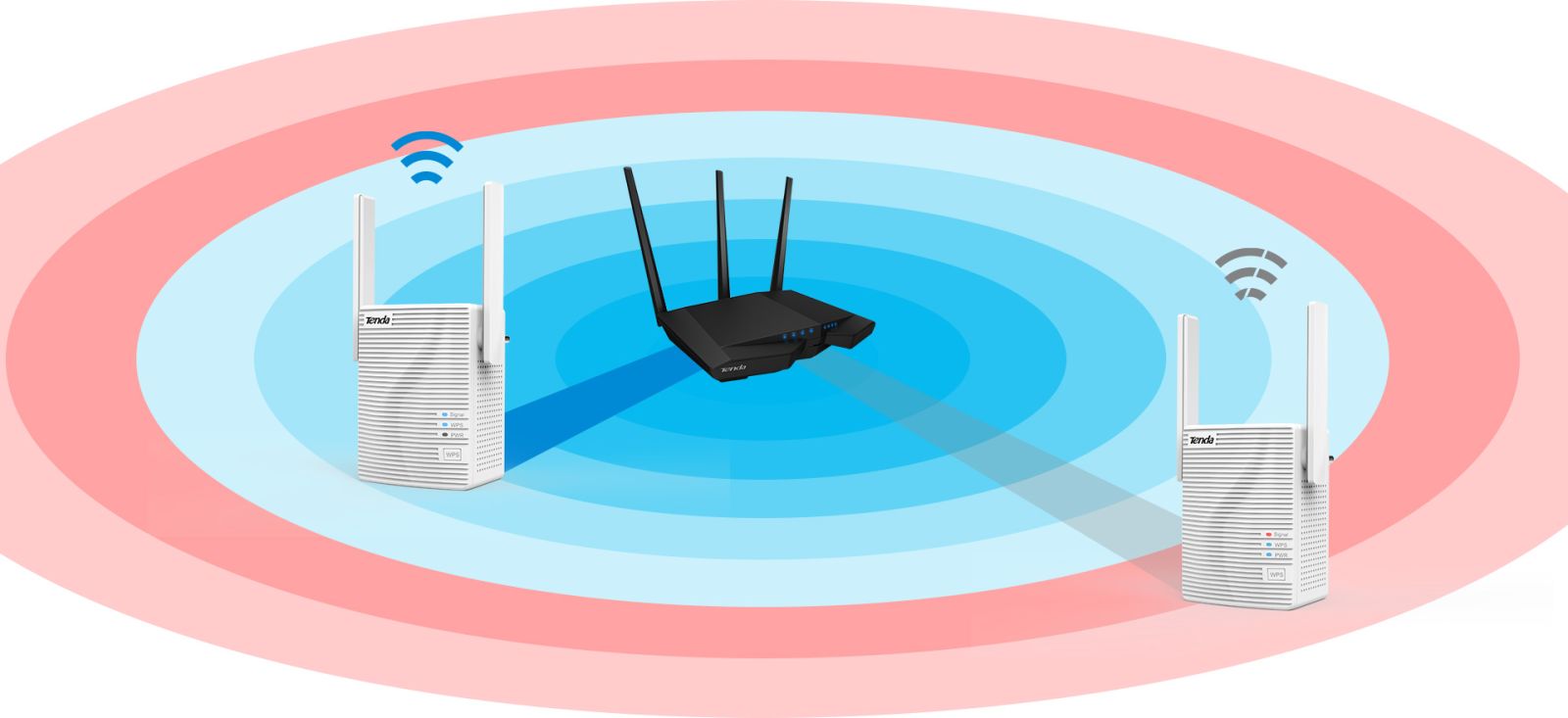

Visual Signal LED Guides You to Find the Best Position

Guided by the color of Signal LED, you can easily find the best position for your repeater according to your actual network environment. Blue indicates good connection , and red indicates bad connection.

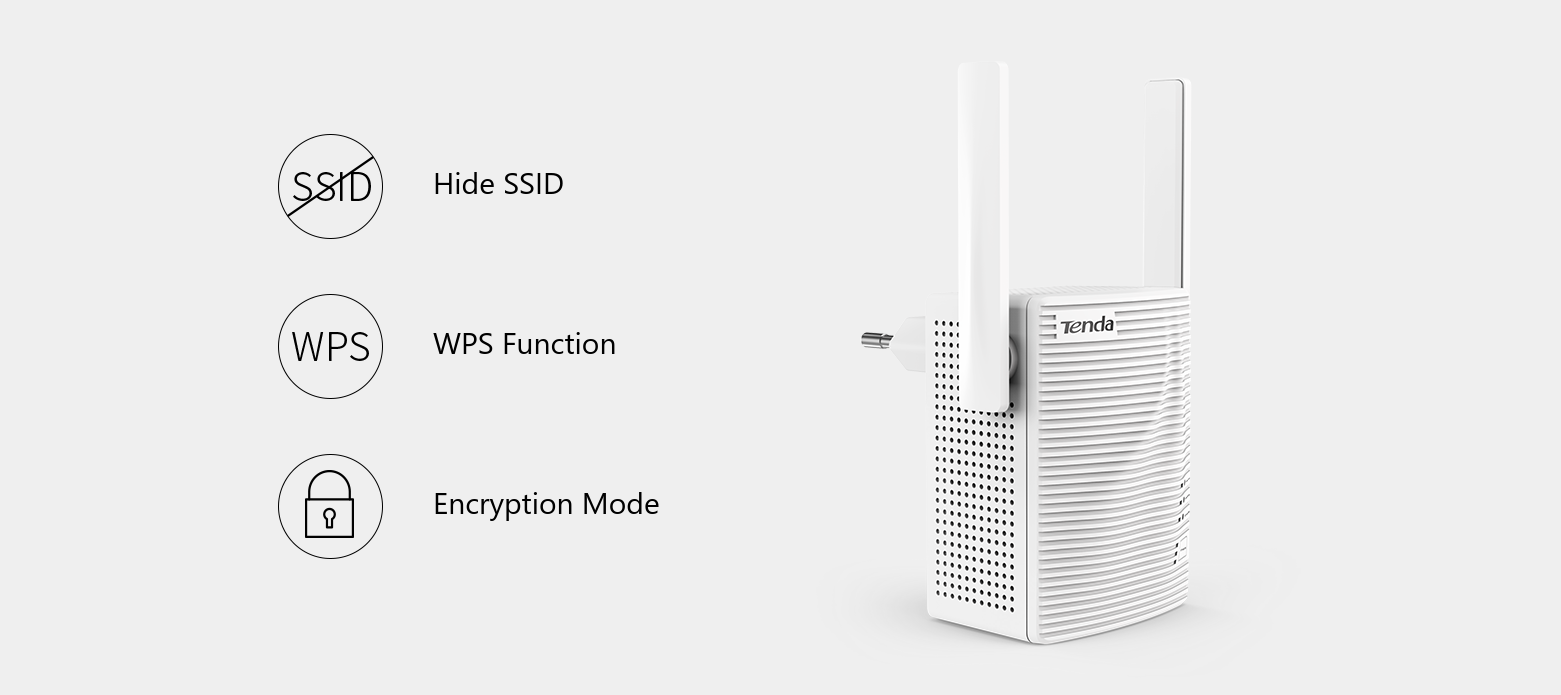

More functions

Hide SSID, Extend your existing WiFi network via WPS button, Mix WPA/WPA2 encryption mode.

Specifications:

Hardware

Interfaces

1*10/100Mbps RJ45

Antenna Type

2 * External 2dBi dual-band omni-directional antenna

Button

1 * WPS Button
1 * Reset Button

LED Indicator

1 * Signal LED
1 * WPS LED
1 * Power LED

Power Supply

9V0.8A, built-in

Power Consumption

5.2W (max power consumption)

Dimension

80mm*58mm*48mm(L x W x H)

Wireless

Wireless Standard

IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac

Frequency

5 GHz(11ac)
2.4 GHz

Data Rate

5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

RSSI

2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm

Transmission Power

<20dBm

Wireless Modes

Repeater Mode，Access Point Mode

Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP

Others

Certification

CE, FCC、RoHS

Plug Type

US、EU、UK、BR、AU、AR

System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot

Environment

Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH, non-condensing
