Телевизор Sony XR-77A95L, 77" (194.7cm) 4K/UHD OLED Smart TV, HDR10, Dolby Atmos, DTS, 2x DVB-T/T2/C/S/S2, Bluetooth, Wi-Fi, LAN, 4x HDMI, 2x USB

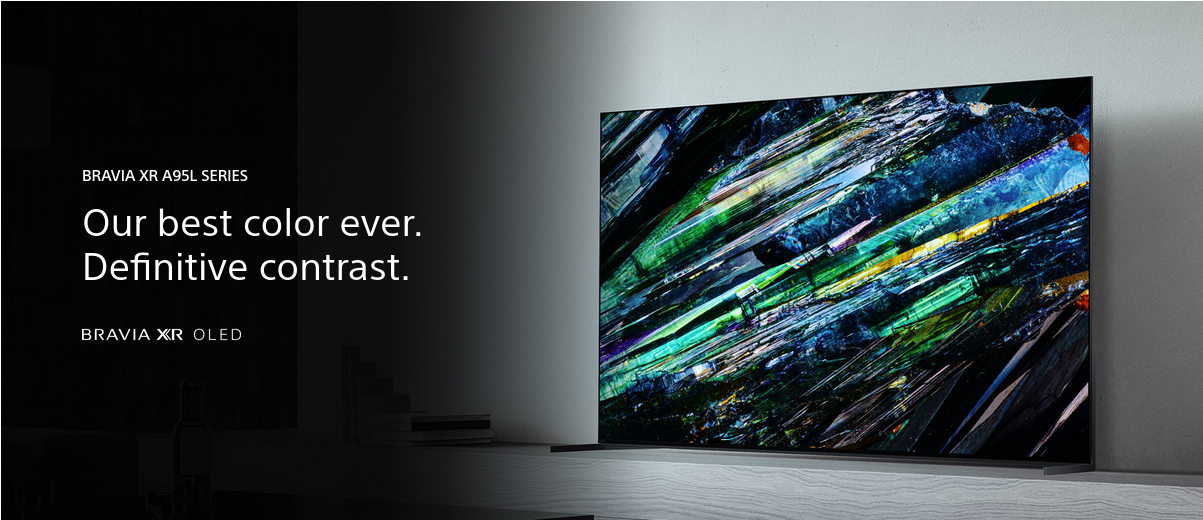

	Our best color, powered by our most powerful processor   Our brightest and widest range of shades and hues, complimented by pure black, all beautifully displayed on a QD-OLED screen powered by Cognitive Processor XRTM.
The screen is the speaker for picture and sound in perfect harmony   Hear true immersive cinematic audio with sound produced from the entire screen delivering an elevated sound stage and clear dialogue.
	The entertainment you love. With help from Google   Google TVTM brings your favorite content from across your apps and subscriptions and organizes them just for you.1
Game time. Be invincible.   Our BRAVIA XR TVs capture the awesome graphics and soundscapes of today’s games. Pair with PlayStation®5 for absolute immersion.
	Beautifully designed to compliment your viewing experience   Focus on the big picture with our minimalist design that fuses screen and bezel into a single slate.17

Specifications

TV System
TV System (Analog)

M

Tuner Channel Coverage (Analog)

VHF: 2-13/UHF: 14-69/CATV: 1-135

TV System (Digital Terrestrial)

ATSC/ ATSC3.0(NEXTGEN TV) depending on your country/area selection

Tuner Channel Coverage (Digital Terrestrial)

VHF: 2-13/UHF: 14-69(2-13/14-36 for ATSC3.0)

TV System (Digital Cable)

Clear QAM

Tuner Channel Coverage (Digital Cable)

CATV: 1-135

Number of Tuners (Terrestrial/Cable)

1(Digital/Analog)

Color System

NTSC

Color Space

sRGB/BT709,BT2020,AdobeRGB,DCI

Operating System

Google TV

On-board Storage (GB)

32GB

Display Features
Display Type

QD-OLED

Pixel Contrast Booster

Yes

Display Specs
Screen Size (inch, measured diagonally)

77"(76.8")

Screen Size for WEB(diagonal, cm, integer or 1st decimal)

195cm

Display resolution (H x V, pixels)

3840 x 2160

Viewing Angle (Right/Left)

178(89/89) degree

Viewing Angle (Up/Down)

178(89/89) degree

Display Resolution

QFHD

Aspect Ratio

16:9

Backlight type

OLED

Audio Specs
Channel

2.2ch

Speaker Position

Front

Bass/Treble/Balance

Balance

Speaker type

Acoustic Surface Audio+

Speaker Configuration

Actuator x 2, Subwoofer x 2

Digital audio out (Optical) format

Two channel linear PCM: 48kHz 16bits, Dolby Audio, DTS

Network Features
APPLE AIRPLAY

Yes

APPLE HOMEKIT

Yes

Home Network Feature

Home Network Client, Home Network Renderer

Wi-Fi Certified

Yes

Wi-Fi Standard

a/b/g/n/ac/ax

Wi-Fi Frequency

2.4GHz/5GHz

Codec for Home Network

MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC/AVI:Xvid,MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4,MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8.HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC,JPEG/HEIF/WEBM:VP9/AC4/ogg/AAC/ARW(Screen nail only)

Wireless LAN

Integrated

Control Menu

Yes

ECO Dashboard

Yes

Sensing Features
sensor

Light/Color

Energy Saving & Efficiency
Power Saving Mode / Back Light Off Mode

Yes

SORPLAS

Yes

ECO FRIENDLY

Yes

Customizing Capability
RS-232C Control

Yes

Design Features
STAND COLOR

Dark Silver

BEZEL DESIGN

Seamless edge

Cable Management

Yes

Frame color

Black

Stand design

Aluminum Edge Stand

STAND POSITION

2way position (Standard position/Soundbar position)

Regulation and Standard Compliance
VESA® Hole Spacing Compatible

Yes

VESA® Hole Pitch (W x H)

300 x 300 mm / 11 7/8 x 11 7/8 inch

Measurements (Approx.)
Dimension of TV without Stand (W x H x D)

1716 x 985 x 35 (24.6) mm / 67 5/8 x 38 7/8 x 1 7/16 (31/32) inch

AC Cable Length

1500mm

TV with Stand (Standard position) (W x H x D)

1716 x 1014 x 411 mm / 67 5/8 x 40 x 16 1/4 inch

TV with Stand (Narrow position) (W x H x D)

1716 x 1024 x 411 mm / 67 5/8 x 40 3/8 x 16 1/4 inch

TV with Stand (Soundbar position) (W x H x D)

1716 x 1075 x 411 mm / 67 5/8 x 42 3/8 x 16 1/4 inch

STAND WIDTH (STANDARD POSITION)

1715 mm / 67 5/8 inch

STAND WIDTH (NARROW POSITION)

585 mm / 23 1/8 inch

STAND WIDTH (SOUNDBAR POSITION)

1715 mm / 67 5/8 inch

Dimension of TV without Stand with Camera (W x H x D)

1716 x 1000 x 45 (42.8) mm / 67 5/8 x 39 3/8 x 1 13/16 (1 11/16) inch

Audio features
ACOUSTIC AUTO CALIBRATION

Room & User Position Compensation

Clear Phase

Yes

S-Master

S-Master Digital Amplifier

Auto Surround

Yes

DTS audio format support

DTS Digital Surround, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X

Simulated surround sound

S-Force Front Surround

Dolby audio format support

Dolby Audio, Dolby Atmos

VOICE ZOOM

Voice Zoom 2

Advanced Auto Volume

Yes

Auto Mute (on no signal)

Yes

HDMI input Audio format

7.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/192kHz 16/20/24bits, Dolby Audio, Dolby Atmos, DTS, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X

ARC output format

Two channel linear PCM: 48kHz 16bits, Dolby Audio, Dolby Atmos, DTS

ACOUSTIC CENTER SYNC

Yes (CENTER SPEAKER IN, S-CENTER SPEAKER IN)

Ready for 360 Spatial Sound Personalizer

Yes (via Bluetooth)

Vertical Surround Engine

Yes

Simultaneous Sound Output with TV Speaker

Bluetooth A2DP Device

HDMI Audio Return Channel (ARC)

Yes (eARC/ARC)

Inputs and Outputs
HDMI Signal

4096x2160p(24,60Hz), 3840x2160p(24,30,60,120Hz)*, 1080p(24,30,60,120Hz), 1080i(60Hz), 720p(24,30,60Hz), 480p * 120Hz is supported by HDMI IN 3 and IN 4

HDCP

HDCP2.3(for HDMI1/2/3/4)

Bluetooth profile support

Version 5.2,HID/HOGP/SPP/A2DP/AVRCP

4K 60P High-Quality formats

HDMI IN1, IN2 ports for 4K(up to 18Gbps) signal, HDMI IN3, IN4 port for 4K(up to 48Gbps) signal

AC Power Input

Pigtail (REAR)

RF (Terrestrial/Cable) Connection Input(s)

1(Side)

HDMI inputs total

4(4Side)

Digital Audio Output(s)

1(Side / Hybrid with S-Center Speaker Input)

USB ports

2(Side)

Ethernet inputs

1(Side)

RS-232C Input(s)

1(Side)

HDMI PC Input Format

640x480(31.5kHz,60Hz), 800x600(37.9kHz,60Hz), 1024x768(48.4kHz,60Hz), 1280x1024(64.0kHz,60Hz), 1152x864(67.5kHz,75Hz), 1600x900(55.9kHz,60Hz), 1680x1050(65.3kHz,60Hz), 1920x1080(67.5kHz,60Hz), 3840x2160p(30Hz), 3840x2160p(60Hz, 8bits)

Power
Power Requirements (voltage)

AC 120V for UL cUL AC 110-240V for other

Power Requirements (frequency)

60Hz for UL cUL 50/60Hz for other

Rated Power Consumption

506 W

Power Consumption (in Standby)

0.5 W

Video Features
Object-based Super Resolution

XR Super Resolution

Precision Color Mapping

Yes

Face Area Detection

Yes

Picture modes

Vivid,Standard,Calm,Cinema,IMAX Enhanced,Photo,Professional,Dolby Vision (Vivid/Bright/Dark),FPS Game,RTS Game,Netflix calibrated, BRAVIA CORE calibrated

Auto Wide

Yes

Wide Mode

Full/Vertical Fit/Horizontal Fit/Original,Full/Vertical Fit/Horizontal Fit/Original

Video Processing

XR 4K Upscaling

Motion enhancer

XR OLED Motion

24p True Cinema

Yes

Live Colour Technology

Yes

PhotoTV HD / BRAVIA 照片秀 for China

Yes

CineMotion/Film Mode/Cinema Drive

Yes

4K Processor

Cognitive Processor XR

HDR (High Dynamic Range) compatiblity

Yes (HDR10,HLG,Dolby Vision)

Panel Refresh Rate (Native Hertz)

120Hz

Dual database processing

Yes

Dynamic Contrast Enhancer

Yes

Peak Luminance

XR OLED Contrast Pro

TRILUMINOS

XR Triluminos Max

HDR Remaster

XR HDR remaster

Smoothing

XR Smoothing

Features for PlayStation®5 Auto HDR Tone Mapping

Yes

Features for PlayStation®5 Auto Genre Picture Mode

Yes

XR Clear Image

Yes

Convenience Features
Features specified in HDMI2.1

4K120/eARC/VRR/ALLM

Electronic Program Guide (EPG)

Yes

USB playback codecs

MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC/AVI:Xvid,MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4,MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8.HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC,JPEG* /HEIF* /WEBM:VP9/AC4/ogg/AAC/ARW(Screen nail only) * Firmware update may be required.

Screen Reader

Yes

Audio Description

Yes

Text Magnification

Yes

Accessibility Shortcut

Yes

Switch Access

Yes

Auto Picture Mode

Yes

Text Input Language

ENG / FRA / GER / HEB / ITA / RUS / SPA / VIE / JPN

Chromecast built-in

Yes

Voice Search

Yes * Hands Free feature(Built-in Mic) availability depends on language and may need software update. Please check Sony support page for further information

Application Store

Yes (Google Play Store)

i-Manual

Yes

Parental Control

Yes

Channel Block (with password)

Analog & Digital

Show/Hide Channels

Yes (Digital&Analog)

On Screen Clock

Yes

Sleep Timer

Yes

On/Off Timer

Yes

USB drive format support

Yes (Supported File System: FAT16/FAT32/exFAT/NTFS)

Auto Shut-off

Yes

UVC/UAC support

Yes

TALKBACK

Yes

Variable Refresh Rate (VRR)

Yes (for HDMI3/4)

Auto Low Latency Mode (ALLM)

Yes (for HDMI3/4)

BUILT-IN MIC SWITCH

Yes (Left)

Built-in Mic

Yes

BRAVIA SYNC (INCLUDING HDMI-CEC)

Yes

X-Protection PRO

Y (with Lightning, Surge, Humidity Protection)

Multi-View

Yes * Firmware update may be required.

Color Inversion

Yes

Twin Picture

Yes

General Features
Auto Calibration with CalMAN

Yes

NETFLIX CALIBRATED MODE

Yes

IMAX Certified Model

Yes

Closed Captions (Analog)

Closed Caption

Closed Captions (Digital)

Closed Caption

SMART TV

Google TV

BRAVIA CORE Calibrated mode

Yes
