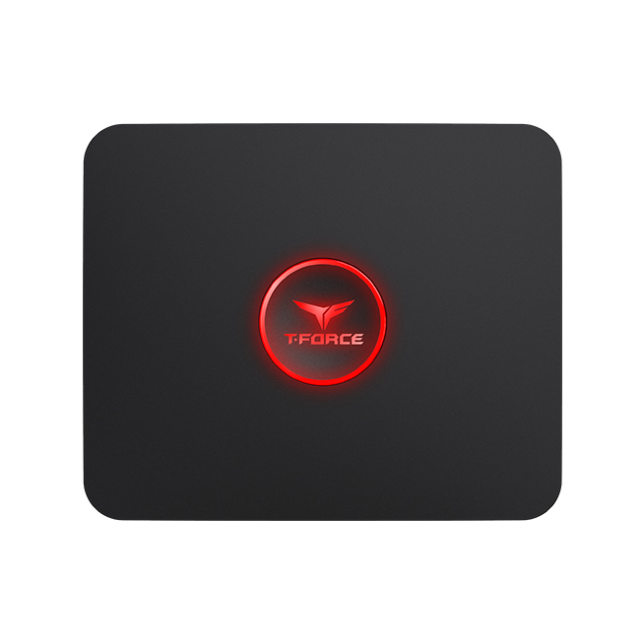

T-FORCE CAPTAIN RGB Control Box has exclusive utility model patent with 4 5V ARGB output connectors and 1 12V RGB output connector. The smart identification feature can automatically detect external signals. When detecting external RGB control signal from the motherboard, it will automatically switch to be controlled by motherboard’s RGB software, so that the lighting effect is perfectly synchronized. When there is no external signal, it will automatically switch to built-in lighting effect, so motherboards that do not support the RGB lighting effect can also create dazzling lighting effects.
- Expandable support for addressable LED strips, fans and devices
- Automatic identification and automatic switching
- Support lighting effect control and software synchronization
- Independent lighting effect hardware control
Product Specifications
<div class="table-box textEditor" data-darkreader-inline-bgcolor="" data-darkreader-inline-bgimage="" data-darkreader-inline-border-bottom="" data-darkreader-inline-border-left="" data-darkreader-inline-border-right="" data-darkreader-inline-border-top="" data-darkreader-inline-color="" data-darkreader-inline-outline="" style="text-size-adjust: none; margin: 0px; padding: 0px 57.5px 0px 0px; border: 0px; outline: 0px; font-size: 15px; vertical-align: baseline; background: rgb(229, 234, 236); clear: both; color: rgb(47, 47, 47); line-height: 1.8; float: left; width: 575px; box-sizing: border-box; --darkreader-inline-border-top: initial; --darkreader-inline-border-right: initial; --darkreader-inline-border-bottom: initial; --darkreader-inline-border-left: initial; --darkreader-inline-outline: initial; --darkreader-inline-bgimage: initial; --darkreader-inline-bgcolor:#212a2d; --darkreader-inline-color:#cac6bf;" 儷黑="" pro",="" "lihei="" 微軟正黑體,="" "microsoft="" jhenghei",="" "heiti="" tc",="" メイリオ,="" sans-serif;="" --darkreader-inline-border-top:="" initial;="" --darkreader-inline-border-right:="" --darkreader-inline-border-bottom:="" --darkreader-inline-border-left:="" --darkreader-inline-outline:="" --darkreader-inline-bgimage:="" --darkreader-inline-bgcolor:#212a2d;="" --darkreader-inline-color:#cac6bf;"="">
Model | CAPTAIN |
Interface | Signal Input Via 5V ARGB 3 pin header x 1port Via 12V RGB 4 pin header x 1port Signal Output Via 5V ARGB 3 pin header x 4port Via 12V RGB 4 pin header x 1port Switch bottom Hardware light control by build in IC solution, control by switch |
Voltage | SATA power |
Operation Temperature | 0˚C ~ 70˚C |
Weight | 75g |
Dimensions | 94.4(L) x 78(W) x 16(H)mm |
Operating System | Windows10 / 8.1 / 8 / 7 / Vista® |
Accessories | 30cm ARGB strip x2 SATA power cable x1 LED extension cable 3pin x2 LED extension cable 4pin x2 Addressable LED extension cable x2 User guide x1 Hook and loop fastener x1 Double-sides tape x6 Metal plate x1 |
