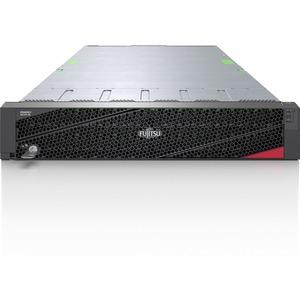

Name: Сървър FUJITSU RX2540 M6, Intel Xeon Gold
Availability: OutOfStock

Basic
Product Type	Server

Maximum Memory Supported	12 TB

Standard Memory	32 GB

Chipset	Intel C621A

Form Factor	Rack

Processor Speed	3 GHz

Processor Type	Xeon Gold

Controller Type	Serial ATA/600

Controller Type	12Gb/s SAS

Rack Height	2U

Brand Name	Fujitsu

Memory Technology	DDR4 SDRAM

Processor Model	5317

Processor Core	Dodeca-core (12 Core)

Environmentally Friendly	Yes

Processor Manufacturer	Intel

Number of Total Memory Slots	32

Number of Processors Supported	2

RAID Supported	Yes

Ethernet Technology	Gigabit Ethernet

Maximum Power Supply Wattage	900 W

Product Family	PRIMERGY RX2540 M6
Chipset
Chipset Manufacturer	Intel

Chipset Model	C621A
Controllers
Controller Type	12Gb/s SAS

Controller Type	Serial ATA/600

RAID Supported	Yes
Display & Graphics
Graphics Memory Capacity	512 MB

Graphics Memory Capacity	512 MB
General Information
Product Type	Server

Manufacturer Part Number	VFY:R2546SC211IN

Manufacturer Website Address	http://de.fujitsu.com

Manufacturer	Fujitsu

Product Name	PRIMERGY RX2540 M6 Server

Product Line	PRIMERGY

Product Series	RX2540 M6

Brand Name	Fujitsu

Marketing Information	The data center standard without compromise Fujitsu offers a fantastic blend of systems, solutions and expertise to guarantee maximum productivity, efficiency and flexibility, delivering confidence and reliability. FUJITSU Server PRIMERGY systems deliver workload-optimized x86 industry standard servers for any workload and business demand. Since there is no single server solution to meet all these needs, Fujitsu offers a broad server portfolio consisting of expandable tower servers, versatile rack-mount servers, density-optimized multi-node servers as well as GPU servers purpose-built for the demands of AI and VDI. While all these systems are designed to handle multiple workloads, each server is optimized for specific use cases. Whatever the size of your business - large enterprise with multiple sites, or a small or medium-sized company with limited space and budget - with the right choice of server, your IT can become the business enabler you have always wanted it to be. PRIMERGY RX2540 M6 The FUJITSU Server PRIMERGY RX2540 M6 is a dual-socket x86 system that delivers the latest in performance, usability, and expandability in a compact 2U chassis. The PRIMERGY RX2540 M6 forms the standard in every modern data center and enables the running of nearly every workload from the most basic to business-critical applications. As one of the crucial foundations of performance, it can be equipped with the latest 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, resulting in performance improvements of up to 40% compared to the previous generation processors. Along with enhanced DDR4 memory technology supporting 3,200 MT/s, the server features an incredibly large amount of memory capacity provided by 32 DIMM slots in total supporting 8TB memory with standard DDR4 modules, or up to 12 TB memory in combination with Intel® Optane™ persistent memory 200 series. The modular design of the server offers excellent expandability with up to 12x 3.5 SAS/SATA, up to 24x 2.5 SAS/SATA/NVMe, or the option to use up 64x EDSFF (Enterprise & Data center Storage Form Factor) storage drives. In addition, six further 2.5 storage drives are available as an option on the rear of the chassis. Additional expansion options are provided by up to 8 PCIe Gen 4 slots. Moreover the server can be equipped with up to six NVIDIA GPU cards. Thus the server also provides optimized performance for AI and HPC workloads. A variety of DynamicLoM options via OCP V3 complete the overall picture. The server system also includes new security technologies to help secure sensitive workloads and enable new opportunities to unleash the power of data. Sophisticated adversaries may attempt to compromise or disable the platform's firmware to intercept data or take down the server. RX2540 M6 introduces Platform Firmware Resilience (PFR) to help protect against platform firmware attacks, designed to detect and correct them before they can compromise or disable the machine. Even as your workloads and administration tasks become more complex, the Fujitsu Infrastructure Manager (ISM), as well as the integrated Remote Management Controller (iRMC S5), simplifies management of your server and the whole IT infrastructure so you can focus on your business objectives. ISM enables organizations to have centralized control over the entire data center, including servers, storage, networking as well as cloud management software using a single user interface. The PRIMERGY RX2540 M6 is the ideal server for business-critical workloads such as collaboration, business processing, graphics rendering or in-memory databases where the right performance, expandability and efficiency are essential.
I/O Expansions
Number of Internal 2.5 Bays	16

Number of Total Expansion Bays	16

Number of Total Expansion Slots	7

Hot Swappable Bays	Yes

Number of SFF Bays	16

PCI Express Details	PCI-Express 4.0 x8 3 x Low profile (2nd processor required for slot 4), PCI-Express 4.0 x16 4 x Low profile (2nd processor required for slot 6 and 8)
Interfaces/Ports
VGA	Yes

Number of Network (RJ-45) Ports	4

Network (RJ-45)	Yes

Remote Management	Yes

Total Number of USB Ports	6

Number of VGA Ports	1

Remote Management Controller	iRMC S5
Memory
Error Checking	ECC

Maximum Memory	12 TB

Maximum Memory	12 TB

Signal Processing	Registered (Buffered)

Standard Memory	32 GB

Memory Technology	DDR4 SDRAM

Number of Total Memory Slots	32

Number of Occupied Memory Slots	1

Intel Optane Memory Ready	Yes
Miscellaneous
Environmentally Friendly	Yes
Network & Communication
Ethernet Technology	Gigabit Ethernet
Operating System
Operating System Supported	Hyper-V

Operating System Supported	Oracle Linux 7

Operating System Supported	Red Hat Enterprise Linux 7

Operating System Supported	Red Hat Enterprise Linux 8

Operating System Supported	Windows Server 2016 Datacenter

Operating System Supported	Windows Storage Server 2016 Standard

Operating System Supported	Windows Server 2016 Standard

Operating System Supported	Windows Server 2019 Datacenter

Operating System Supported	Windows Server 2019 Essentials

Operating System Supported	Windows Server 2019 Standard

Operating System Supported	Windows Server 2016 Essential
Physical Characteristics
Weight (Approximate)	32 kg

Form Factor	Rack

Rack Height	2U

Height	86.9 mm

Width	482.5 mm

Depth	800 mm
Power Description
Input Voltage	230 V AC

Input Voltage	120 V AC

Number of Power Supplies Installed	1

Hot Swappable Power Supply	Yes

Maximum Power Supply Wattage	900 W
Processor
Cache	18 MB

Processor Speed	3 GHz

Processor Type	Xeon Gold

Processor Model	5317

Processor Core	Dodeca-core (12 Core)

Processor Manufacturer	Intel

Number of Processors Supported	2
Processor & Chipset
Cache	18 MB

Processor Speed	3 GHz

Processor Type	Xeon Gold

Processor Model	5317

Processor Core	Dodeca-core (12 Core)

Processor Manufacturer	Intel

Chipset Manufacturer	Intel

Chipset Model	C621A

Number of Processors Supported	2
Software
Operating System Supported	Hyper-V

Operating System Supported	Oracle Linux 7

Operating System Supported	Red Hat Enterprise Linux 7

Operating System Supported	Red Hat Enterprise Linux 8

Operating System Supported	Windows Server 2016 Datacenter

Operating System Supported	Windows Storage Server 2016 Standard

Operating System Supported	Windows Server 2016 Standard

Operating System Supported	Windows Server 2019 Datacenter

Operating System Supported	Windows Server 2019 Essentials

Operating System Supported	Windows Server 2019 Standard

Operating System Supported	Windows Server 2016 Essential
