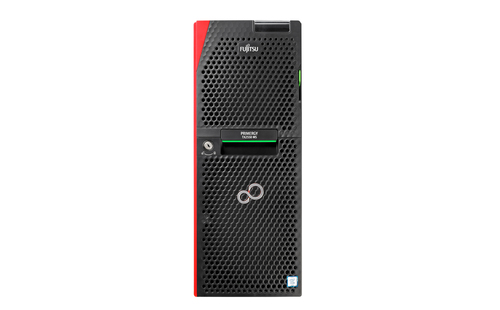

Name: Сървър FUJITSU PRIMERGY TX2550M5, Intel 2nd Generation Intel® Xeon® Scalable, 16 GB, Not available
Availability: OutOfStock

Описание

Certificates
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, VCCI, KN32, KN35, CCC, C-Tick
Design
Chassis type	Tower

Product colour	Black, Red
Expansion slots
PCI Express slots version	3.0
General Information
Marketing Information	The FUJITSU Server PRIMERGY TX2550 M5 is a new dual socket tower server with the latest technology for delivering excellent workload versatility for businesses, plus expandability with high cost-effectiveness. It’s combination of Intel® Xeon® Processor Scalable Family CPUs, 1.5TB 2,933 MT/s DDR4 and Intel® Optane™ DC Persistent memory, is ideal for most CPU/memory driven workloads. Up to 32 storage drives, NVMe capability, advanced RAID and high-throughput networking options drive collaborative/IT infrastructure and high-data transfer workloads. Up to 8 expansion slots enable future growth while high efficiency, redundant power supplies enhance reliability and advance savings. The iRMC S5 delivers optimal administration across the lifecycle. Power packed performance across workloads Intel® Xeon® Processor Scalable family CPUs with up to 24 cores (code named Cascade Lake) relying on Intel® UltraPath Interconnect for an increased data rate between the CPUs. Up to 1.5TB memory (12 DIMM slots) including a mix of DDR4 @ 2,933 MT/s and Intel® Optane™ DC persistent memory. Highly expandable and flexible storage Up to 32x hot plug 2.5“HDD/SSD including up to 4xNVMe PCIe SSD, or up to 12x hot plug 3.5” HDD/SSD + 2x non-hp 2.5” HDD/SSD and up to 3x 1.6” drive bays for ODD or backup. Advanced RAID controllers (RAID 0,1,1E,10,5,50,6,60) with up to 8GB cache for enhanced data protection and reliability beyond embedded basic RAID capability. Powerful and cost-effective networking configurations Onboard LAN for basic requirements, DynamicLoM via OCP for extended requirements. Range of additional high throughput networking cards (100/40/25/10Gb) also available. Designed to keep pace with your business 8 Expansion slots (in maximal optional configuration; 7x PCIe and 1xPCI-32). Rack Form factor available from the factory and as an upgrade option. Versatile Graphics support Up to 1x GFX card support (FPGA also on roadmap).
Graphics
On-board graphics card model	Not available
Logistics data
Harmonized System (HS) code	84714100
Memory
Internal memory type	DDR4-SDRAM

Memory slots	12

Maximum internal memory	1.5 TB

Memory clock speed	2933 MHz

Internal memory	16 GB
Network
Cabling technology	10/100/1000Base-T(X)

Ethernet LAN	Yes

Ethernet interface type	Gigabit Ethernet
Operational conditions
Operating relative humidity (H-H)	10 - 85%

Operating temperature (T-T)	5 - 45 °C
Packaging content
Cables included	AC
Ports & interfaces
Ethernet LAN (RJ-45) ports	2

VGA (D-Sub) ports quantity	1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Power
Power supply	450 W

Redundant power supply (RPS) support	Yes
Processor
Processor model	4215

Number of processors installed	1

Processor manufacturer	Intel

Processor lithography	14 nm

Processor family	Intel Xeon Silver

Processor socket	LGA 3647 (Socket P)

Supported instruction sets	AVX-512

Processor cores	8

Processor threads	16

Processor operating modes	64-bit

Processor boost frequency	3.5 GHz

Processor cache	11 MB

Scalability	2S

Embedded options available	Yes

Processor frequency	2.5 GHz

Processor codename	Cascade Lake

Maximum number of PCI Express lanes	48

Maximum internal memory supported by processor	1.02 TB

Memory types supported by processor	DDR4-SDRAM

Memory clock speeds supported by processor	2400 MHz

Processor package size	76.0 x 56.5 mm

Processor generation	2nd Generation Intel® Xeon® Scalable
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes

Intel® Turbo Boost Technology	2.0

Enhanced Intel SpeedStep Technology	Yes

Intel Trusted Execution Technology	Yes

Intel VT-x with Extended Page Tables (EPT)	Yes

Intel TSX-NI	Yes

Intel 64	Yes

Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Intel Virtualization Technology (VT-x)	Yes

Processor ARK ID	193389
Software
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux
Storage
RAID levels	0, 1, 10

HDD size	2.5/3.5

Hot-Plug support	Yes

Number of HDDs supported	8

RAID support	Yes
Weight & dimensions
Height	736 mm

Width	448 mm

Depth	177 mm
