Synology DS1621+
НазадSynology DS1621+Synology DS1621+Synology DS1621+Synology DS1621+Напред

Мрежови диск (NAS) Synology DS1621+, четириядрен AMD Ryzen V1500B 2.20GHz, без твърд диск, 4GB DDR4, 4x LAN, 3x USB 3.2 Gen 1

id 222198 Код: NASSYNOLOGYDS1621PLUS
2048.40 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументацияВземи на изплащане

Този продукт е тестван и одобрен от Synology



Powerful, scalable, and versatile

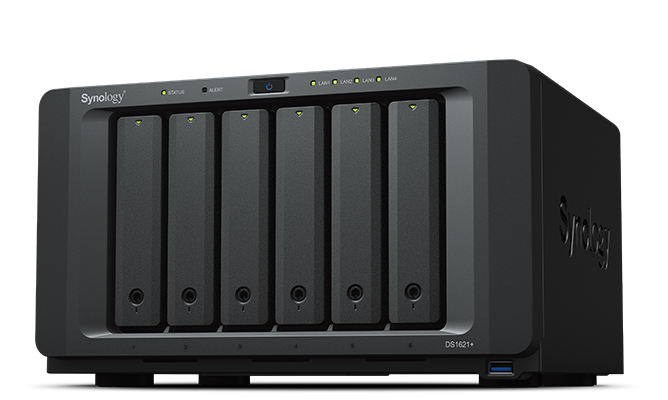

Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.





The performance you need

Reduce transfer times with the DS1621+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.





Storage that fits your needs

Make the most of high-performance networking and file access without taking up unnecessary space. DS1621+ comes equipped with 6 bays and can scale up to 16 bays with 2 DX517 expansion units as your data needs grow.

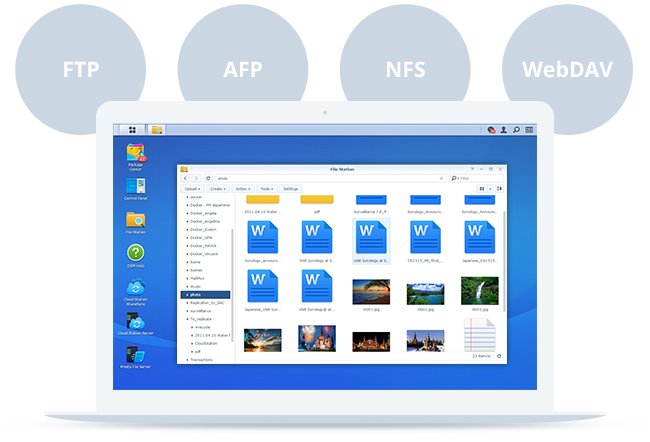

Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1621+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Specifications:

CPU

CPU ModelAMD Ryzen V1500B
 CPU Quantity1
 CPU Architecture64-bit
 CPU Frequency4-core 2.2 GHz
 Hardware Encryption Engine (AES-NI)

Memory

System Memory4 GB DDR4 ECC SODIMM
 Memory Module Pre-installed4 GB (4 GB x 1)
 Total Memory Slots2
 Maximum Memory Capacity32 GB (16 GB x 2)
 Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays6 (моля проверете по долу в списъка със съвместимите модели)

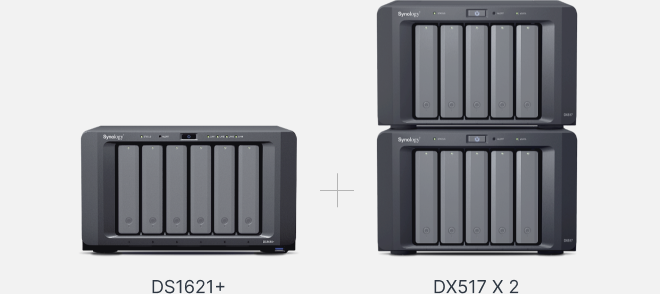

 Maximum Drive Bays with Expansion Unit16 (DX517 x 2)
 M.2 Drive Slots2 (NVMe)
 Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
 Maximum Single Volume Size*108 TB
 Hot Swappable DriveYes
 Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
 USB 3.2 Gen 1 Port*3
 eSATA Port2
 NotesThe USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

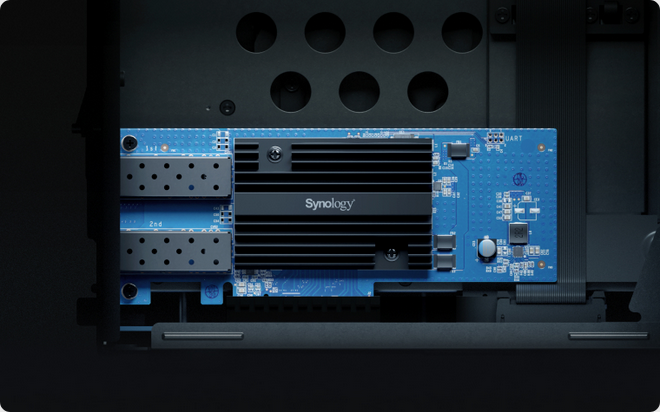

PCIe

PCIe Expansion1 x Gen3 x8 slot (x4 link)

File System

Internal Drives
  • Btrfs
  • EXT4
 External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
 NotesexFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Size (Height x Width x Depth)166 mm x 282 mm x 243 mm
 Weight5.1 kg

Others

System Fan92 mm x 92 mm x 2 pcs
 Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
 Easy Replacement System FanYes
 Brightness Adjustable Front LED IndicatorsYes
 Power RecoveryYes
 Noise Level*25.2 dB(A)
 Scheduled Power On / OffYes
 Wake on LAN / WANYes
 Power Supply Unit / Adapter250 W
 AC Input Power Voltage100 V to 240 V AC
 Power Frequency50/60 Hz, Single Phase
 Power Consumption*51.22 W (Access)
25.27 W (HDD Hibernation)
 British Thermal Unit174.77 BTU/hr (Access)
86.22 BTU/hr (HDD Hibernation)
 Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature0°C to 40°C (32°F to 104°F)
 Storage Temperature-20°C to 60°C (-5°F to 140°F)
 Relative Humidity5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM



Compatible With:

HAT5300-16TТвърд диск 16TB Synology HAT5300 (HAT5300-16T), SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)
HAT5300-12TТвърд диск 12TB Synology HAT5300 (HAT5300-12T), SATA 6Gb/s, 7200 rpm, 256 MB кеш, 3.5" (8.89 cm)
HAT5300-8TТвърд диск 8TB Synology HAT5300 (HAT5300-8T), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
HAT5300-4TТвърд диск 4TB Synology HAT5300-4T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89 cm)
ST16000NM001GТвърд диск 16TB Seagate Exos X16 512e/4Kn, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST14000NM001GТвърд диск 14TB Seagate Exos X16 HDD 512E/4KN ST14000NM001G, SATAIII 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
ST12000NM001GТвърд диск 12TB Seagate Exos X16 512E ST12000NM001G, SATAIII 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
ST10000NM001GТвърд диск 10TB Seagate Exos X16 512E ST10000NM001G, SATAIII 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
ST8000NM000AТвърд диск 8TB Seagate Exos 7E8 512E ST8000NM000A, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
ST6000NM021AТвърд диск 6TB Seagate Server Exos 7E8 (ST6000NM021A), SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
ST4000NM002AТвърд диск 4TB Seagate Server Exos 7E8 512E/4kn (ST4000NM002A), SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
ST2000NM001AТвърд диск 2TB Seagate Exos 7E8 512E ST2000NM001A, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
MG04ACA400EТвърд диск 4TB, Toshiba MG04ACA400E, SATA 6Gb/s, 7200 rpm, 128MB, 3.5"(8.89cm)
MG04ACA200EТвърд диск 2TB, Toshiba MG04ACA200E, SATA 6Gb/s, 7200 rpm, 3.5"(8.89 cm)
HUH721212ALE600Твърд диск 12TB HGST Ultrastar He12 HUH721212ALE600, SATA 6Gb/s, 7200 rpm, 256MB кеш, 512e sector size(ISE), 3.5" (8.89cm)
HUH721212ALE604Твърд диск 12TB HGST Ultrastar He12 HUH721212ALE604(0F30146), SATA 6Gb/s, 7 200 rpm, 256MB кеш, 512e sector size(Secure Erase), 3.5" (8.89 cm)
HUS726T6TALE6L4Твърд диск 6TB HGST Ultrastar DC HC310 7K6 (512e), SATA 6Gb/s, 7200rpm, 256MB, 3.5" (8.89cm)
HUS726T4TALE6L4Твърд диск 4TB WD HGST Ultrastar Server DC HC310 7K6 (512e), SATA 6Gb/s, 7200RPM, 256MB, 3.5" (8.89cm), Enterprise
HUS722T2TALA604Твърд диск 2TB WD Ultrastar, SATA 6Gb/s, 7200 rpm, 128MB, 3.5"(8.89 cm)
HUS722T1TALA604Твърд диск 1TB HGST Ultrastar 7K2, SATA 6Gb/s, 7200 rpm, 128MB, 3.5" (8.89 cm)
ST16000NE000Твърд диск 16TB Seagate IronWolf Pro Guardian, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5"(8.89 cm)
ST14000NE0008Твърд диск 14TB Seagate IronWolf Pro (ST14000NE0008), SATA 6GB/s, 7200 rpm, 256MB, 3.5" (8.89 cm)
ST12000NE0008Твърд диск 12TB Seagate IronWolf Pro, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST10000NE0008Твърд диск 10TB Seagate IronWolf Pro ST10000NE0008, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST8000NE001Твърд диск 8TB Seagate Ironwolf Pro NAS, SATA3 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
ST6000NE000Твърд диск 6TB Seagate Ironwolf Pro NAS, SATA3 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
ST4000NE001Твърд диск 4TB Seagate IronWolf Pro (ST4000NE001), SATA 6Gb/s, 7200rpm, 128 MB кеш, 3.5" (8.89cm)
WD141KFGXТвърд диск 14TB Western Digital Red Pro WD141KFGX, SATAIII 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
WD121KFBXТвърд диск 12TB WD Red Pro NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
WD102KFBXТвърд диск 10TB WD Red Pro NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
WD8003FFBXТвърд диск 8TB WD Red PRO NAS, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89cm)
WD6003FFBXТвърд диск 6TB WD Red Pro NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
WD4003FFBXТвърд диск 4TB WD Red Pro NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
ST14000VN0008Твърд диск 14TB Seagate IronWolf NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST12000VN0008Твърд диск 12TB Seagate IronWolf NAS, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST10000VN000Твърд диск 10TB Seagate IronWolf NAS ST10000VN000, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm), Bulk
ST10000VN0008Твърд диск 10TB Seagate IronWolf NAS ST10000VN0008, SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89cm)
ST8000VN004Твърд диск 8TB Seagate IronWolf NAS, SATA 6Gb/s, 7200 rpm, 3.5"(8.89 cm)
ST4000VN006Твърд диск 4TB Seagate IronWolf ST4000VN006, SATA 6Gb/s, 5400rpm, 256MB кеш, 3.5" (8.89 cm)
ST4000VN008Твърд диск 4TB Seagate Ironwolf NAS, SATA 6Gb/s, 5900 rpm, 64MB кеш, 3.5" (8.89 cm)
ST3000VN006Твърд диск 3TB Seagate IronWolf ST3000VN006, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5" (8.89 cm)
ST3000VN007Твърд диск 3TB Seagate IronWolf ST3000VN007, SATA 6Gb/s, 5900 rpm, 64 MB, 3.5"(8.89 cm)
ST2000VN004Твърд диск 2TB Seagate IronWolf, SATA 6Gb/s, 5900 rpm, 64MB, 3.5" (8.89 cm)
ST1000VN002Твърд диск 1TB Seagate IronWolf, SATA 6Gb/s, 5900 rpm, 64MB кеш, 3.5"(8.89 cm)
HDWG21EEZSTAТвърд диск 14TB Toshiba N300 NAS (HDWG21EEZSTA), SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG21EUZSVAТвърд диск 14TB Toshiba N300 NAS, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG21CEZSTAТвърд диск 12TB Toshiba N300 NAS (HDWG21CEZSTA), SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG21CUZSVAТвърд диск 12TB Toshiba N300 NAS, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG11AEZSTAТвърд диск 10TB Toshiba N300 NAS, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG11AUZSVAТвърд диск 10TB Toshiba N300 NAS, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG180EZSTAТвърд диск 8TB Toshiba N300 NAS, SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWG480UZSVAТвърд диск 8TB Toshiba N300 NAS (HDWG480UZSVA), SATA 6Gb/s, 7200 rpm, 256MB, 3.5" (8.89cm)
HDWQ140UZSVAТвърд диск 4TB Toshiba N300 NAS, SATA 6Gb/s, 7200rpm, 128MB, 3.5" (8.89cm)
WD140EFGXТвърд диск 14TB WD Red Plus NAS WD140EFGX, SATA 6Gb/s, 7200 rpm, 512MB, 3.5"(8.89 cm)
WD120EFBXТвърд диск 12TB WD Red Plus NAS WD120EFBX, SATA 6Gb/s, 7200 rpm, 256MB, 3.5"(8.89 cm)
WD101EFBXТвърд диск 10TB WD Red Plus NAS (WD101EFBX), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
WD80EFBXТвърд диск 8TB WD Red Plus (WD80EFBX), SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89cm)
WD80EFZXТвърд диск 8TB WD Red NAS, SATA 6Gb/s, 5400rpm, 128MB, 3.5"(8.89 cm)
WD80EFZZТвърд диск 8TB Western Digital Red Plus WD80EFZZ, SATA 6Gb/s, 5400rpm, 128MB кеш, 3.5" (8.89 cm), Bulk
WD60EFZXТвърд диск 6TB WD Red Plus NAS WD60EFZX, SATA 6Gb/s, 5400rpm, 128MB кеш, 3.5" (8.89cm)
WD40EFZXТвърд диск 4TB WD Red Plus NAS WD40EFZX, SATA 6GB/s, 5400rpm, 128MB кеш, 3.5" (8.89cm)
WD30EFZXТвърд диск 3TB WD Red NAS WD30EFZX, SATA 6Gb/s, 5400 rpm, 128MB, 3.5"(8.89 cm)
WD20EFZXТвърд диск 2TB WD Red NAS WD20EFZX, SATA 6Gb/s, 5400 rpm, 128MB, 3.5"(8.89 cm)
ST14000VE0008Твърд диск 14TB Seagate SkyHawk AI (ST14000VE0008), SATA 6Gb/s, 7200rpm, 256MB, 3,5" (8.89 cm)
ST10000VE0008Твърд диск 10TB Seagate SkyHawk AI (ST10000VE0008), SATA 6Gb/s, 7200rpm, 256MB, 3,5" (8.89 cm)
ST8000VX004Твърд диск 8TB Seagate SkyHawk Guardian ST8000VX004, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5"(8.89 cm)
ST6000VX001Твърд диск 6TB Seagate SkyHawk Guardian ST6000VX001, SATA 6Gb/s, 5400rpm, 256MB кеш, 3.5"(8.89 cm)
ST3000VX009Твърд диск 3TB Seagate Skyhawk, SATA 6Gb/s, 5400 rpm, 256MB кеш, 3.5"(8.89cm)
WD82PURZТвърд диск 8TB WD Purple Surveillance, SATA 6Gb/s, 7200rpm, 256 MB, 3.5" (8.89 cm)
WD60PURZТвърд диск 6TB WD Purple, SATA 6Gb/s, 5400 rpm, 64MB кеш, 3.5" (8.89 cm)
WD40PURXТвърд диск 4TB WD Purple, SATA 6Gb/s, 5400rpm, 64MB, 3.5"(8.89 cm)
WD40PURZТвърд диск 4TB WD Purple Surveillance, SATA 6Gb/s, 5400rpm, 64 MB, 3.5" (8.89 cm)
WD30PURXТвърд диск 3TB WD Purple Surveillance, SATA 6Gb/s, 5400rpm, 64MB, 3.5" (8.89 cm)
WD30PURZТвърд диск 3TB WD Purple Surveillance, SATA 6Gb/s, 5400 rpm, 64MB кеш, 3.5" (8.89 cm)
WD20PURXТвърд диск 2TB WD Purple Surveillance, SATA 6Gb/s, 5400rpm, 64MB, 3.5"(8.89 cm)
WD20PURZТвърд диск 2TB WD Purple Surveillance, SATA 6Gb/s, 5400 rpm, 64MB, 3.5" (8.89 cm)




    Виж още Мрежови дискове NAS Synology
    Виж всички Мрежови дискове NAS в категорията
    Документация
    Технически характеристики
    Формфактор:  Desktop
    Капацитет:  Неокомплектован GB
