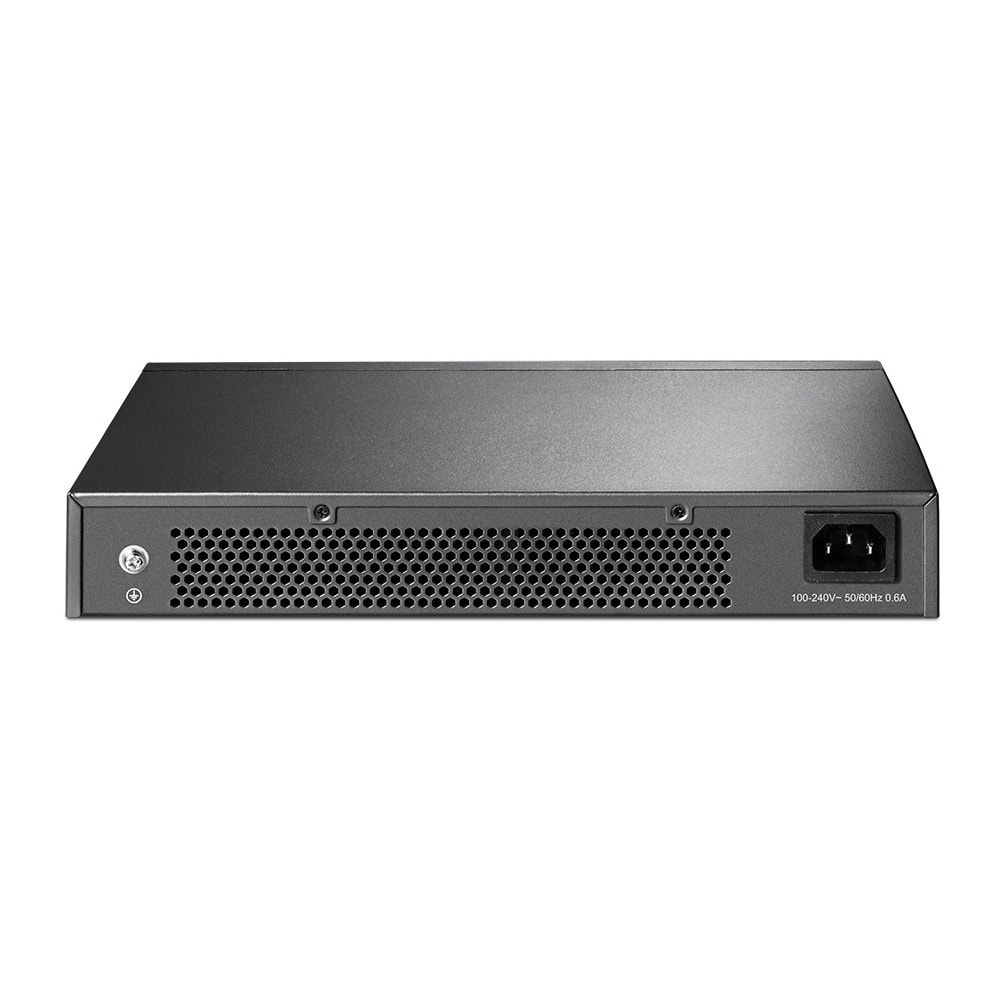

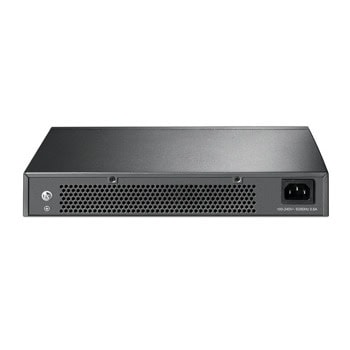

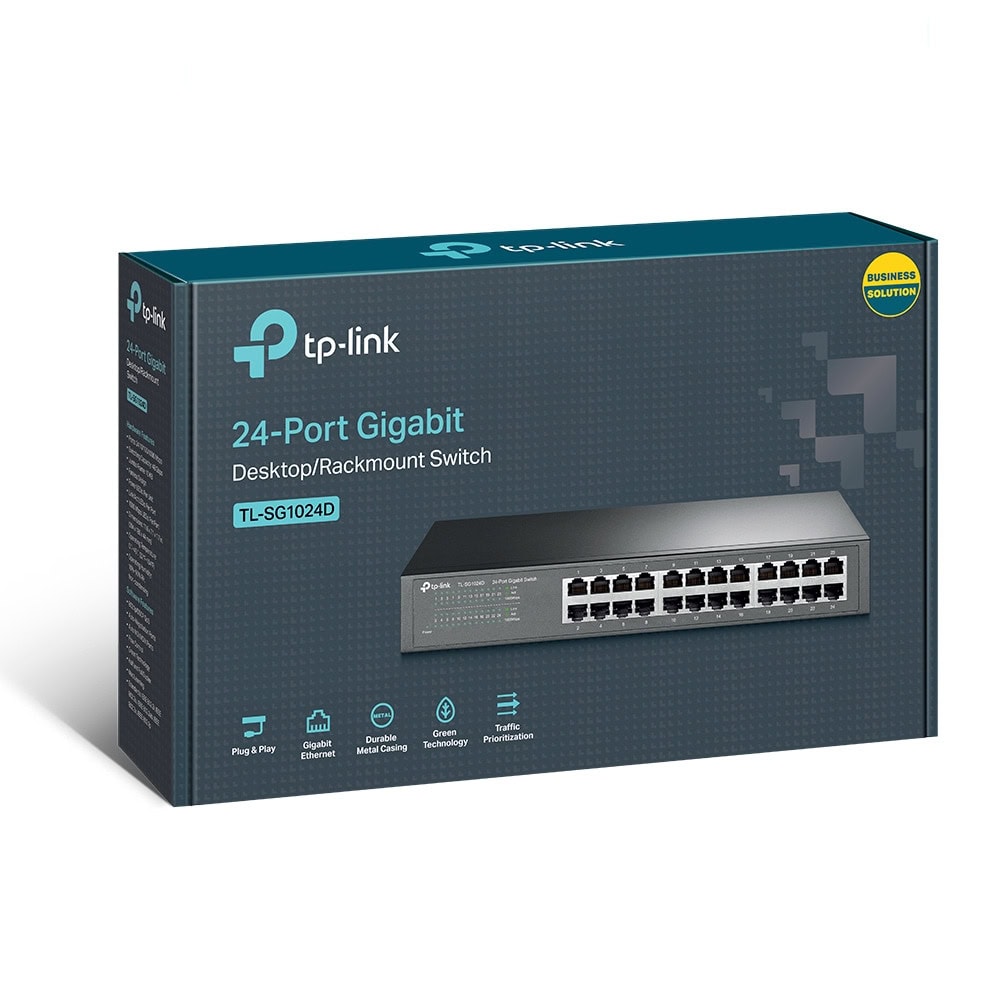

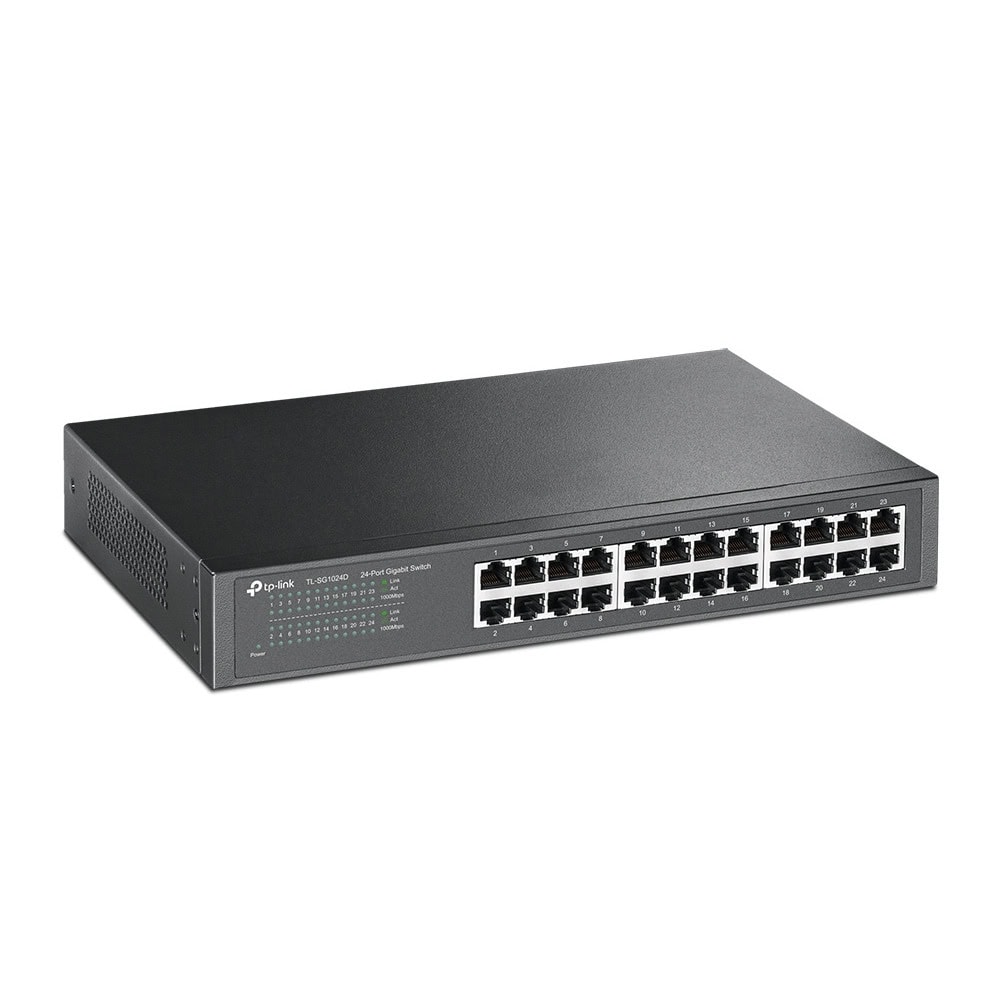

TP-Link TL-SG1024D
24-Port Gigabit Desktop/Rackmount Switch
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power up to 20%
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth - 48Gbps
MAC Address Table - 8k
Forwarding Rate:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
Transmission Method - Store-and-Forward
Ports - 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media:
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators - Power, Link/Act
Safety & Emission - FCC, CE
Dimensions (W*D*H) - 294*180*44 mm
Environment
Operating Temperature: 0?~40C
Storage Temperature: -40?~70C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power - 100-240VAC, 50/60Hz
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
24-Port Gigabit Desktop/Rackmount Switch
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power up to 20%
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth - 48Gbps
MAC Address Table - 8k
Forwarding Rate:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
Transmission Method - Store-and-Forward
Ports - 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media:
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U` STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators - Power, Link/Act
Safety & Emission - FCC, CE
Dimensions (W*D*H) - 294*180*44 mm
Environment
Operating Temperature: 0?~40C
Storage Temperature: -40?~70C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power - 100-240VAC, 50/60Hz
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Документация
TP-Link TL-SG1024D - switch - 24 ports - rack-mountable Brochure
TP-Link TL-SG1024D - switch - 24 ports - rack-mountable Quick start guide
TP-Link TL-SG1024D - switch - 24 ports - rack-mountable Quick start guide
TP-Link TL-SG1024D - switch - 24 ports - rack-mountable Brochure
Installation Guide
Product Brochure
Installation Guide
Product Brochure
Технически характеристики
Брой портове: | 24 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | 802.3ab |
Управляем: | Не |
