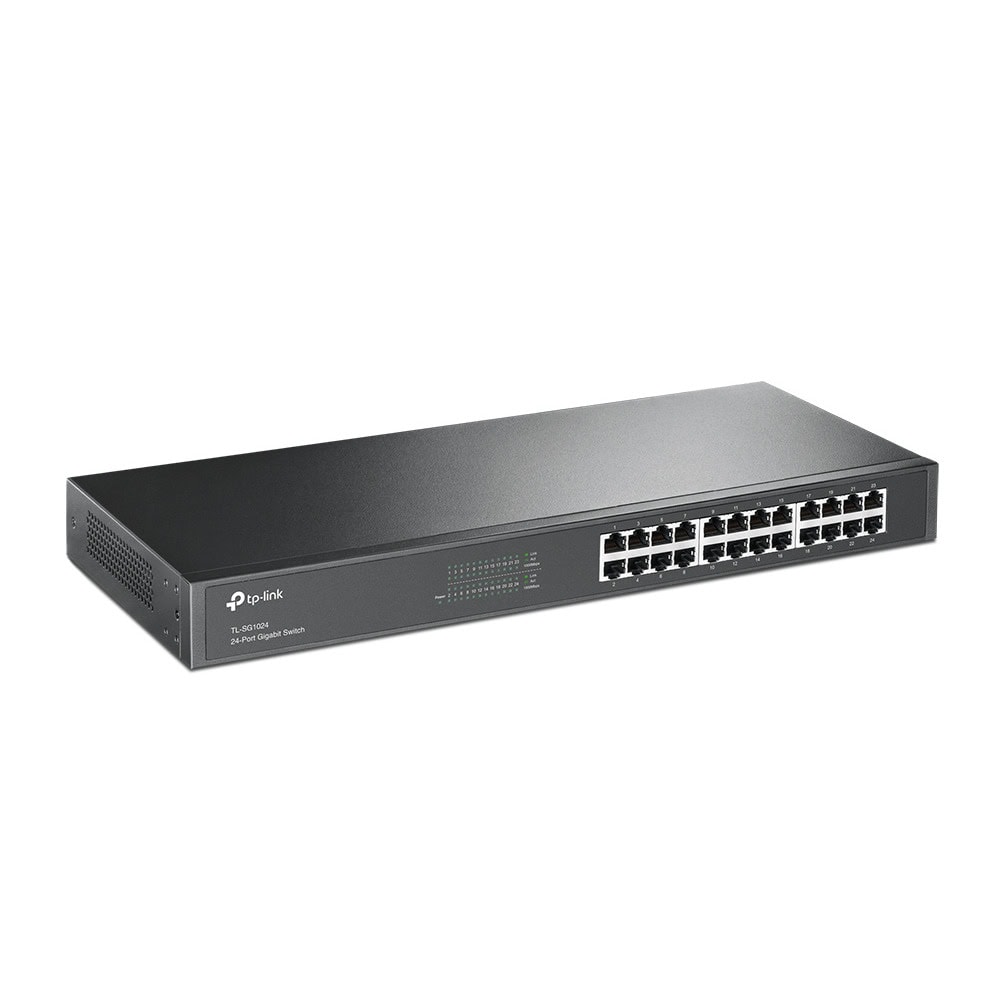

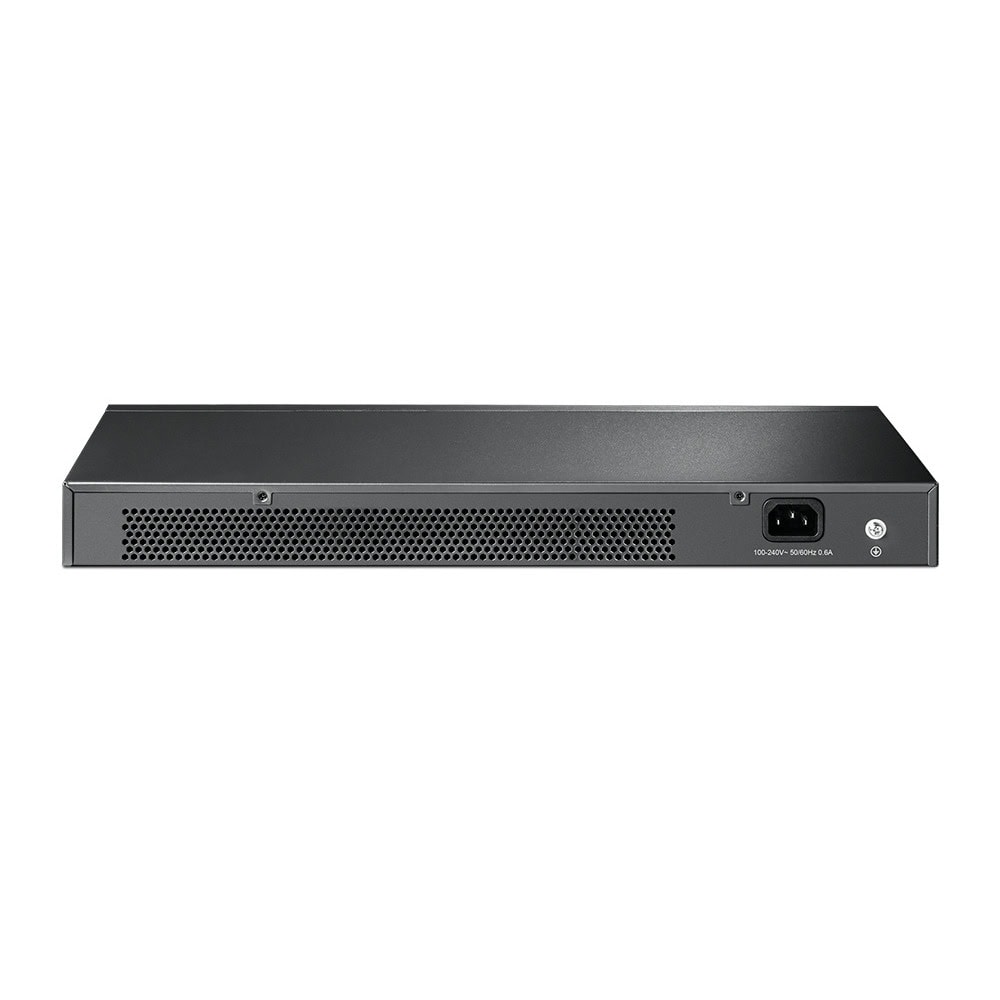

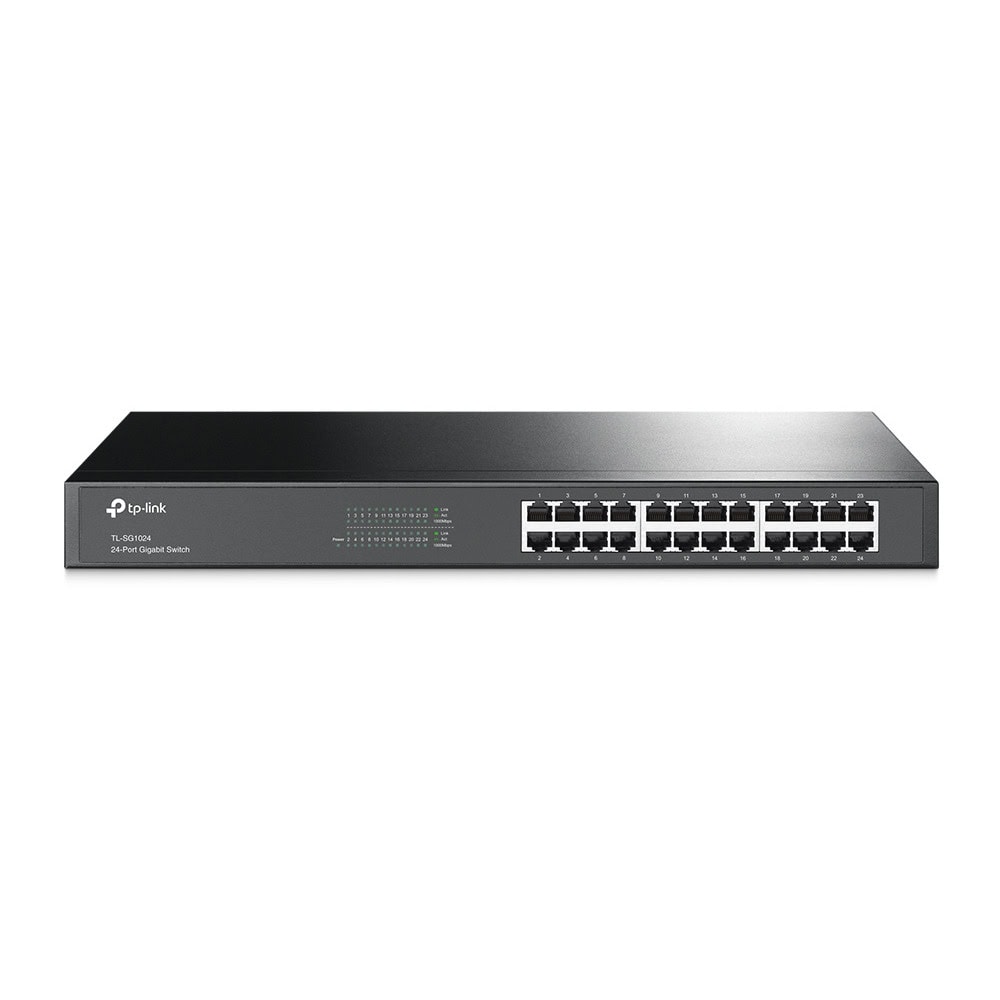

TL-SG1024
24-Port Gigabit Rackmount Switch
- 24 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 25%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.6W (220V/50Hz)
Dimensions ( W x D x H ) 440*180*44 mm
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents:
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
24-Port Gigabit Rackmount Switch
- 24 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 25%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.6W (220V/50Hz)
Dimensions ( W x D x H ) 440*180*44 mm
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents:
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Документация
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable Brochure
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable Quick start guide
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable Brochure
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable Quick start guide
- Product Brochure
- Product Brochure
- User manual
- User manual
Технически характеристики
Брой портове: | 24 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | 802.3ab |
Управляем: | Не |
