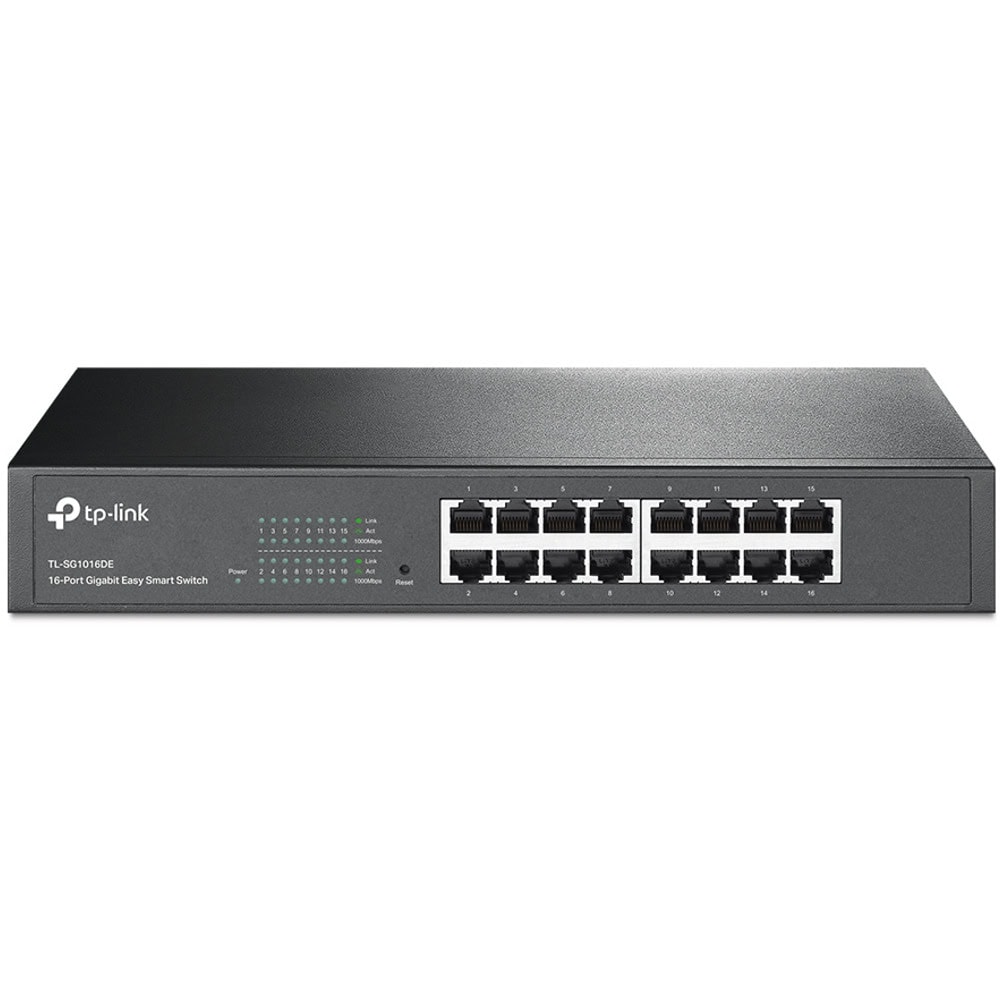

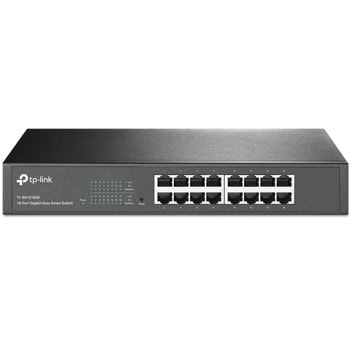

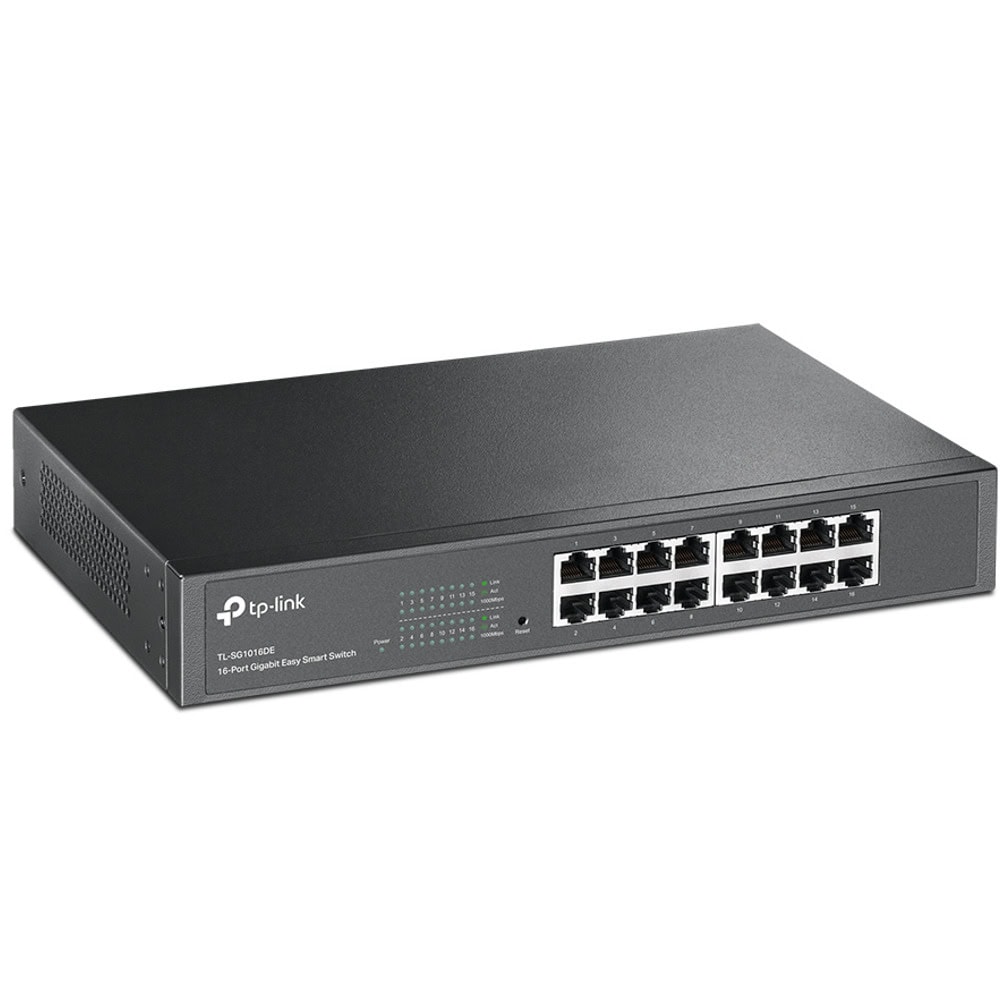

Суич TP-Link TL-SG1016DE, 16 ports 1000Mbps

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Fan Quantity Fanless
Power Consumption Maximum: 12.55W (220V/50Hz)
Power Supply 100-240VAC, 50/60Hz

PERFORMANCE

Switching Capacity 32Gbps
MAC Address Table 8K
Packet Buffer Memory 512KB
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10240Bytes

Quality of Service

Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents

TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
