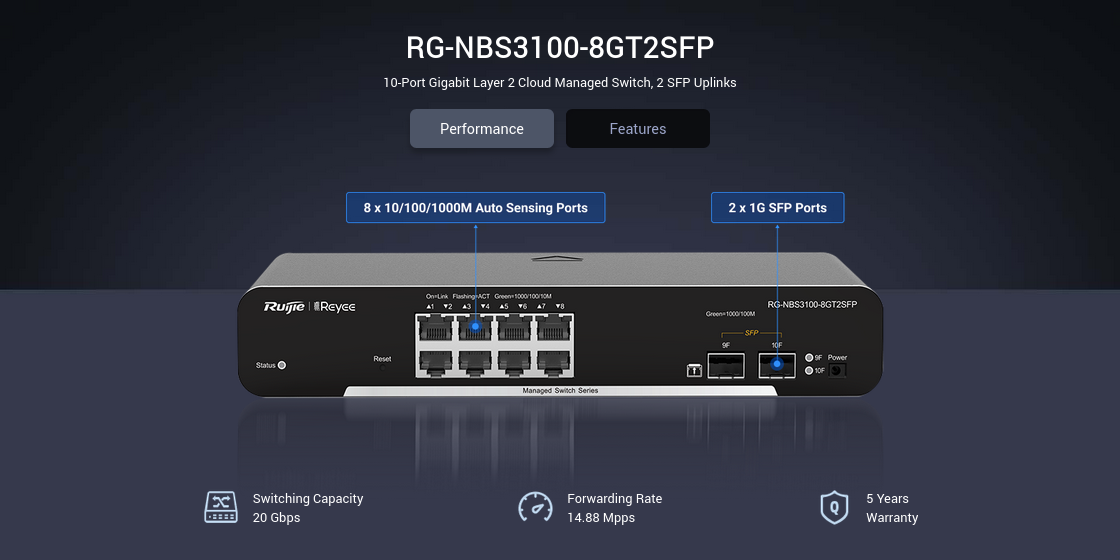

Ruijie RG-NBS3100-8GT2SFP
Key Specification
Ports: 8 x 10/100/1000Base-T ports, 2 SFP uplink
Switching capacity: 20 Gbps
MAC address table: 8000
Fan: Fanless
Dimensions (W x D x H): 260 mm x 120 mm x 43.6 mm
MTBF: > 200,000
Layer type: Layer 2
Forwarding rate: 14.88 Mbps
Maximum VLAN: 4094
Port surge: 6 kV
Tech specs
| 10/100/1000Base-T ports | 8 | |||
| SFP ports | 2 | |||
| SFP+ ports | - | |||
| PoE/PoE+ ports | - | |||
| Max. PoE budget | - | |||
| Layer Type | Layer 2 | |||
| Switching capacity | 20 Gbps | |||
| Forwarding rate | 14.88 Mpps | |||
| Packet Buffer | 4.1 Mbit | |||
| MAC address table | 8,000 | |||
| Maximum VLAN Support | 4094 | |||
| Dimensions (W x D x H) | 260 mm x 120 mm x 43.6 mm | |||
| Weight (With package) | 1.2 kg | |||
| MTBF | > 200,000 | |||
Layer 2 Features | ||||
| Jumbo Frame | 9216 | |||
| Flow Control | ✔️ | |||
| STP (IEEE 802.1d) | ✔️ | |||
| RSTP (IEEE 802.1w) | ✔️ | |||
| MSTP (IEEE 802.1s) | - | |||
| Port Fast | ✔️ | |||
| BPDU Guard | ✔️ | |||
| Errdisable Recovery | ✔️ | |||
| Max. Aggregation Group | 8 | |||
| Max. Member per Group | 8 | |||
| Unknow Unicast Storm Suppression | ✔️ | |||
| Multicast / Broadcast Storm Suppression | ✔️ | |||
| Many-to-One Mirroring | ✔️ | |||
| VLAN Range | 1-4094 | |||
| Port-based VLAN | ✔️ | |||
| MAC-based VLAN | ✔️ | |||
| IP-based VLAN | ✔️ | |||
| Voice VLAN | ✔️ | |||
| RLDP | ✔️ | |||
| LLDP / LLDP-MED | ✔️ | |||
| Cable Testing | ✔️ | |||
| IGMP Snooping v1/v2/v3 | ✔️ | |||
Software Features | ||||
| Ping | ✔️ | |||
| Traceroute | ✔️ | |||
| ACL Entries | 1200 | |||
| IP Standard ACL | ✔️ | |||
| MAC-based Extended ACL | ✔️ | |||
| IP-based Extended ACL | ✔️ | |||
| Port-based Rate Limit (Ingress/Egress) | ✔️ | |||
| SNMP v1/v2c/v3 | - | |||
| Web Management | ✔️ | |||
| Management IP | 10.44.77.200 | |||
| HTTP/HTTPS | ✔️ | |||
| Cloud Management | ✔️ | |||
| SON (Self-Organizing Network) with IP | ✔️ | |||
| Camera Recognition | ✔️ | |||
| Loop Prevention | ✔️ | |||
| Loop Notification | ✔️ | |||
| PoE Usage Alarm | - | |||
| Protection Port | ✔️ | |||
| IP Source Guard | ✔️ | |||
| Anti-ARP Spoofing | ✔️ | |||
| DHCP Snooping | ✔️ | |||
| DHCP Client | ✔️ | |||
Physical Features | ||||
| Reset Button | Front | |||
| Cable Hot-swappable | ✔️ | |||
| Power Supply Slot | Power adpater | |||
| Power Supplies | 100 - 240V AC, 1A | |||
| Power Consumption | ≤ 8W | |||
| EEE | ✔️ | |||
| Fan | - | |||
| Airflow | - | |||
| Fan Adaptive Speed Adjustment | - | |||
| Acoustic Noise | Noiseless | |||
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |||
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |||
| Operating Humidity | 10% to 90% RH | |||
| Storage Humidity | 5% to 95% RH | |||
| Port Surge | 6 kV | |||
| Operating Altitude (meters) | -500 to 5000 | |||
| Certificate | CE, RoHS | |||
