Ruijie RG-ES218GC-P
Highlight Features

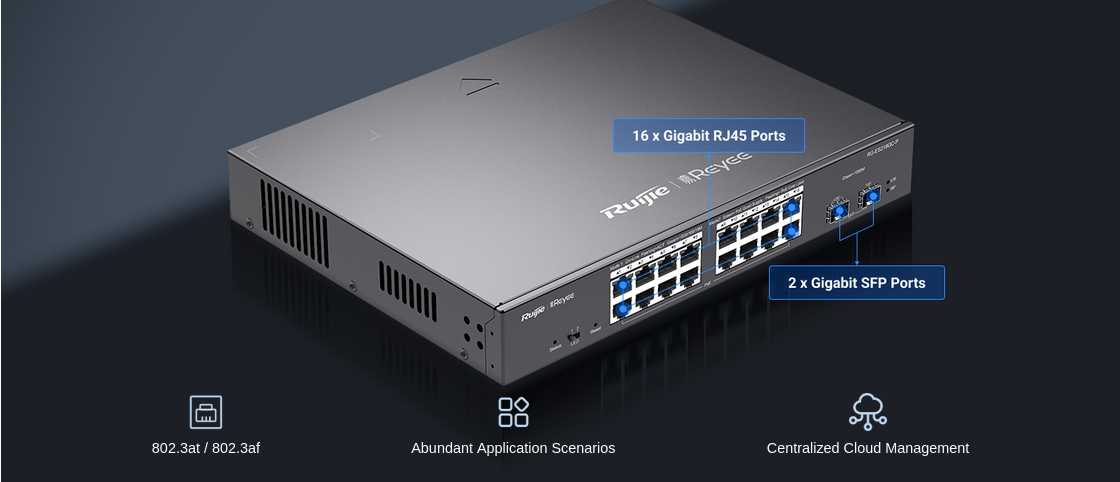

- 18-Port gigabit cloud managed switch with 16 PoE+ ports
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
Specifications:
Basic
10/100/1000Base-T ports
16
1000Base-X SFP ports
2
PoE/PoE+ ports
16
Max. PoE budget
240W
Layer Type
Layer 2
Switching capacity
36 Gbps
Forwarding rate
26.78 Mpps
Packet Buffer
4.1 Mbit
MAC address table
8000
Maximum VLAN Support
16
Dimensions (W x D x H)
300 mm x 230 mm x 43.6 mm
MTBF
> 200,000
Software Features
10/100/1000M Auto/Full/Half Duplex Negotiation
Yes
Flow Control
Yes
Storm Suppression
Yes
Management IP
10.44.77.200
VLAN Range
1 - 4094
Port-based VLAN
Yes
STP / RSTP
No
QoS
No
ACL
No
DHCP Client
Yes
DHCP Snooping
Yes
Telnet
1 session
SSH
No
DNS Client
Yes
SNMP v1/v2/v3
No
Many-to-one Port Mirroring
Yes
Downlink Loop Protection
Yes
Loop Disabled Port
Yes
Disconnection Duration
2s
Flow Control
Yes
Cable Testing
Yes
Web-based Management
Yes
HTTP
Yes
Cloud Management
Yes
Hardware Features
Reset Button
Rear
Cable Hot-swappable
Yes
Power Supply Slot
Single, fixed power supply
Power Consumption
≤ 280W
Power Supplies
100 - 240V AC, 6A
EEE
No
Fan
Built-in, lower than 25 °C stop running
Fan Adaptive Speed Adjustment
No
Acoustic Noise
< 45dB
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Humidity
10% to 90% RH
Storage Humidity
5% to 95% RH
Port Surge
4 kV
Operating Altitude (meters)
-500 to 5000
Certificate
CE, RoHS
Виж още Суич Ruijie
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 18 |
---|---|
Максимална скорост: | 1 Mbps |
Стандарт: | IEEE 802.3 at |
Управляем: | Да |
