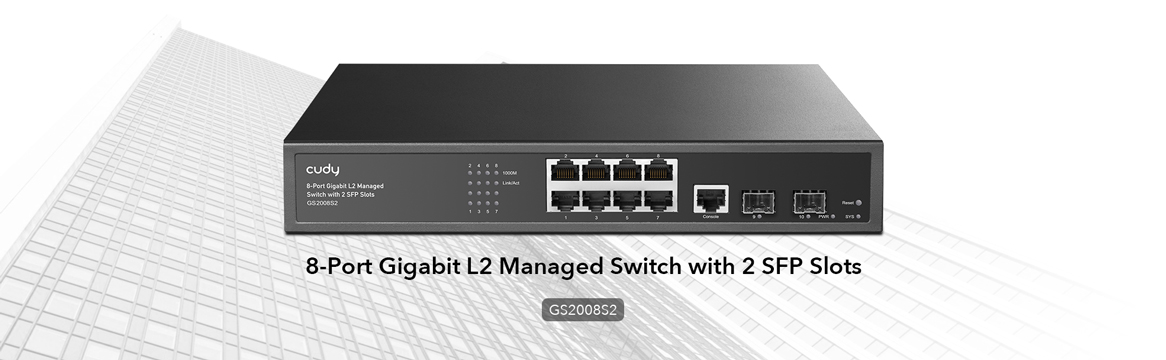

Cudy GS2008S2
● 8× Gigabit Ethernet Ports+ 2× Gigabit SFP Slots + 1× Console Port
● Support IEEE802.3/i/u/ab/z
● Support 802.1x port authentication, RADIUS, TACACS+ authentication

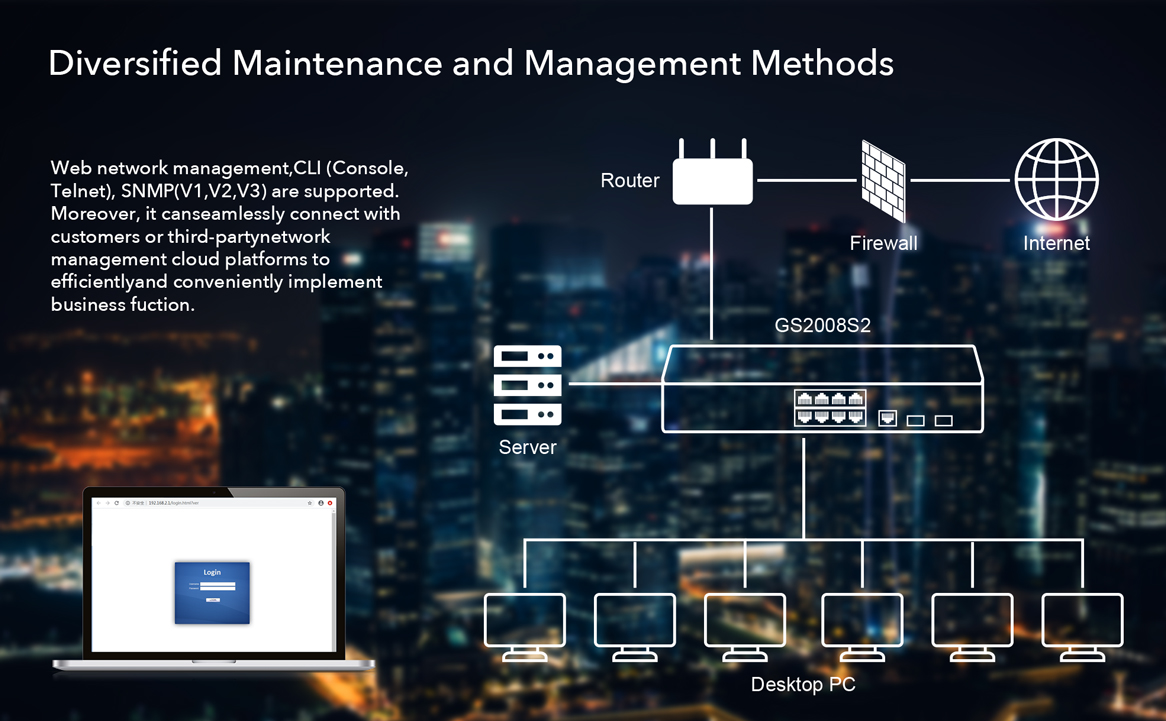

● Support WEB, TELNET, CLI, SSH, SNMP, RMON management
● Fanless Design, 1U Rack Mount
Specifications:
Model | GS2008S2 |
AC INPUT | AC100-240V,50/60Hz |
Ethernet Port | 8* Gigabit Ethernet Ports |
2* Gigabit SFP Ports | |
1* Console Port | |
Bandwidth | 20 Gbps |
Packet Forwarding rate | 14.88Mpps |
DDR SDRAM | 128MB |
Flash Memory | 16MB |
Packet Buffer Memory | 4M |
MAC Address | 8K |
Jumbo frame | 9.6Kbytes |
VLANs | 4096 |
Transfer Mode | Store and forward |
Standard | |
Network Protocols |
IEEE802.3: 10Base-T |
Optical Medium |
Multi mode:850/1310nm (0-2KM) Single mode:1310/1550/1490nm(0-120KM) |
Network Media | 10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) |
Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation |
Function indication | |
LED Indicators | PWR、SYS、Link、ACT |
Physical Specification | |
Structure Size |
Product Size:268*181*44mm Package Size:312*262*84mm Product Net-Weight:1.01KG Product Gross-Weight:1.54KG |
Packing Info |
MEAS:540*435*332mm Packing Qty:10PCS Packing weight:16.4KG |
Power Voltage |
Machine Input Voltage: AC 100-240V |
Software Function | |
Port Management |
Enable/Disable Port Flow-control Port Information Check |
Port Mirroring | Supports both side-way port mirroring |
Port Speed Limit | Support port rate limiting, the granularity of rate limiting is 32Kbps |
Port Isolation | Support port isolation Settings |
Storm Suppression | Supports unknown unicast, unknown multicast, and broadcast storm suppression |
Link Aggregation |
Support static manual aggregation Support LACP dynamic aggregation |
VLAN |
Access Trunk hybrid Support VLAN division based on port, protocol, and MAC address, VLAN tunnel Support GVRP dynamic VLAN registration Voice VLAN |
MAC |
Support static addition, deletion Support dynamic aging time setting |
Spanning Tree |
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
Multicast |
Support static addition, deletion, IGMP-snooping Support MLD-Snooping Support v1/2/3 dynamic multicast monitor |
DDM | Support SFP/SFP+DDM |
ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
QOS |
Based on 802.1p (COS) classification Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP, WRR scheduling strategy Support flow rate limit CAR |
LLDP | Support LLDP link discovery protocol |
User Setting | Add/delete users |
Log | User login, operation, status, events |
Anti-attack |
DOS Defense Support CPU protection and limits the rate of sending CPU packets ARP binding (IP, MAC, PORT binding) |
Certification |
Support 802.1x port authentication Support AAA certification |
Network diagnosis | Support ping, telnet, trace |
System Management | Device reset, configuration save/restore, upgrade management, time setting, etc |
CLI | Support serial port command line management |
SSH | Support SSHv1/2 remote management |
TELNET | Support telnet remote management |
WEB | Support Layer 2 settings, Layer 2 and Layer 3 monitor |
SNMP |
SNMP V1/V2/V3 Support trap:ColdStart, WarmStart, LinkDown, LinkUp |
RMON | Support RMON v1 |
Other Functions |
Support DHCP Snooping, Option82, DHCP Server Support dynamic ARP detection Support TACACS+ certification Support DNS Setting Support port security setting Support MVR protocol Support cable detection VCT function Support UDLD protocol |
