Суич Cudy GS108D
НазадСуич Cudy GS108DСуич Cudy GS108DСуич Cudy GS108DСуич Cudy GS108DНапред
ОписаниеХарактеристикиРевюта / ВъпросиДокументация

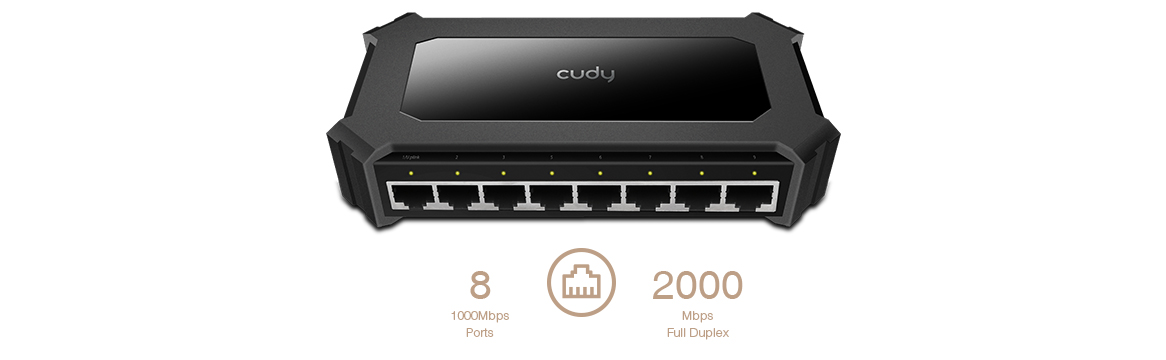

Cudy GS108D

● 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
● Supports MAC address auto-learning and auto-aging
● Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
● Cudy green technology saves the power up to 85%
● Plug & Play, Desktop design



High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible

with any 10/100/1000Mbps Ethernet devices. Featuring non-blocking switching architecture,

the product forwards and filters packets at full wire-speed for maximum throughput.

IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

offer increased bandwidth to alleviate network congestion, making the switch work reliably.



Gigabit Ports for Faster Speed

Increase the speed of your network with the 8-port Gigabit switch. Non-blocking, 8 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.

Smooth Online Experience

The switch connects up to 8 devices with a speed of up to 1000 Mbps. Provides you with an extremely smooth experience to enjoy a powerful, seamless, affordable and easy-to- use 1000Mbps network, ideal for multimedia, graphics, HD video and other applications that require large transfer allocation.

Energy Efficient and Power Saving

Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power.



Specifications:

Model GS108D
Standards IEEE802.3 10Base-T,IEEE802.3u 100Base-TX,
IEEE802.3ab 1000Base-T,IEEE802.3az
Network Media
(Cable)
10BASE-T: UTP category 3,4,5 cable (maximum 100m)
100BASE-Tx: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
Number of Ports 8 x 10/100/1000Mbps Auto-Negotiation ports
LED Indication  Power, Link/Act LEDs
Transfer Method Store-and-Forward
Switching Capacity 16Gbps
Power Input:  DC 5V /1A(adapter)
Consumption Max2.3W
Frame Filtering
and Forward Rate
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Dimensions W*D*H 143mm x 72.7mm x 26.9mm
Weight 215g
Operating Temperatur 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Package Contents 1 x Power Adapter;1 x Switch;1 x User Manual




    Виж още Суич Cudy
    Виж всички продукти Суич в категорията
    Документация
    Технически характеристики
    Максимална скорост:  1 Gbit/s
    Брой портове:  8
    Стандарт:  802.3az
    Управляем:  Не е указано
