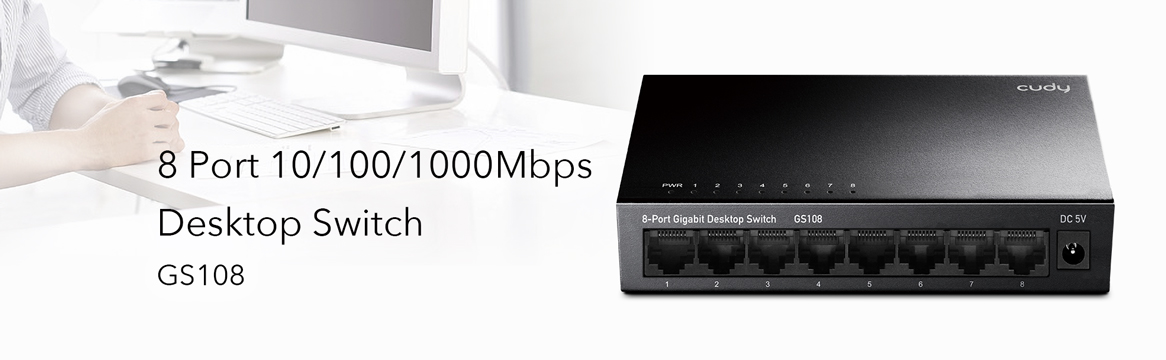

Cudy GS108
● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning & auto-aging
Gigabit Ports for Faster Speed Increase the speed of your network with the 8-port Gigabit switch. Non-blocking, 8 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference. |
![]() |
High Performance Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably. |
![]() |
Energy Efficient and Power Saving Automatically adjusts Power consumption according to the link status and cable length.This Gigabit Desktop Switch features the innovative energy-efficient technologies that can greatly expand your network capacity with much less power. |
![]() |

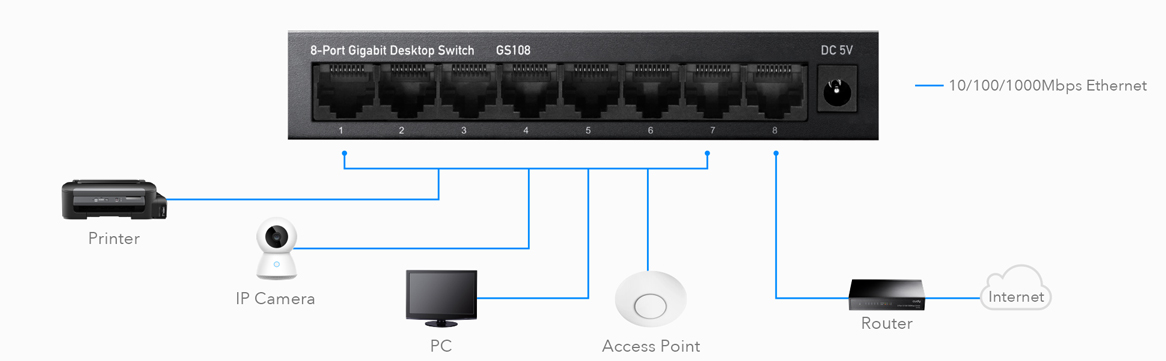

Surveillance Works with IP Cameras for home and office, small business |
![]() |
VoIP Conference Call Works with VoIP phones for business conference |
![]() |
Wi-Fi Coverage Works with WiFi APs for office and business |
Specifications
Model | GS108 |
Standard configurati | 8 10/100/1000M RJ-45 adaptive ports |
Switching Capacity | 16Gbps |
Throughput | 11.9Mpps |
Packet Buffer | 2.5M |
MAC Address | 1K |
Jumbo Frame | 2K |
Transfer Mode | Store and forward |
MTBF | 100000 hour |
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
Network Medium |
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet |
Structure Size |
Product Size:138*78*25mm Product Net-Weight:0.3kg Product Gross-Weight:0.5kg |
Power Voltage |
Power Input Voltage :AC 100-240 V Switch Input Voltage::DC 5V |
Виж още Суич Cudy
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 8 |
---|---|
Максимална скорост: | 1 Mbps |
Стандарт: | 802.3x |
Управляем: | Не е указано |
