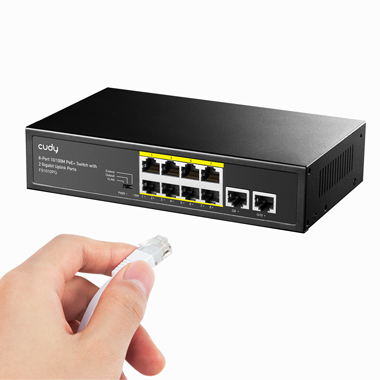

Cudy FS1010PG
● Support IEEE802.3at and IEEE802.3af Standard
● 120W PoE power output totally,up to 32W for one PoE port
● Support IEEE802.3x full duplex and half duplex flow control

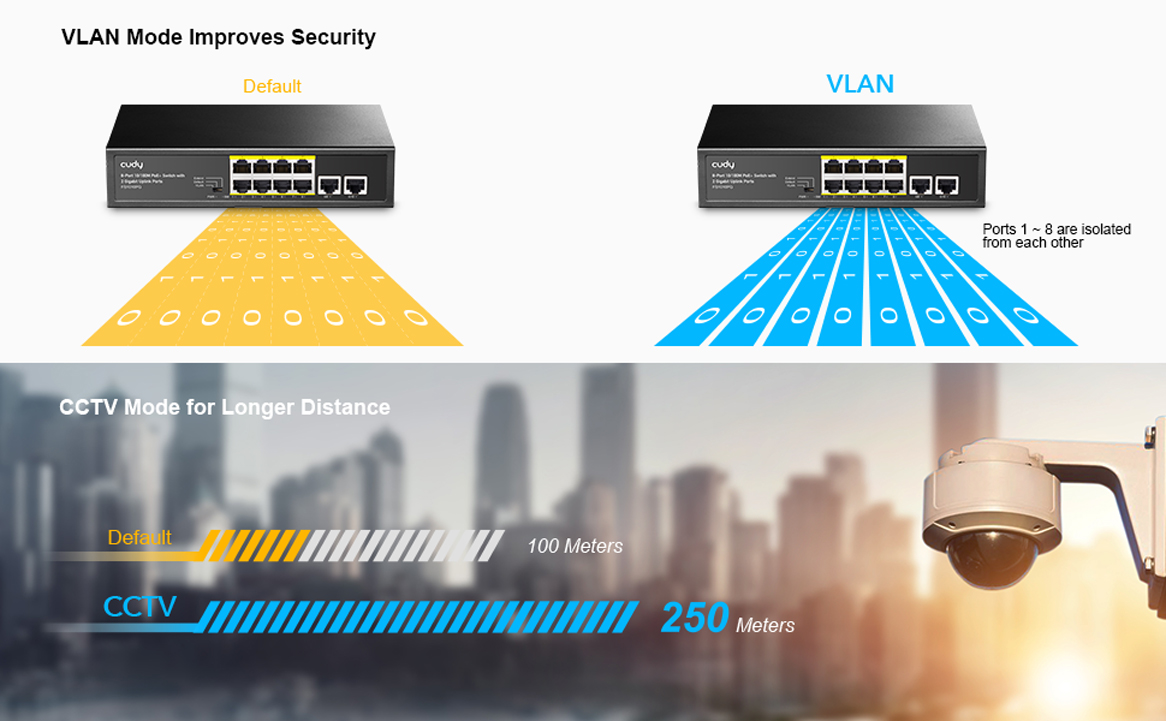

● Support VLAN and CCTV Function
● Panel lights to monitor working state and help fault analysis
● Perfect security mechanism
● Line-speed forwarding intelligent identification

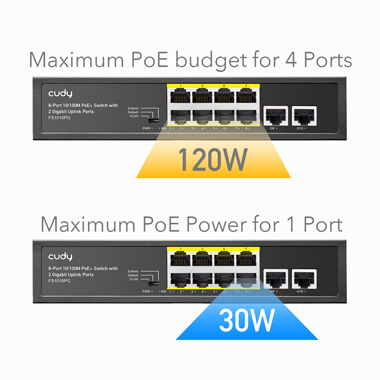

120 W Power budget & 30 W Maximum One Port Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard. |
|

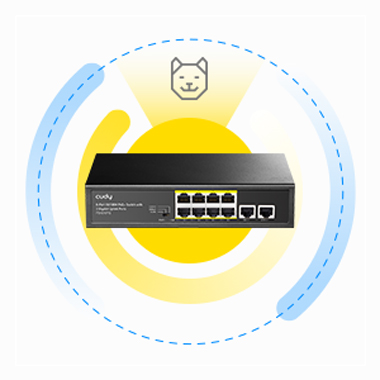

Watchdog guarantees uninterrupted operation of the PoE devices The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation. |
|
Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-) |
|

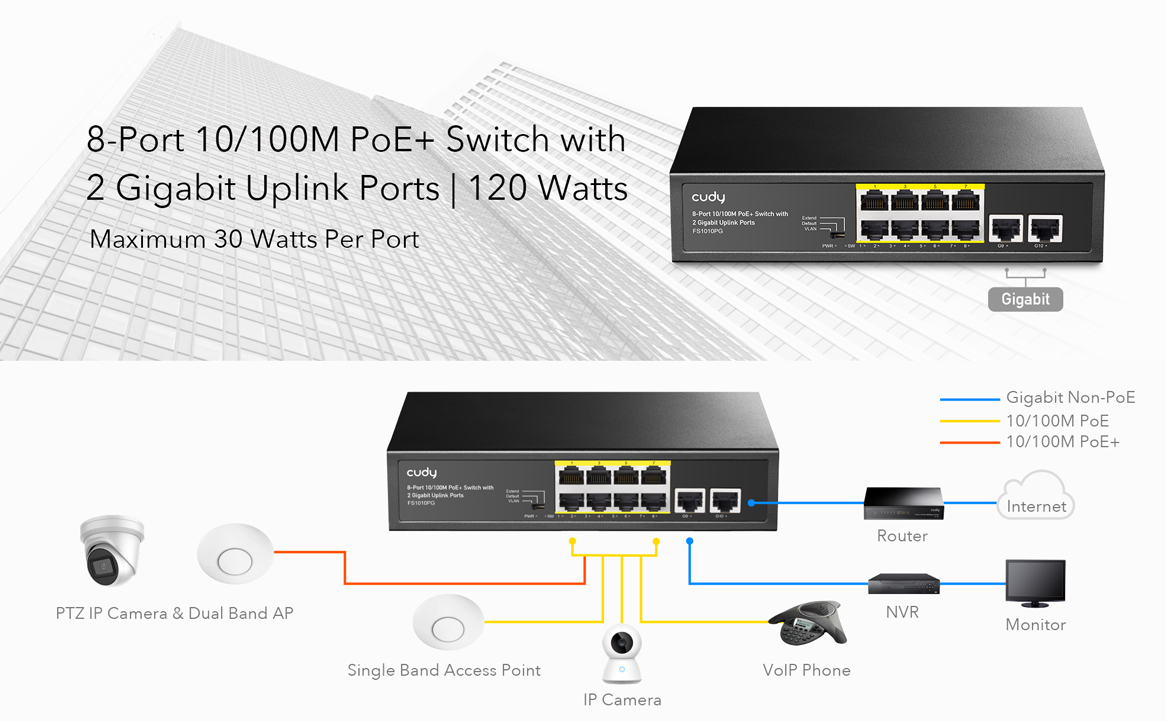

Surveillance Works with IP Cameras for home and office, small business |
|
VoIP Conference Call Works with VoIP phones for business conference |
|
Wi-Fi Coverage Works with WiFi APs for office and business |
Specifications:
Model | FS1010PG |
PoE standard | IEEE802.3af/at |
Interface | 10*10/100Mbps The RJ45 port through consultationa |
Key function | CCTV&VLAN |
PoE port | 1~8 port |
PoE Total | 120W |
Power supply | 120W |
RJ45 PoE power supply | Mode A Anode1/2 Cathode3/6 |
PoE output-port | Max 32W |
Indicator | PWR, LNK/ACT, PoE |
Network media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m);100BASE-TX: UTP category 5, 5e cable(≤100m); |
MAC Address Table | 8K, Automatic study, automatic updates |
Jumbo frame | 1528Bytes |
Packet buffer | 2M bit |
Transfer Mode | Store-and-forward |
Packet forwarding rate | 1.48Mpps |
Bandwidth | 2M bit |
Fan | Fanless |
Device Dimension | 220*150*44mm |
Machine Weight | >1kg |
Green energy saving | Support IEEE(802.3az) |
Mains Input | 100~240V AC, 50/60Hz |
Operating Temperature | 0°C ~ 40 °C |
Storage Temperature | -40 °C ~ 70 °C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | ±4KV |
MTBF | >50000 hour |
Electrostatic standard | Contact 4KV, air 6KV |
Виж още Суич Cudy
Виж всички продукти Суич в категорията
Максимална скорост: | <1 Gbit/s |
---|---|
Брой портове: | 10 |
Стандарт: | IEEE 802.3 at |
Управляем: | Не е указано |
