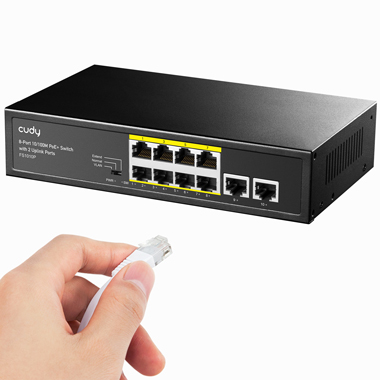

Name: Суич Cudy FS1010P, 8 порта, 100Mbps, 8x 10/100 Mbps PoE, 2x Uplink
Brand: Cudy
SKU: NTLHCUDYFS1010P
Price: 76.95 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Cudy FS1010P

● Support IEEE802.3at and IEEE802.3af Standard
● 120W PoE power output totally，up to 32W for one PoE port
● Support IEEE802.3x full duplex and half duplex ﬂow control

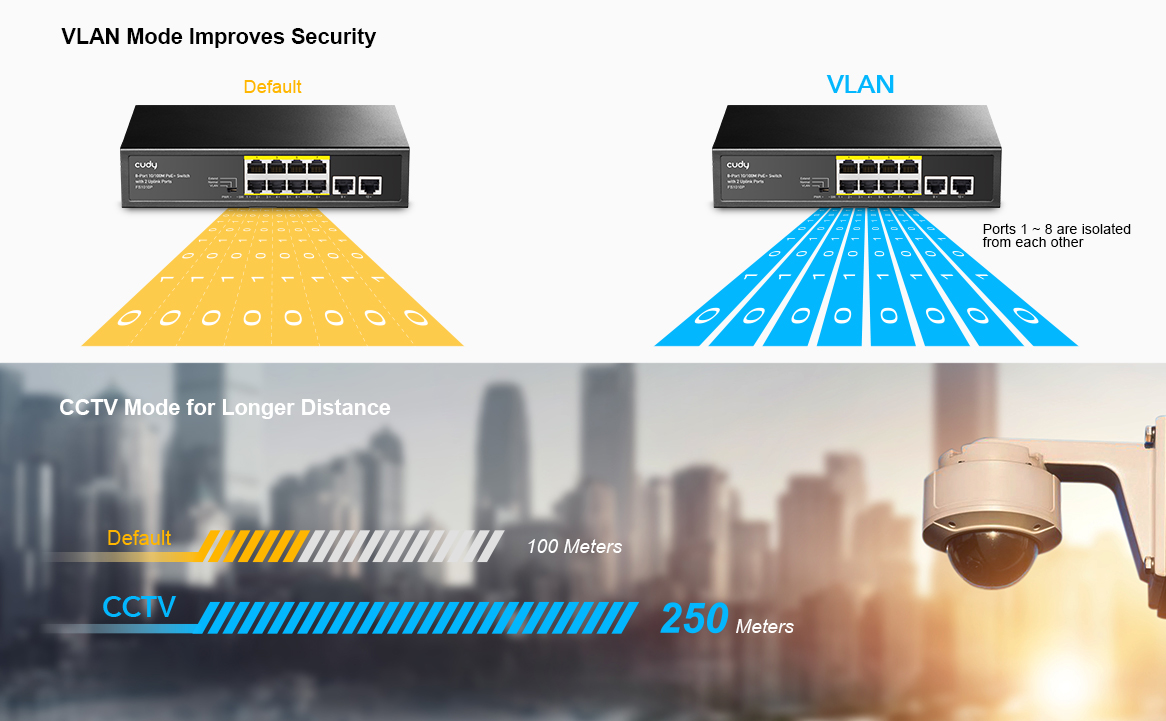

● Support VLAN and CCTV Function
● Panel lights to monitor working state and help fault analysis
● Perfect security mechanism
● Line-speed forwarding intelligent identiﬁcation

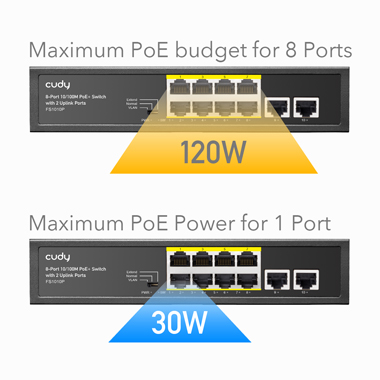

120 W Power budget & 30 W Maximum One Port Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Watchdog guarantees uninterrupted operation of the PoE devices The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.
Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

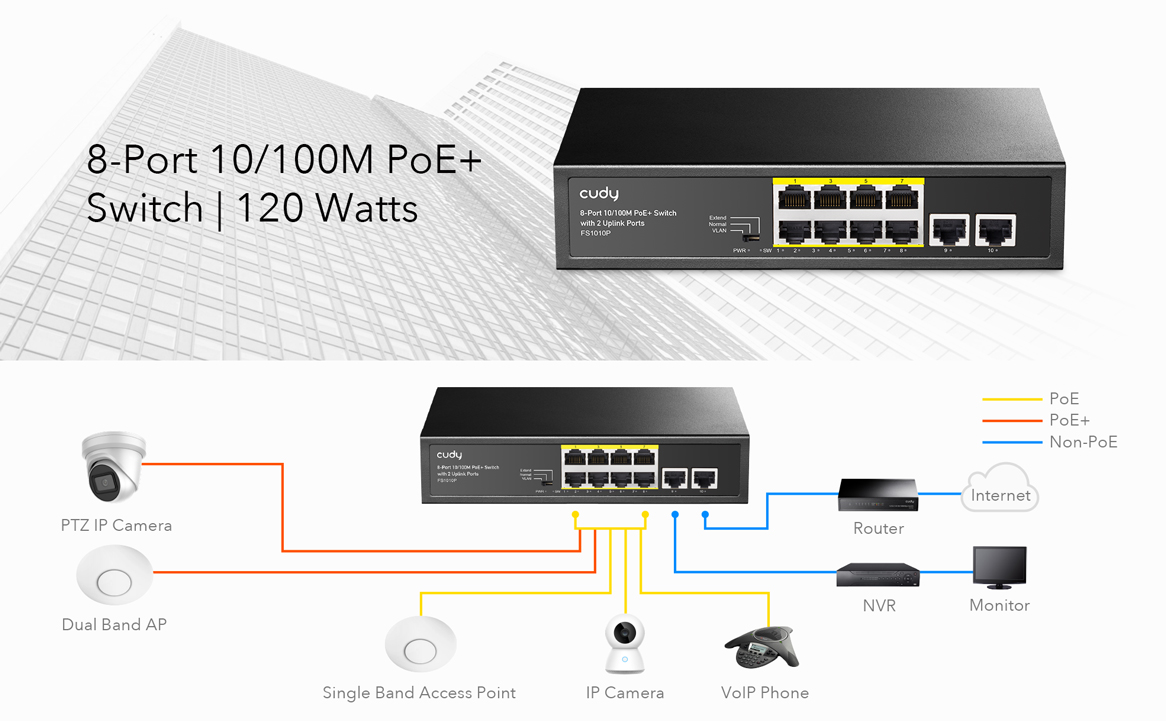

Surveillance Works with IP Cameras for home and office, small business
VoIP Conference Call Works with VoIP phones for business conference
Wi-Fi Coverage Works with WiFi APs for office and business

Specifications:

PoE standard	IEEE802.3af/at
Interface	10*10/100Mbps The RJ45 port through consultationa
Key function	CCTV&VLAN
PoE port	1~8 port
PoE Total	120W
Power supply	120W
RJ45 PoE power supply	Mode A Anode1/2 Cathode3/6
PoE output-port	Max 32W
Indicator	PWR, LNK/ACT, PoE
Network media	10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)；
MAC Address Table	8K, Automatic study, automatic updates
Jumbo frame	1528Bytes
Packet buffer	2M bit
Transfer Mode	Store-and-forward
Packet forwarding rate	1.48Mpps
Bandwidth	2M bit
Fan	Fanless
Device Dimension	22015044mm
Machine Weight	>1kg
Green energy saving	Support IEEE（802.3az)
Mains Input	100~240V AC， 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	±4KV
MTBF	>50000 hour
Electrostatic standard	Contact 4KV, air 6KV
