Soundbar система JBL Bar 1300, 11.1.4, Bluetooth, Wi-Fi, Optical, HDMI, 1170W RMS (650W + 2x110W + 300W)

JBL Bar 1300

True Dolby Atmos, DTS:X, and MultiBeam Surround Sound Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

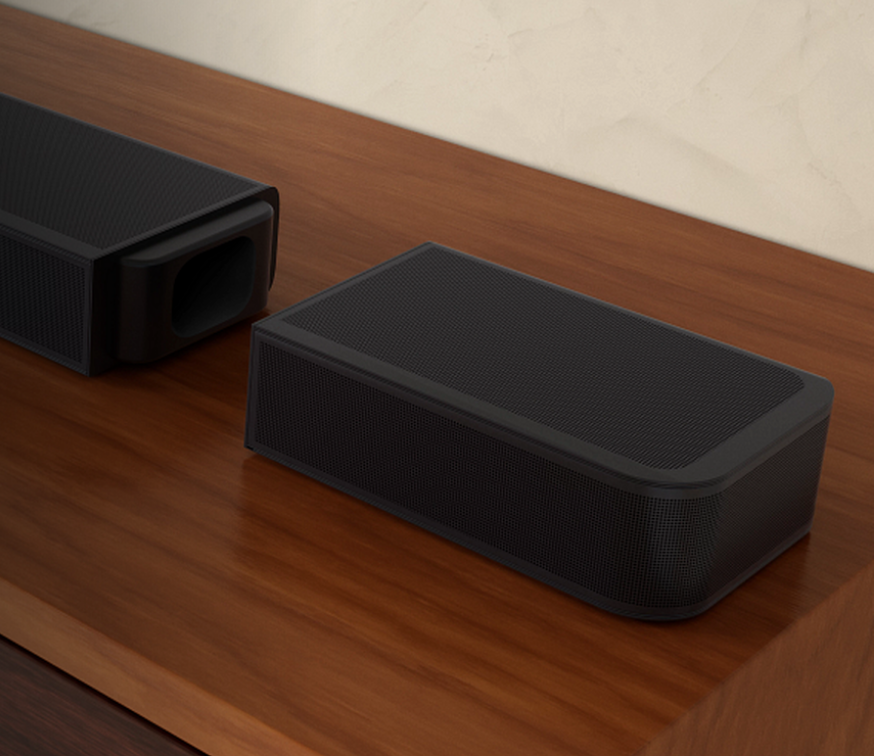

Real surround sound with detachable surround speakers Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Specifications



General Specifications

Sound system

11.1.4 channel



Power supply

100 - 240V AC, ~ 50/60Hz



Networked standby power

< 2.0W



Operating temperature

0°C - 45°C



Audio Specifications

Total speaker power output (Max @THD 1%)

1170W



Soundbar output power (Max @THD 1%)

650W



Surround speaker output power (Max @THD 1%)

2x 110W



Subwoofer output power (Max. @THD 1%)

300 W



Soundbar transducer

6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers



Surround speaker transducer

(46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators



Subwoofer transducer

10” (260mm)



Frequency response

33Hz - 20kHz (-6dB)



Audio inputs

1 Optical, Bluetooth



Dimensions

Total soundbar dimensions (W x H x D)

1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"



Main soundbar dimensions (W x H x D)

1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"



Detachable surround speaker dimensions (each) (W x H x D)

202 x 60 x 139 mm / 8" x 2.4" x 5.5"



Subwoofer dimensions (W x H x D)

305 x 440.4 x 305 mm / 12" x 17.3" x 12"



Soundbar weight

4.3kg / 9.5 lbs



Detachable surround speaker weight (each)

1.25 kg / 2.75 lbs



Subwoofer weight

10 kg / 22 lbs



Control and Connection Specifications

Supporting file format

MP3



MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3



MP3 sampling rate

16 - 48 kHz



MP3 bitrate

80 - 320 kpbs



Bluetooth version

Main bar - 5.0, Detachable surround speaker - 5.2



Bluetooth profile

Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6



Bluetooth transmitter frequency range

2400MHz – 2483.5MHz



Bluetooth transmitter power

<15dBm (EIRP)



Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)



2.4G Wi-Fi transmitter frequency range

2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)



2.4G Wi-Fi transmitter power

< 20dBm (EIRP)



5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz



5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)



2.4G wireless frequency range

2406 - 2474MHz



2.4G wireless power

＜10dBm (EIRP）



Battery

Lithium battery

3.635V, 6600 mAh



Detachable surround speaker playtime

up to 12 Hours (may vary according to content type and volume level)



Video Specifications

HDMI video input

3



HDMI video output (with Enhanced Audio Return Channel, eARC)

1



HDMI HDCP version

2.3



HDR pass through

HDR10, Dolby Vision
