Проектор Sony VPL-FHZ60, 3LCD, WUXGA(1920x1200), 10,000:1, 5000 lm, HDMI, LAN, DVI, RS232C

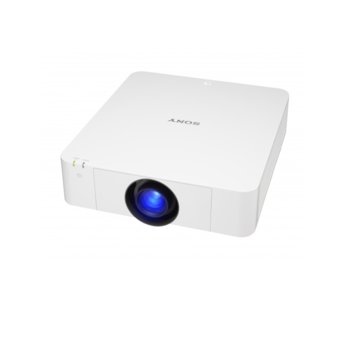

Sony VPL-FHZ60

Bright, beautiful images with low running costs, minimal maintenance and flexible installation

The VPL-FHZ60 laser projector is ideal for a wide range of business, education and entertainment applications. The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours. Constant Bright Maintains the same brightness throughout the 20,000 hours recommended life span.

The laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. A new automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving feature, significantly driving down total lifetime ownership costs.

Offering a stylish new blend-in design, tidy cable management and low fan noise, the VPL-FHZ60 fits smoothly into almost any environment – from academic institutions, corporate, medical training and public sector organisations to visitor attractions and retail spaces. Seamlessly blend images from multiple projectors to create super-sized displays, or project accurately proportioned images onto angled or curved surfaces. Mount the projector at any angle, even on its side or upside down. Set-up's easier than ever with a friendly new installation menu.

*Actual hours may vary depending on usage environment.


Display system
3 LCD system

Display device

Size of effective display area
0.76” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels
6,912,000 (1920 x 1200 x 3) pixels

Projection lens *1

Focus
Powered

Zoom - Powered/Manual
Powered

Zoom - Ratio
Approx. x 1.6

Throw ratio
1.39:1 to 2.23:1

Lens shift - Powered/Manual

Powered

Lens shift - Range Vertical
-5%, +60%

Lens shift - Range Horizontal
+/- 32%

Light source

Type
Laser diode

Filter cleaning / replacement cycle (Max.)
20000 H (service maintenance)

Screen size
40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)

Light output

Mode: High
5000 lm

Mode: Standard
3500 lm

Color light output

Mode: High
5000 lm

Mode: Standard
3500 lm

Contrast ratio (full white / full black)
10000:1

Displayable scanning frequency

Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz

Display resolution

Computer signal input
Maximum display resolution: 1920 x 1200 dots *4

Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p

Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal
+/- 30 degrees

Vertical
+/- 30 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A
RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack

INPUT B
DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with input A

INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support

INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN
Video input connector: BNC
Audio input connector: Shared with input A

OUTPUT A
Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack

OUTPUT B
Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
Audio output, Monitor out connector: Stereo mini jack

REMOTE
D-sub 9-pin (male) / RS232C

LAN
RJ45, 10BASE-T/100BASE-TX

IR (Control S)
Stereo mini jack, Plug in power DC5V

Acoustic Noise

Lamp mode: Standard
28 dB

Operating temperature / Operating humidity
0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power requirements
AC 100 V to 240 V, 4.5 A to 1.9 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V
Mode: High: 420 W

AC 220 V to 240 V
Mode: High: 408 W

Power Consumption (Standby Mode)

AC 100 V to 120 V
0.5W (when “Standby mode” is set to “Low”)

AC 220 V to 240 V
0.5W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V
15.0 W (LAN)

15.0 W (HDBaseT)
15.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

AC 220 V to 240 V
13.3 W (LAN)

13.3 W (HDBaseT)
13.3 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes

Heat dissipation

AC 100 V to 120 V
1433 BTU/h

AC 220 V to 240 V
1393 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)
460 x 169 x 515 mm
18 1/8 x 6 21/32 x 20 9/32 inches

Mass
16 kg (34 lb)
