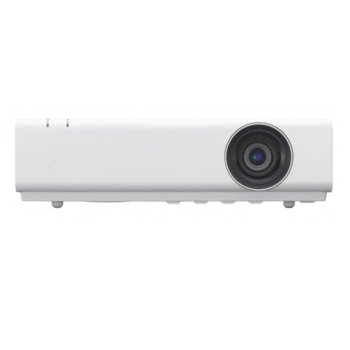

Проектор Sony VPL-EW246, 3LCD, WXGA, 2300:1, 3,100lm, HDMI, USB, RS-232C

Bring learning to life with this energy-efficient, wireless-ready portable projector that’s made for today’s classrooms

Teaming detail-packed WXGA image quality with smart environmentally-friendly features, the VPL-EW246 portable projector enhances learning with powerful presentations that really stand out.

Simple to use and wireless ready, it’s ideal for maximising student engagement in today’s networked classrooms. Designed in consultation with teachers, the VPL-EW246 is your ideal partner throughout the busy school day.

Sony BrightEra™ panel technology assures clear, WXGA pictures in any conditions, from daylight to darkened classrooms. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source – slide presentations, PC documents, videos or web sites.

Adding an optional Wi-Fi module lets students and teachers wirelessly share homework, images and graphics from mobile devices like smartphones and tablets.

There’s a wide range of smart energy-saving features built in. And with a recommended lamp replacement time of 7,000 hours, downtime and maintenance costs are minimised.

Display system 3 LCD system
Display device
Size of effective display area 0.59” (15.0 mm)
Number of pixels WXGA (1280 x 800)
Aspect ratio 16:10
Projection lens
Focus Manual
Zoom > Powered / Manual Manual
Zoom > Ratio Approx. 1.6 x
Throw ratio 1.40:1 to 2.27:1
Light source
Type *1 lamp
Wattage 210 W type
Recommended　lamp replacement time*2
Lamp mode: High 3000 H
Lamp mode: Standard 5000 H
Lamp mode: Low 7000 H
Filter cleaning / replacement cycle*2 (Max.)
Filter cleaning / replacement cycle*2 (Max.) 7000 H*3 (cleaning)
Screen size
Screen size 30” to 300”
(0.76 m to 7.62 m)
Light output
Lamp mode: High 3100 lm
Lamp mode: Standard 2000 lm*4
Lamp mode: Low 1600 lm*4
Color light output
Lamp mode: High 3100 lm
Lamp mode: Standard 2000 lm*4
Lamp mode: Low 1600 lm*4
Contrast ratio (full white / full black)*5
Contrast ratio (full white / full black)*5 2300:1
Input
Composite video > Pin Jack 1
S video > Mini DIN 4-pin 1
Computer > Mini D-sub 15-pin 2
HDMI (HDCP) 1
Audio > Pin Jack (L/R) 1
Audio > Stereo mini jack 2
Output
Monitor > Mini D-sub 15-pin 1*6
Audio*7 > Stereo mini jack 1
I/O, Control, Others
RS-232C > D-sub 9-pin 1 (male)
LAN > RJ-45, 10BASE-T/100BASE-TX 1
USB > Type A 1
USB > Type B 1
Microphone input > Mini jack 1
Wireless IFU-WLM3(Option)*8
Speaker
Speaker 16 W x 1 (monaural)
Keystone correction (Max.)*9
Vertical +/- 20°
Power requirements
Power requirements AC 100 V to 240 V
3.2 A to 1.3 A, 50/60 Hz
Power consumption
AC 100 V to 120 V > Lamp mode: High 311 W
AC 100 V to 120 V > Lamp mode: Standard 255 W*4
AC 100 V to 120 V > Lamp mode: Low 226 W*4
AC 220 V to 240 V > Lamp mode: High 299 W
AC 220 V to 240 V > Lamp mode: Standard 246 W*4
AC 220 V to 240 V > Lamp mode: Low 218 W*4
Standby mode power consumption
AC 100 V to 120 V > Standard 5.9 W
AC 100 V to 120 V > Low 0.5 W
AC 220 V to 240 V > Standard 5.9 W
AC 220 V to 240 V > Low 0.5.W
Heat dissipation
AC 100 V to 120 V 1061 BTU
AC 220 V to 240 V 1020 BTU
Dimensions (W x H x D) (without protrusions)
Dimensions (W x H x D) (without protrusions) 365 x 96.2 x 252 mm
14 3/8 x 3 25/32 x 9 29/32 in
Mass
Mass 3.9 kg / 8 lb 9 oz
Supplied accessories
Remote commander RM-PJ8
Optional accessories
Replacement lamp LMP-E212
Wireless LAN Module IFU-WLM3
Notes
*1 Ultra high pressure mercury.
*2 The figures are the expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used.
*3 Same time as the lamp replacement is recommended.
*4 The values are estimate.
*5 This value is average.
*6 From INPUT A and INPUT B.
*7 Works as an audio switcher function. Output from a selected channel; not available in standby.
*8 Connect to USB Type-A terminal.
*9 Depends on resolution.
