Seasonic VERTEX PX-1000 12102PXAFS
НазадSeasonic VERTEX PX-1000 12102PXAFSSeasonic VERTEX PX-1000 12102PXAFSSeasonic VERTEX PX-1000 12102PXAFSSeasonic VERTEX PX-1000 12102PXAFSНапред

Захранване Seasonic VERTEX PX-1000, 1000W, Active PFC, 80 Plus Platinum, 135 mm вентилатор

id 269382 Код: PWRPCSEASONIC12102PXAFS
  • Безплатна доставка
493.13 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / Въпроси

The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.0 and PCIe 5.0 standards
- Full modularity for the best cable management options:
- Added 12VHPWR cable to comply with the new graphic cards
- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP





80 PLUS® Platinum

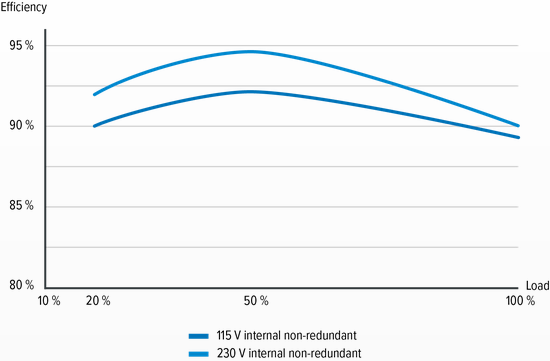

The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.

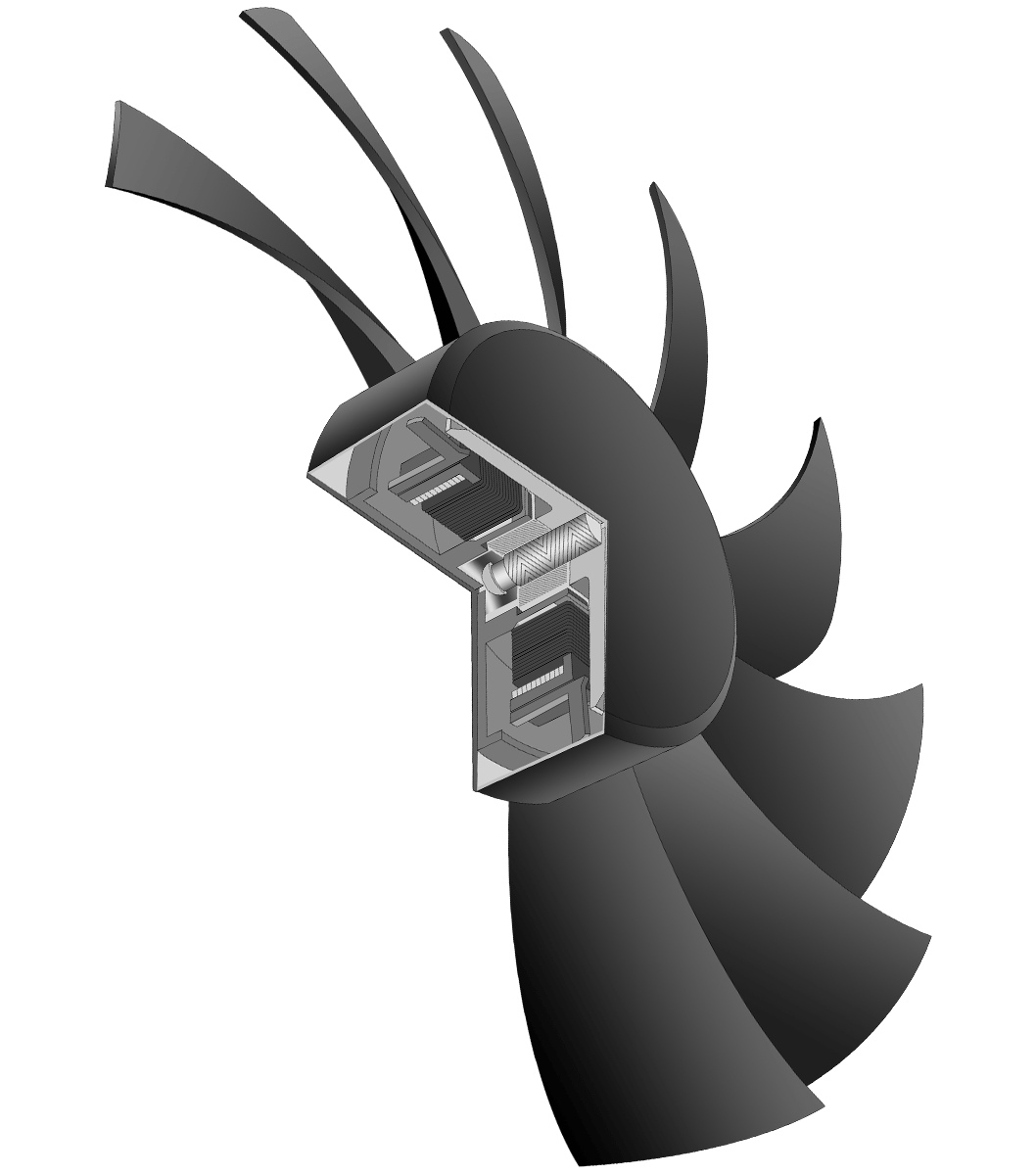

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.



Specifications:

Vertex PX-1000

Technical Specifications
80PLUS®Platinum
Cybenetics Efficiency LevelTBA
Cybenetics Noise LevelTBA
Form FactorIntel ATX 12 V
Dimensions160 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size135 mm
Fan ControlDigital Fan Control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours at 40 °C, 15 % - 65 % RH
Cable InformationModularityFully Modular
Cable typeCables with Braided Pattern
Electrical FeaturesOperating Temperature0 - 50 °C
MTBF @ 25 °C, excl. fan100,000 hours
AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC InputVoltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
Maximum Power25 A25 A83 A0.3 A3 A
125 W996 W3.6 W15 W
Total continuous power1000 W





JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



Виж още Захранвания Настолни компютри Seasonic
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
Изходна мощност:  1000 W
Модулен блок:  Да
Форм фактор:  ATX
