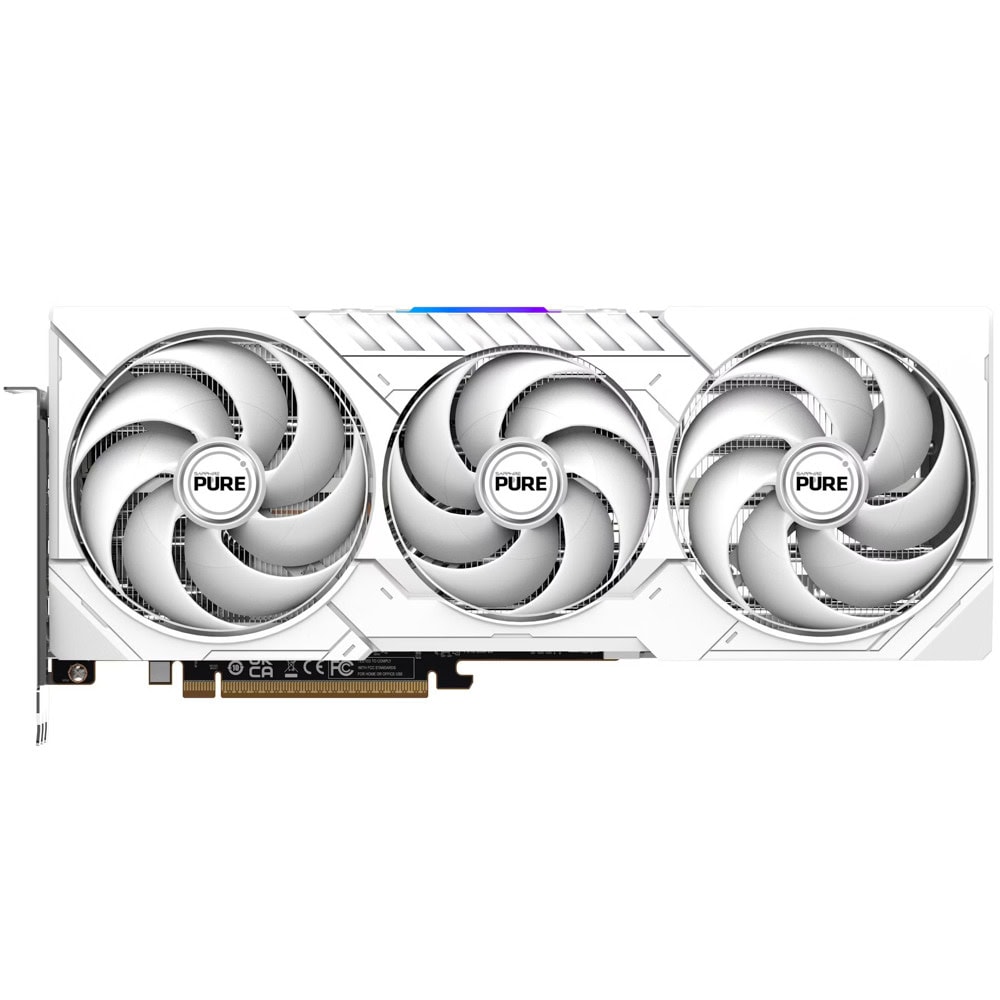

Видео карта AMD Radeon RX 9070 XT, 16GB, Sapphire Pure, OC, PCI-E 5.0, GDDR6, 256-bit, DisplayPort, HDMI

Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.


Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.


AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.


Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.




GPU
AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture
Engine Clock

Boost Clock: Up to 3010 MHz
Game Clock: Up to 2460 MHz



Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.



Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4096
Compute Units
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
64
AI Accelerator
128
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16
Output

2x HDMI®
2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

4K
Sapphire Features

Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
ARGB SAPPHIRE Logo
Two-Ball Bearing Fans
14-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
TriXX Boost
External RGB LED MB Synchronization

Accessories Bundled

L-Shape Support Bracket
3pin 5V ARGB Cable

AMD Features

AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Form Factor
3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
Power Consumption
317W Typical Board Power
OS

Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement

Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
