Видео карта AMD Radeon RX 7900 XTX, 24GB, Sapphire Nitro+ Vapor-X, PCI-E 4.0, GDDR6, 384-bit, DisplayPort, HDMI

Sapphire NITRO+ AMD Radeon RX 7900 XTX Vapor-X 24GB

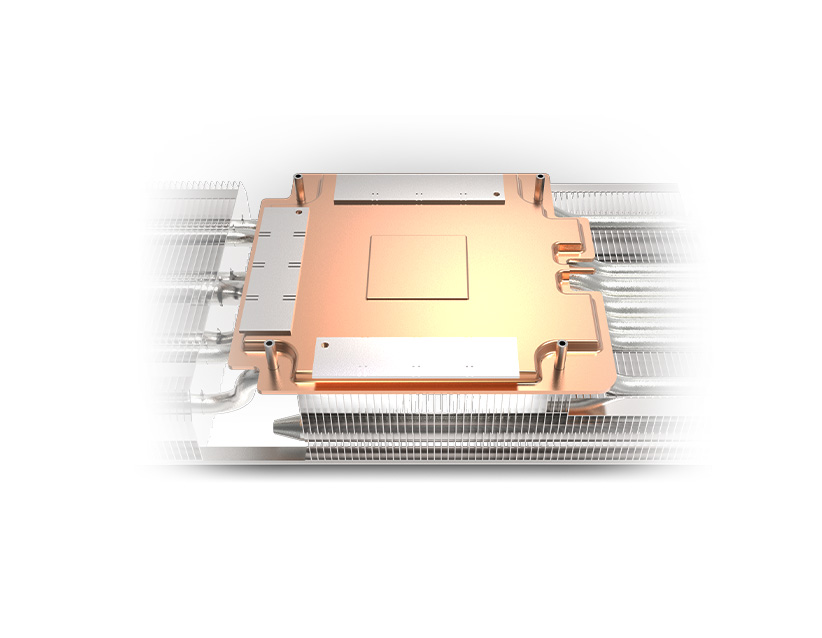

Vapor-X Cooling
The Vapor Chamber is mounted in contact with the surface of the main chip and memory. Since the entire area transfers heat at the same rate, the Vapor-X module has been engineered to operate more efficiently than a copper heat sink at carrying away heat. Upon gaining heat, the heat source is pushed to the Vaporization Wicks to begin the heat dissipation process. Due to extreme low pressure, working fluid and pure water are easily vaporized, and transferred through the vacuum until reaching the Condensing Wick which is adjacent to the cooled surface. From here, it turns back to a liquid state whereby the liquid is then absorbed into the Transportation Wick by capillary action and moved back towards the Vaporization Wick. A recycled liquid system occurs when the heat source reheats the liquid and it becomes re-vaporized by the Vaporization Wick to restart the Vapor-X Cooling process.

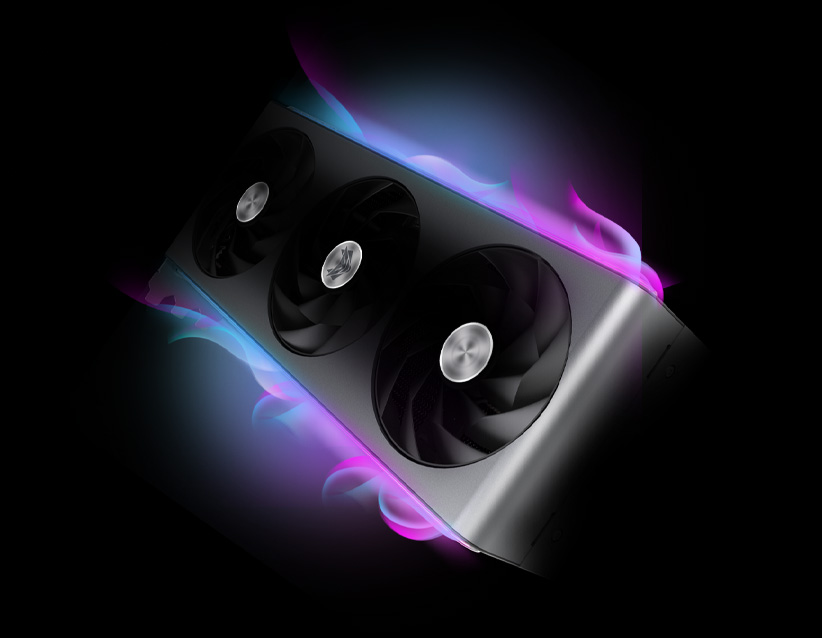

WAVE Fin Design & V-Shape Fin Design for GPU cooling

The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.

The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

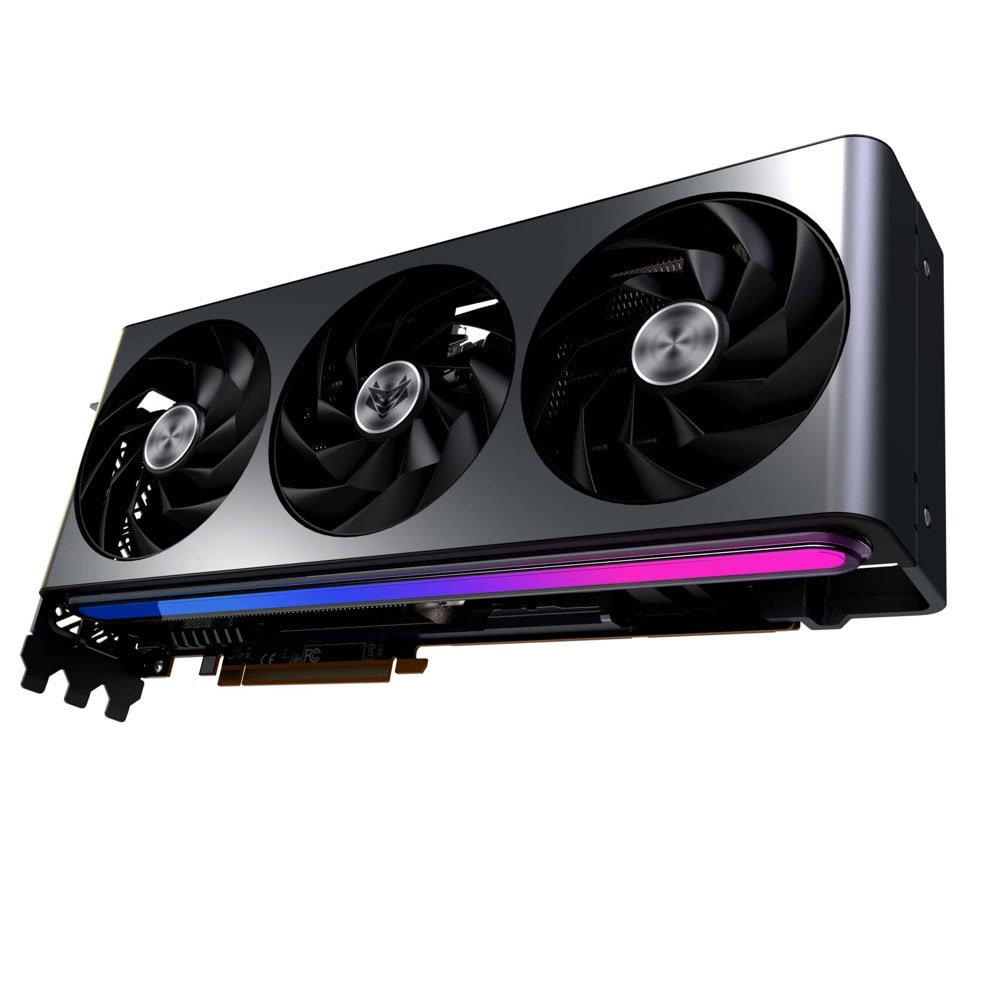

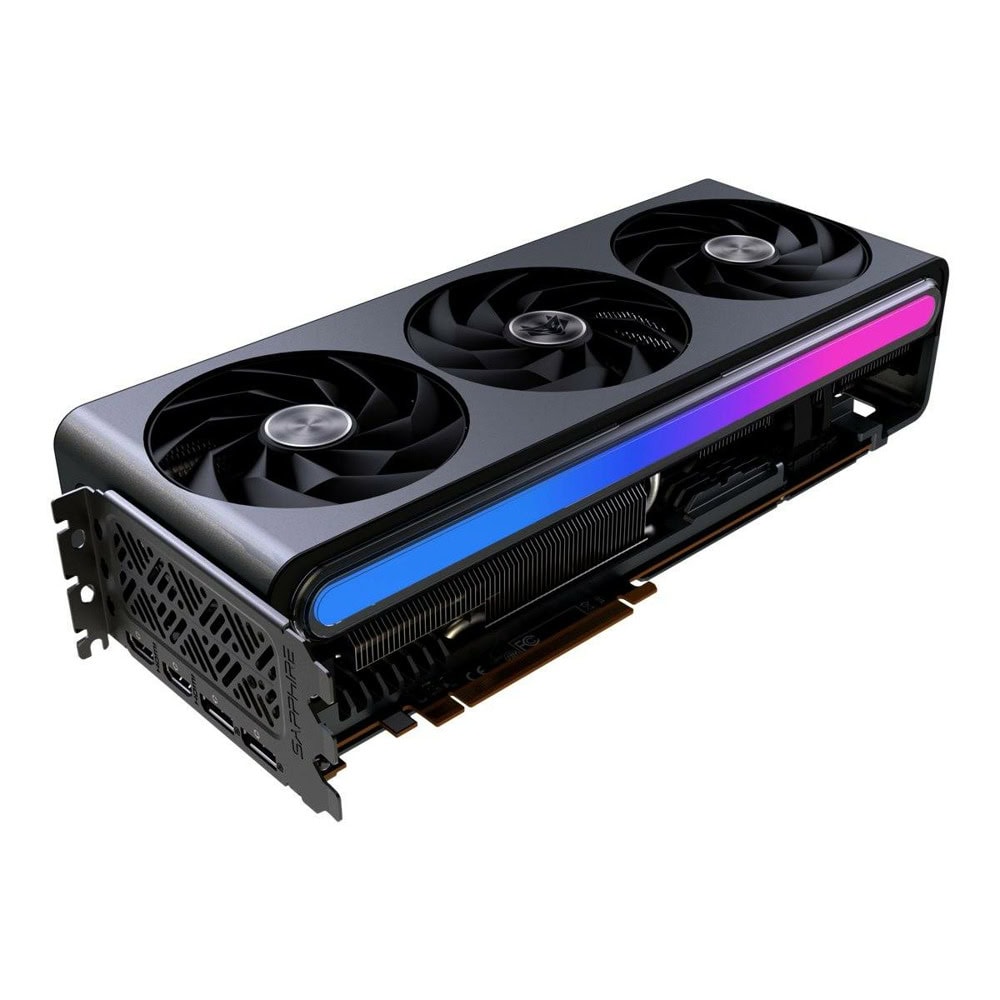

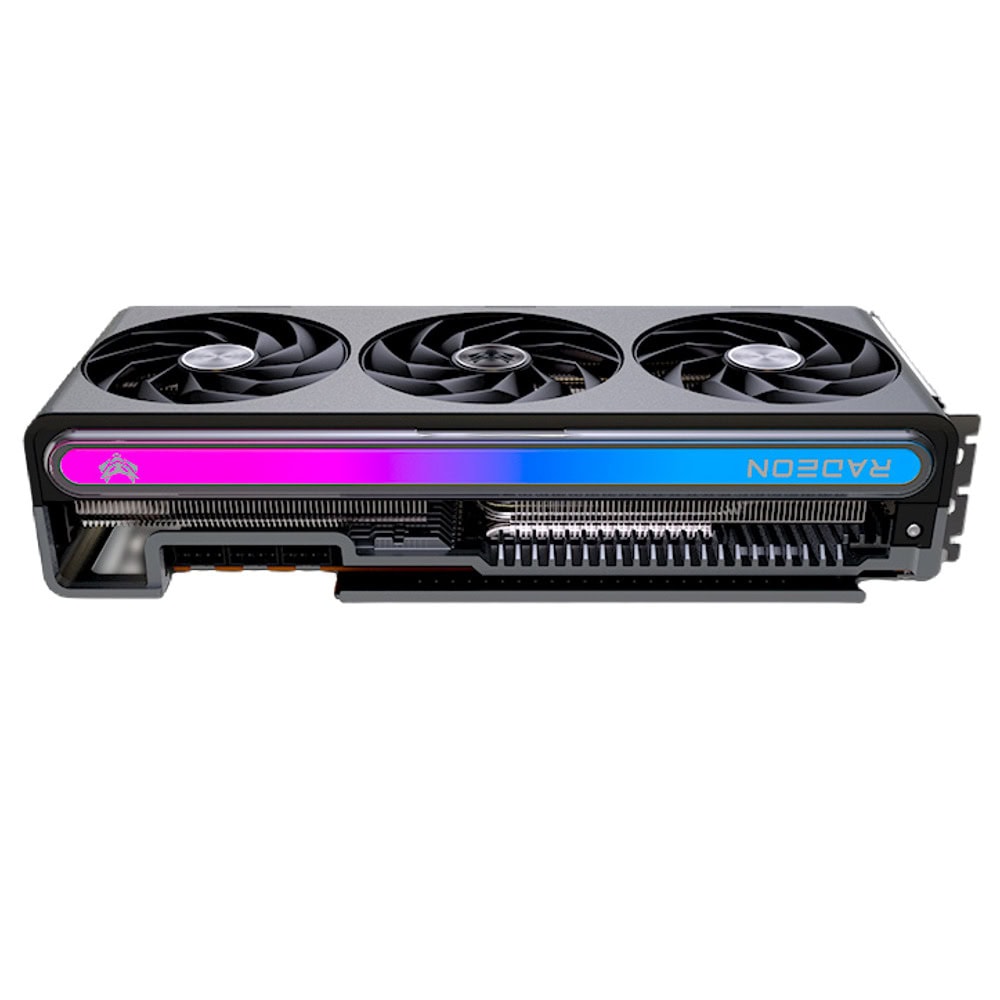

Dual ARGB Light Bar

With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.

Specs:

GPU

AMD Radeon RX 7900 XTX Graphics Card

5nm GPU
AMD RDNA 3 Architecture

Engine Clock

• Boost Clock: Up to 2680 MHz
• Game Clock: Up to 2510 MHz

Stream Processors

6144

Compute Units

96 CU (with RT+AI Accelerators)

Infinity Cache

96MB

Ray Accelerators

96

Memory Size/Bus

24GB/384 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• Dual UEFI

Game Index

4K

Sapphire Features

• Dual BIOS
• TriXX Software Switch

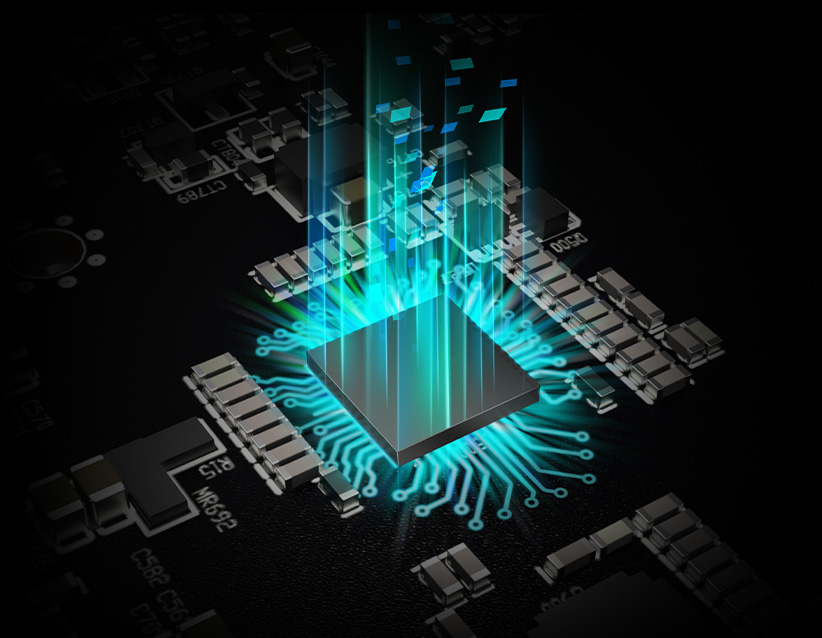

• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• Vapor-X Cooling
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control

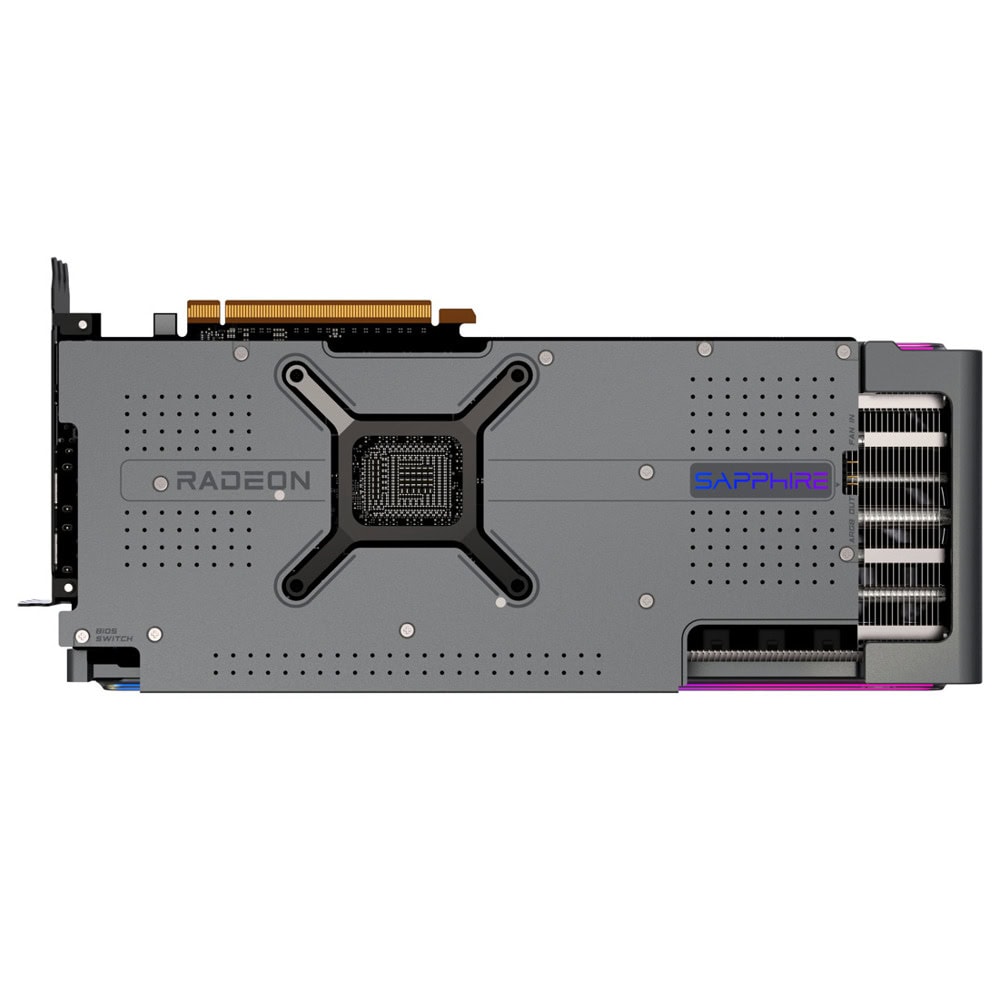

• Metal Backplate with ARGB
• Dual ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Die Casted Aluminum-Magnesium Alloy Frame
• Frontplate Heatsink for VRM
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

Accessories Bundled

• Graphics Card Supporter
• ARGB Extension Cable

AMD Features

• AMD RDNA 3 Architecture
• 96 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
• 96MB AMD Infinity Cache Technology
• DisplayPort 2.1 Support
• AMD Radiance Display Engine
• 24GB GDDR6 on 384-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync Technology

Cooling

3 Fans

Vapor-X Cooling

Form Factor

3.5 slot, ATX


Dimension

320(L)X 135.75(W)X 71.6 (H)mm

Power Consumption

420W Total Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit operating system required

System Requirement

• Minimum 800 Watt Power Supply
• 3 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
