Публичен дисплей Samsung OH85N-DK, 85" (215.9 cm) 4K UHD D-LED Local Dim. BLU, Display Port, HDMI, HDCP, USB RJ-45

At a glance

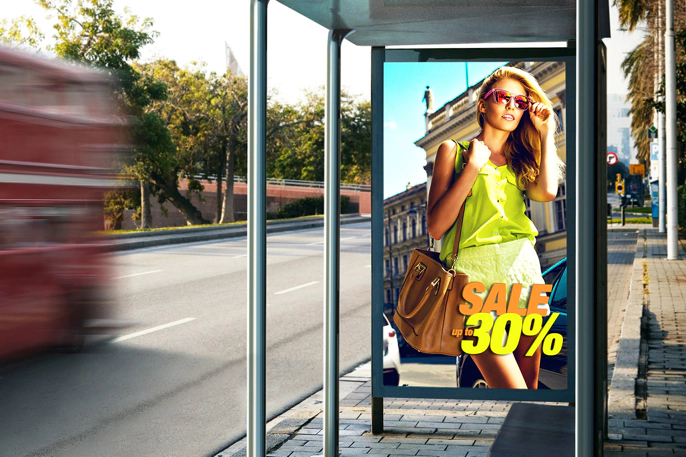

Samsung’s OHN-D Series dual-sided outdoor displays are designed to endure harsh outdoor conditions and double the reach of your message with exceptional clarity around the clock. Perfect for bus stops and roadside billboards with high brightness on both sides and a built-in dimming sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player.

• Dual-sided outdoor display with IP56 certification for use in heat, cold, rain, snow and dust

• High brightness on both sides of the display with a built-in dimming sensor to deliver double the content with amazing clarity, day or night

• Reliable 24/7 operation with a simple solution for remote content management

• Built to handle extreme temperatures with a self-cooling system and protected from vandalism with tempered Magic Glass

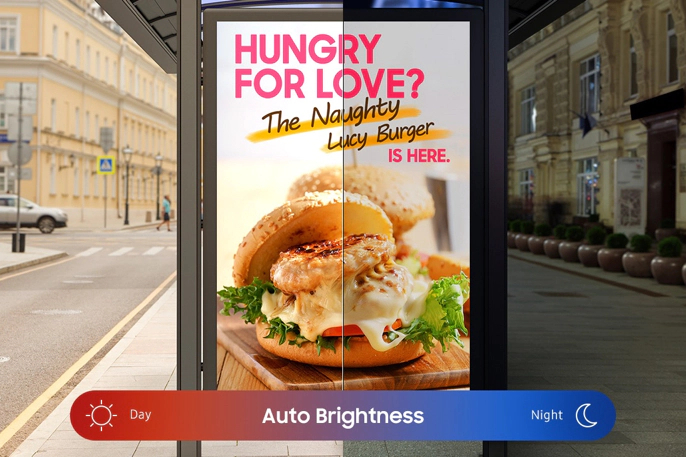

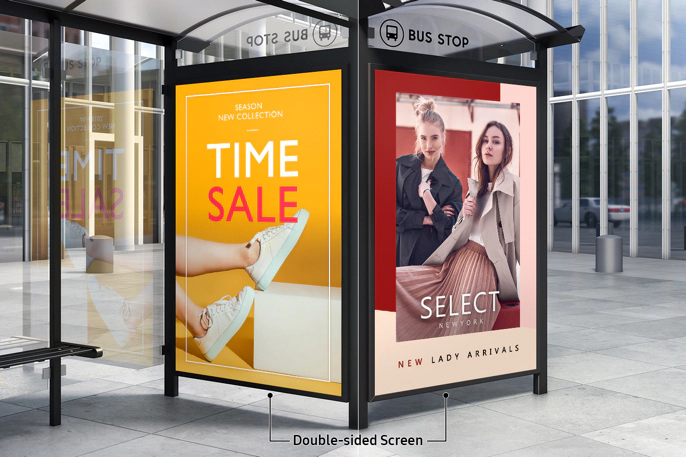

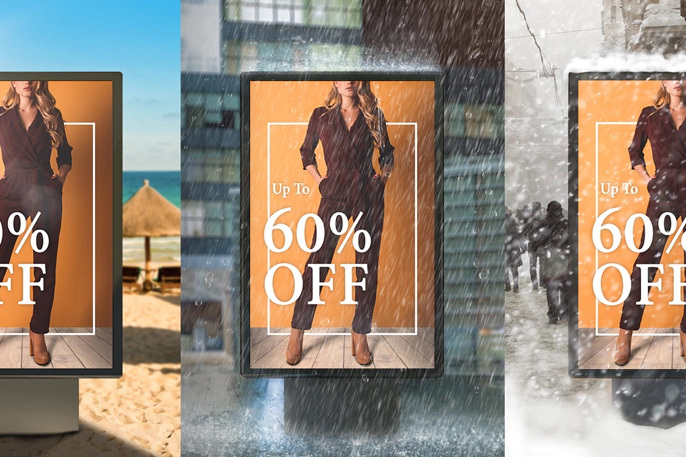

Slim Depth Dual-Sided Display The OHN-D Series features dual screens to deliver exceptional content and graphics on each side, so you can double the reach of your message from a single location. Plus, the slim design is ideal for bus stops and roadside billboards.	Optimized Outdoor Visibility to Deliver Your Message At 3,300 nits on both sides of the display, this high brightness display delivers excellent legibility and visibility, even in bright sunlight. With a built-in dimming sensor, the display automatically adjusts brightness based on the ambient light to optimize visibility for day or night, while maintaining efficient operating costs for your business	IP56 Certification to Withstand the Elements The OHN-D Series is true all-weather, IP56-certified1outdoor signage, designed specifically to withstand the elements and fully perform in heat, cold, rain, snow and dust.

24/7 Commercial Reliability Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind	Protected from Vandalism Advanced protection against external impacts such as vandalism is provided through the tempered Magic Glass featuring IK10-certification (European strength test).2 In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.	Built to Handle Extreme Temperatures An innovative patent-pending self-cooling system with a heat exchanger equips this display to handle a wide operating temperature range, from -22˚ F to 122˚ F. And no supplemental heating or air conditioning unit is required, so you can save the expense.

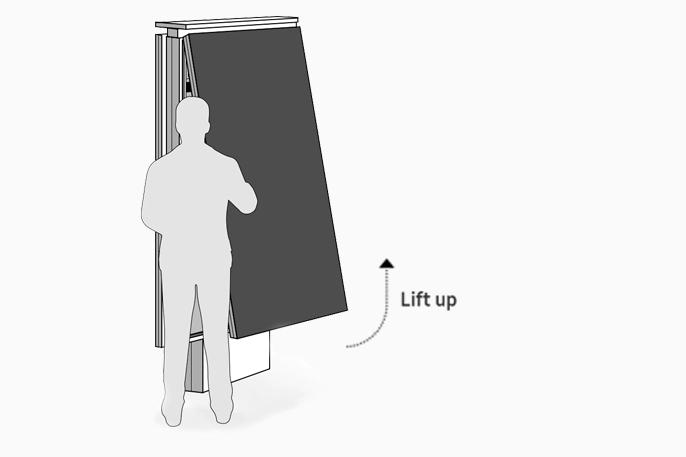

Embedded Media Player The embedded MagicInfo Player 6.0, backed by the powerful Tizen operating system, allows for easy content management and helps to ensure seamless content transitions and playback. All without the need for an external signage player or PC.	Samsung Circular Polarizing Technology Samsung’s circular polarizing technology allows content to be easily viewed even while wearing polarized sunglasses	Easy Setup and Maintenance Easily access the inside of the OHN-D Series for repair or maintenance. Simply lift the set for quick access to the display’s inner components to make any necessary fixes or updates.

Series Name
Series Name:  OHN-D Series

Display
Screen Size:  85"
Panel Technology:  60Hz D-LED Local Dim. BLU
Resolution:  3840 x 2160
Aspect Ratio:  16:9
Brightness:  3,300 nits (w/o glass)
Contrast Ratio (Typical):  3000:1
Contrast Ratio (Dynamic):  100,000:1
Viewing Angle (H/V):  178/178
Response Time:  8ms
Operation Hours:  24/7

Connectivity
Input:  RGB: DP 1.2 (2), VIDEO: HDMI 2.0 (4), HDCP: HDCP 2.2, USB: USB 2.0 (2)
Output:  AUDIO: Stereo Mini Jack
External Control:  RS232C (In), RJ45 (In)

Power
Power Supply:  AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max):  Typical: 2,020 W/h (1,010 W/h x2), Max: 3,600 W/h (1,800 W/h x2)
Power Consumption (Standby):  less than 1W

Environmental Conditions
Operating Temperature:  -30℃~ 50℃
Operating Humidity:  10% ~ 80%, non-condensing
IP Rating:  IP56

Features
Key:  Dual Display, High Brightness, IP56 Outdoor, Built-in MagicInfo Player S6, SSSP6
Special:  IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in Any Direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery (80hrs Clock Keeping)
SMART Signage Platform:  Yes

Internal Player
Processor:  Coretex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory:  L1 Instruction Cache: 48KB, L1 Data Cache: 32KB, L2 Cache: 2MB
Clock Speed:  1.7GHz
Main Memory Interface:  2.5GB LPDDR4 1.5GHz 64bit
Graphics:  Graphic Resolution: 1920 x 1080, Output Resolution: Up to 3840 x 2160 (Scale Up From Graphic Processing Result) - Supports OpenGL ES
Storage:  8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia:  Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9, Audio Decoder: AC3 (DD), MPEG
IO Ports:  USB 2.0
Operating System:  Tizen 4.0 (VDLinux)

Dimensions
Without Stand (W x H x D):  1,193 x 2,012 x 228 mm
Packaging (W x H x D):  1,510 x 2,284 x 577 mm (Without Pallet)

Weight
Product Weight:  255kg
Package Weight:  310.6kg
