Публичен дисплей Samsung LFD QM43BT, 43" (109.22 cm) 4K/UHD сензорен дисплей, DP, HDMI, USB, Wi-Fi, Bluetooth, LAN

Samsung LFD QM43BT

All-in-one touch solution for any environment

QMB-T displays maximise the touch display experience with a built-in, high performance Tizen-based media player. The all-in-one design eliminates the need for an external media player and an upgraded Tizen OS makes it easier than ever to utilise various touch apps.

Powerful touch experience

Upgraded Tizen OS makes playback more stable and opens up new possibilities with high-speed content. A responsive capacitive touch functionality offers an engaging user experience and the user-friendly design enables comfortable, productive digital interaction.

Captivate customers with UHD content

Samsung’s QMB-T series provides UHD resolution capabilities for incredibly clear content, increasing customer engagement with lifelike images that have been optimised to display exactly as intended.

Better visibility even in sunlight

The QMB-T series offers improved visibility through non-glare glass which removes reflections that might disturb customer engagement, while the haze coating creates a smoother touch.

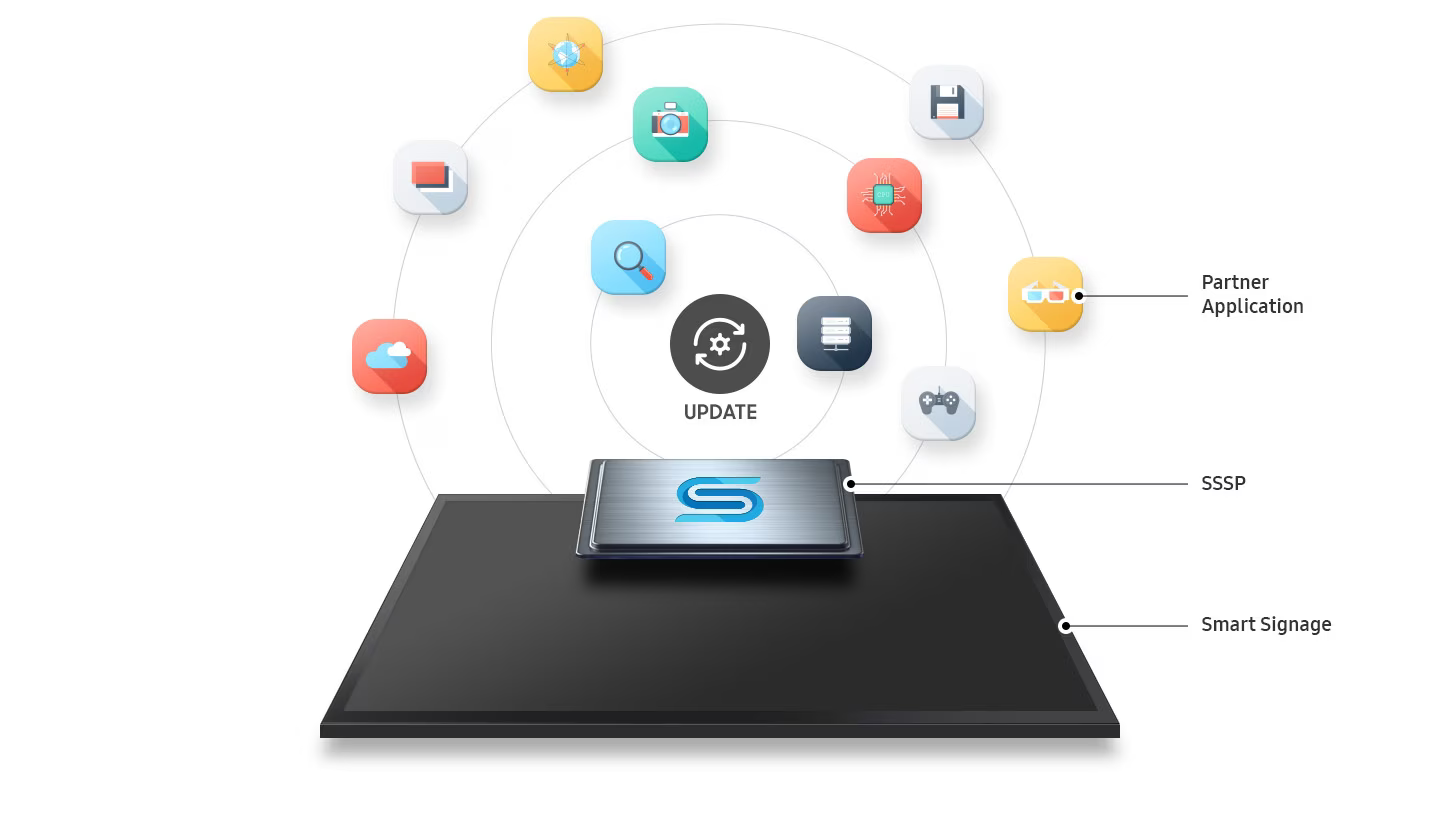

Supports the latest web-based content

Upgradable Web-engine

Upload any piece of content, no matter how innovative. QMB-T’s constant web-engine upgrades enables the latest types of content to be played without limitations, allowing for more diversified and engaging creative assets.

Specifications:

Display

• Diagonal Size 43"
• Panel Type VA
• Resolution 3,840 x 2,160
• Pixel Pitch (HxV) 0.245 x 0.245 (mm)
• Brightness (Typ) 500(without Glass), 400(with Glass)
• Contrast Ratio 4000:1(without glass)
• Viewing Angle (Horizontal/Vertical) 178/178
• Response Time 8ms
• Colour Gamut 92% (DCI-P3, CIE 1976)
• Glass Haze 25%
• H-Scanning Frequency 30 ~ 81kHz
• Maximum Pixel Frequency 594MHz
• V-Scanning Frequency 48 ~ 75Hz
• Contrast Ratio (Dynamic) Mega
• Operation Time Support 24/7

Connectivity

• HDMI In 3
• DP In 1
• Version of HDMI 2
• Version of DP 1.2
• Version of HDCP 2.2
• USB 2
• IR In Yes
• Audio In No
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• WiFi Yes
• Bluetooth Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 110W
• Power Consumption (Sleep Mode) 0.5W

Dimension

• Set Dimension (WxHxD) 986.2 x 584.4 x 56.7 mm
• Package Dimension (WxHxD) 1134 x 725 x 141 mm

Weight

• Set Weight with Stand 14.5 kg
• Package Weight 18.7 kg

Operation Conditions

• Temperature 0℃~ 40℃
• Humidity 10 ~ 80%, non-condensing

Mechanical Specification

• VESA Mount 200 x 200 mm
• Frame Material Non-Glossy

Optional Feature

• Touch Yes
• Mount WMN4070SG
• Stand STN-L4355G

SoC

• OS Version Tizen 6.5
• Flash Memory Size 16GB

Eco

• Energy Efficiency Class G

Touch

• Touch Technology Capative
