Точка за достъп Ruijie RG-RAP2266, 5040Mbps, 2.4GHz (688Mpbs)/ 5GHz (4323Mbps), 1x 10/100/1000Mbps RJ45, 1x 10/100/1000/2500Mbps RJ45(PoE), 3x вътрешни антени

Ruijie RG-RAP2266

Highlight Features

• Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
• Superior streaming with Wi-Fi 7's exclusive MLO feature
• Compact design and easy installation
• Enhanced data transmission with 4K-QAM for faster speeds
• Ideal for integrating with enterprise switches to create a robust office network

Key Specification:

5 GHz Wi-Fi Protocols

Wi-Fi4: IEEE 802.11a/n
Wi-Fi5: IEEE 802.11ac Wave2
Wi-Fi6: IEEE 802.11ax
Wi-Fi7: IEEE 802.11be

2.4 GHz Wi-Fi Protocols

Wi-Fi4: IEEE 802.11b/g/n
Wi-Fi6: IEEE 802.11ax
Wi-Fi7: IEEE 802.11be

5 GHz Spatial Streams

3 spatial streams, 3x3 MIMO

2.4 GHz Spatial Streams

2 spatial streams, 2x2 MIMO

Wireless Data Rates

5011Mbps

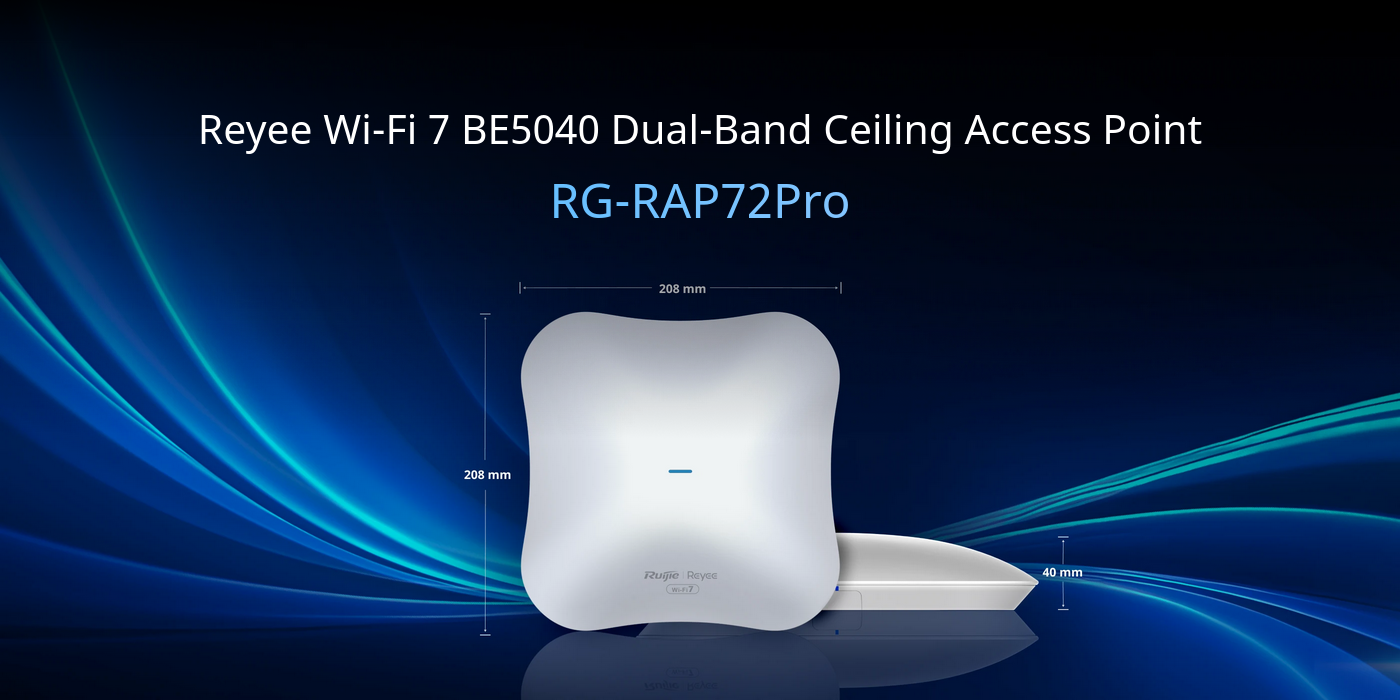

Dimensions (excluding mounting kits)

208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.)

Weight (excluding mounting kits)

≤ 0.65 kg (1.43 lbs.)

Number of 10/100/1000BASE-T Ports

1

Number of 10/100/1000/2500BASE-T Ports

1

Power Supply

802.3at PoE, 12V/2.5A DC

Power Consumption

< 30W

Operating Temperature

0°C to +40°C (32°F to +104°F)

IP Rating

IP41

Max/Recommended Clients

511/110

Certification

CE, RoHS, FCC, ISED, cTUVus
