Gigabyte RTX 3080 AORUS XTREME WATERFORCE WB LHR
WATERFORCE COOLING SYSTEM
Designed for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.

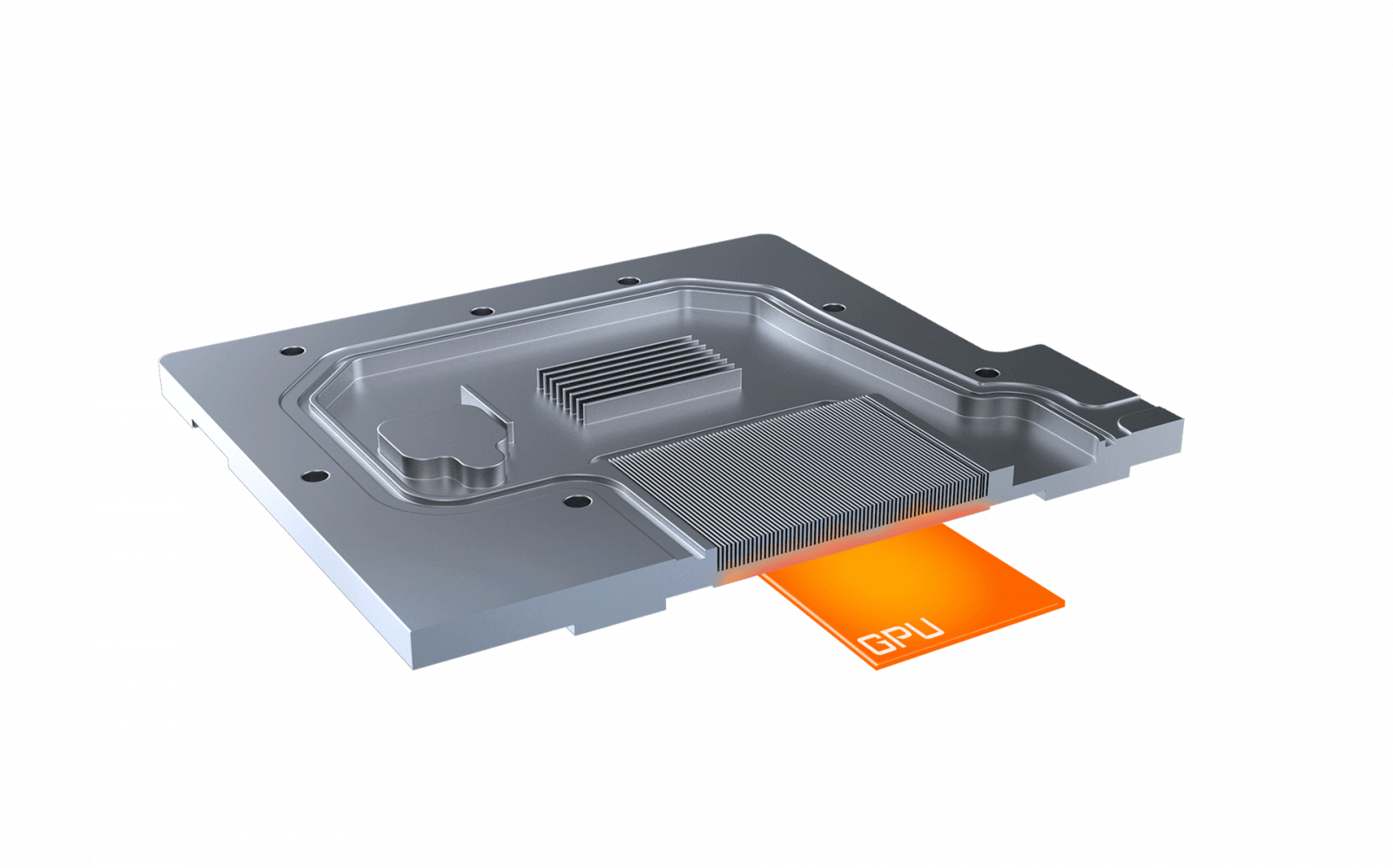

OPTIMIAL SPACING ON MICROCHANNEL The optimal spacing between the micro fins allows for significant heat transfer from the GPU via stable water flow and prevents blocking. |
![]() |
![]() |
HIGH PERFORMANCE MICRO FINS The micro fins over the GPU increase the contact area with liquid flows. In addition, we have shortened the distance between the water channel and the GPU to provide more efficient heat dissipation. |
LARGE COPPER BASE PLATE The large copper base plate covers the entire water channel over the GPU, VRAM, and other critical parts, so the heat can then be quickly taken away. |
![]() |

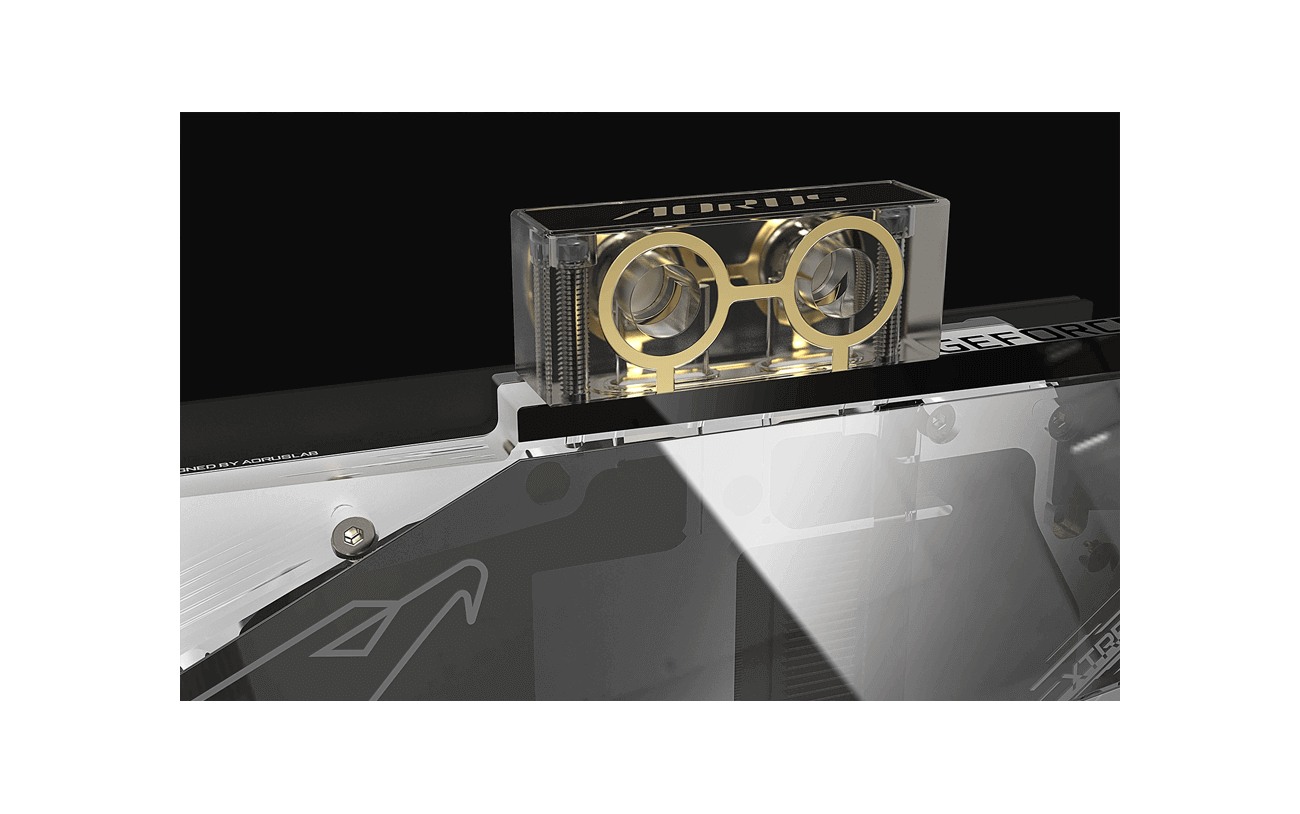

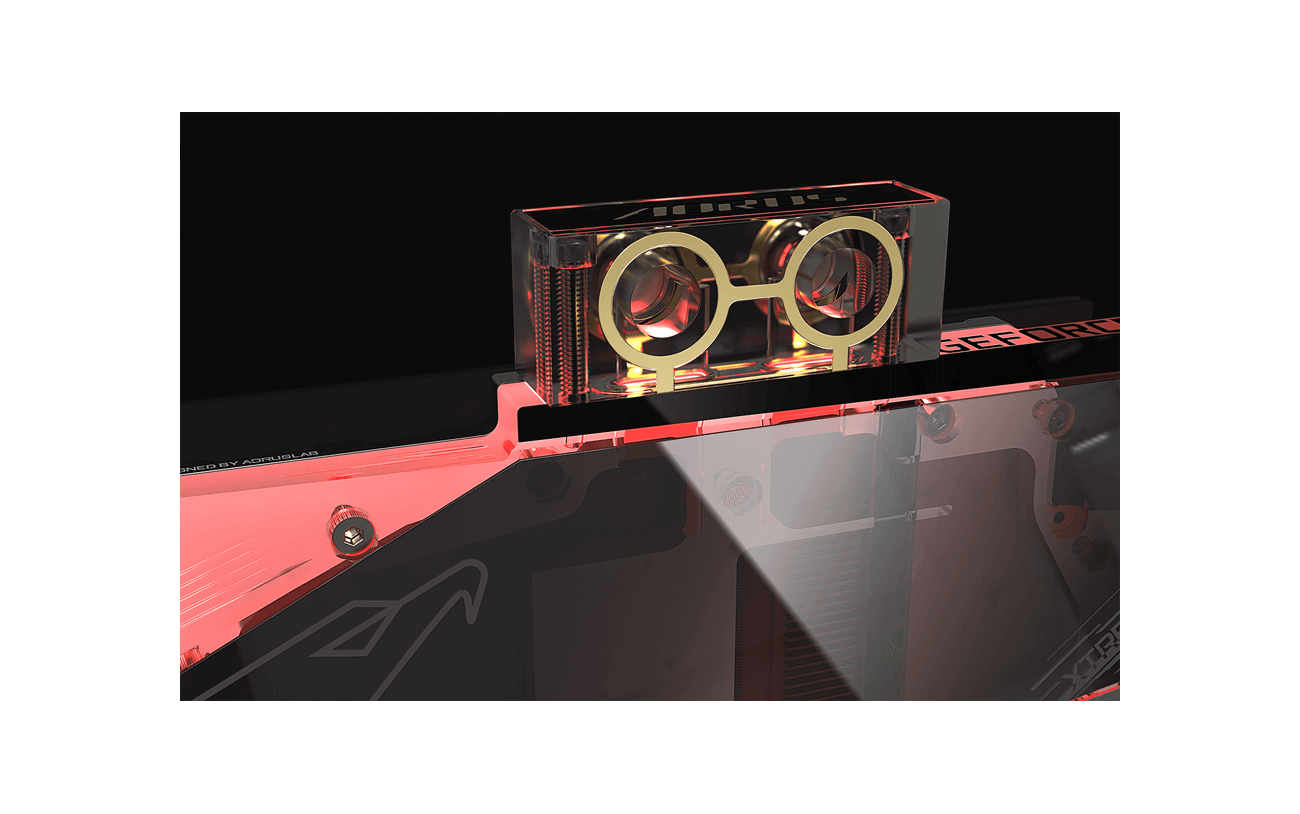

The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid leaks.
![]() |
![]() |
PERFORMANCE
GeForce RTX™ 3080 with 12 GB memory and 912 GB/s memory bandwidth has 8960 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
![]() |

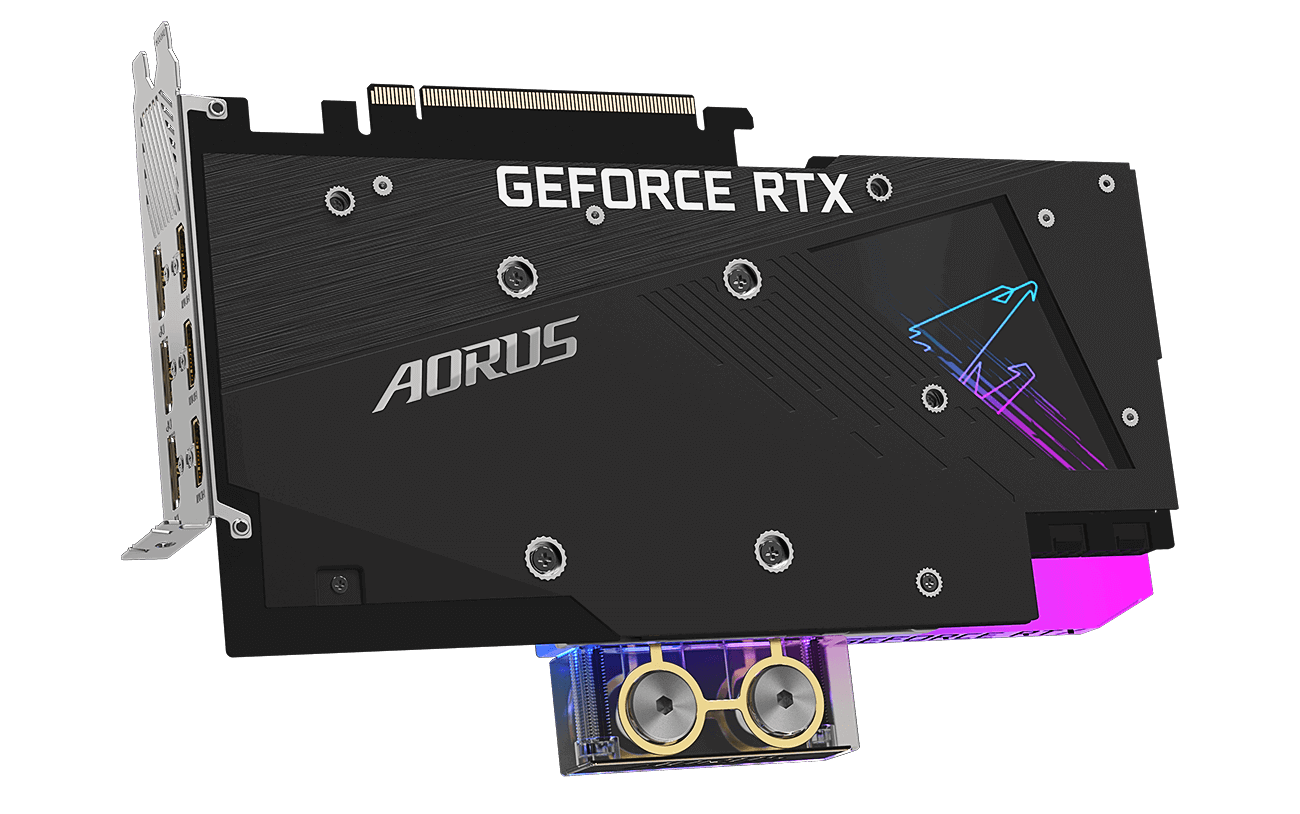

PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. |

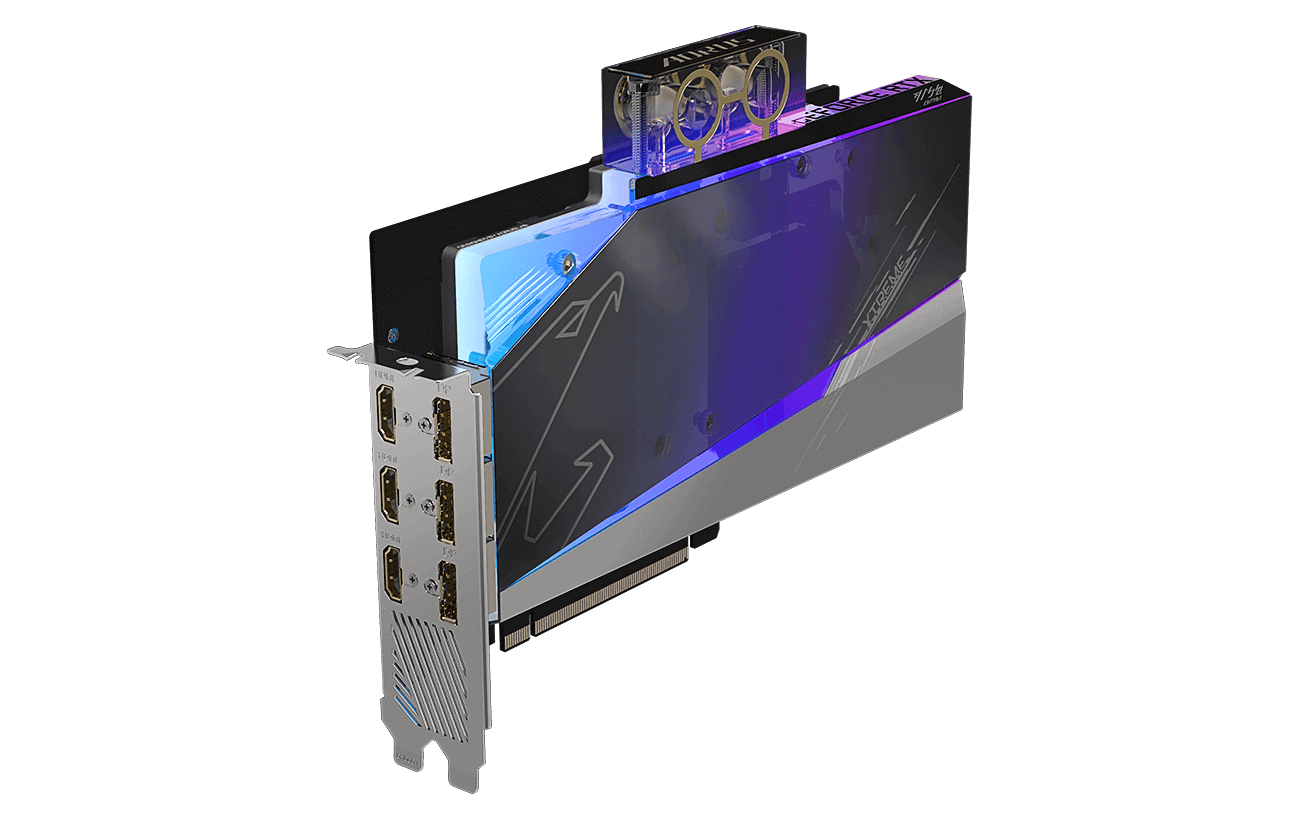

6 OUTPUTS You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views) |
![]() |
![]() |

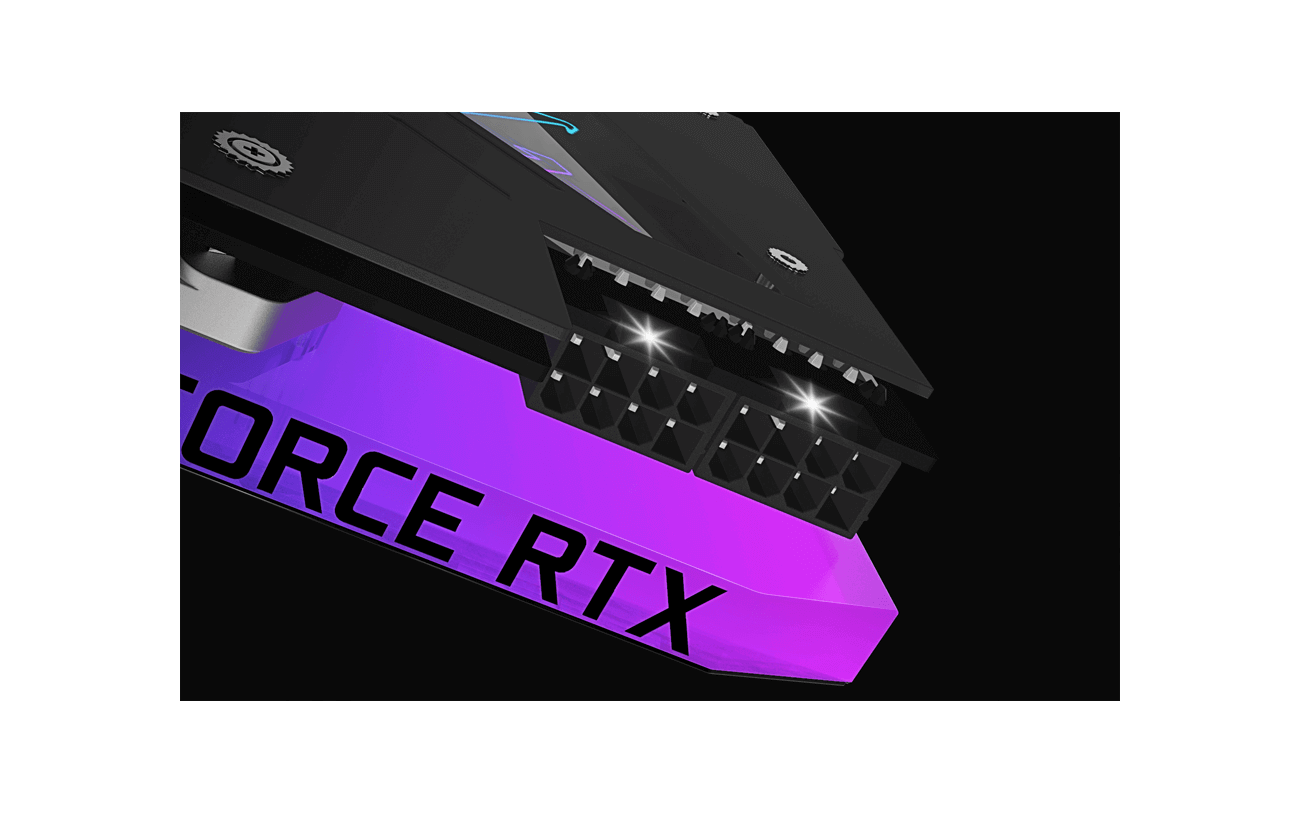

POWER INDICATORS When experiencing any power supply abnormality, the indicator will alert gamers by flashing light. |
Specification | |
Graphics Processing | GeForce RTX 3080 |
Core Clock | 1830 MHz (Reference Card: 1710 MHz) |
CUDA® Cores | 8960 |
Memory Clock | 19000 MHz |
Memory Size | 12 GB |
Memory Type | GDDR6X |
Memory Bus | 384 bit |
Memory Bandwidth (GB/sec) | 912 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=252 W=163 H=29 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 750W |
Power Connectors | 8 pin*2 |
Output | DisplayPort 1.4a *3 HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) |
Fitting type | G1/4 |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията
GPU производител: | nVidia |
---|---|
Капацитет: | 12 GB |
Тип памет на видеокарта: | GDDR6X |
Битове (BUS памет): | 384 Bit |
Интерфейс: | DP HDMI |
