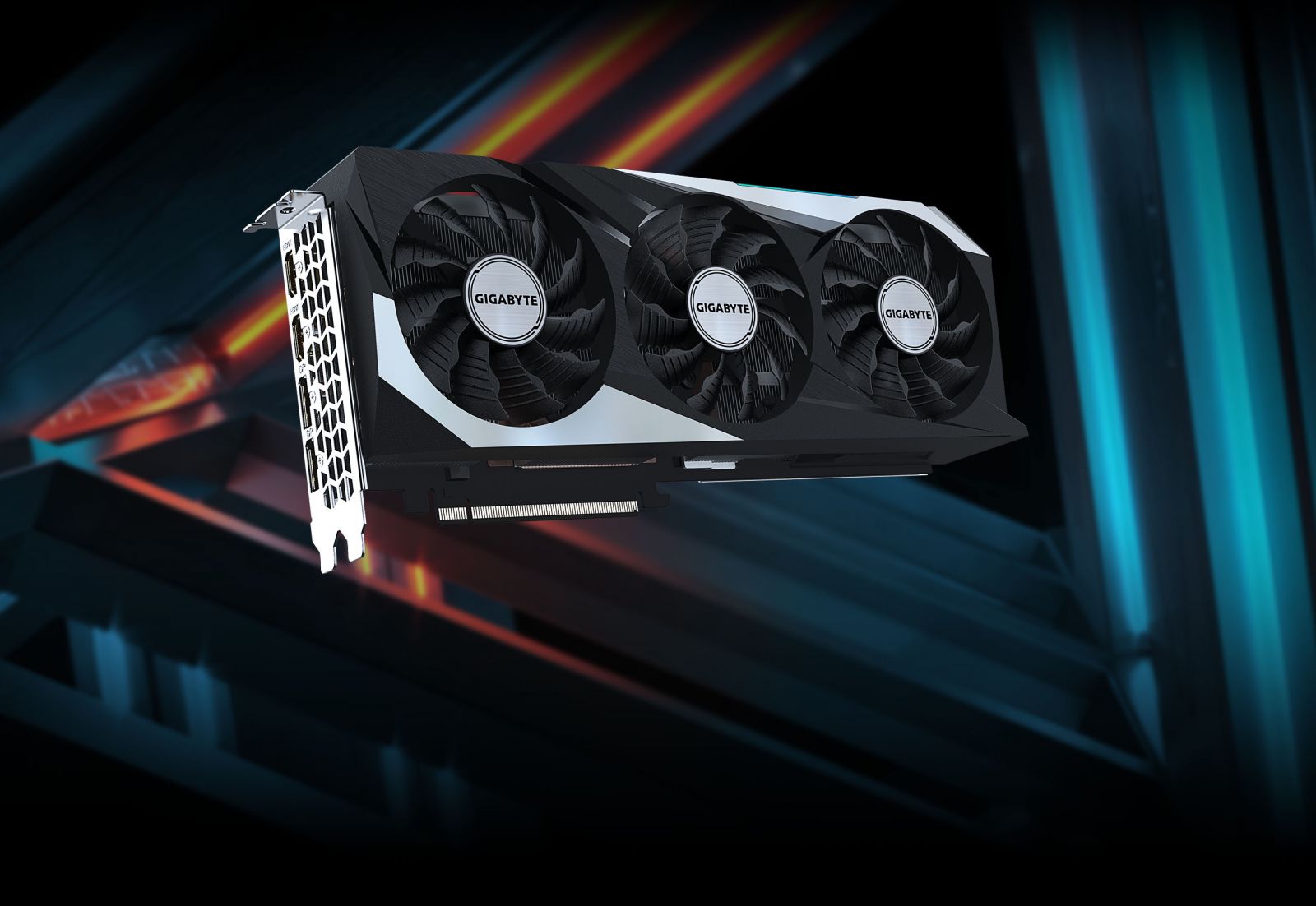

AMD Radeon RX 6900 XT Gaming OC
WINDFORCE 3X
COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU and 3D active fan, which together provide high efficiency heat dissipation.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
Specifications:
-
Graphics ProcessingRadeon™ RX 6900 XT
-
Core ClockBoost Clock* : up to 2285 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2050 MHz (Reference card: 2015 MHz) -
Stream Processors5120
-
Process Technology7 nm
-
Memory Clock16000 MHz
-
Memory Size16 GB
-
Memory TypeGDDR6
-
Memory Bus256 bit
-
Memory Bandwidth (GB/sec)512 GB/s
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=286 W=118 H=58 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU850W
-
Power Connectors8 pin*3
-
OutputDisplayPort 1.4a *2
HDMI 2.1 *2
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията
GPU производител: | AMD Radeon |
---|---|
Капацитет: | 16 GB |
Тип памет на видеокарта: | GDDR6 |
Битове (BUS памет): | 256 Bit |
Интерфейс: | DP HDMI |
