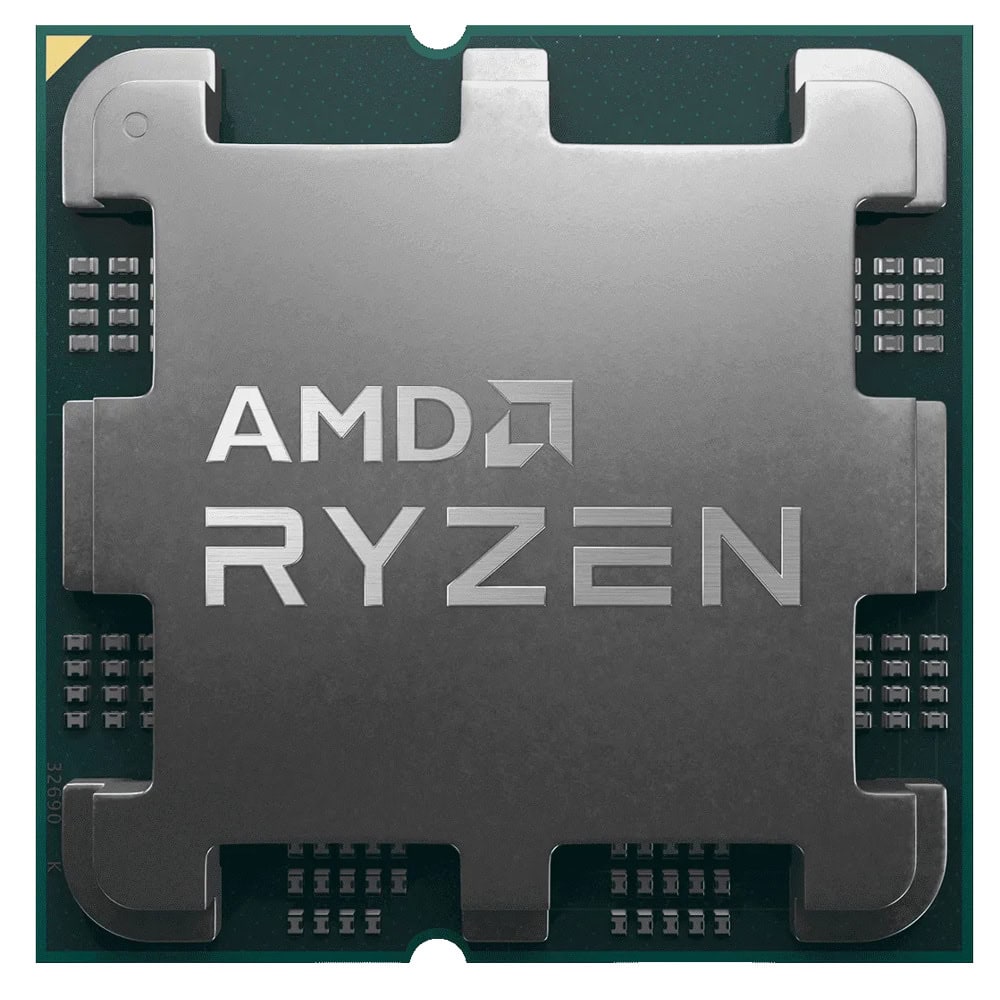

AMD Ryzen™ 9 9900X
100-100000662WOF
Family
Ryzen
Series
Ryzen 9000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
Consumer Use
Yes
Regional Availability
Global
Former Codename
Granite Ridge AM5
Architecture
Zen 5
# of CPU Cores
12
Multithreading (SMT)
Yes
# of Threads
24
Max. Boost Clock
Up to 5.6 GHz
Base Clock
4.4 GHz
L1 Cache
960 KB
L2 Cache
12 MB
L3 Cache
64 MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 4nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
Package Die Count
3
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
Launch Date
08/15/2024
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
Additional Usable PCIe Lanes from Motherboard
X870E
8x Gen4
X870
4x Gen4
X670E
12x Gen4
X670
12x Gen4
B650E
8x Gen4
B650
8x Gen4
NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
192 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR5-5600
2x2R
DDR5-5600
4x1R
DDR5-3600
4x2R
DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Виж още Настолни компютри Процесори AMD
Виж всички Настолни компютри Процесори в категорията
100-100000662WOF
Family
Ryzen
Series
Ryzen 9000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
Consumer Use
Yes
Regional Availability
Global
Former Codename
Granite Ridge AM5
Architecture
Zen 5
# of CPU Cores
12
Multithreading (SMT)
Yes
# of Threads
24
Max. Boost Clock
Up to 5.6 GHz
Base Clock
4.4 GHz
L1 Cache
960 KB
L2 Cache
12 MB
L3 Cache
64 MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 4nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
Package Die Count
3
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
Launch Date
08/15/2024
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
Additional Usable PCIe Lanes from Motherboard
X870E
8x Gen4
X870
4x Gen4
X670E
12x Gen4
X670
12x Gen4
B650E
8x Gen4
B650
8x Gen4
NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
192 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR5-5600
2x2R
DDR5-5600
4x1R
DDR5-3600
4x2R
DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
100-100000662WOF
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Настолни компютри Процесори AMD
Виж всички Настолни компютри Процесори в категорията
Технически характеристики
Процесор сокет: | AM5 |
---|---|
Брой ядра: | 12 |
Архитектура: | 64 |
Термична мощност (TDP): | 95 W |
Видеокарта: | Да |
Честота процесор: | 4400 MHz |
