Грамофон Pro-Ject Audio Systems 6 PerspeX SB, 33/45rpm, рамо от въглеродни влакна, черен

Pro-Ject 6 PerspeX SB

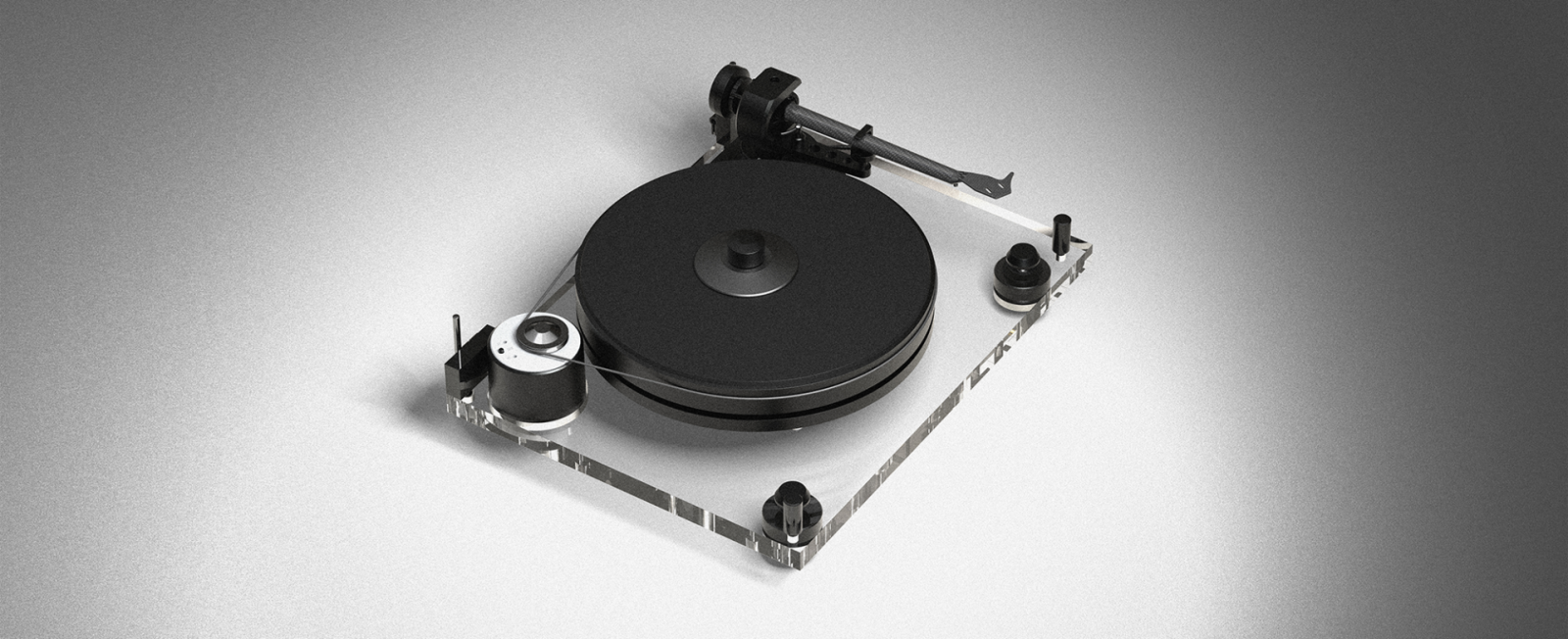

6PerspeX SB’s transparent acrylic plinth stands on three height-adjustable TPE-damped aluminum cones and carries the outboard motor and sub-chassis. The sub-chassis (made of Corian) rests on opposing magnets forming a unique suspended design. The sub-chassis suspension system staves off parasitic noise normally caused by conventional spring suspensions. A supplied spirit level allows for easy leveling of sub-chassis & record platter. The quiet-running AC motor unit drives the platter via the belt installed around the platter’s circumference. The motor incorporates an advanced DC-driven motor control that ensures speed stability and offers electronic toggling between 33 & 45rpm.



The resonance-optimized platter is a sandwich construction utilizing a precision-machined MDF plate coated 4mm thick in flat-ground recycled vinyl and a screw-down clamp for optimal record coupling. It runs on an inverted bearing with stainless steel axle carrying a ceramic ball/plate bearing. The headshell and armtube of the 9cc Evolution tonearm are fashioned from a single piece of carbon fiber. The conical armtube reduces standing wave reflections. The inverted tonearm bearing is comprised of four hardened stainless steel tips in ABEC 7 spec ball races.



Specifications

Speed	33, 45 (electronic speed change)
Principle	Belt drive
Platter	300 mm MDF/vinyl Sandwich
Main bearing	Inverted stainless steel with ceramic ball/plate
Wow & flutter	33: +/- 0.06% 45: +/- 0.06%
Speed variance	33: +/- 0.10% 45: +/- 0.10%
Signal to Noise	73 dB
Tonearm	EVO 9 CC, one-piece carbon fiber tube
Effective arm length	230 mm
Effective tonearmmass	8.0 g
Overhang	18.0 mm
Tracking force range	10 - 35 mN
Included accessory	15 volts DC / 800 mA power supply, dust cover
Power consumption	6 Watts max / < 0.3 Watt standby
Dimensions	460 x 183 x 365 mm (WxHxD)
Weight	11.0 kg net
