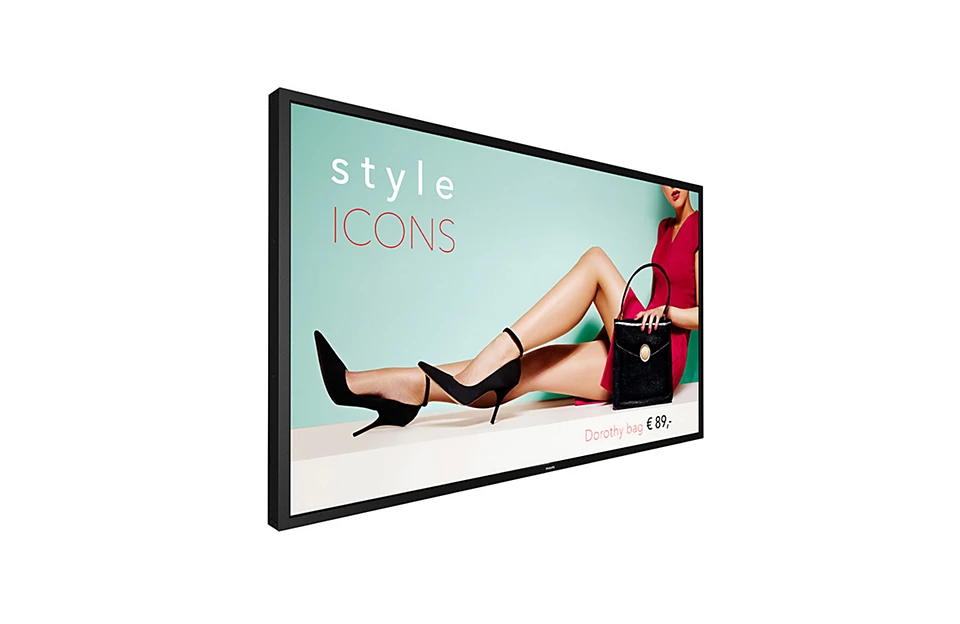

Публичен дисплей Philips 55BDL4002H/00, 54.6" (138.6 cm), Full HD LED дисплей, DisplayPort, HDMI, DVI, USB, LAN

Signage Solutions H-Line Display

55BDL4002H/00

Vibrant visibility in any lighting condition

Stay visible day and night with Philips H-Line high bright displays. Astonishing clarity and contrast make these a perfect solution to showcase engaging content in windows and lighter locations, from airports to shopping centres and more.

• 55"
• 2500 cd/m²
• Full HD

CMND and Create. Develop and launch your own content

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

FailOver. Ensure your display never goes blank

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection, and you're ready for instant content protection.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Designed for extreme conditions

Enhanced thermal management, High TNI Liquid Crystals panels and built-in thermal sensors to cope with high ambient temperatures (sunlight or other) up to 2500 cd/m². Display polariser compatible with polarised sunglasses for sunlight readability.

Full HD resolution street signage

High-brightness, street-facing digital displays command attention in any lighting condition, boosting shop exposure and attracting customers. Spectacular brightness of up to 2500 cd/m² ensures high visibility and pure image quality, even in extreme ambient light conditions.

Technical Specifications:

• Connectivity

  Audio output

  3.5 mm jack

  Video input

  • Display Port1.2 (x 1)
  • DVI-I (x 1)
  • HDMI 2.0 (x 2)

  Audio input

  3.5 mm jack

  Other connections

  • OPS
  • USB 2.0 (x 2)

  Video output

  • DisplayPort 1.2 (x 1)
  • HDMI 2.0 (x 1)

  External control

  • IR (in/out) 3.5 mm jack
  • RJ45
  • RS232C (in/out) 2.5 mm jack

• Picture/Display

  Diagonal screen size (metric)

  138.7  cm

  Diagonal screen size (inch)

  54.6  inch

  Aspect ratio

  16:9

  Panel resolution

  1920 x 1080p

  Pixel pitch

  0.63 x 0.63 mm

  Optimum resolution

  1920 x 1080 @ 60 Hz

  Brightness

  2500  cd/m²

  Display colours

  1.07 B

  Contrast ratio (typical)

  4000:1

  Dynamic contrast ratio

  500,000:1

  Response time (typical)

  8  ms

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

• Convenience

  Placement

  • Landscape (24/7)
  • Portrait (24/7)

  Screen-saving functions

  Pixel Shift, Low Brightness

  Keyboard control

  • Hidden
  • Lockable

  Remote control signal

  Lockable

  Signal loop through

  • DisplayPort
  • RS232
  • HDMI
  • IR Loop through

  Ease of installation

  • Carrying Handles
  • Smart Insert

  Energy-saving functions

  Smart Power

  Network controllable

  • RS232
  • RJ45

• Sound

  Built-in speakers

  2 x 10 W RMS

• Power

  Mains power

  100 ~ 240 VAC, 50 ~ 60 Hz

  Consumption (Typical)

  245  W

  Consumption (Max)

  430 W

  Standby power consumption

  <0.5 W

• Supported Display Resolution

  Computer formats

  • 640 x 480, 60, 72, 75 Hz
  • 720 x 400, 70 Hz
  • 800 x 600, 60, 75 Hz
  • 1024 x 768, 60, 75 Hz
  • 1280 x 768, 60 Hz
  • 1280 x 800, 60 Hz
  • 1280 x 960, 60 Hz
  • 1280 x 1024, 60 Hz
  • 1360 x 768, 60 Hz
  • 1366 x 768, 60 Hz
  • 1600 x 1200, 60 Hz
  • 1920 x 1080, 60 Hz

  Video formats

  • 720p, 50, 60 Hz
  • 1080i, 25, 30 Hz
  • 1080p, 50, 60 Hz

• Dimensions

  Smart Insert mount

  100 mm x 100 mm pitch, 6 x M4L6

  Set Width

  1248.6  mm

  Product weight

  30.37  kg

  Set Height

  719.4  mm

  Set Depth

  85  mm

  Set Width (inch)

  49.16  inch

  Set Height (inch)

  28.32  inch

  Wall Mount

  400 x 400 mm, M6

  Set Depth (inch)

  3.35  inch

  Bezel width

  17.5 mm (even bezel)

  Product weight (lb)

  66.95  lb

  Smart insert height

  100  mm

• Operating conditions

  Altitude

  0 ~ 3000 m

  Temperature range (operation)

  0 ~ 40  °C

  MTBF

  50,000  hour(s)

  Temperature range (storage)

  -20 ~ 60  °C

  Humidity range (operation)[RH]

  20~80% RH (No condensation)

  Humidity range (storage) [RH]

  5~95% RH (No condensation)

• Multimedia Applications

  USB Playback Video

  • AVI
  • MP4
  • MPEG
  • MPG
  • TS
  • VOB
  • MPEG4

  USB Playback Picture

  • BMP
  • JPEG
  • JPG
  • PNG
