Кутия Phanteks NV5 MK2, EATX/ATX/microATX/Mini-ITX, 2x USB 3.0, 1x USB 3.2 Gen 2 Type-C, с прозорец, бяла, без захранване

Phanteks NV5 MK2
Performance with a view

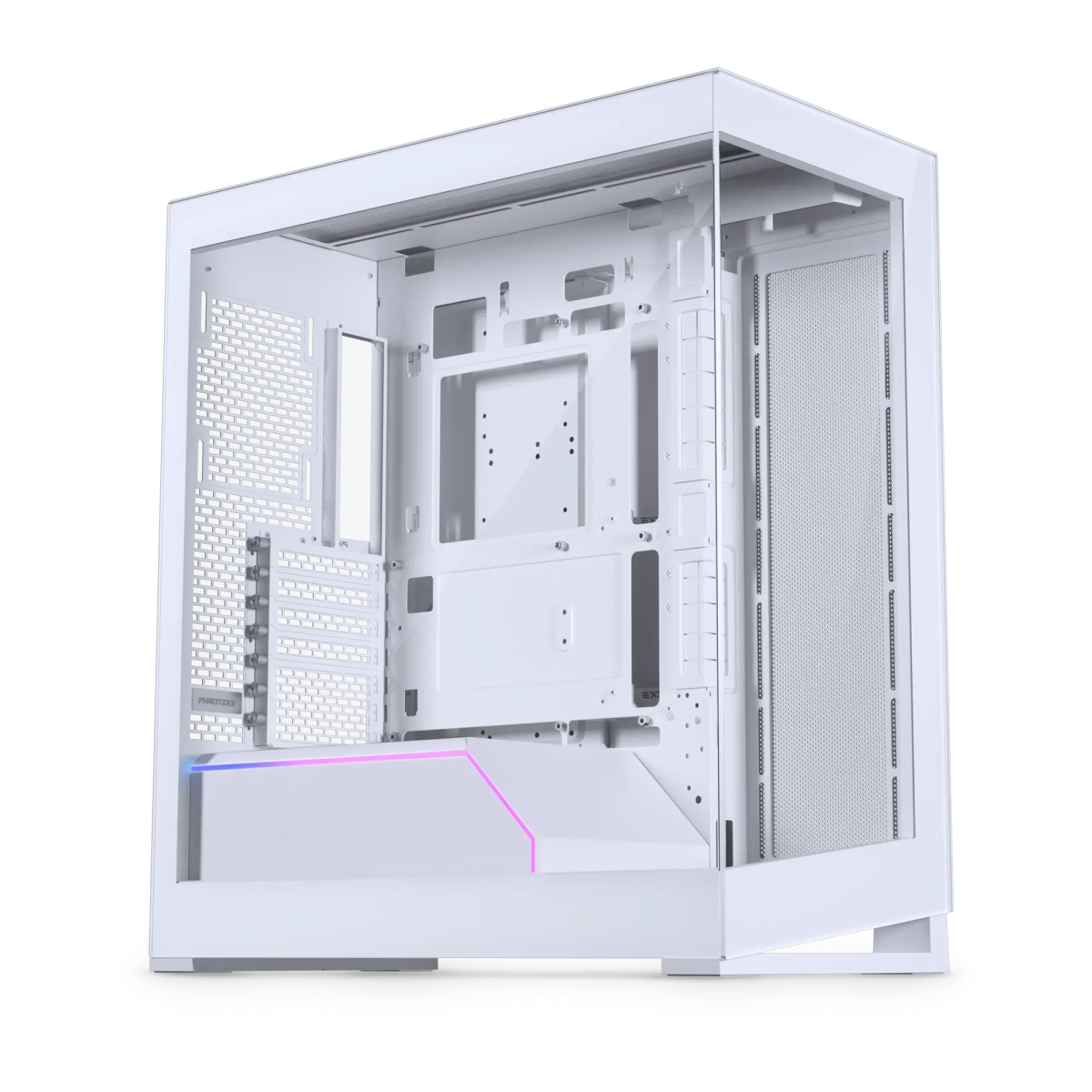

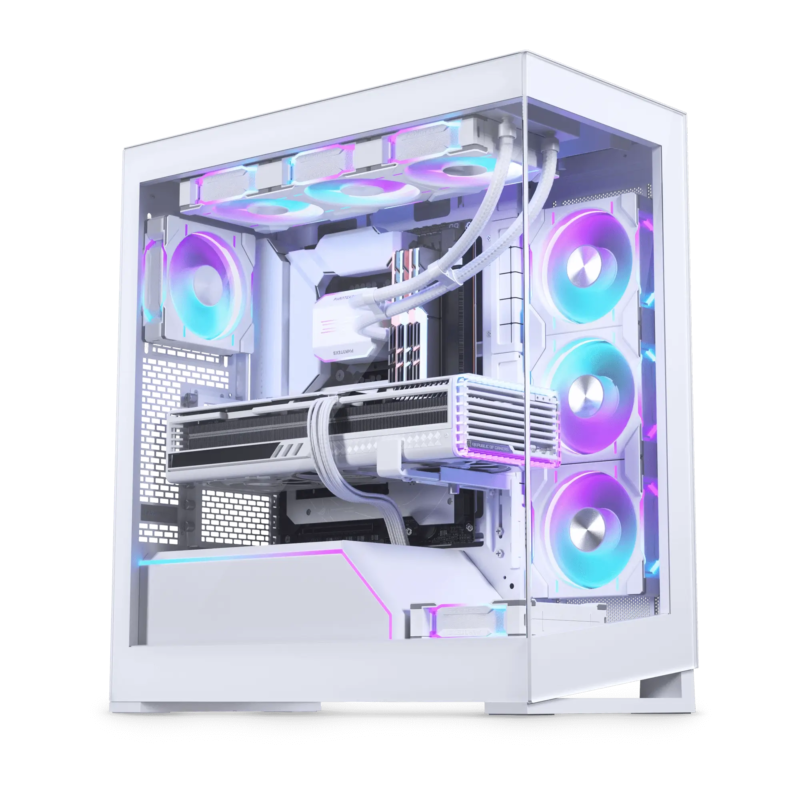

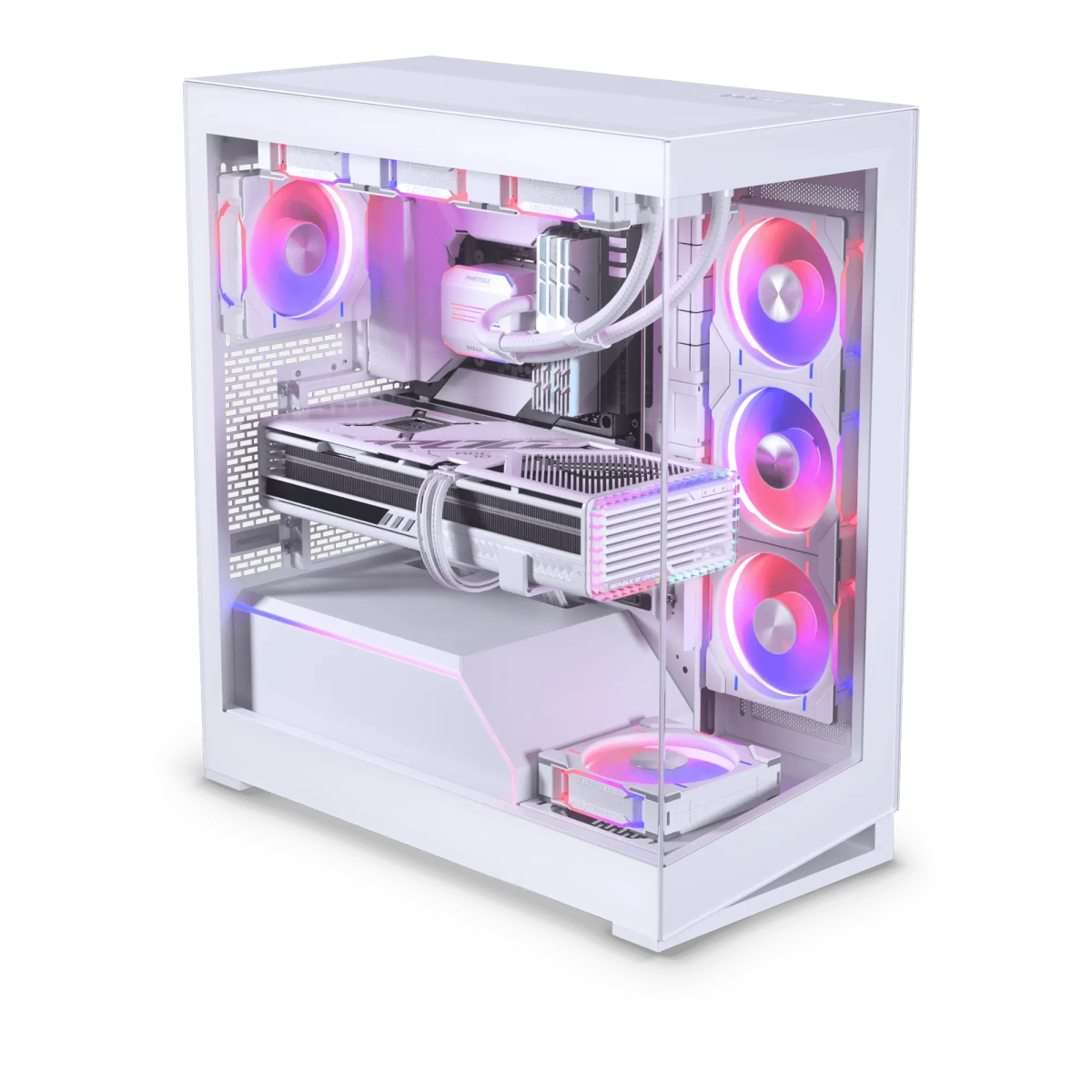

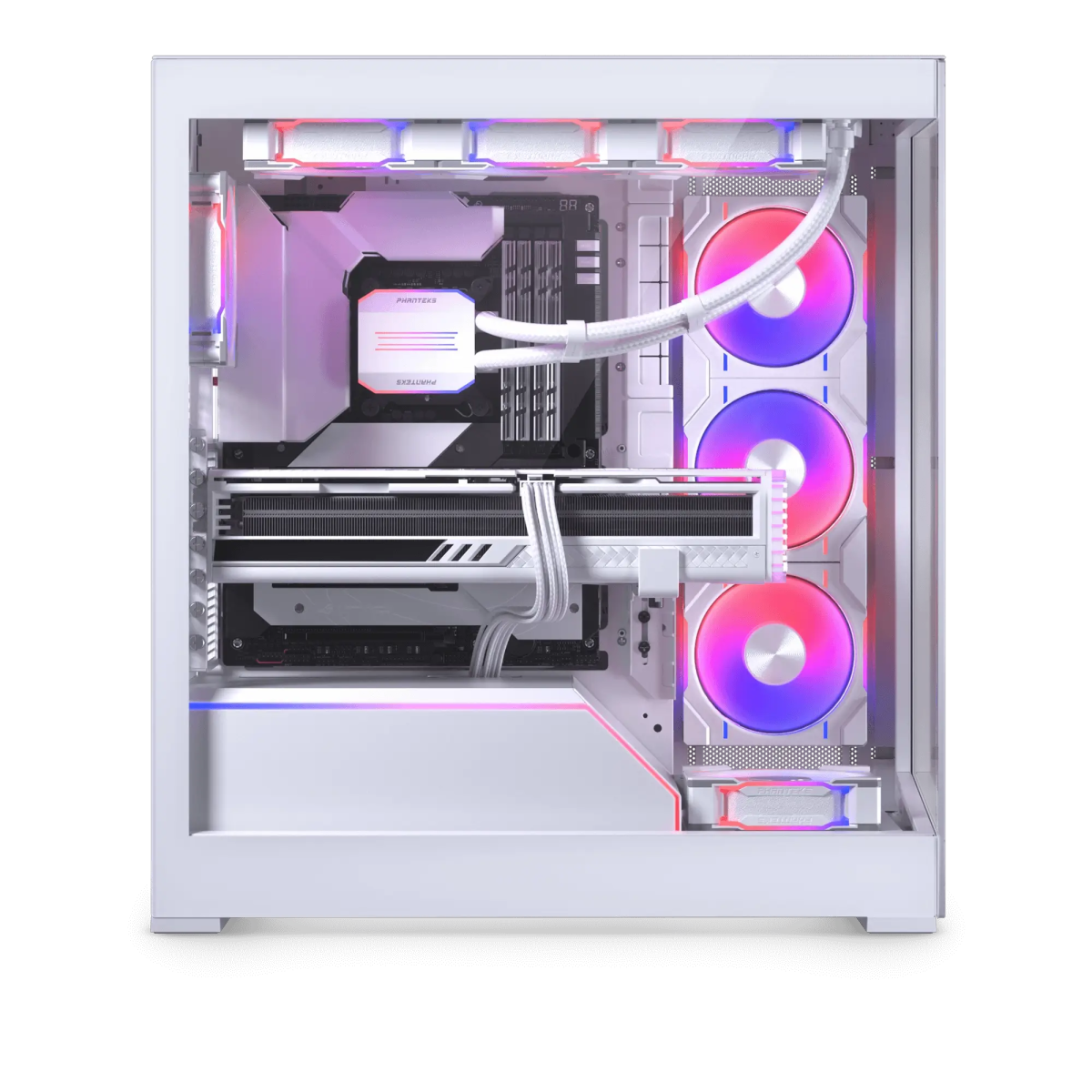

Meet the NV5 MKII mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. Supports rear side connector mainboards (BTF & Project Zero), with a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 MKII is designed to excel.

Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 MKII is the perfect choice for a high-performance PC build that looks as good as it performs.

Perfect view of your system

• Near-seamless glass panels for a perfect view of all your system components.
• Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
• A total of eight 120 mm fan positions for high-end cooling performance.
• Dual 360 radiator support in the top and side.

Ready for modern GPUs

• Increased chassis width to support wider GPUs and 12VHPWR cables.
• GPU support bracket supports and holds the GPU securely to chassis and motherboard.
• Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
• Removable PSU cover for easy access to power cables.

Build for the Future

• UNLOCK THE ZERO-CABLE SETUP
  Mainboards with hidden connectors on the rear-side are fully supported by the NV chassis.
• Support for MSI Project Zero mainboards.
• Support for ASUS BTF mainboards.

Specifications

General

Case Dimensions

239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in

Form Factor

Mid-Tower

Mainboard Support

*E-ATX | ATX | Micro-ATX | Mini-ITX

*Up to 280mm without GPU Support Bracket

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

7

Vertical GPU Support

3-slots

Internal 2.5″ Bay

4

Internal 3.5″ Bay

3

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button

Fans 120 | 140

Total Fans

8x | –

Top

3x | –

Front

– | –

Side

3x | –

Rear

1x | –

Bottom

1x | –

Radiators 120 | 140

Top

Max. 360 | –

Front

– | –

Side

Max. 360 | –

Rear

120 | –

Bottom

– | –

Clearance

CPU Cooler

Height

180 mm | 7.08 in

GPU

Length

440 mm | 17.32 in

GPU

Height

170 mm | 6.69 in

Power Supply

Length

230 mm | 9.05 in

Top Radiator

Length x Width

134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in

Front Radiator

Length x Width

– | –

Side Radiator

Length x Width

130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in

Rear Radiator

Length x Width

132 x 170 mm | 5.19 x 6.69 in

Extra

Net Weight

11.28 kg | 24.9 lbs

Gross Weight

13.97 kg | 30.8 lbs
