PT-CMZ50
Laser Projector Delivers Big Pictures from Ultra-Short Distances with Minimal Shadowing, Easy Installation, and Convenient Adjustment

Big Pictures with Fewer Shadows

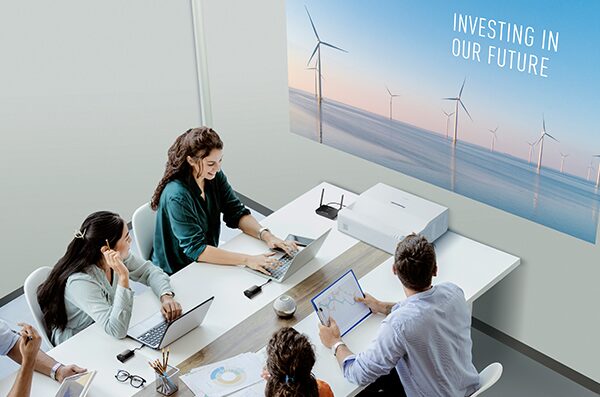

Share large 80–120-inch images in rooms of any size, from small huddle rooms to hybrid classrooms where installation space on the ceiling is limited. The compact ultra-short-throw design can deliver an 80-inch image from a distance of about 1 cm (1/3 in.)1. Since the lens is forward of the presenter, shadowing and dazzling are reduced so everyone can communicate comfortably. The large picture and detailed WUXGA resolution make it ideal for displaying small text.

Stylish Design Harmonizes with Your Space

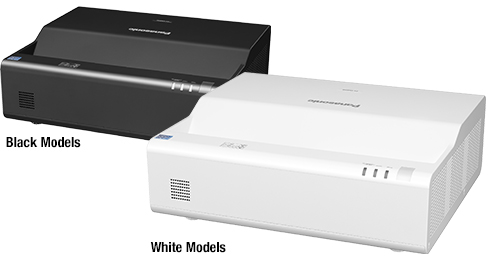

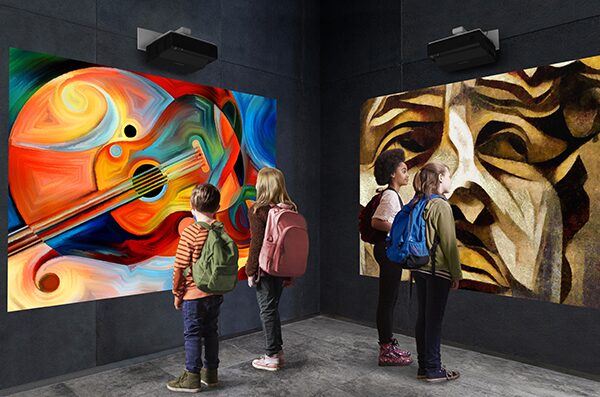

The projector’s minimal screen offset makes it a practical choice for rooms with low ceilings, where it installs almost flush to the wall. Available in black or white, its integrated body has no protrusions to spoil a clean, elegant style that harmonizes with any interior design. Installed in an office, classroom, or museum, this unobtrusive projector fades from the group’s awareness so attention remains focused on the presentation.

Ultra-Quiet Design for Hybrid Spaces

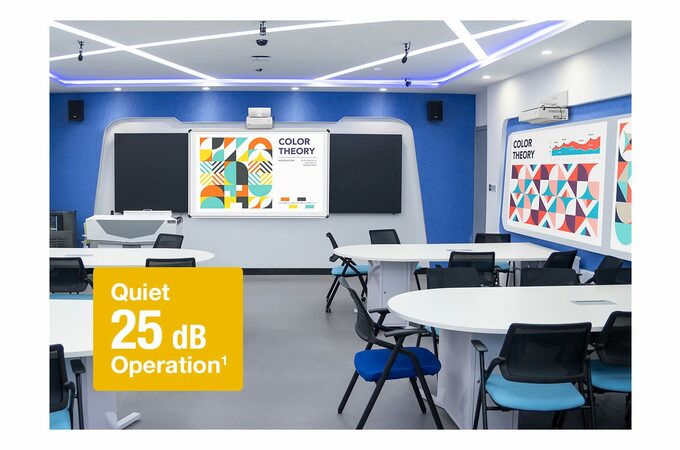

CMZ50’s heat-resistant light source significantly reduces exhaust noise and unwanted distractions when people are seated close to the projector. Quiet running also improves the audibility of conversations during hybrid lessons and meetings by reducing background noise. In Quiet Mode, its operating noise is just 25 dB, about the same apparent loudness as rustling leaves. In fact, with a perceived loudness that is less than one third that of a comparable lamp-based projector, CMZ50 keeps everyone alert and focused on the presentation.

Specifications:
Terminals | Audio In | M3 stereo mini-jack x 1 |
---|---|
Terminals | Computer In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
Terminals | USB(VIEWER/WIRELESS/DC OUT) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A) |
Lens | Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio) (Projection distance: 1 cm [1/3 in] for 80-inch image) |
Power consumption*8 | On-mode power consumption (Light Power)[Normal] | 290 W (AC 100–120V), 280 W (AC 200–240 V) |
Resolution | WUXGA (1920 x 1200 pixels) |
Keystone Correction Range | Vertical: ±3 °, Horizontal: ±3 ° |
Power consumption*8 | On-mode power consumption (Light Power)[Eco] | 215 W (AC 100–120V), 205 W (AC 200–240 V) |
Power consumption*8 | On-mode power consumption (Light Power)[Quiet] | 210 W (AC 100–120V), 200 W (AC 200–240 V) |
Terminals | HDMI™ IN 1/IN 2 | HDMI™ 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported*7 |
Installation | Ceiling/floor, front/rear, free 360-degree installation |
Protocol versions | IPv4 |
Screen Size (Diagonal) | 2.03–3.05 m (80–120 in) (16:10 aspect ratio) |
Terminals | HDMI™ OUT | HDMI™ 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal output) |
Contrast Ratio*1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
Dimensions (W x H x D) | 495 mm x 160 mm x 421 mm (19 1/2˝ x 6 19/64˝ x 16 37/64˝) (excluding feet and protrusions),495 mm x 176 mm x 421 mm (19 1/2˝ x 6 15/16˝ x 16 37/64˝) (with feet at shortest position) |
Light Source | Laser diodes |
Built-in Speaker | 10 W monaural |
LCD Panel | Panel Size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
Operating Environment | Operating temperature: 0–45 °C (32–113 °F)*11, Operating humidity: 20–80 % (no condensation) |
LCD Panel | Pixels | 2,304,000 (1920 x 1200) pixels |
Cabinet Materials | Molded plastic |
Projector type | LCD projector |
Applicable Software | Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software, Presenter Light Software for Windows®*12, Wireless Projector App for iOS/Android™*13 |
Center-to-corner zone ratio*1 | 85 % |
Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
Light Output*1 *2 | 5,200 lm |
Operation noise*1 | 35 dB (NORMAL/ECO), 26 dB (QUIET) |
Filter*9 | Included (Estimated maintenance time: approx. 20,000 hours) |
Digital Zoom Extender *4 | Throw ratio 0.235–0.288:15 (16:10 aspect ratio) (Corresponding value) |
Weight with supplied lens*10 | Approx. 9.5 kg (20.9 lbs) |
Power Supply | AC 100 V–240 V, 50/60 Hz |
Control function via LAN | PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery |
Terminals | Variable Audio Out | M3 stereo mini-jack x 1 |
Power consumption*8 | Maximum power consumption | 325 W (3.4–1.4 A) (330 VA) (Power consumption is 310 W at AC 200–240 V) |
Terminals | Serial In | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
Terminals | LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],HDCP, Deep Color, 4K/30p6 signal input) |
Виж още Проектори Panasonic
Виж всички Проектори в категорията
Тип: | LCD |
---|---|
3D: | Не |
Разделителна способност (native): | 1920 x 1200 |
Разделителна способност (max): | 1920 x 1200 |
Яркост: | 5200 lm |
Контраст: | 3000000 |
Мрежови възможности: | RJ-45 |
Говорители: | Да |
4K: | Не |
Short Throw: | Да |
Живот на лампата: | 20000 h |
Предназначен за: | Бизнес |
Формат: | 16:10 |
