ER8411
Omada VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband 1.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports

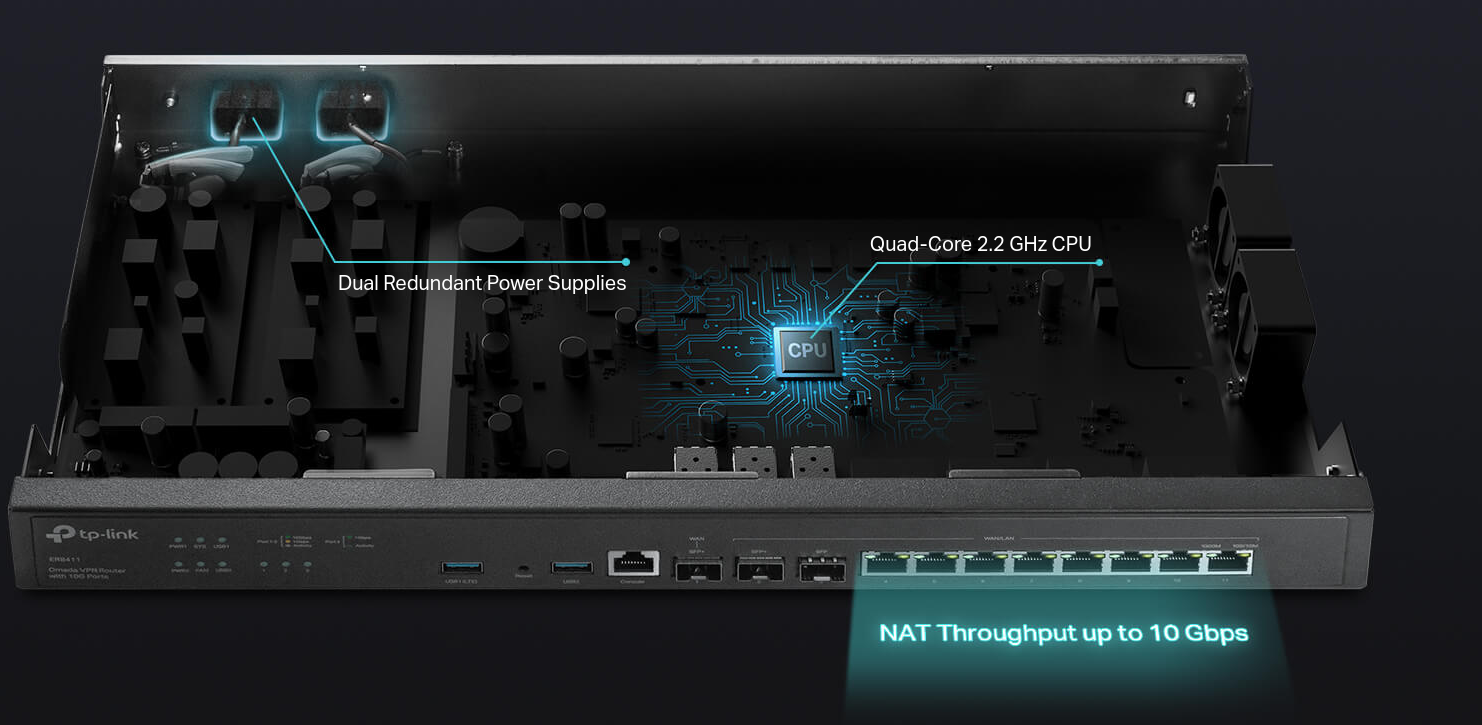

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
Note: At least one of the ten WAN/LAN ports needs to function as a LAN.

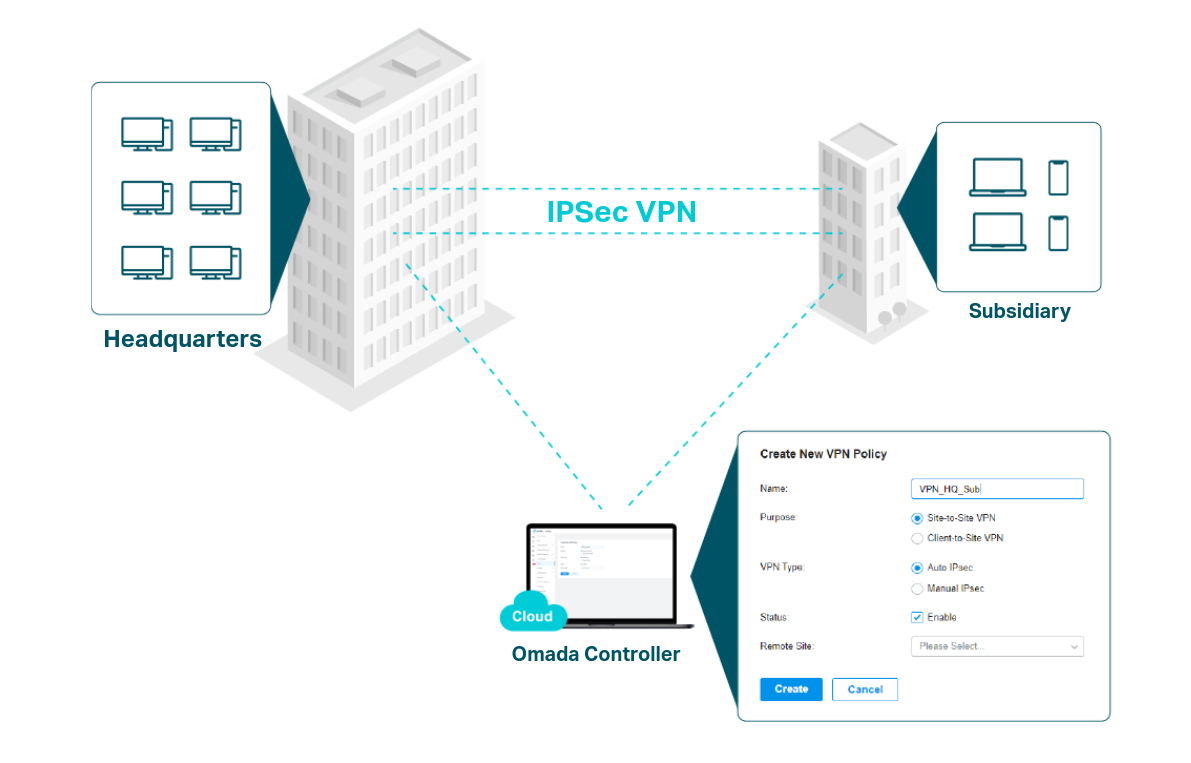

High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

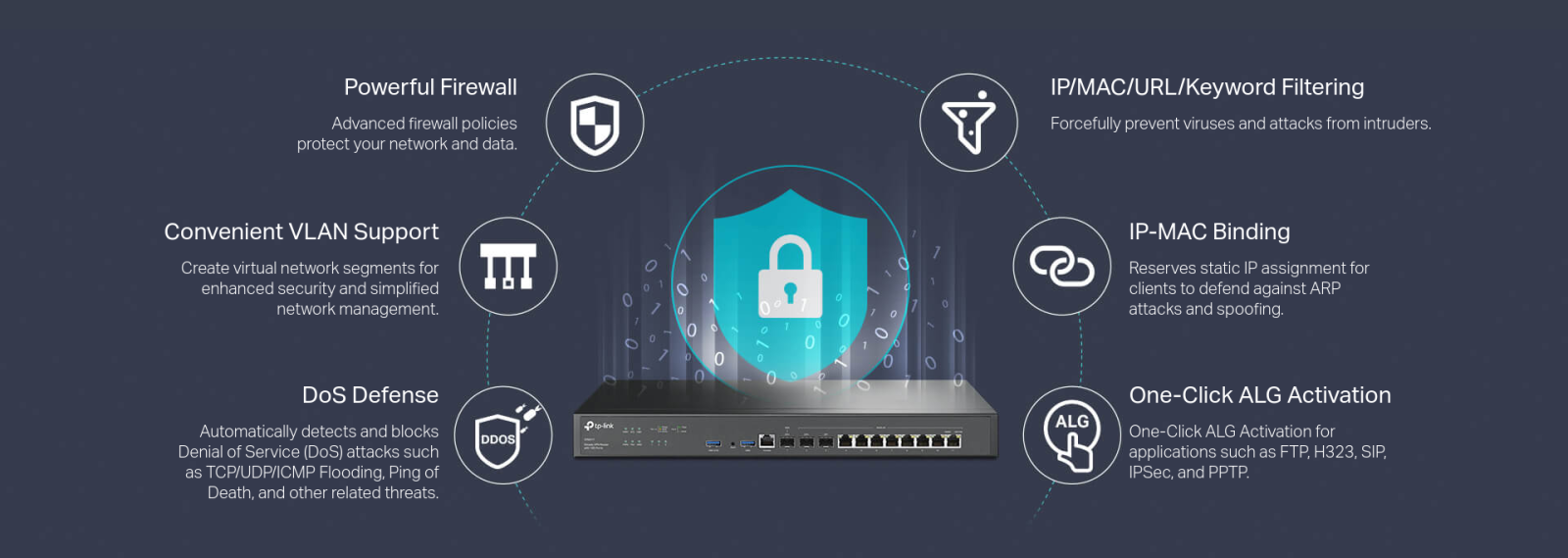

Robust Security Features
Specifications:
SECURITY | |
---|---|
Access Control | Source/Destination IP Based Access Control |
Filtering | • WEB Group Filtering*5 • URL Filtering • Web Security*5 |
ARP Inspection | • Sending GARP Packets*5 • ARP Scanning*5 • IP-MAC Binding*5 |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |

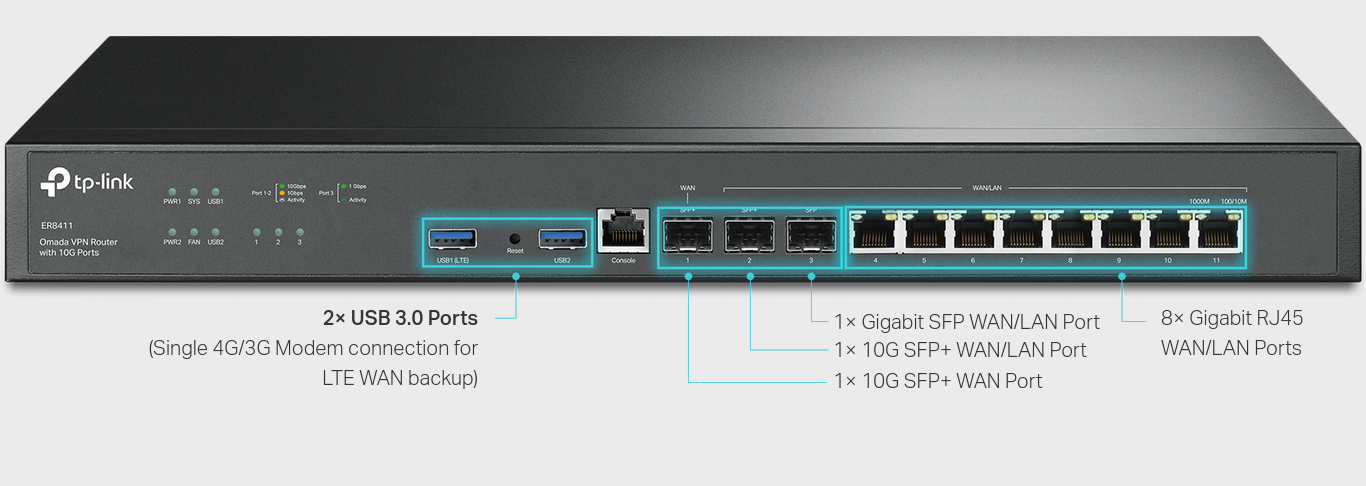

Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
Fan Quantity | 2 |
Button | Reset Button |
Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
PoE Budget | - |
Flash | 4MB SPI NOR + 256 MB NAND |
DRAM | 4 GB DDR4 |
LED | PWR, SYS, WAN, LAN, USB, FAN |
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
Protection | 4 kV surge protection |
Enclosure | Steel |
Mounting | Rack Mountable |
Max Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
PERFORMANCE | |
---|---|
WireGuard VPN | 1411 Mbps |
Concurrent Session | 2,300,000 |
New Sessions /Second | 20,000 |
NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
NAT (L2TP) | • Upload: 4230.62 Mbps • Download: 4169.53 Mbps |
NAT (PPTP) | • Upload: 3933.86 Mbps • Download: 3821.97 Mbps |
64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps • Download: 1030 Mbps |
IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps |
OpenVPN | 1665.64 Mbps |
L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps |
PPTP VPN Throughput | • Unencrypted: 3933.86 Mbps • Encrypted: 3821.97Mbps |
SSL VPN Throughput | 1511.10 Mbps |
66 Byte Packet forwarding rate | - |
1,518 Byte Packet forwarding rate | • Upload: 9970 Mbps • Download: 9970 Mbps |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
MAC Clone | Modify WAN/LAN MAC Address*4 |
DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces |
IPv6 | WAN Connection |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy |
ADVANCED FUNCTIONS | |
---|---|
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing • Policy Routing |
Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing*5, Failover) • Online Detection |
NAT | • One-to-One NAT*5 • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
Session Limit | IP-based Session Limit |
VPN | |
---|---|
SSL VPN | • SSL VPN Server • SSL VPN Client • 500 OpenVPN Tunnels |
IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)*6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)*6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (10)*6 • 110 OpenVPN Tunnels |
AUTHENTICATION | |
---|---|
Web Authentication | • No Authentication • Simple Password*2 • Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2) • External Radius Sever • External Portal Sever*2 • Facebook Check-In*2 • Instagram Follow*2 |
MANAGEMENT | |
---|---|
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
