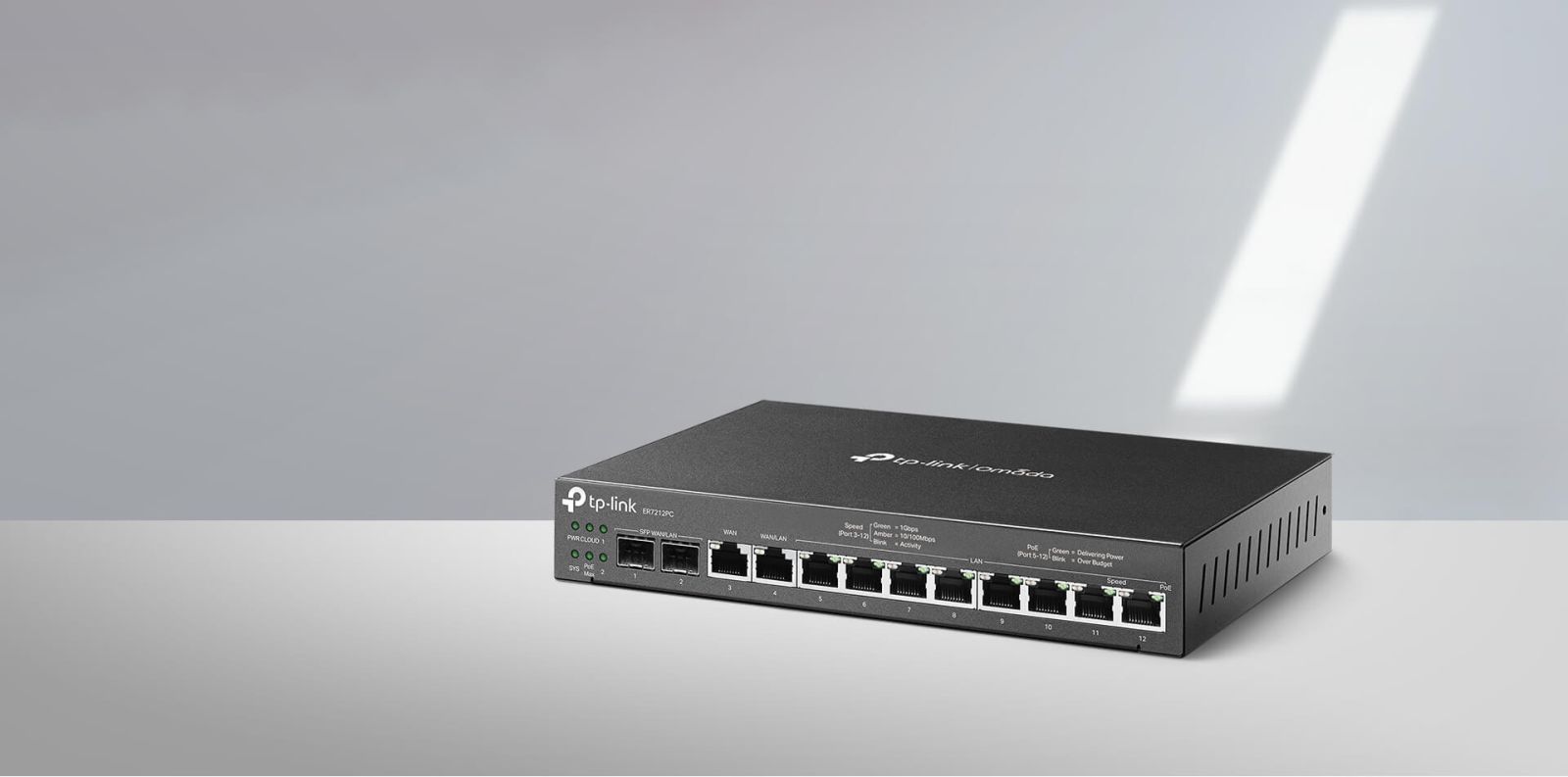

TP-Link ER7212PC
Omada 3-in-1 Gigabit VPN Router

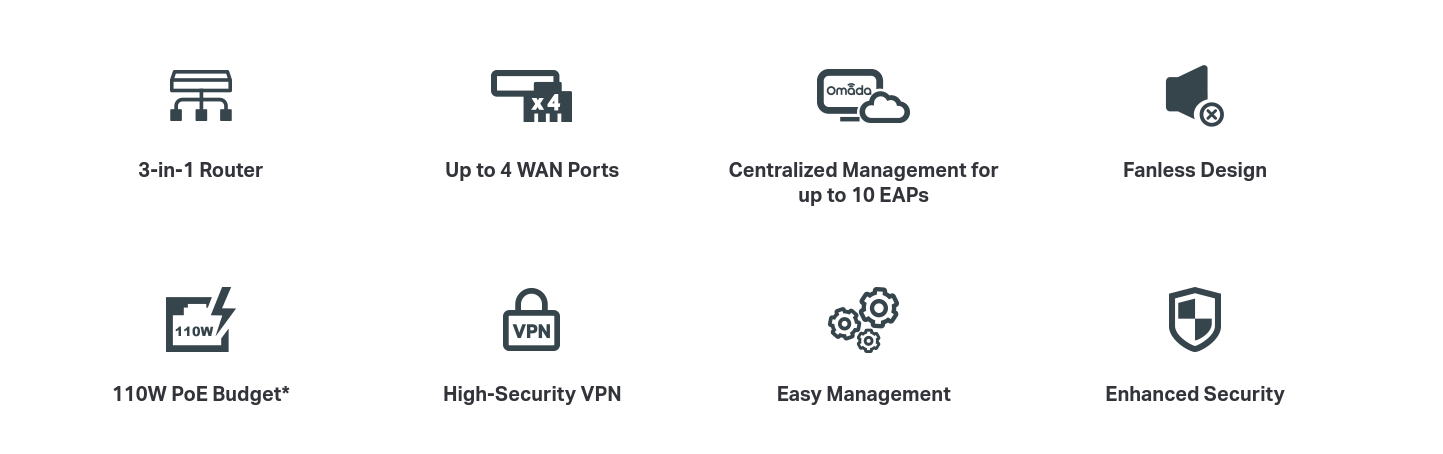

- 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
- Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.

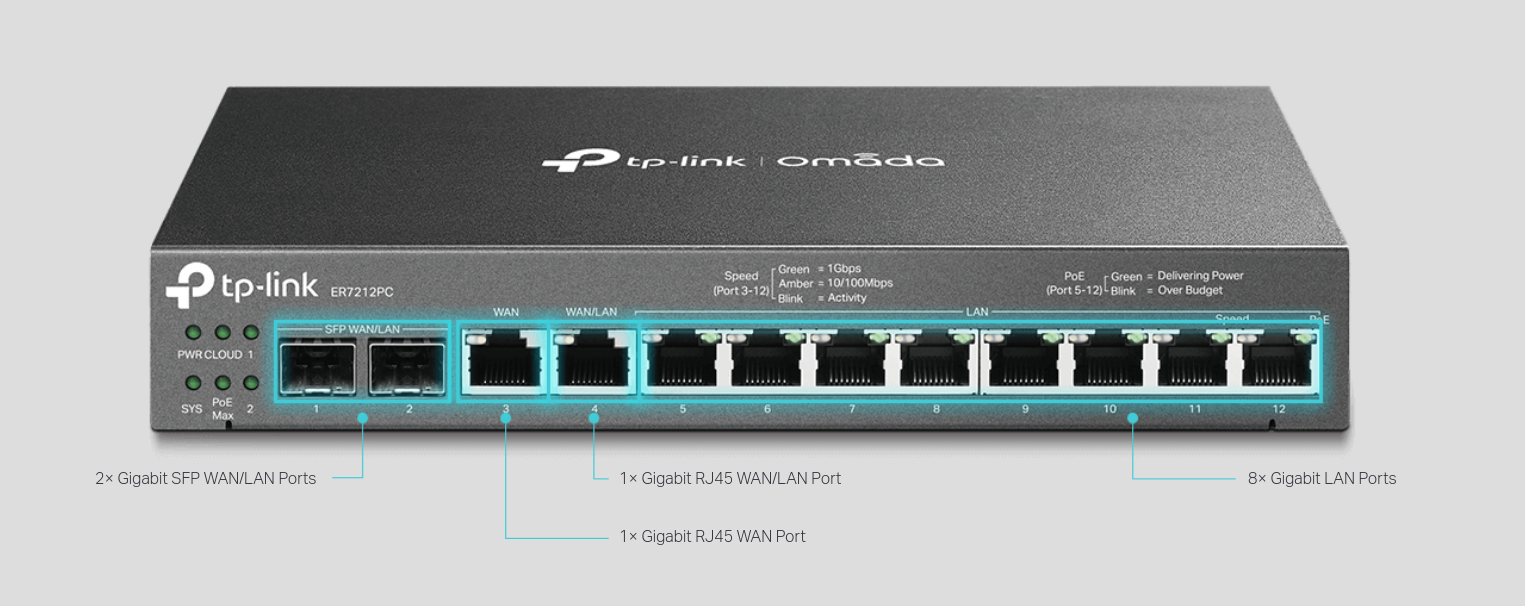

- Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
- 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
- Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.
- Easy Installation: Fanless and compact design for desktop and wall mounting.

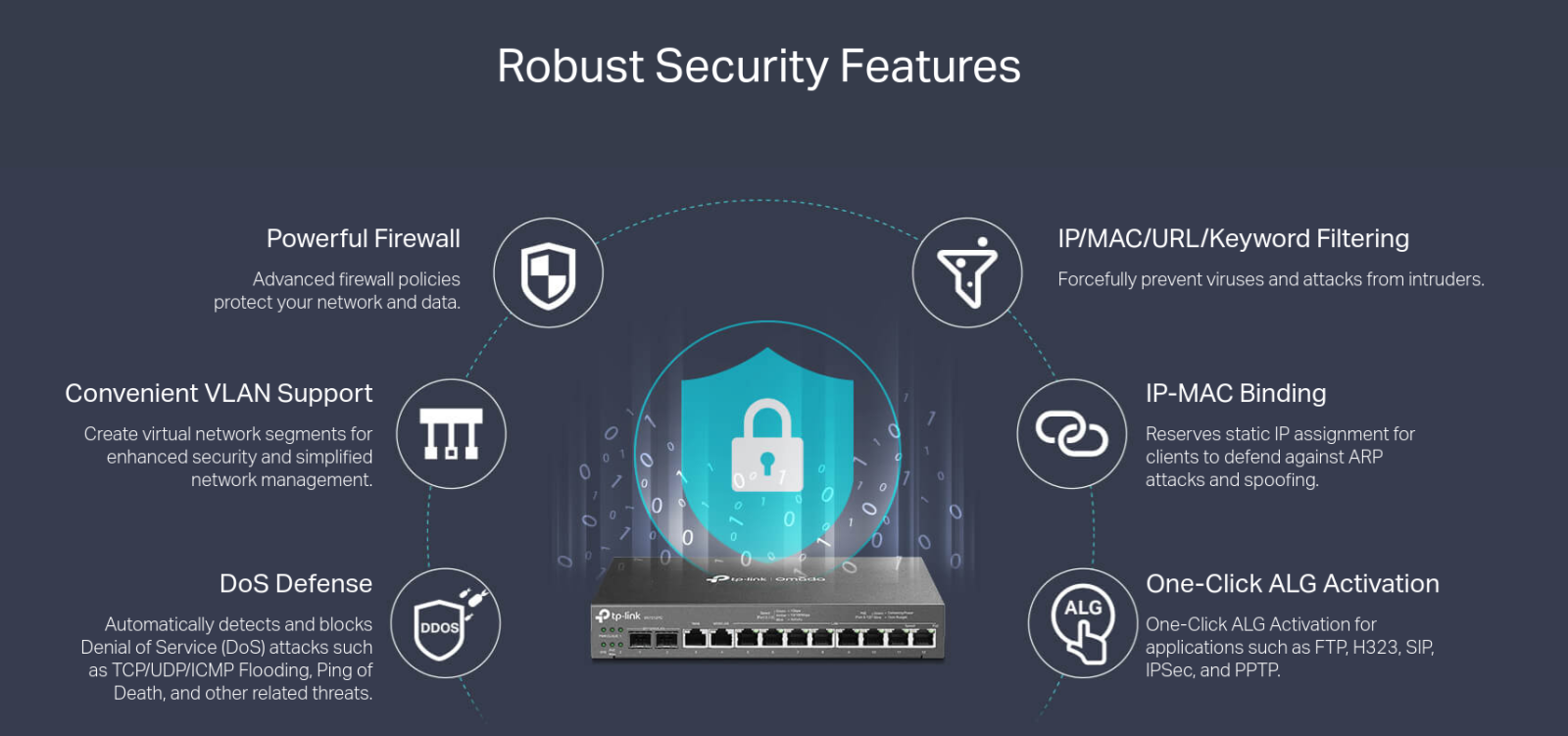

- Robust Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
- Centralized Management: On-premises management to locally monitor and manage devices securely or monitor and manage devices with Omada app or Web UI.
3-in-1 Router, More Than A Router

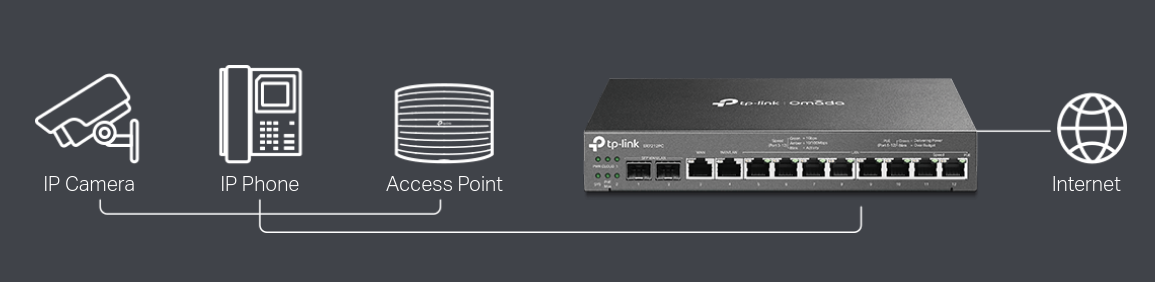

The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.
With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

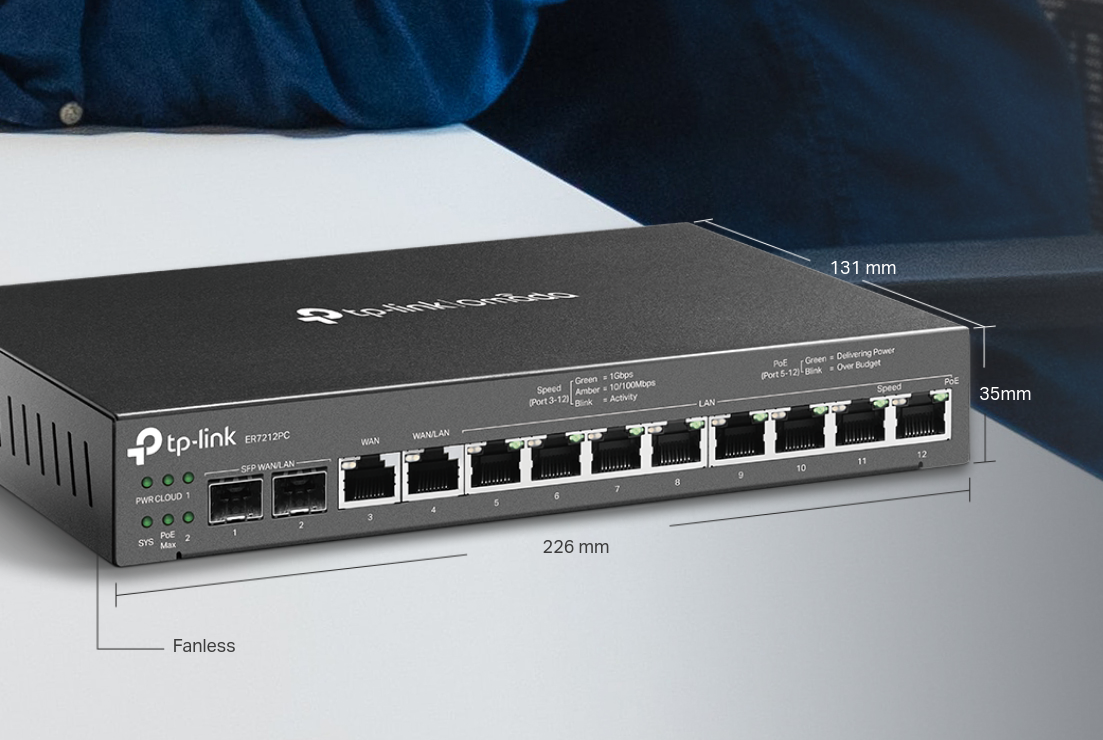

Easy Installation, Quiet Heat Dissipation
A clean, well-organized, and quiet network environment is at your fingertips.
- The compact and minimalist design makes it suitable for your configuration in various spaces, whether it's the corner of office desks or the ceiling of a store.
- Fanless design offers noiseless heat dissipation to your shops or offices.
Specifications:
SECURITY | |
---|---|
Access Control | Source/Destination IP Based Access Control |
Filtering | URL Filtering |
ARP Inspection | - |
Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
Interface | • 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
Fan Quantity | Fanless |
Button | Reset Button |
Power Supply | 53.5VDC/2.43A Adapter |
PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
Flash | 8Mb Nor + 4 GB EMMC |
DRAM | 1 GB DDR3 |
LED | PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
Protection | 4 kV surge protection |
Enclosure | Steel |
Mounting | Desktop/Wall-mount |
Max Power Consumption | • 133.2W with PoE Max • 13.88W without PoE |
PERFORMANCE | |
---|---|
Concurrent Session | 24,980 |
New Sessions /Second | 1,900 |
NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
IPsec VPN Throughput (AES256) | 168.5 Mbps |
IPsec VPN Throughput | AES256: 168.5 Mbps |
OpenVPN | 34 Mbps |
L2TP VPN Throughput | • Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps |
PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps |
66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | • Static IP • Dynamic IP • PPPoE • PPTP • L2TP |
MAC Clone | Modify WAN MAC Address |
DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | support |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy |
ADVANCED FUNCTIONS | |
---|---|
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing • Policy Routing |
Bandwidth Control | IP/Port-based Bandwidth Control |
Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection |
NAT | • Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Session Limit | IP-based Session Limit |
VPN | |
---|---|
SSL VPN | - |
IPsec VPN | • 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server • OpenVPN Client (10)§ • 16 OpenVPN Tunnels |
AUTHENTICATION | |
---|---|
Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | Management of up to 2 Omada switches, and 10 Omada access points |
Cloud Access | Yes |
Service | Dynamic DNS (Dyndns, No-IP) |
Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management of up to 2 Omada switches and 10 Omada access points |
