NZXT H6 Flow
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance

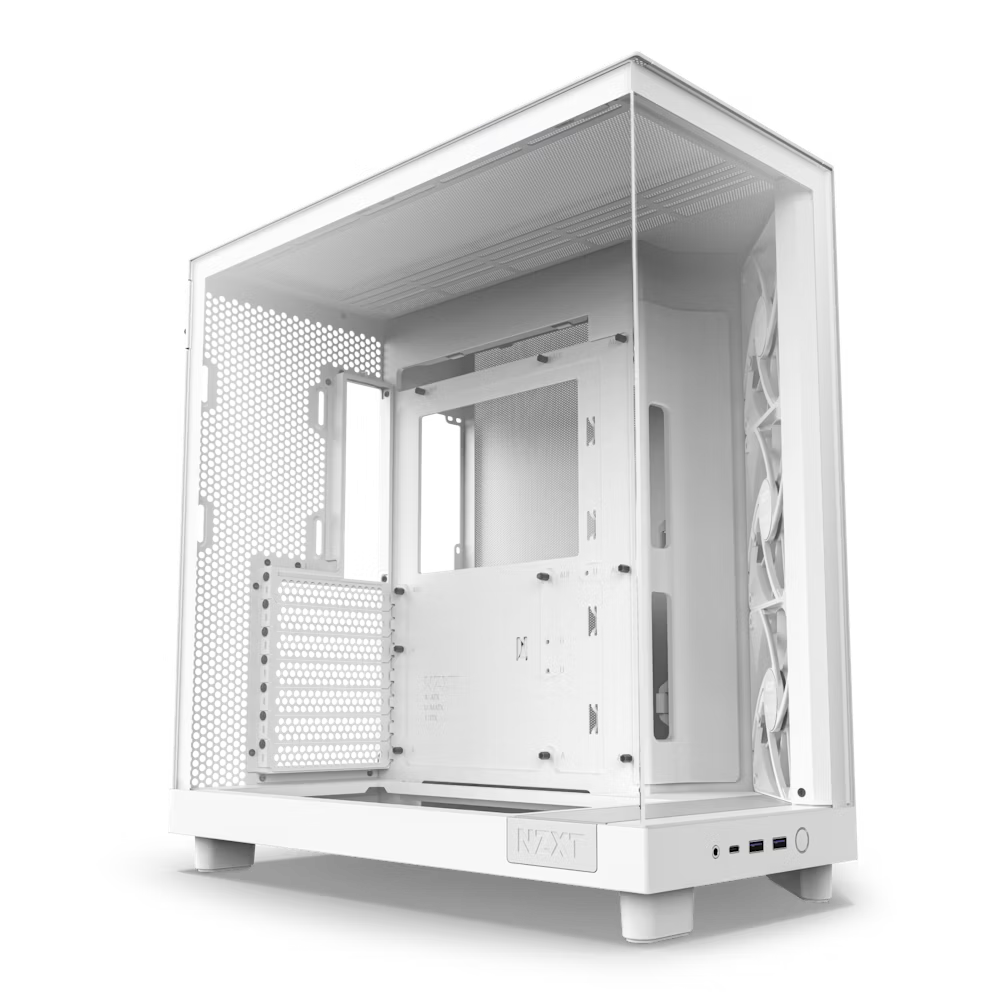

![](/images/custom/site/20240205124739.png)
Compact Dual-ChamberImproves cooling performance and creates an uncrowded aesthetic. | ![]() |
Out-of-the-Box Cooling3 x 120mm fans are angled for optimal out-of-the-box cooling. | ![]() |
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
![](/images/custom/site/high(1).jpg)
Cable ManagementEasily manage cables with the wide channels and included straps. | ![]() |
Tool-Free EntryAccess the top and side panels without tools for quick upgrades. | ![]() |
Spacious SupportUp to a 360mm radiator in the top and clearance for a 365mm GPU. | ![]() |
Specifications:
Key Specs
- Motherboard Support:ATX, Micro-ATX, Mini-ITX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
Dimensions
- Height (with feet):435 mm / 17.13 in
- Width:287 mm / 11.3 in
- Depth:415 mm / 16.34 in
- Weight:9.4 kg
Compatibility & Clearance
- CPU Cooler Height:163 mm / 6.42 in
- GPU Length:365 mm / 14.37 in
- PSU Length:200 mm / 7.87 in
- Cable Management:91 mm / 3.58 in
- Top Radiator:30 mm / 1.18 in
Front I/O Ports
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2 Type-C:1
- Headset Audio Jack:1
Expansion Slots
- Standard:7
- Vertical:0
Drive Bays
- 2.5":2
- 3.5":1
Fan Support
- Front-Right:3 x 120 mm (3 x F120Q included)
- Top:3 x 120 mm / 2 x 140 mm
- Bottom:2 x 140 mm
- Rear:1 x 120 mm
- Filters:High-Performance Mesh
Radiator Support
- Top:Up to 360 mm
- Rear:Up to 120 mm
Fan Specs
- Model:F120Q Airflow Fan (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm - H2O
- Noise:25.1 dBA
- Fan Connector:3-pin
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии NZXT
Виж всички Компютърни кутии в категорията
Технически характеристики
Захранване: | Не |
---|---|
Прозорец: | Да |
Цвят: | Бял |
