Захранване NZXT C1500, 1500W, Active PFC, 80 Platinum, 140mm вентилатор

NZXT C1500

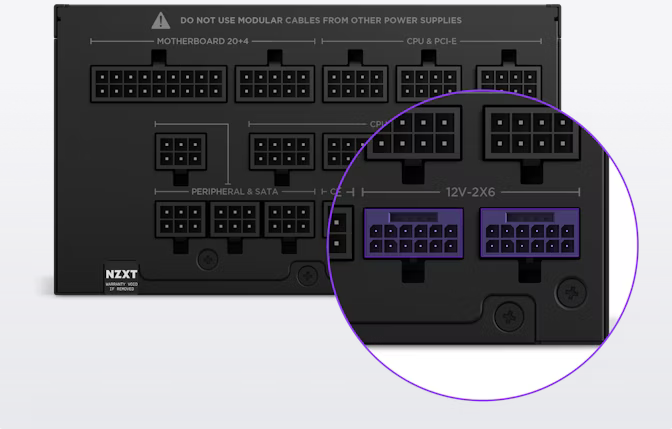

Dual PCIe 5.1 Connectors Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.

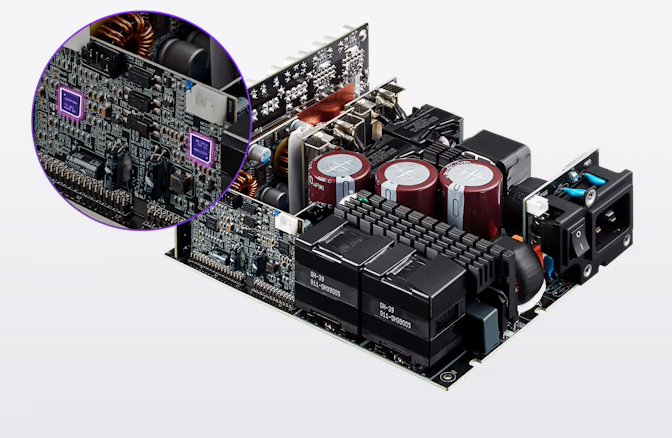

Digital Power Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceptional Efficiency Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.

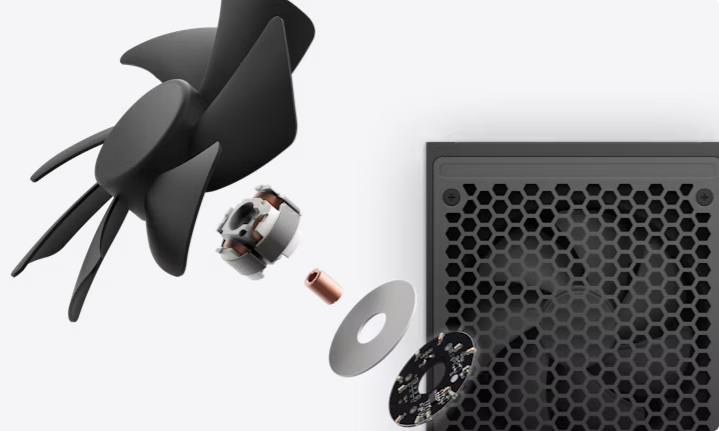

Magnetic Levitation Fan 140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.

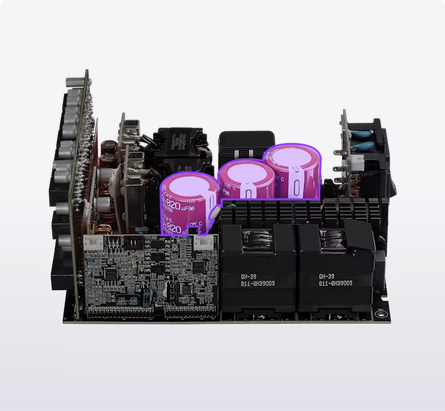

Built with Quality Constructed using all 105°C Japanese capacitors for unmatched reliability.

Tech Specs



Output Connectors

• 24-pin ATX Power Cable:1
• 4+4-pin CPU Power Cable:1
• 8-pin CPU Power Cable:1
• 6+2-pin PCIe Power Cable:6
• 16-pin (12+4) 12V-2x6 PCIe Cable:2
• SATA Cable:12
• Peripherals Cable:4



Cable Specs

• 24-pin ATX Power Cable:600mm with nylon sleeving
• 4+4-pin CPU Power Cable:700mm with nylon sleeving
• 8-pin CPU Power Cable:700mm with nylon sleeving
• 6+2-pin PCIe Power Cable:650mm with nylon sleeving
• 16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving
• SATA Cable:500 + 150 mm with nylon sleeving
• Peripherals Cable:500 + 150 mm with nylon sleeving



AC Input Rating

• 100 - 240Vac:15A-9A 50Hz-60Hz
• 200 - 240Vac:9A 50Hz-60Hz



DC Output Rating

• 3.3V / +5V:22A (120W)
• 12V:125A (1500W)
• 5Vsb:3A (15W)
• Total:1500W (115-240Vac) / 1300W (100-115Vac)

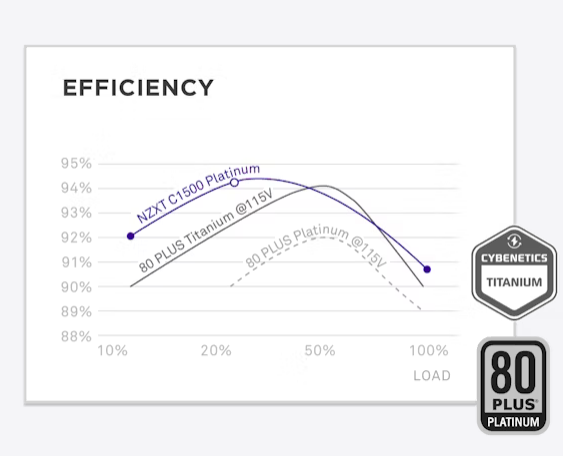

Energy Efficiency

• Rating:80 Plus Platinum
• 10% loading:92% @115Vac
• 20% loading:94% @115Vac
• 50% loading:93.8% @115Vac
• 100% loading:90.8% @115Vac



Electrical Features

• PF Correction:Active @0.99
• Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /



Fan Specs

• Dimensions:140 x 140 x 25 mm
• Speed:2500 ± 10% RPM
• Airflow:125 CFM (Tpy.)
• Noise:41.0 dBA max
• Bearing:Magnetic Levitation Bearing (ML)



Operation

• MTBF:100,000 hours
• Temperature:0 - 50 °C



Dimensions

• Width:5.91 in / 150 mm
• Height:3.39 in / 86 mm
• Depth:7.09 in / 180 mm



General

• Material(s):Steel, PCB and Plastic
• Compliance Standard:ATX12V v3.1 / EPS12V v2.92
• Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
