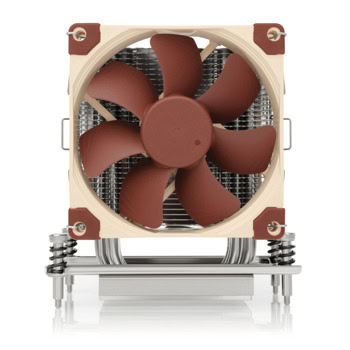

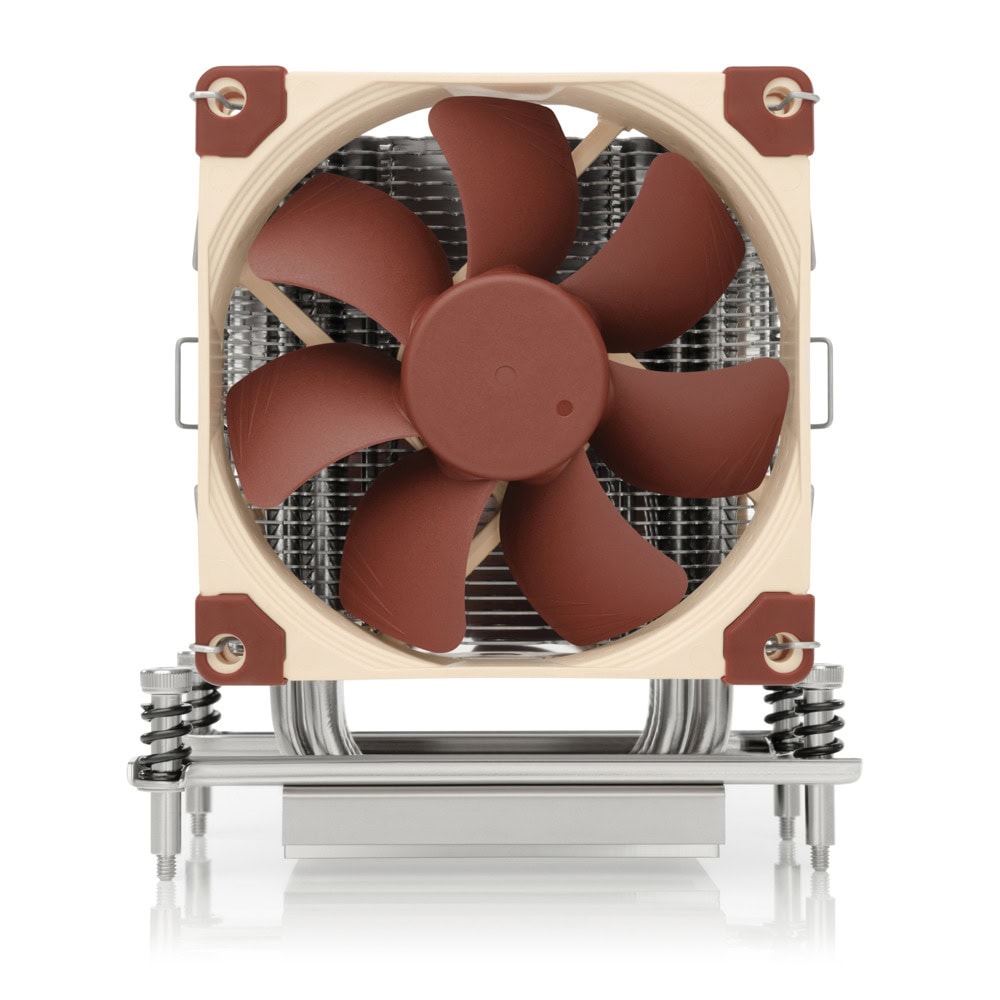

Охлаждане за процесор Noctua NH-U9 TR4-SP3, съвместимост с AMD TR4/SP3

General
Notes and warnings Please note that the NH-U9 TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Cooler Specification
Socket compatibility AMD TR4 & SP3

Height (without fan) 125 mm
Width (without fan) 95 mm
Depth (without fan) 71 mm

Height (with fan) 125 mm
Width (with fan) 95 mm
Depth (with fan) 120 mm

Weight (without fan) 660 g
Weight (with fan/s) 895 g

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Fan compatibility 2x 92x92x25mm

Scope of Delivery
2x NF-A9 PWM premium fan
2x Low-Noise Adaptor (L.N.A.)
Y-split cable
NT-H1 high-grade thermal compound
SecuFirm2™ mounting kit for TR4/SP3
Noctua metal case-badge

FAN Specification
Model Noctua NF-A9 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 2000 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1550 RPM
Min. Rotational Speed (PWM, +/-20%) 400 RPM
Max. Airflow 78,9 m³/h
Max. Airflow with L.N.A. 62,6 m³/h
Max. Acoustical Noise 22,8 dB(A)
Max. Acoustical Noise with L.N.A. 16,3 dB(A)
Input Power 1,2 W
Voltage Range 12 V
MTTF > 150.000 h

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
