Охлаждане за процесор Noctua NH-U14S TR4-SP3, съвместимост с AMD TR4/SP3

General
Notes and warnings Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Cooler Specification
Socket compatibility AMD TR4 & SP3

Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm

Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 78 mm

Weight (without fan) 865 g
Weight (with fan/s) 1030 g

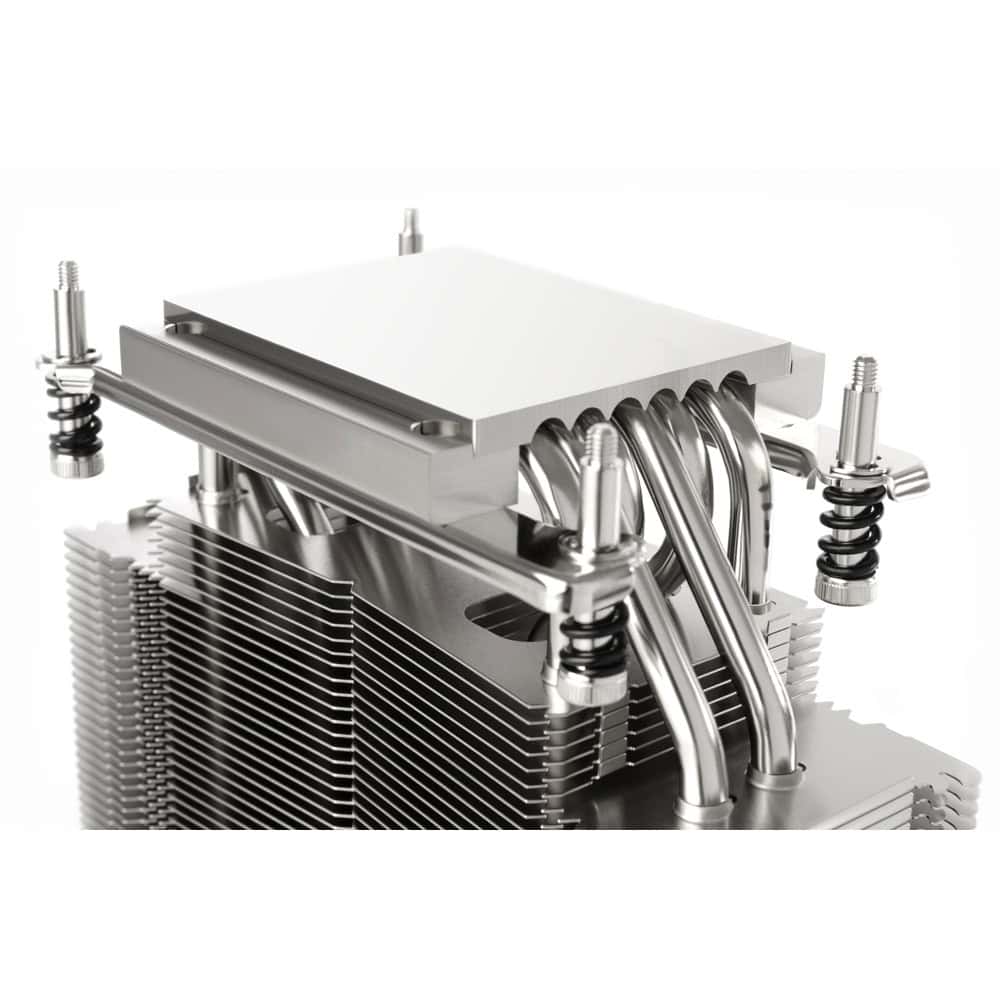

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP see TDP guide

Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of Delivery
NF-A15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ mounting kit
Anti-vibration pads and fan-clips for second NF-A15 (optional)
Noctua metal case-badge

FAN Specification

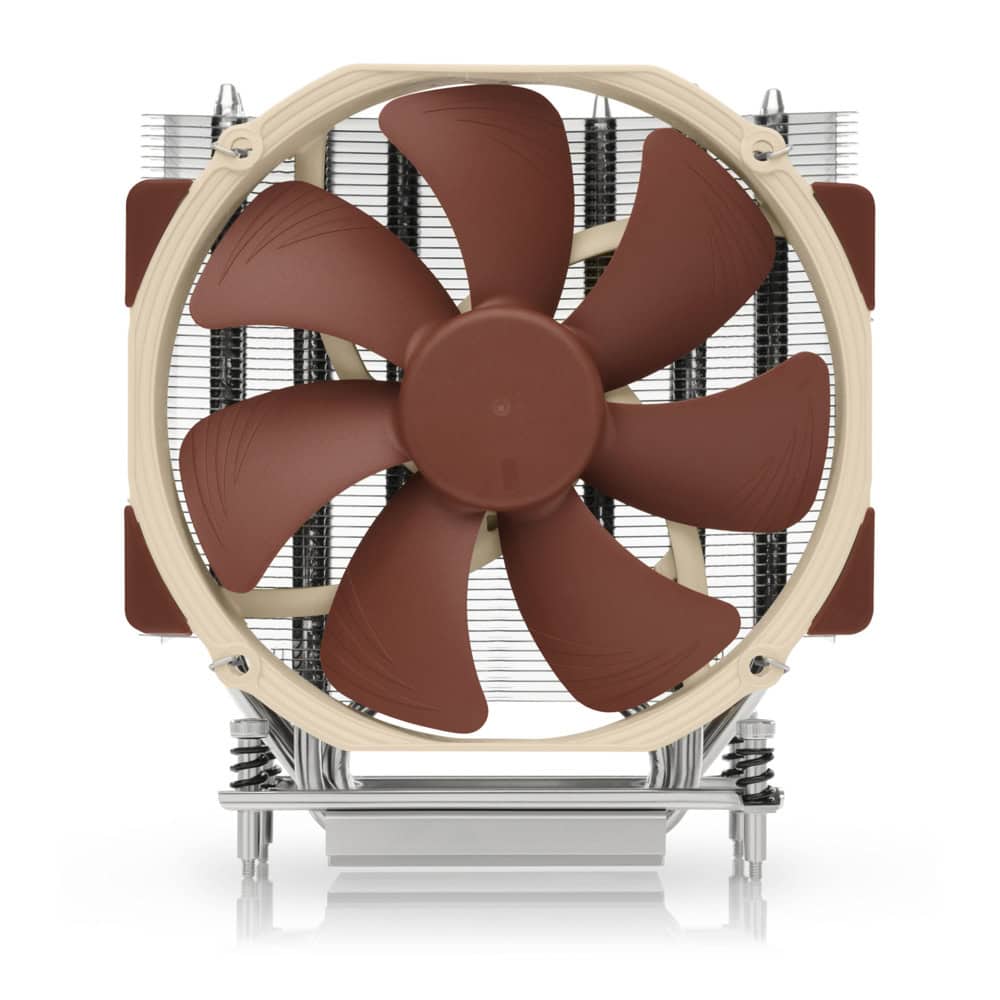

Model Noctua NF-A15 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 140,2 m³/h
Max. Airflow with L.N.A. 115,5 m³/h
Max. Acoustical Noise 24,6 dB(A)
Max. Acoustical Noise with L.N.A. 19,2 dB(A)
Input Power 1,56 W
Voltage Range 12 V
MTTF > 150.000 h
