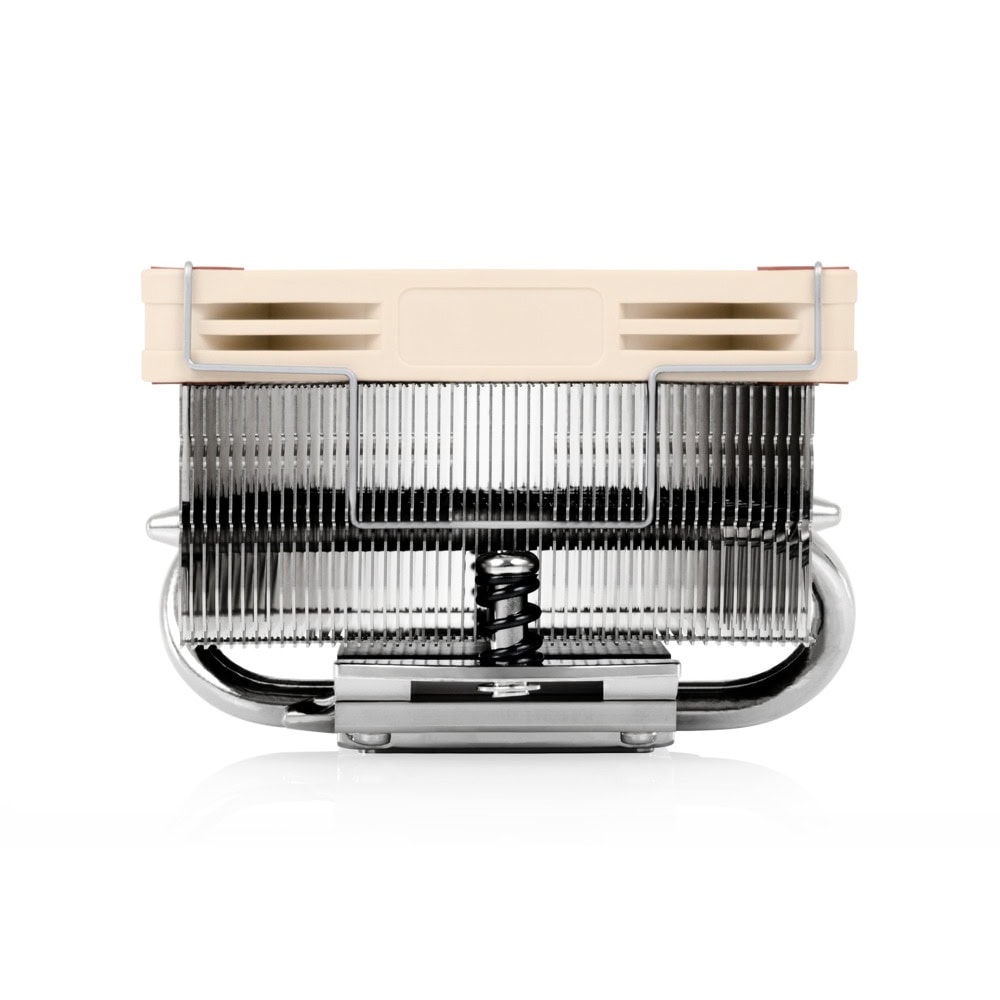

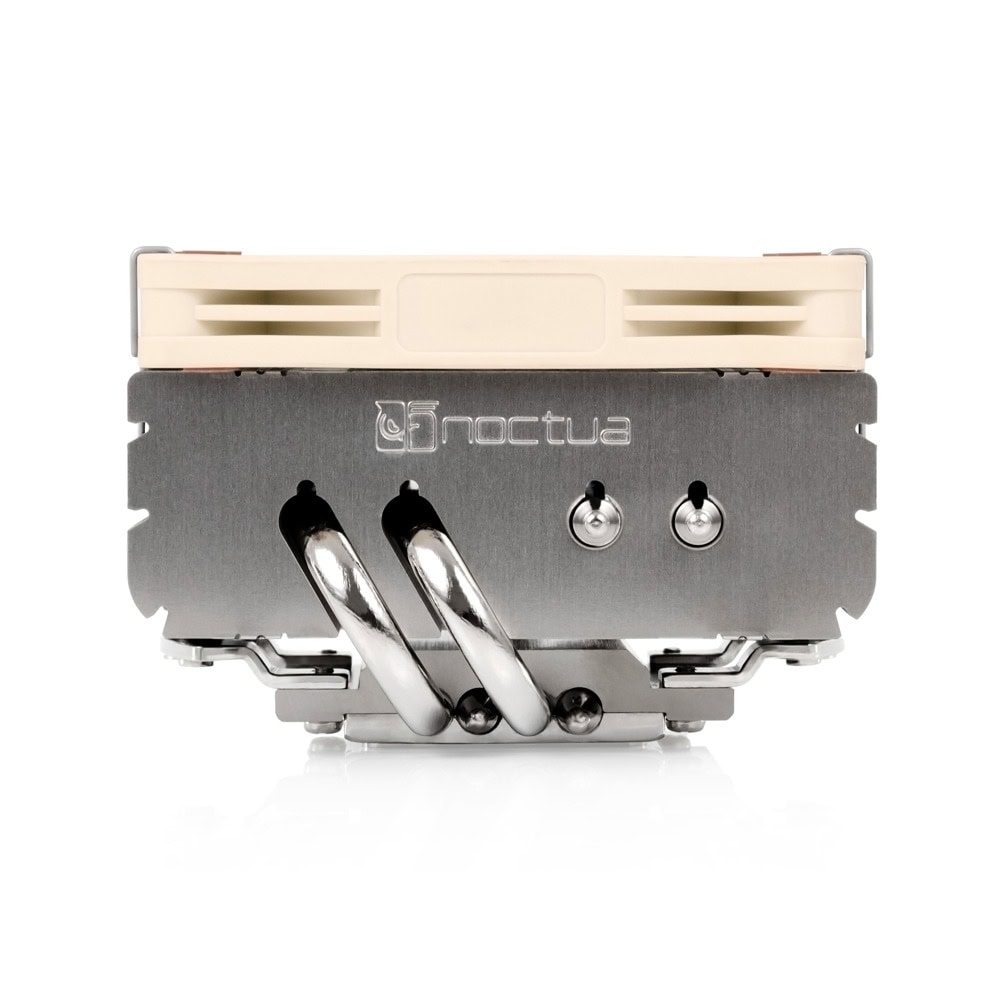

Noctua NH-L9x65
The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.
Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.
Noctua NH-L9x65:
Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
Height (without fan): 51 mm
Width (without fan): 95 mm
Depth (without fan): 95 mm
Height (with fan): 65 mm
Width (with fan): 95 mm
Depth (with fan): 95 mm
Weight (without fan): 340 g
Weight (with fan): 413 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP: see TDP guide
Fan compatibility: 92x92x14, 92x92x25
Scope of Delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
Fan specifications
Model: Noctua NF-A9x14 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1800 RPM
Min. Rotational Speed (PWM, +/-20%): 600 RPM
Max. Airflow: 57,5 m³/h
Max. Airflow with L.N.A.: 40,8 m³/h
Max. Acoustical Noise: 23,6 dB(A)
Max. Acoustical Noise with L.N.A.: 14,8 dB(A)
Input Power: 2,52 W
Voltage Range: 12 V
MTBF: > 150.000 h
Виж още Процесори Охладители Noctua
Виж всички Процесори Охладители в категорията
Noctua NH-L9x65
The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.
Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.
Noctua NH-L9x65:
Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
Height (without fan): 51 mm
Width (without fan): 95 mm
Depth (without fan): 95 mm
Height (with fan): 65 mm
Width (with fan): 95 mm
Depth (with fan): 95 mm
Weight (without fan): 340 g
Weight (with fan): 413 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP: see TDP guide
Fan compatibility: 92x92x14, 92x92x25
Scope of Delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
Fan specifications
Model: Noctua NF-A9x14 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1800 RPM
Min. Rotational Speed (PWM, +/-20%): 600 RPM
Max. Airflow: 57,5 m³/h
Max. Airflow with L.N.A.: 40,8 m³/h
Max. Acoustical Noise: 23,6 dB(A)
Max. Acoustical Noise with L.N.A.: 14,8 dB(A)
Input Power: 2,52 W
Voltage Range: 12 V
MTBF: > 150.000 h
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Процесори Охладители Noctua
Виж всички Процесори Охладители в категорията
Технически характеристики
Процесор сокет: | Intel / AMD |
---|---|
Водно охлаждане: | Не |
