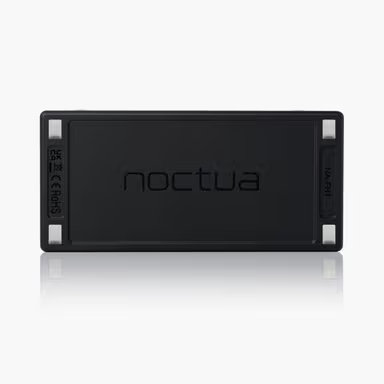

The NA-FH1 is a high-quality, smartly-protected 8 channel PWM fan hub that allows up to eight PWM fans to be run and controlled simultaneously via a single PWM motherboard fan header or stand-alone controllers such as the optional NA-FC1. Non-PWM fans can be controlled by adjusting the input voltage. Supporting both 12V and 5V fans with 4-pin PWM and 3-pin connectors, the NA-FH1 is highly flexible and suitable both for PC environments and other 12V- or 5V-based applications. It can be powered either via its S-ATA input (for 12V fans, up to 54W) or 4-pin PWM input (for 5V and 12V fans, up to 24W), both of which are protected against overcurrent with a self-resetting fuse for maximum safety even in case of short-circuits on the connected devices or cables. The two ports can also be used concurrently with the device, automatically taking power via S-ATA and exchanging RPM and PWM signals via the 4-pin interface. Status LEDs allow for easy monitoring and thanks to its magnetic fixture, installing the NA-FH1 inside a PC case or on any other steel surface is a breeze. Topped off with CE, UKCA and UL certifications, full compliance with all applicable safety standards as well as Noctua’s 6-year manufacturer’s warranty, the NA-FH1 is a safe, dependable premium choice for powering and controlling up to eight fans.
Specifications
Output connectors
8x 4-pin PWM
Input connectors
1x S-ATA (for 12V fans only), 1x 4-pin PWM
Max. power via S-ATA input
54 W
Max. power via 4-pin PWM input
24 W
Operating voltage
5-12 V
Operating temperature
-40°C to +60°C
Flammability class
UL-94 V-0
Safety standards
EN 62368-1, EN 55035, EN 55032, UL-507
Certifications
CE, UKCA, UL
Size
93x43x12.5 mm
Weight
31 g
Fan compatibility

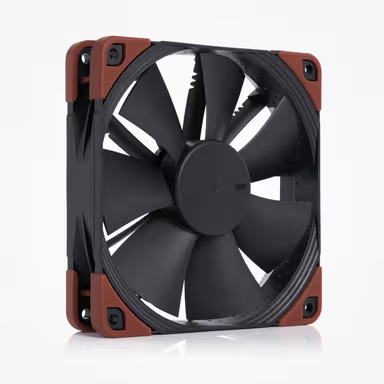

All Noctua 12V and 5V fans, many third party fans
Scope of delivery
- NA-FH1 fan hub
- NA-EC1 4-pin PWM input cable
