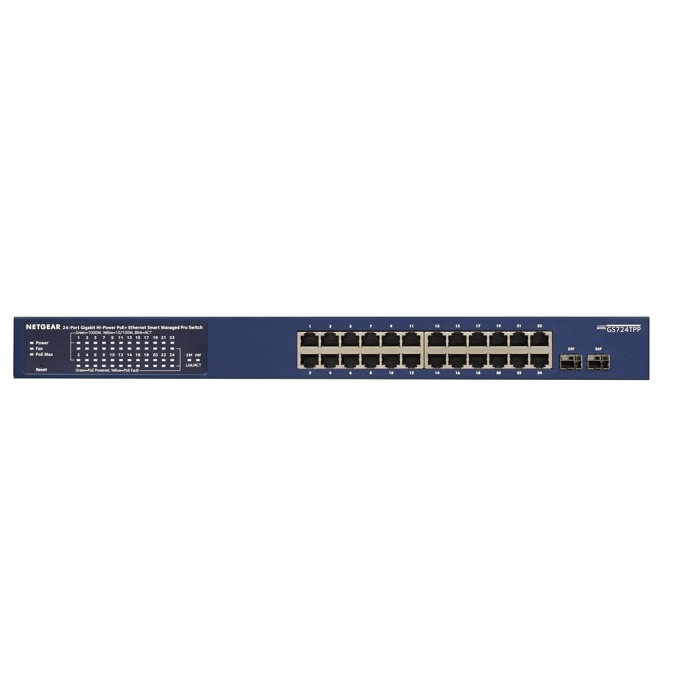

Суич Netgear GS724TPP-100EUS, 1000Mbps, 24x 10/100/1000Mbps RJ45, 24x PoE+, 2 SFP порта, static routing, IPv6, (stacking via AXC761), (Up to 384W)

Enhanced Scalability and Network Convergence for Growing Businesses

The Stackable Smart Managed Switch series is unique in delivering the scalability, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package. The second generation of these Stackable Smart Managed Switches consists of 4 models in 28/52-port configurations. Each switch in the series comes with a total of 6 SFP ports for fiber connectivity. Among them, 2 are shared, and the other 4 are dedicated for either stacking or uplinks. This new generation of Stackable Smart Managed Switches offers two models that support PoE+ (up to 30W per port) allowing more flexible network deployments of PoE devices. The Stackable Switch series offers the flexibility and scalability that will make it easier for growing businesses to seamlessly expand their network capacity.

Stacking for Scalability and High Availability

The new Generation of Stackable Smart Managed Switches use 2 dedicated ports in the front of the switch for stacking, providing a 10Gbps, dual-ring, highly redundant stacking bus that carries intra-stack traffic and provide highest level of resilience, allowing you to stack up to six switches or up to 300 10/100/1000 Mbps ports, forming a virtual chassis for easy management under a single IP address. This stacking technology also provides several high-availability features to ensure business continuity:

Resiliency: Due to redundant stacking port connections, there is an automatic fail-over in case any switch in the stack fails, with rapid reconfiguration, thus preventing network downtime.
Hot-swappable: All switches in the stack are hot-swappable, and can be integrated or removed without disrupting the network.

Full-featured, Flexible 802.3at Power over Ethernet (PoE+)

With a total power budget of 192 Watts for the GS728TPS and 384 Watts for the GS752TPS, customers can choose to connect up to 48 802.3at IP-based devices in their network. Power-over-Ethernet (PoE) helps you optimize the installation and power management of network devices such as wireless access points (AP), VoIP phones, and IP-based surveillance cameras, and free your network deployment from restrictions of power outlet proximity using a standard Cat 5 cable. The first 8 ports on GS728TPS and GS752TPS also support 802.3at PoE+, providing up to 30 Watts of power for high-powered PoE devices such as videophones, RFID readers, access control systems. The switches are equipped with auto power budgeting functions, allowing flexibility in power management. The switches can prioritize how power is allocated, monitor power consumption and get alerts when power usage reaches a certain threshold.

Advanced Quality of Service (QoS)

Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. Friendly to converged network with voice and video, the Stackable Smart Managed Switches offers Auto Voice and Auto Video features that automatically configures QoS, Security and VLAN settings for IP phones and IP cameras.

Manageability and Support

There are various easy and convenient ways to manage the Stackable Smart Managed Switch. The new Stackable Smart Managed Switches can be managed by the Smart Control Center software which comes free with the switch. With it, you can discover and manage all NETGEAR Smart Managed Switches from a central location, conduct mass configuration and firmware upgrade. If you have other NETGEAR business products in your network, you can also use the NMS200, NETGEAR’s management platform for discovery and configuration of all your Netgear products in the network. For the peace of mind, these Stackable Smart Managed Switches are backed by the NETGEAR ProSAFE® Lifetime Hardware Warranty and 1-year free 24x7 Advanced Technical Support*.

All Switches in the Stack are Hot-Swappable

These Stackable Smart Managed Switches come with a complete suite of advanced features for more robust security, higher quality of service and high availability. This switch is equipped with highly advanced features such as access control lists (ACL), static routing, rate limiting, IGMP snooping, and Dynamic VLAN assignment among others to provide a small and medium sized business with a network that is geared for growth while providing scalability and reliability.

Advanced Security

These switches also provide advanced features that provide more robust security to SMBs.

IPv6 Support

IGMP filtering and querier ensure multicast streams are only delivered to interested receivers, preventing flooding even without a dedicated multicast router. When receivers are in different VLANs, Multicast VLAN registration (MVR) uses a dedicated multicast VLAN to forward multicast streams and avoid duplication for clients in different VLANs.

Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
DHCP Client
Dynamic MAC address management
Static MAC
IEEE 802.1Q-based VLAN
Auto Voice VLAN
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 802.1p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS
DSCP Support
Rate Limiting (egress only)
Link Aggregation and LACP

Security
IEEE 802.1x (Guest VLAN, RADIUS-based VLAN assignment via .1x)
IEEE 802.1x port authentication
RADIUS accounting
MAC lockdown
MAC lockdown by number of MACs
Dynamic VLAN Assignment (600 dynamic learned entries per port, 20 static entries per port)
TACACS+
HTTPS /SSL version
TLS session
Private VLAN
Trusted MAC
IP-based, L4-based Access Control List (ACL)

Multicast Efficiency
IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping

Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 1,024 (Selected models)
Router discovery (IRDP)
Stacking with up to 6 units or 300 ports in a stack
10G stacking bandwidth

Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant
Power savings with short cable detection (GS752TXS only) and auto power-down when ports are in idle mode

Switch Management
Web browser-based GUI management
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
P-BRIDGE-MIB and Q-BRIDGE-MIB
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Gigabit ports
48
SFP ports
4 SFP: last two can be used for stacking (2.5G)
Number of PoE ports
48
PoE+ (802.3at)
8
Total PoE Power budget (Watts)
384W
Number of PD ports
N/A
Buffer size
2MB
Max MAC entries
16K
VLAN (# Supported)
256
Number of LAGs & # of members
8 LAGs & Max 8 members each
Number of priority queues
8
Max # of ports in a stack
6 units or 300 ports
Stacking bandwidth
10G
Internal/External
Internal 100-240VAC 50-60Hz
Max comsumption (Watts)
526.8W
FAN
2
Acoustic Noise Level @25C (dBA)
42.7
Operating Temperature
0° to 50° C
MTBF
206539.3 hrs
Weight (kg)
5.48kg
Dimensions (WxDxH) mm
440 x 310 x 43
Electromagnetic Compliance (A or B)
A
