Видео карта Nvidia GF RTX 4070 Ti, 12GB, MSI GAMING X TRIO, PCI-E 4.0, GDDR6X, 192-bit, DisplayPort, HDMI

GeForce RTX™ 4070 Ti GAMING X TRIO 12G

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA^® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2745 MHz (GAMING & SILENT Mode) / 21 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

TRI FROZR 3 Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Afterburner

• Take full control with the most recognized and widely used graphics card overclocking software in the world.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.





Strength and Artistry

MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.

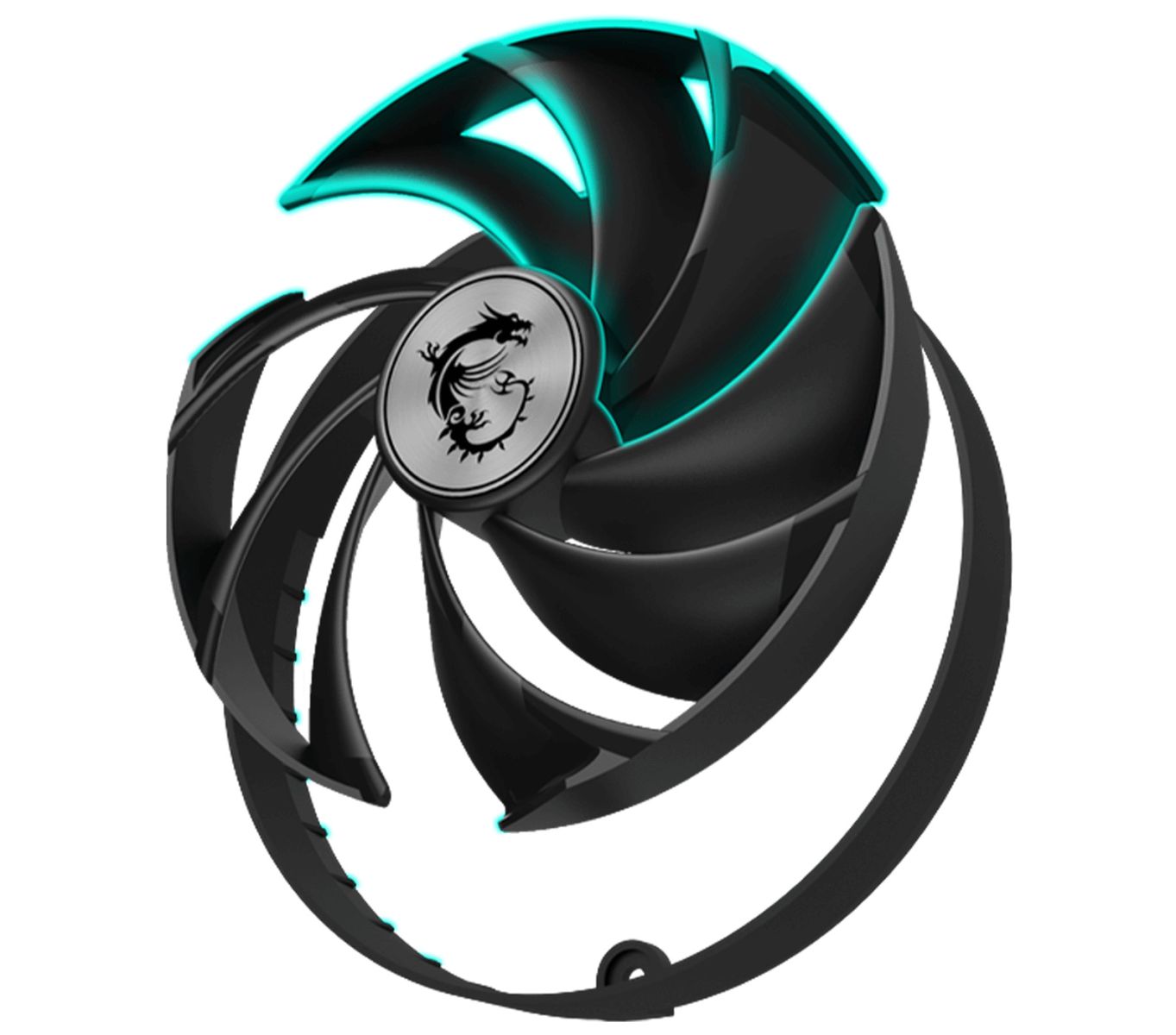

TORX FAN 5.0

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.





High-Efficiency Carbonyl Inductors (HCI) Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electrical filtering.
Change Focus When Needed Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Effective Thermal Padding An abundance of clay-based thermal pads provide additional heat dissipation for board components.

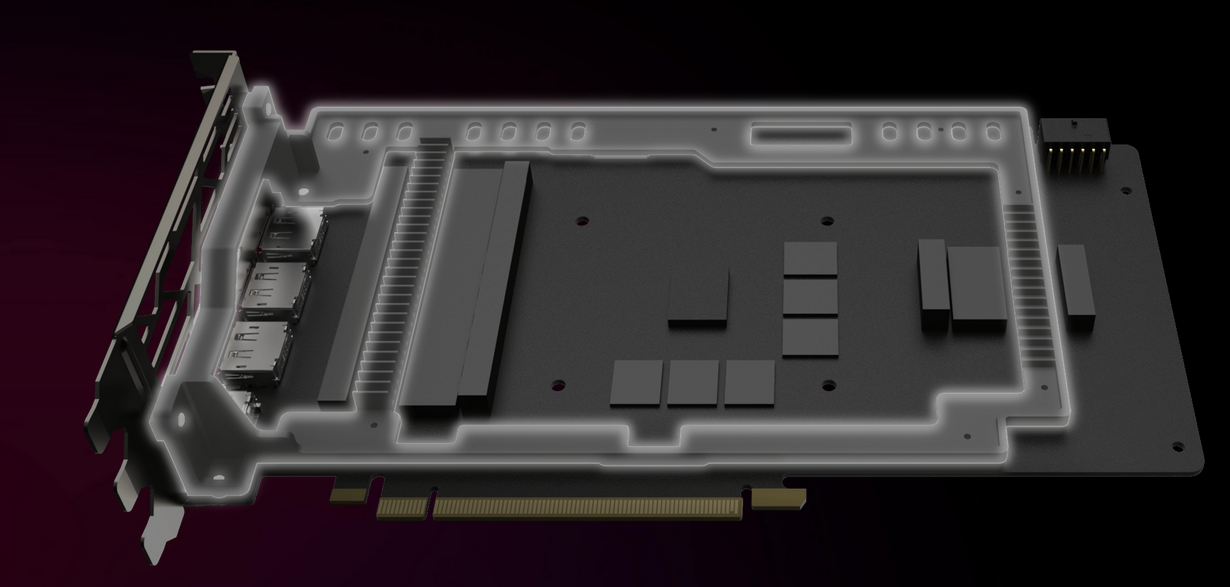

Hardened Defenses Additional fuses built into the custom PCB provide additional safeguards against electrical damage.





Relentless Defense

A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.



Specifications:

Graphics Processing Unit NVIDIA® GeForce RTX™ 4070 Ti
Interface PCI Express® Gen 4

Core Clocks
Extreme Performance: 2760 MHz (MSI Center)
Boost: 2745 MHz (GAMING & SILENT Mode) CUDA® CORES 7680 Units

Memory Speed 21 Gbps
Memory 12GB GDDR6X
Memory Bus 192-bit

Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI™ 2.1a)
HDCP Support Y
Power consumption 285 W
Power connectors 16-pin x 1
Recommended PSU TBD
Card Dimension (mm) 337 x 140 x 62 mm
Weight (Card / Package) 1613 g / 2522 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
