| Chipset | INTEL B760 |
|---|---|
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort |
| EXPANSION SLOT | 5x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C |
| LED FEATURE | 4x EZ Debug LED |

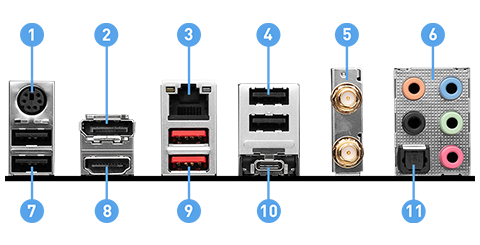

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | B760 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | ATX |
